Our color control systems provide a range of options, from simple color controllers to fully-customizable DMX lighting control
systems. These color control solutions allow you to create the right color mix and lighting effects. Our RGB color control systems
are ideal for simple location solutions while our DMX512 lighting systems controller small to large lighting installations in multiple
rooms or multiple zones. Let our color control systems bring your light to life.

DMX COLOR CONTROL LED LIGHTING SYSTEM RGB COLOR CONTROLLERS
DMX color control systems provide professional level LED
lighting control of a single location or multiple independent
areas. Compatabiltiy with RGB LED lighting or DMX wall
washers offer end-to-end solutions that make creating
limitless lighting solutions easy.
Our RGB color controllers create simple and easy to install, colorchanging lighting effects. Our 12V and 24V controllers offer preset color modes, custom color, and brightness control. Our controllers work with all of our RGB LED strip light, RGB sign modules, and RGB Light Bars for a broad range of lighting applications.
ADVANTAGES:
• Easy to install
• Simple to use
• Static color modes
• Preset color-changing patterns
ADVANTAGES:
• Easy to install
• Fully customized lighting
• Control multiple zones or rooms
• Limitless expendability
DMX COLOR CONTROLLERS and ACCESSORIES
BENEFITS TOUCHDIAL WIFI COLOR CONTROL SYSTEM DMX DECODER
with BUILT-IN LED DRIVER
CONTROLLERS ACCESSORIES ACCESSORY
KITS
RGB / RGBW COLOR CONTROLLERS and ACCESSORIES
RGB CONTROLLERS RGBW CONTROLLER

CLICK IMAGE for LARGER VIEW
DMX Benefits

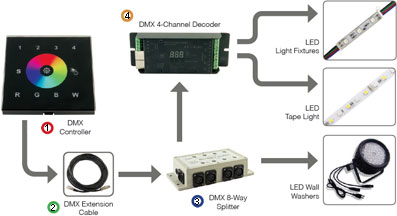

DMX Overveiw
1 - CONTROL
Our DMX color controls offer a wide range of options from pre-programmed control to fully-customized scenes. Control lighting from a wall-mount or surface mount touch-pad, WiFi control from a mobile device, or a free-standing DMX controller. Control a single zone or up to 20 zones independently from a single controller to create lighting effects in separate rooms, spaces within a room, or groups of lights producing independent effects.
2 - CONNECT
Directly connect DMX Controller to any of our DMX Wall Washers or other DMX fixtures spporting DMX512 for master control of simple color changes across all DMX fixtures, or streaming fully customized scenes independently on each fixture.
3 - EXPAND
Use our DMX 8-Way Splitter to expand the number of fixtures on one controller. Span distances of up to 1,000 feet wirelessly between DMX devices using our Wireless DMX Transmitter/Receivers or DMX Extension Cables for direct connectivity.
4 - TRANSLATE
Integrate single-color LED lights, RGB LED lights, and RGBW LED Lights into installations using our DMX 4-Channel Decoder to translate the DMX signal to PWM signal for a world of lighting control possibilities with Diode LED lighting.
INTRO to DMX from DIODE LED

CLICK IMAGE for LARGER VIEW

TOUCHDIAL WIFI COLOR CONTROL SYSTEM
Diode LED’s new TOUCHDIAL zone control system controls Single Color, K-RANGE, and RGB(W) low voltage luminaires via mobile device and additional TOUCHDIAL controls. This color control system is used for medium to large-scale lighting projects and can be expanded exponentially with the use of the TOUCHDIAL WiFi Hub. Now you can easily integrate into your existing WiFi network for ultimate lighting authority. This control system is expandable up to 8 zones when using the WiFi Mobile App, allowing zones to perform seamlessly in commercial or residential installations.
DI-RF-REC-CV-A DI-RF-REC-CV-SC DI-RF-REM-RGBW-4 DI-RF-REM-DIM-5 DI-WIFI-RF-TRMS
DI-RF-REC-CV-A DI-RF-REC-CV-SC DI-RF-REM-RGBW-4 DI-RF-REM-DIM-5 DI-WIFI-RF-TRMS
TouchDial
Receiver
TouchDial Mini
Receiver - White Light
4-Zone RGB / RGBW
Remote Control
5-Zone Remote Control
Dimmer
TouchDial
WiFi Hub
6.57" Long x 2.09" Wide
x 0.91" Height
3.74" Long x 1.46" Wide
x 0."78 Height
4.72" Long x 2.17" Wide
x 0.66" Height
5.91" Long x 1.52" Wide
x 0.47" Height
4.32" Long x 3.33 Wide
x 0.95 " Height
Our most sophisticated unit offers professional-grade DMX512 control in a user friendly-control pad.
Miniature Receiver for use with single color
applications.
Program lighting scenes from a computer to the independent free-standing controller.
Sophisticated and modern touch-sensative keypad selects mode, speed and dimming.
This simple and intuitive DMX controller commands up to four zones with WiFi connectivity to a mobile device.
CLICK for PDF SPECIFICATIONS: Specificaions
CLICK for PDF INSTALLATION INSTRUCTIONS:
PDF Installation Guide PDF Installation Guide PDF Installation Guide
FEATURES:
• For Medium and Large-Scale LED Lighting Installations CLICK for MOBILE
GUIDE
Click for the Diode LED TOUCHDIAL™ APP
Diode LED TouchDial - Apple App Store Diode LED TouchDial - Google Play Store
Apple iOS Android
• Integrates with Existing WiFi Network
• Supports IOS and Android Mobile Devices DI-WIFI-RF-TRMS PDF Specifications
• Control of Up To 8 Lighting Zones
$118.80 $64.80 $122.40 $122.40 $153.00

TOUCHDIAL WIFI COLOR CONTROL SYSTEM
DI-RF-REM-DIM-1 DI-RF-WPD-DIM-1 DI-RF-WPD-DIM-2 DI-RF-WMT-DIM DI-RF-WMT-RGBW DI-RF-REM-RGBW-1
DI-RF-REM-DIM-1 DI-RF-WPD-DIM-1 DI-RF-WPD-DIM-2 DI-RF-WMT-DIM DI-RF-WMT-RGBW DI-RF-REM-RGBW-1
TouchDial Mini-Remote Dimmer TouchDial Wall Paddle Dimmer ToucDial Dual Wall Paddle Dimmer ToucDial Wall Dimmer ToucDial Wall RGBW Control TouchDial Mini-Remote RGBW Control
1.5" Diameter
x 0.5" Height
3.38" Square
x 055" Height
3.38" Square
x 055" Height
2.59" Height
x 1.27" Wide
x 0.35" Depth
2.59" Height
x 1.27" Wide
x 0.35" Depth
2.16" Square
x 0.43" Depth
One button, single zone dimmer for use with single
color applications.
One button, single zone wall mounted dimmer for use
with single color applications
Two button, two zone wall mounted dimmer for use
with single color applications.
Single zone, hand held, and wall mounted dimmer
for use with single color applications.
Single zone, hand held, and wall mounted
color controller.
Single zone, hand held, or wall mounted
color controller.
CLICK for PDF SPECIFICATIONS: Specificaions
$37.80 $111.60 $122.40 $95.40 $104.40 $57.60
BACK to TOP

CLICK IMAGE for LARGER VIEW
DMX DECODER WITH BUILD-IN LED DRIVER

Residential and Commercial lighting has never been easier than before. The new DMX Driver combines the operations of a low voltage 24V Class 2 driver and a DMX Decoder into a single unit. UL listed for indoor usage, the 4 channel DMX 512 compatible driver meets commercial grade 24V Class 2 requirements for both Color Changing and Single Color applications.

DI-DMX-DCO-24V96W-277 SPECIFICATIONS
CLICK for PDF SPECIFICATIONS:
Specificaions

CLICK for PDF INSTALLATION GUIDE:
PDF Installation Guide
DI-DMX-DCO-24V96W-277
Input Voltage 120VAC / 277VAC
Output Voltage 24VDC
Wattage 80W (120VAC) / 96W (277VAC)
Max. Run 10 Units
Environment Indoor / Dry Location / IP20
Certification UL Component Recognized/Listed
Warranty 5-Year Warran
9" Long x 2.52" Wide x 1.25" Height.
$178.20
BACK to TOP

CLICK IMAGE for LARGER VIEW
DMX COLOR CONTROLLERS AND ACCESSORIES
DI-DMX-ST1 DI-DMX-ESA DI-DMX-WIFI-WMUS-3Z-WH DI-DMX-GA2
DI-DMX-ST1 DI-DMX-ESZ DI-DMX-WIFI-WMUS-32-WH DI-DMX-GA2
Nicolaudie STICK 1
Wall Mount
DMX LED Controller
Nicolaudie Easy
Stand-Alone
DMX LED Controller
Nicolaudie STICK 2
Wall Mount
DMX LED Controller
Nicolaudie STICK-GA2
Wall Mount
DMX LED Controller
5.6" Long x 5.0" Wide
x 0.5" Height
5.6" Long x 5.0" Wide
x 0.5" Height
3.55" Long x 3.5" Wide
x 0.5" Height
3.39" Long x 1.22" Wide
x 3.39" Height
Our most sophisticated unit offers professional-grade DMX512 control in a user friendly-control pad.
Program lighting scenes from a computer to the independent free-standing controller.
The DMX Wall Mount Controller provides professional-level control for color-changing RGB and RGBW LED lighting in one or multiple independent areas.
The sleek, attractive, touch-sensitive surface lets you control and dim color-changing lights, as well as dim single color LED lights.
CLICK for PDF SPECIFICATIONS:
DI-DMX-ST1  PDF Specifications DI-DMX-ESZ PDF Specifications DI-DMX-WIFI-WMUS-32-WH PDF Specifications
FEATURES:
• Touch-Sensative Wall-Mount Control Panel
• DMX512 System
• Up to 200 Light Scenes
• Expandable Memory
• Independent Stand-Alone
• DMX512 Controller
• Up to 20 Light Scenes
• Live Control
• IOS and Android Compatible
• Glass Touch Surface
• DMX512 Output
• 3 Zones
• Fits Standard North American Size Junction Box
• DMX Controller
• Easy yo Use
• Touch-Swnsitive Pad
• Fits in a Single Gang Box
INCLUDES:
• Wall Mount Controller
• Software for MAC / PC
• 9V DC Driver
• Mini USB to USB Cable
• SQUARE-PRO Junction Box
• RJ45 Splice Cable
• RJ45 Coupler
• SD Memory Card
• Free-Standing Controller
• Software for MAC / PC
• 5V DC Plug-In Adapter
• Mini USB to USB Cable
• RJ45 Splice Cable (DI-1805)
• RJ45 Coupler (DI-1807)

$1188.00 $433.75 $180.00 $630.00
BACK to TOP

CLICK IMAGE for LARGER VIEW
DMX ACCESSORIES
DI-1918 DI-1809 DI-0820 / DI-0821 DI-1804 DI-1803
DI-1918 DI-1809 DI-1820, DI-1821 DI-1804 DI-1803
DMX 4-Channel
Decoder
20' DMX XLR-3
Extension Cable
Wireless DMX
Transmitter / Receiver
Female / Male
DMX 8-Way
Splitter
DMX XLR-3
Connector Pair
To be paired with a DMX controller to control solid-color, RGB and RGBW LED fixtures. Features a digital display for easy addressing
and RJ45 ports for direct RJ45 cable connection.
Includes an XLR-3 to RJ45 Adapter Cable pair for converting to an XLR-3 connection.
Creates and extension between DMX fixyures and accessories. Features XLR-3 connections.
Wirelessly connects DMX devices:
• Fixture to controller
• Decoder to decoder
Features XLR-3 connections.
Amplifies and splits a DMX signal up to 8 ways. Features one male XLR-3 input connection, and eight female XLR-3 output connections.
Utilize this connector pair to create custom length
DMX extensions. Sold by the pair (male/female).
$996.60 $28.80 $142.20 / $142.20 $132.30 $6.30
BACK to TOP

CLICK IMAGE for LARGER VIEW
DMX ACCESSORIES
DI-1807 DI-1805 DI-1811 DI-1806 DI-1808-K DI-1911
DI-1807 DI-1805 DI-0811 DI-1806 DI-1808-K DI-1911
RJ45 Coupler RJ45 Splice Cable WLR-3 to RJ45
Adapter Cable Pair
XLR-3 to RJ45
Adapter Connector Pair
SQUARE-PRO
Junction Box
RJ45 Cable
Extension
Female-to-female accessory quickly connects two RJ45 accessories.
Lead wires connect to wall-mount DMX controllers while RJ45 plug connects to DMX accessories
Extension adapter connects DMX controllers with XLR-3 fixtures. Sold by the pair (male ' female).
Quickly converts RJ45 data cables to XLR-3 DMX
connections. Sold by the pair (male/female).
Creates a clean in-wall installation for the:
• DMX WiFi Wall Mount Zone LED Controller
• Nicolaudie STICK 1 Controller
• Nicolaudie STICK 2 Controller
Features 0.5 in. and 0.75 in. knockouts.
Creates a 10' extension between DMX fixtures and accessories with RJ45 connections.
$1.80 $6.30 $28.80 $30.60 $12.50 $9.90
BACK to TOP

CLICK IMAGE for LARGER VIEW
DMX ACCESSORY KITS
DI-1916 DI-1914 DI-1915
DI-1916 DI-1914 DI-1915
DMX 8-Way Splitter
Kit
DMX Wall Washer Starter
Kit
DMX Wireless Transmitter / Receiver
Kit
Expansion package for mid-sized to large DMX lighting
installations.
Includes:
• DMX 8-Way Splitter
• 12V 12 Watt Power Supply
• Male DC Splice Cable
For use with a DMX Controller and two DMX wall washers,
this kit supplies all the extensions needed for a basic wall
washer installation.
Includes:
• XLR-3 to RJ45 Adapter Cable Pair
• 20 ft. DMX XLR-3 Extension Cable
• 10 ft. RJ45 Cable
For use with a DMX Controller and two DMX wall washers,
this kit supplies all the accessories needed for a basic
wireless wall washer installation.
Includes:
• XLR-3 to RJ45 Adapter Cable Pair
• Pair of Wireless DMX Transmitter/Receivers
• 10 ft. RJ45 Cable
$158.80 $104.60 $326.60
BACK to TOP

CLICK IMAGE for LARGER VIEW
RGB and RGBW COLOR CONTROLLERS
DI-0761 DI-ATT-RGBW-REM DI-1700 / DI-1701 DI-RGBW-CON-REC /
DI-RGBW-CON-REM
DI-1702
DI-0761 DI-ATT-RGBW-REM DI-1700, DI-1701 DI-RGBW-CON-REC / DI-RGBW-CON-REM DI-1702
RGB Wall Mount
Color Controller
ATTRIBUTE
RGBW Inline
Color Controller
RGB Zone
Control System
Receiver / Remote
RGBW Zone
Control System
Receiver / Remote
RGB WiFi LED
Controller and Dimmer
The Wall Mount RGB Color Controller is a centrally located control unit with a remote for controlling 12V or 24V RGB LED color-changing lights. Batteries included.
Features:
• RGB receiver
• Wall mounted transmitter
• RF remote control
• Preset modes

The ATTRIBUTE™ Color Controller for RGB and RGB(W) LED lighting is affordable, flexible, and easy to install. This single zone control system makes adding color to any environment effortless. Use the color wheel on the Radio Frequency (RF) remote control to pick the perfect color or choose 1 of the 10 dynamic color modes available through the remote. No need of a computer and no complex programming. ATTRIBUTE takes the complexity out of color control and is exclusive to Diode LED.

The RGB Zone Control System can control up to 10 RGB Zone Receivers independently. Use with 12V or 24V RGB LED colorchanging lights.
Features:
• RGB zone receiver
• RF zone remote control
• Control over up to 10
receivers with one remote
• Color wheel picker
• Preset modes
• USB rechargable RF
remote control
• Remote range up to 90 ft
The DAZZLE™ RGBW Zone Color Control System controls up to 8 independent zones of DAZZLE 24™ 24V RGBW Tape Light.
Features:
• RGBW zone receiver
• Control up to 8 receivers with one remote
• Color wheel picker
• Up to 8 custom modes
• USB rechargable RF
remote control
• Remote range up to 99 ft
The RGB WiFi LED Controller & Dimmer puts the dimming and RGB color control of LED lights into a mobile device. Use
Apple or Android mobile device applications to interact with the controller via its own WiFi network.
Features:
• WiFi receiver
• Free Android and Apple
mobile device applications
• Use with 12V & 24V white
light, RGB light, & K-RANGE
• Up to 8 custom modes
• USB rechargable RF remote control
• WiFi range up to 328 ft.
$92.40 $72.00 $158.00 / $252.00 $182.00 / $274.00 $322.00
BACK to TOP

Thank You for visiting ILLUMENATE.COM
ILLUMENATE and NORTH COAST LIGHTING OUTLET are Registered Trademarks of Dynamic Lighting Sales Incorporated
Copyright © 1998 - 2018 Dynamic Lighting Sales Incorporated dba/ North Coast Lighting Outlet. All rights reserved
