Diode LED Dimmable LEDs
Engineered and Designed in the U.S.A.
The FENCER fixture represents a new generation of under cabinet lighting for kitchens and task lighting. This high quality, ultra bright fixture connects directly to 120V AC electrical currents and is compatible with select wall dimmers (see specifications). The 8”, 12”, 18”, 24”, and 32” length options can be linked seamlessly together or configured with extension cables for a completely customizable installation. With dimmability, style, and accommodating length options, the FENCER Series is one of the most versatile direct-line under cabinet LED light fixtures on the market. Now available in 98 CRI Model and 98 CRI Premium Diffuser Model which Eliminaets Hot Spots.
Saber
SABER™ : The traditional wide design is equipped with a single On/Off switch per fixture.
Each SABER Fixture comes with:
• Multiple knockouts for Non-Metallic Building Wire w/ 1 - Connectot
• Linkable End-To-End Connector
• Captive screws for mounting with Screw Covers
• Available in White or Bronze
Installation Note: The SABER Fixture can be hard-wired
through integrated knockouts.
Foil

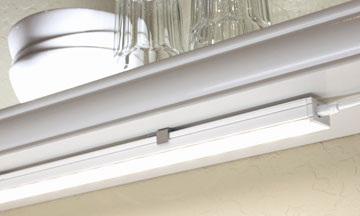

FOIL™ : A compact and modern design with an optional
accessory junction box featuring an On/Off switch.
Each FOIL Fixture comes with:
• 72" Direct Connect Power Cord
• 2x mounting clips (with 90º adjustibility)
• Linkable End-To-End Connector
• Available in White
Installation Note: Power cable not included. See product
accessories for the appropriate power connection.
Click Button for PDF Installation Guide PDF Installation Guide
Click Button for FENCER SABER PREMIOM DIFFUSION LED PDF Specifications FENCER PD LED PDF Specifications
Click Button for FENCER SABER LED PDF Specifications FENCER LED PDF Specifications

SABER FOIL SABER and FOIL
FIXTURE ACCESSORIES
ALL DIMENSIONS in INCHES
SABER
DI-1302-8-WH-30  DI-1302-8-BZ-30  DI-1302-12-WH-30  DI-1302-12-BZ-30  DI-1302-18-WH-30  DI-1302-18-BZ-30  DI-1302-24-WH-30  DI-1302-24-BZ-30  DI-1302-32-WH-30  DI-1302-32-BZ-30
CLICK IMAGE BELOW for LARGER VIEW
DI-1302-8-WH-30  DI-1302-8-BZ-30  DI-1302-12-WH-30  DI-1302-12-BZ-30  DI-1302-18-WH-30  DI-1302-18-BZ-30  DI-1302-24-WH-30  DI-1302-24-BZ-30  DI-1302-32-WH-30  DI-1302-32-BZ-30
DI-1302-8-WH-30  DI-1302-8-BZ-30  DI-1302-12-WH-30  DI-1302-12-BZ-30  DI-1302-18-WH-30  DI-1302-18-BZ-30  DI-1302-24-WH-30  DI-1302-24-BZ-30  DI-1302-32-WH-30  DI-1302-32-BZ-30
SABER™ : The traditional wide design is equipped with a single On/Off switch per fixture. Each SABER Fixture comes with:
• Multiple knockouts for Non-Metallic Building Wire w/ 1 - Connectot
• Linkable End-To-End Connector
• Captive screws for mounting with Screw Covers
• Available in White or Bronze
• Input Voltage: 120V AC • Dimmable: With compatible forward phase and reverse phase dimmers
• Color Temeperature: 3000K - Warm White • Color Rendering Index (CRI): 98 or 82 - Limited Availability
• Premium Diffuser Eliminates Hot Spots - CRI: 98
• Maximum Run: 40 Fixtures • Rated Lamp Life: 50,000 hours
• LED Chip Type: Osram Sylvania • LED Spacing: 1.5" between centers
Click for Compatible Dimmers Compatible Dimmers
FENCER SABER OCCUPANCY SENSOR
DI-120V-SABER-MS-WH  DI-120V-SABER-MS-BZ
Save energy usage with your FENCER Series SABER™ Under Cabinet Fixtures with this advanced occupancy sensor from Diode LED. The sensor is sensitive to heat emitted by the human body and tracks the source of heat from one zone of detection to another to activate the On/Off switch inside.
DI-120V-SABER-MS-WH White $90.00
DI-120V-SABER-MS-BZ Bronze $90.00
SABER Occupancy Sensor Specifications
CLICK for PDF Instructions
PDF Installation Guide
PREMIUM DIFFUSER / 98 CRI MODEL
FENCER® SABER™ Premium Diffusion Under Cabinet LED Fixtures provide exceptional color rendering and evenly distributed light in an easy-to-install direct wire fixture. The premium diffusion lens was designed to eliminate hot spots from the LED chips and creates an even light output on high-gloss finishes like glass, mirrors, and granite. At 98 CRI, colors pop, textures stand out, and finishes have depth and luster. FENCER SABER fixtures provide bright, even light output up to 100 feet. Available in 2700K or 3000K warm white light color or 3500K, slightly cooler light color and choice of two finishes.
ITEM FINISH Length x Width
x Height
Color
Temperature
LUMENS POWER
CONSUMPTION
# OF
LEDS
PRICE
DI-120V-SABER-PD27-8-WH-V2 White 8.21 x 3.62
x 0.96
2700K 278 5.3W 12 $59.40
DI-120V-SABER-PD27-8-BZ-V2 Bronze
DI-120V-SABER-PD27-16--V2 White 16.03 x 3.62
x 0.96
2700K 620 9.6W 24 $68.40
DI-120V-SABER-PD27-16-BZ-V2 Bronze
DI-120V-SABER-PD27-24-WH-V2 White 23.85 x 3.62
x 0.96
2700K 844 13.5W 36 $81.00
DI-120V-SABER-PD27-24-BZ-V2 Bronze
DI-120V-SABER-PD27-32-WH-V2 White 31.67 x 3.62
x 0.96
2700K 1305 17.4W 48 $91.80
DI-120V-SABER-PD27-32-BZ-V2 Bronze
DI-120V-SABER-PD30-8-WH-V2 White 8.21 x 3.62
x 0.96
3000K 278 5.3W 12 $59.40
DI-120V-SABER-PD30-8-BZ-V2 Bronze
DI-120V-SABER-PD30-16-WH-V2 White 16.03 x 3.62
x 0.96
3000K 620 9.6W 24 $68.40
DI-120V-SABER-PD30-16-BZ-V2 Bronze
DI-120V-SABER-PD30-24-WH-V2 White 23.85 x 3.62
x 0.96
3000K 844 13.5W 36 $81.00
DI-120V-SABER-PD30-24-BZ-V2 Bronze
DI-120V-SABER-PD30-32-WH-V2 White 31.67 x 3.62
x 0.96
3000K 1305 17.4W 48 $91.80
DI-120V-SABER-PD30-32-BZ-V2 Bronze
DI-120V-SABER-PD35-8-WH-V2 White 8.21 x 3.62
x 0.96
3500K* 253 5.3W 12 $59.40
DI-120V-SABER-PD35-8-BZ-V2 Bronze
DI-120V-SABER-PD35-16-WH-V2 White 16.03 x 3.62
x 0.96
3500K* 493 9.6W 24 $68.40
DI-120V-SABER-PD35-16-BZ Bronze
DI-120V-SABER-PD35-24-WH-V2 White 23.85 x 3.62
x 0.96
3500K* 783 13.5W 36 $81.00
DI-120V-SABER-PD35-24-BZ-V2 Bronze
DI-120V-SABER-PD35-32-WH-V2 White 31.67 x 3.62
x 0.96
3500K* 1057 17.4W 48 $91.80
DI-120V-SABER-PD35-32-BZ-V2 Bronze
ETL California Title 24 Energy Star
ETL CERTIFIED CALIFORNIA TITLE 24 ENERGY STAR
BACK to TOP

Foil 2
DI-1303-8-WH-30  DI-1303-8-SV-30  DI-1303-12-WH-30  DI-1303-12-SV-30  DI-1303-24-WH-30  DI-1303-24-SV-30  DI-1303-32-WH-30  DI-1303-32-SV-30
CLICK IMAGE BELOW for LARGER VIEW
DI-1303-8-WH-30  DI-1303-8-SV-30  DI-1303-12-WH-30  DI-1303-12-SV-30  DI-1303-24-WH-30  DI-1303-24-SV-30  DI-1303-32-WH-30  DI-1303-32-SV-30
FOIL™ : A compact and modern design with an optional
accessory junction box featuring an On/Off switch.
Each FOIL Fixture comes with:
• 72" Direct Connect Power Cord
• 2x mounting clips (with 90º adjustibility)
• Linkable End-To-End Connector
• Available in White
• Input Voltage: 120V AC • Dimmable: With compatible forward phase and reverse phase dimmers
• Color Temeperature: 3000K - Warm White • Color Rendering Index (CRI): 80
• Maximum Run: 40 Fixtures • Rated Lamp Life: 50,000 hours
• LED Chip Type: Osram Sylvania • LED Spacing: 1.5" between centers
Click for Compatible Dimmers Compatible Dimmers
PREMIUM DIFFUSER / 98 CRI MODEL
FENCER® FOIL™ Premium Diffusion Under Cabinet LED Fixtures provide exceptional color rendering and evenly distributed light in an easy-to-install direct wire fixture. The premium diffusion lens was designed to eliminate hot spots from the LED chips and creates an even light output on high-gloss finishes like glass, mirrors, and granite. At 98 CRI, colors pop, textures stand out, and finishes have depth and luster. FENCER FOIL fixtures provide bright, even light output up to 100 feet. Available in 2700K or 3000K warm white light color or 3500K, slightly cooler light color and choice of two finishes.
ITEM FINISH Length x Width
x Height
Color
Temperature
LUMENS POWER
CONSUMPTION
# OF
LEDS
PRICE
DI-120V-FOIL-PD27-12-WH White 12.31 x 1.09
x 0.97
2700K 554 5.3W 12 $75.60
DI-120V-FOIL-PD27-12-BZ Bronze
DI-120V-FOIL-PD27-18-WH White 18.31 x 1.09
x 0.97
2700K 718 9.6W 24 $86.40
DI-120V-FOIL-PD27-18-BZ Bronze
DI-120V-FOIL-PD27-24-WH White 24.31 x 1.09
x 0.97
2700K 1037 13.5W 36 $102.60
DI-120V-FOIL-PD27-24-BZ Bronze
DI-120V-FOIL-PD27-32-WH White 32.81 x 1.09
x 0.97
2700K 1225 17.4W 48 $117.00
DI-120V-FOIL-PD27-32-BZ Bronze
DI-120V-FOIL-PD30-12-WH White 12.31 x 1.09
x 0.97
3000K 554 5.3W 12 $75.60
DI-120V-FOIL-PD30-12-BZ Bronze
DI-120V-FOIL-PD30-18-WH White 18.31 x 1.09
x 0.97
3000K 718 9.6W 24 $86.40
DI-120V-FOIL-PD30-18-BZ Bronze
DI-120V-FOIL-PD30-24-WH White 24.31 x 1.09
x 0.97
3000K 1037 13.5W 36 $102.60
DI-120V-FOIL-PD30-24-BZ Bronze
DI-120V-FOIL-PD30-32-WH White 32.81 x 1.09
x 0.97
3000K 1225 17.4W 48 $117.00
DI-120V-FOIL-PD30-32-BZ Bronze
DI-120V-FOIL-PD35-12-WH White 12.31 x 1.09
x 0.97
3500K 554 5.3W 12 $75.60
DI-120V-FOIL-PD35-12-BZ Bronze
DI-120V-FOIL-PD35-18-WH White 18.31 x 1.09
x 0.97
3500K 718 9.6W 24 $86.40
DI-120V-FOIL-PD35-18-BZ Bronze
DI-120V-FOIL-PD35-24-WH White 24.31 x 1.09
x 0.97
3500K 1037 13.5W 36 $102.60
DI-120V-FOIL-PD35-24-BZ Bronze
DI-120V-FOIL-PD35-32-WH White 32.81 x 1.09
x 0.97
3500K 1225 17.4W 48 $117.00
DI-120V-FOIL-PD35-32-BZ Bronze
DI-120V-FOIL-PD40-12-WH White 12.31 x 1.09
x 0.97
4000K 554 5.3W 12 $75.60
DI-120V-FOIL-PD40-12-BZ Bronze
DI-120V-FOIL-PD40-18-WH White 18.31 x 1.09
x 0.97
4000K 718 9.6W 24 $86.40
DI-120V-FOIL-PD40-18-BZ Bronze
DI-120V-FOIL-PD40-24-WH White 24.31 x 1.09
x 0.97
4000K 1037 13.5W 36 $102.60
DI-120V-FOIL-PD40-24-BZ Bronze
DI-120V-FOIL-PD40-32-WH White 32.81 x 1.09
x 0.97
4000K 1225 17.4W 48 $117.00
DI-120V-FOIL-PD40-32-BZ Bronze
ETL California Title 24 Energy Star
ETL CERTIFIED CALIFORNIA TITLE 24 ENERGY STAR
BACK to TOP

CLICK IMAGE for LARGER VIEW
SABER AND FOIL FIXTURE ACCESSORIES
DI-1305 DI-1306 DI-13xx DI-1311 DI-1312
DI-1305 DI-1306 DI-0270 DI-1311 DI-1312
Junction Box
with On / Off Switch
End-To-End
Connector
Extension
Cable
72" Power Cable
with AC Plug
72" Power Cable with Hard Wire Connection
In configuration with the FOIL Fixtures, the Junction Box can act as a direct line hub as well as offering a built-in On/Off switch for your installation. Hard-wire only.
Seamlessly connects two sections of any length fixture together.
Perfect for jumping around gaps and obstructions in the installation or
negotiating angles of any degree.
Connects any 2 Bar-120V AC Plug-to-fixture connector cable-Bar extension cables.
120V AC Splice-to-fixture connector cable.
White White or Black White or Black White or Black White
6.25” x 3.62” x 0.96” 0.8” x 0.67” x 0.44” x” x 0.66” x 0.42” 72“ x 0.66” x 0.42” 72“ x 0.66” x 0.42”
$35.91 $9.00
DI-1307 6"
$9.00
DI-1308 12"
10.80
DI-1309 24"
$12.60
DI-1310 72"
$16.20
$16.20 $12.60
