Diode LED Dimmable LEDs
Engineered and Designed in the U.S.A.

K-Range Tunable Strip Light gives you total control over the white color temperature of your LED lighting. With the K-Range Dual Slide Switch you can choose the exact shade of white light for your LED lighting, as well as dim your lights from 100% to 5%. This strip light enables you to set up dimmable, color-temperature-controlled white LED lights.

The K-Range Tunable Strip Light offers full tuning of color temperature, from warm white (2700k) to cool white (5500k) with every color temperature in between. This strip uses a mix of warm white, neutral white, and cool white luminaires, which the K-Range Dual Slide Switch dims and brightens to allow you to smoothly and easily transition between color temperatures. After choosing the right color temperature, lock it in with the toggle on the switch.

K-Range Tunable Strip Light comes in one foot sections, and a maximum of 10 one-foot strip sections can be seamlessly connected together in a continuous sequence. Runs longer than 10 feet can be configured, but each 10 foot section needs to be hard-wired back to the power supply. These additional accessories are essential for a K-Range Strip installation: the K-Range Dual Slide Switch and one K-Range Strip-to-Strip Connector for each foot of strip light.

The K-Range Tunable Strip Light and K-Range Dual Slide Switch run on 12V DC and can be powered by either a 12V Non-Dimmable Hard-Wired Driver or a 12V Plug-In Adapter. The K-Range Dual Slide Switch fits into a standard light switch wall outlet and has two lead wires to connect to 12V DC power.

K-RANGE TUNABLE
LED STRIP LIGHT
APPLICATION
EXAMPLES
SPECIFICATIONS
and PRICING
CONTROL and
ACCESSORIES
POWER SUPPLIES CHROMAPATH
CHANNELS
and DIFFUSERS
TAPEGUARD
TAPE LIGHT COVER
K-Range
ETL Field Cuttable RoHS 24V DC No 120V Indoor Installation
ETL
CERTIFIED
FIELD
CUTTABLE
RoHS
COMPLIANT
24V DC DO NOT CONNECT TO
120V AC
Indoor
Use Only
This K-Range Tunable Strip has many indoor uses:
• Restaurants, retail stores, bars, lounges, and casinos
• Under cabinet lighting, shelves, cupboards, closets, and drawers
• Architectural models and doll houses
• Lighting art, accent pieces, and wine caves (no UV emissions)
• Coin-operated vending machines and arcade games
• Boat interiors

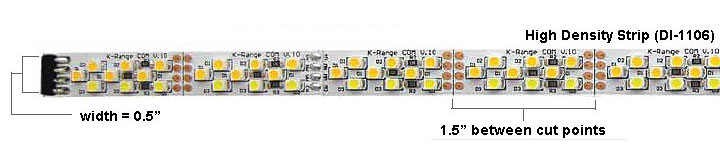

K-Range Example
CLICK IMAGE for LARGER VIEW
Click Button for PDF Installation Guide PDF Wiring Diagram
Click Button for K-RANGE LED PDF Specifications K-RANGE TUNABLE  LED PDF Specifications
TECH SPECS
Dimmable Width : 0.3 in.
Color Temperature Tunable Range:3000K - 6300K LED Type: 3528 SMO LED
Beam Angle: 120° LED Spacing: 0.3 in. between centers
Working Voltage 24V DC Lifespan: 50,000+ hours
LEDs Per Foot : 36 Lumens Per Foot: 240 max
IP Rating: IP40 UV/IR Radiation: None
Power Consumption Per Foot: 2.92W / 122mA Lifespan: 50,000+ hours
Each Maximum Run of Strip Light must be Wired Directly to Power Supply.
• 10 pcs (when powering one K-Range Controller
• 6 pcs (when powering two K-Range Controllers
• 4 pcs (when powering three K-Range Controllers
Click Button to Learn
about Voltage Drop:
Voltage Drop & Wire Gauge Distance Chart Click Button for
K-RANGE Voltage Drop Chart :
Fluid View Voltage Drop Chart

ITEM TYPE LENGTH COLOR COLOR TEMP. CRI* LUMENS POWER
CONSUMPTION
# OF
LEDS
MAX. RUN PRICE
DI-24V-KRNG-7020 high
density
20' Tunable 3000k - 6300k 70 527 max 2.92W / 122mA 36 20' $356.40
* COLOR RENDERING INDEX
CUSTOM LENGTHS AVAILABLE FOR EASE OF INSTALLATION
Made in the USA Assembled in the USA
Custom Finished LED Tape Light
• Cut LED tape light to specified lengths
• Choose from a wide variety of single-color and color-changing options
• Lead wire is cut to specified length and soldered to the end of the tape light
Custom Cut CHROMAPATH™ Aluminum Channels
• Cut CHROMAPATH Aluminum Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Each channel includes:
        2 optional end-to-end connector plugs to connect to another CHROMAPATH Channel for runs longer than 4 feet.
        2 mounting clips with each SQUARE, 45, and DUO channel.
        SLIM channels don’t require mounting clips. SLIM Channel Mounting Tape is sold separately.
Fully Loaded CHROMAPATH Fixtures with LED Tape Light
• Create a customized, low-profile light fixture to specified length and color temperature by adding your choice of LED
  tape light to your preferred CHROMAPATH Aluminum Channel
• Cut CHROMAPATH Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Lead wire is cut to specified length and soldered to the end of the tape light within the fixture
• The fixture is completed with a CHROMAPATH Cover and End Caps
• SQUARE, 45 DEGREE, and DUO channel styles include 2 mounting clips. SLIM channels don’t require mounting clips.
  SLIM Channel Mounting Tape is sold separately.
CONTACT US FOR QUOTE: 888-844-3267 / MATT@ILLUMENATE.COM
BACK to TOP

CLICK IMAGE for LARGER VIEW
TOUCHDIAL WIFI COLOR CONTROL SYSTEM

Diode LED’s new TOUCHDIAL zone control system controls Single Color, K-RANGE, and RGB(W) low voltage luminaires via mobile device and additional TOUCHDIAL controls. This color control system is used for medium to large-scale lighting projects and can be expanded exponentially with the use of the TOUCHDIAL WiFi Hub. Now you can easily integrate into your existing WiFi network for ultimate lighting authority. This control system is expandable up to 8 zones when using the WiFi Mobile App, allowing zones to perform seamlessly in commercial or residential installations.

DI-RF-REC-CV-A DI-WIFI-RF-TRMS
DI-RF-REC-CV-A DI-WIFI-RF-TRMS
TouchDial
Receiver
TouchDial
WiFi Hub
6.57" Long x 2.09" Wide
x 0.91" Height
4.32" Long x 3.33 Wide
x 0.95 " Height
Our most sophisticated unit offers professional-grade DMX512 control in a user friendly-control pad.
This simple and intuitive DMX controller commands up to four zones with WiFi connectivity to a mobile device.
CLICK for PDF SPECIFICATIONS and INSTALLATION INSTRUCTIONS:
DI-RF-REC-CV-A  PDF Specifications DI-WIFI-RF-TRMS PDF Specifications
FEATURES:
• For Medium and Large-Scale LED Lighting Installations CLICK for MOBILE
GUIDE
• Integrates with Existing WiFi Network
• Supports IOS and Android Mobile Devices DI-WIFI-RF-TRMS PDF Specifications
• Control of Up To 8 Lighting Zones
$108.00 $135.00
BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers
DI-0912 DI-0918, DI-0906
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
BACK to TOP

CLICK IMAGE for LARGER VIEW
CHROMAPATH™ Aluminum Channels
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.
• New wider track fits all CLICKTIGHT connectors to eliminate the use of soldering, and maximizes beam angle.
Gloss White, Aluminum, Matte Black
Channels and End Caps Available in
Glossy White (W), Aluminum
and Satin Black (B)

• New mounting clips make installation easy. Simply mount the clips to a desired surface and snap in the Aluminum Channel.

• 48” channel length accommodates strip light cut point of all densities for flawless lighting throughout the full enclosure.
Click Button for PDF Instructions Instructions
DI-CPCHA-SQ48
DI-CPCHA-SQ96
DI-CPCHA-4548
DI-CPCHA-4596
DI-CPCHA-DU48
96" NOT Available
DI-CPCHA-SL48
DI-CPCHA-SL96
DI-1600-B   DI-CPCHA-SQ96-B  DI-1601-B   DI-CPCHA-4596-B  DI-1662-B DI-1603   DI-CPCHA-SL96
SQUARE
Aluminum Channel
Square Aluminum Channel
45°
Aluminum Channel
45 Aluminum Channel
DUO
Aluminum Channel
Duo Aluminum Channel
SLIM
Aluminum Channel
Slim Aluminum Channel
CHROMAPATH Channels Available in 48" and 96" Lengths
DI-1660-B Dimensions DI-1661-B Dimensions DI-1602-B Dimensions DI-1603-B Dimensions
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Aluminum Channel Only.
Mounts with
DI-1633 or DI-1634
(3M Double Sided Tape)
FINISH KEY: Aluminum ( ) / Satin Black (B) / Glossy White (W)
DI-CPCHA-SQ48 / 96
$17.55 / $42.30
DI-CPCHA-SQ48B / 96B
$21.60 / $50.40
DI-CPCHA-SQ48W / 96W
$21.60 / $50.40
DI-CPCHA-4548 / 96
$21.60 / $51.75
DI-CPCHA-4548B / 96B
$25.20 / $61.20
DI-CPCHA-SQ48W / 96W
$25.20 / $61.20
DI-CPCHA-DU48
$27.00
DI-CPCHA-DU48B
$32.40
DI-CPCHA-DU48W
$32.40
DI-CPCHA-SL48 / 96
$13.95 / $33.75
DI-CPCHA-SL48B / 96B
$16.20 / $39.60
DI-CPCHA-SL48W / 96W
$25.20 / $61.20
CHROMAPATH™ END CAPS
DI-CPEC-SQ DI-CPEC-45 DI-CPEC-DU DI-CPEC-SL
DI-1620-3 DI-1620-3
DI-1622-3 DI-1622-3
DI-1622-3 DI-1622-3
DI-1624-3 DI-1624-3
DI-1626-3 DI-1626-3
FINISH KEY: Aluminum ( ) / Satin Black (B) / Glossy White (W)
SQUARE End Cap - Set
of 5 Open and 5 Closed
45° End Cap - Set
of 5 each Open and 5 each Closed
DUO End Cap - Set
of 10 Open and 10 Closed
SLIM End Cap - Set
of 5 Open and 5 Closed
DI-CPEC-SQ
$13.50
DI-CPEC-SQB
$16.20
DI-CPEC-SQW
$16.20
DI-CPEC-45
$13.50
DI-CPEC-45B
$16.20
DI-CPEC-45W
$16.20
$13.50
DI-CPEC-DU
$13.50
DI-CPEC-DUB
$16.20
DI-CPEC-DUW
$16.20
$13.50
DI-CPEC-SL
$13.50
DI-CPEC-SLB
$16.20
DI-CPEC-SLW
$16.20
PREMIUM DIFFUSION END CAPS
DI-CPEC-SQPD
$18.00
DI-CPEC-SQPDB
$21.60
DI-CPEC-SQPDW
$21.60
DI-CPEC-45PD
$36.00
DI-CPEC-45PDB
$41.40
DI-CPEC-45PDW
$41.40
N/A
DI-CPEC-SLPD
$18.00
DI-CPEC-SLPDB
$21.60
DI-CPEC-SLPDW
$21.60
5 Sets 5 Sets 5 Sets
CHROMAPATH™ Aluminum Channel ACCESSORIES
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.

The ultimate in total diffusion for uninterrupted continuous LED light output. Please note there is an average warm shift in Kelvin of 75K and an average 24% decrease in delivered lumens.(Not for use with DUO Channel. Not for use with DAZZLE® RGBW or VALENT® LED Tape Light).

DI-1630-20 DI-1631-10 DI-1912 / DI-1913
DI-CPCH-RC-BA
DI-CPCH-RC-BL
DI-CPCH-RC-WH
DI-CPCH-HNG
DI-1630-20 DI-1631-10 DI-1912, DI-1913 DI-CPCH-RC-BA  DI-CPCH-RC-BL  DI-CPCH-RC-WH  DI-CPCH-HNG
Mounting Clips
20 Pack
NOT for SLIM
CHANNEL
End to End Connectord
10 Pack
NOT for SLIM
CHANNEL
Vertical Mounting Support for
SQUARE and 45°
and for DUO
Adjustablle Angle Mounting Rotating Clips NOT for SLIM - 2 Clips and 2 Screws Transform your Channel into a pendent fixture with
Hanging Hardware Kit
NOT for SLIM CHANNEL
$12.60 $9.00 $5.40 / $5.40 $16.20 per Set CLICK for SPECSDI-CPCH-HNG Specs
$28.80
DI-CPCH-UC-BA
DI-CPCH-UC-BL
DI-CPCH-UC-WH
DI-CPCHC-FR48
DI-CPCHC-CL48
DI-CPCHC-FR96
DI-CPCHC-CL96
Premium Diffusion Cover
DI-CPCHC-PD48
DI-CPCHC-PD96
DI-1634
DI-CPCH-UC-BA  DI-CPCH-UC-BL  DI-CPCH-UC-WH  DI-1610 / DI1611 DI-CPCHC-PD48  DI-CPCHC-PD96  DI-1633 DI-1634
Mounting U-Clipsfor SLIM - 2 Clips and 2 Screws 48" Frosted Lens
48" Clear Lens
96" Frosted Lens
96" Clear Lens
NOT for USE with
DUO
CHROMAPATH
Channel SLIM
mounting tape (8mm)
4' /
12' single piece
[1 /
3 channels]
48" Prem. Diff. Lens
96" Prem. Diff. Lens
0.533H x 0.83W
$5.40 per Set 48" - $7.20
96" - $16.20
$11.70 / $27.00 $9.00 / $23.40
BACK to TOP

CLICK IMAGE for LARGER VIEW

CHROMAPATH™ SLIM RECESSED Aluminum Channel

CHROMAPATH® SLIM Recessed Aluminum Channels protect LED tape lighting in a recessed form factor with minimal visibility. Just like traditional CHROMAPATH Channel offering, it provides a rigid, dustproof housing; now it performs this with the ability to recess your custom lighting into a half inch routed opening. Choose one of the selections here for a complete channel bundle ready to combine with your choice of compatible LED tape light*. These sturdy but lightweight matte finish anodized aluminum channels are sold in 48 inch and 96 inch lengths (custom options also available). *Not for use with CLICKTIGHT® or CLICKTIGHT PRO® Tape Light Connectors.

• Custom light output with minimal fixture visability

• Frosted Cover Lens included to protect LED Lighting

• In house and Field-Cuttable chaneels to work with individual specifications
• For use with BLAZE, FLUID VIEW, VALENT, AVENUE 24, DAZZLE 24, K-RANGE 24, ULTRA BLAZE
DI-CPCHA-SLR48 / DI-CPCHA-SLR96 DIMENSIONS
DI-CPCHA-SLR48 / DR-CPCHA-SLR96 DI-CPCHA-SLR48 / DR-CPCHA-SLR96 DI-CPCHA-SLR48 / DR-CPCHA-SLR96
48" BUNDLE Includes:
• 48" Recessed Channel
• Frosted Cover
• Open Rnd Cap
• Closed End Cap
• Round End Cap
96" BUNDLE Includes:
• 48" Recessed Channel
• Frosted Cover
• Open Rnd Cap
• Closed End Cap
• Round End Cap
DL-CPEC-SLR-3
ADDITIONAL END CAPS
• 3 Open Rnd Caps
• 3 Closed End Caps
• 3 Round End Caps
$21.60 / $51.75 $9.00
BACK to TOP
TAPEGUARD™ LED TAPE LIGHT COVER
TAPEGUARD is the easiest way to provide a decorative protection fot indoor LED tape light installations and create an attractive aond finished look.

The low-profile cover comes wiyh an adhesive edging that adheres to clean, dry surfaces. TAPEGUARD is made of lightweight, polycarbonate plastic that is easy to install and maintain. The covers can be placed end to end or cut to size for the perfect finished look to linear LED tape installations.
• Choose CLEAR cover for maximum light output Add a wipeable protective lens to LED tape light for protection from:
• Dust
• Airborne Grease and Dirt

• Choose FROSTED COVER for subtle light diffusion

• Works with AVENUE 24, FLUID VIEW, BLAZE, DAZZLE 24 and K-RANGE 24
• Does not change the IP rating of the tape light
DI-TAPE-GRD-FR / DI-TAPE-GRD-CL
Tapeguard DI-TAPE-GRD-FR, DI-TAPE-GRD-CL
DI-1662-B DI-1662-B DI-1662-B
Shown with BLAZE
LED Tape Light
0.4" Wide x 0.15" Height
x 39.4" Length
Simply Cut to length, Peel edge backing and Apply to surface
FROSTED - $5.40 CLEAR - $5.40


Thank You for visiting ILLUMENATE.COM
ILLUMENATE and NORTH COAST LIGHTING OUTLET are Registered Trademarks of Dynamic Lighting Sales Incorporated
Copyright © 1998 - 2018 Dynamic Lighting Sales Incorporated dba/ North Coast Lighting Outlet. All rights reserved
