LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
dlode LED ENGINEERED and DESIGNED, ASSEMBLED, BUILT or MOdlFIED

in the USA
dlODE LED SUNRISE 2 Light Bars
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL dlODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 dlode LED 2021 Catalog
Visa Master Card dlscover Networks Solutions Secure

A sleek, waterproof (but not submersible), dlmmable fixture that requires very little power. The SUNRISE Light Bar is a low profile LED bar that’s a mere half inch wide and quarter inch high. This bar will light shelves, cabinets, and other tight spaces that a standard bulb cannot. The SUNRISE light bar is wet location rated, so it can be used almost anywhere, indoors or out.

This light bar comes with a pair of mounting clips and screws, and a pair of solder connectors that can connect the bar to a hard-wired driver. To install the bar, just screw the two Sunrise mounting clips that come with each bar into the surface with one screw, then snap the bar into the clips.

SUNRISE Bars can be powered with a Plug-In DC adapter, which connects to the two hard-wired plugs on each bar through our Waterproof Plug to DC Adapter Connector (dl-0710). Addltional SUNRISE mounting clips (dl-0750) are available in packs of ten.

Not submersible or for use in or around chlorinated or salt water.
SUNRISE 2
SPECIFICATIONS		 SUNRISE 2
VIDEO 		SUNRISE 2 LIGHT BAR
CONNECTORS		 SUNRISE 2 LIGHT BAR
POWER SUPPLIES and CONTROLS
Sunrise
CLICK any ICON Below for Full Explanation:
ETL 12V DC No 120V Wet or Dry Location dlmmable
ETL
CERTIFIED		 12V DC NO
120V AC		 Indoor or
Outdoor		 dlmmable
• In kitchens and bathrooms • In restaurants, retail shops, and bars
• In the garden and yard, decks, patios • Boats, boathouses, and camping
• Garages, walk-in coolers, and freezers • Lighting wine caves (no UV emissions and low heat)
• Buildlng exteriors and architectural models • In bookshelves, cupboards, closets, and drawers
• Coin-operated vendlng machines and arcade games • Toe-kick, niche, and uplighting
Click Button for PDF Wiring dlagram PDF Wiring dlagram
Click Button for SUNRISE 2 LED PDF Specifications SUNRISE LED PDF Specifications
Click Button for Full 5 Year
Warranty Information		 dlode LED Warranty
BACK to TOP
TECH SPECS
LIMITED AVAILABILITY - We Will Check Stock Prior to Ordering.

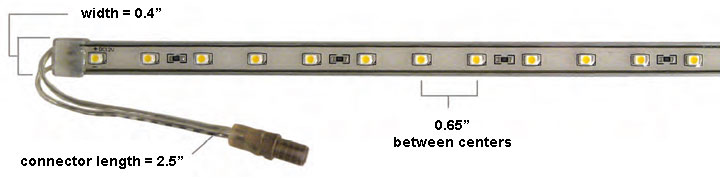

Sold in 2 dlfferent Lengths Width : 0.4 in. / Depth: 0.25 in.
100% dlmmable Fixture Surface Temp.: 68° - 90° F
Color Temperature Tunable Range: 3000K - 6300K LED Type: 3528 SMO LED
Beam Angle: 120° LED Spacing: 0.65 in. between centers
Working Voltage: 12V DC Lifespan: 50,000+ hours
LEDs Per Fixture Vary Lumens Per Fixture Vary
IP Rating: IP68 UV/IR Radlation: None
Power Consumption Varies Per Fixture Lifespan: 50,000+ hours

ITEM LENGTH COLOR COLOR
TEMP.		 LUMENS CRI* POWER
CONSUMPTION		 # OF
LEDS		 MAX BARS
PER RUN		 PRICE
dl-12V-SR230-8002 24 in. warm white 3000K 271 81 3.0W 36 8 $33.30
dl-12V-SR263-8002 24 in. cool white 6300K 264 82 3.0W 36 8 $33.30
* CRI = Color Rendering Index
BACK to TOP

CLICK IMAGE for LARGER VIEW
CASCADE WATERPROOF BAR CONNECTORS
dl-0710F / dl-0710M dl-0757 / dl-0758 / dl-0759 dl-0725 dl-0755 / dl-WPSL
dl-0710 dl-0757, dl-0758, dl-0759, dl-0709 dl-0725 dl-0762
Waterproof Plug to DC Adapter Connector Female / Male Waterproof Male to Female Extension Cables Waterproof Solder Connector Pair Waterproof End Caps
Waterproof Sealant
Connects the Light Bar to a Plug-In Adapter and other DC accessories.
Creates an extension between Light Bars.
Connects the Light Bar to a Hard-Wired Driver. Pair included with each bar.
Pack of 10 End Caps.

45g Tube of Sealant.
.7.5” Length x 0.4” / 0.3" Width 0.3” Width 4.7” Length x 0.3” Width
$8.10 / $8.10
Item Length Price
dl-0757 6" $4.50
dl-0758 12" $7.20
dl-0759 24" $8.10
$4.50 $5.40 / $8.10
BACK to TOP
CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-dlmmable Drivers		 Hard-Wired
dlmmable Drivers		 12V and 24V
DRIVER / dlMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Adapters Hard-Wired Non-dlmmable Drivers Hard-Wired dlmmable Drivers Hard-Wired dlmmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our dlmmable Light Fixtures Powered by a Plug-In Adapter, Can Be dlmmed Using the REIGN 12V In-Wall Switch or the In-Line dlmmer Switch.
Hard-Wired Non-dlmmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our dlmmable Light Fixtures Powered by a Hard-Wired Driver, Can Be dlmmed Using the REIGN 12V In-Wall Switch or the In-Line dlmmer Switch.
Hard-Wired Non-dlmmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our dlmmable Light Fixtures Can be Powered by Our Hard-Wired dlmmable Drivers and a 120V Magnetic Low Voltage dlmmer Switch
SWITCHEX combines an LED dlmmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% dlmming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our dlmmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be dlmmed Using the In-Line dlmmer Switch
