Diode LED Dimmable LEDs
Engineered and Designed in the U.S.A.

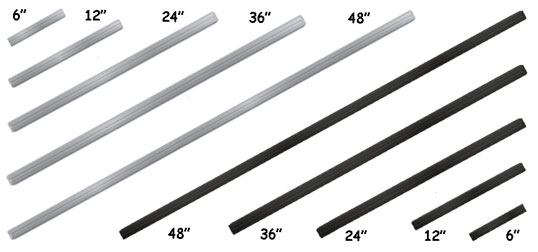

TRU-LINK™ 24V LED Light Bars are linkable, high-CRI light bars with premium diffusion. Premium diffusion means no more bright hot spots or dark areas, which is great for use in areas with reflective surfaces. These bars are linkable up-to 20 feet, compatible with many driver options (see spec sheet) and are dimmable. Choose TRU-LINK for you next lighting installation for task, or display applications.


TRU-LINK TRU-LINK
FIXTURE ACCESSORIES
TRU-LINK LIGHT BAR
POWER SUPPLIES and CONTROLS
ALL DIMENSIONS in INCHES
CLICK IMAGE for LARGER VIEW
TRU-LINK
Tru-Link
• Hi-Output Light Bar for Architectural, Task or Display Lighting
• Sturdy Aluminum Housing
• Premium Diffusion - No Hoy Spots or Dark Areas • 2835 LED Chip
• Sturdy Aluminum Housing • 20 Foot Maximum Run
• Available in 3000K or 4000K • 120° Beam Angle
• Available in Silver or Black • Indoor / Damp Location
• 5-Year Warranty
Each Tru-Link Fixture Includes
2- Flat Mounting Clips. 12" Female DC Connector, End-to End Connector
Click Button for PDF Installation Guide PDF Installation Guide
Click Button for TRU-LINK LED PDF Specifications FENCER LED PDF Specifications
Click Button for Full 5 Year
Warranty Information
Diode LED Warranty
PREMIUM DIFFUSION / 3000K / 90+ CRI
ITEM FINISH Length x Width
x Height
Color
Temperature
LUMENS POWER
CONSUMPTION
PRICE
DI-24V-TR30-6-SV Silver 6.0 x 0.75
x 0.59
3000K 150 2.4W $28.80
DI-24V-TR30-6-BL Black
DI-24V-TR30-12-SV Silver 12.0 x 0.75
x 0.59
3000K 320 4.8W $49.50
DI-24V-TR30-12-BL Black
SIDE FEED AVAILABLE IN 12" ONLY
DI-24V-TR30SF-12-SV Silver 12.0 x 0.75
x 0.59
3000K 320 4.8W $58.50
DI-24V-TR30SF-12-BL Black
DI-24V-TR30-24-SV Silver 24.0 x 0.75
x 0.59
3000K 650 9.6W $81.00
DI-24V-TR30-24-BL Black
DI-24V-TR30-36-SV Silver 36.0 x 0.75
x 0.59
3000K 900 14.4W $116.10
DI-24V-TR30-36-BL Black
DI-24V-TR30-48-SV Silver 48.0 x 0.75
x 0.59
3000K 1250 19.2W $135.00
DI-24V-TR30-48-BL Black

PREMIUM DIFFUSION / 4000K / 90+ CRI
ITEM FINISH Length x Width
x Height
Color
Temperature
LUMENS POWER
CONSUMPTION
PRICE
DI-24V-TR40-6-SV Silver 6.0 x 0.75
x 0.59
4000K 150 2.4W $28.80
DI-24V-TR40-6-BL Black
DI-24V-TR40-12-SV Silver 12.0 x 0.75
x 0.59
4000K 320 4.8W $49.50
DI-24V-TR40-12-BL Black
SIDE FEED AVAILABLE IN 12" ONLY
DI-24V-TR40SF-12-SV Silver 12.0 x 0.75
x 0.59
4000K 320 4.8W $58.50
DI-24V-TR40SF-12-BL Black
DI-24V-TR40-24-SV Silver 24.0 x 0.75
x 0.59
4000K 650 9.6W $81.00
DI-24V-TR40-24-BL Black
DI-24V-TR40-36-SV Silver 36.0 x 0.75
x 0.59
4000K 900 14.4W $116.10
DI-24V-TR40-36-BL Black
DI-24V-TR40-48-SV Silver 48.0 x 0.75
x 0.59
4000K 1250 19.2W $135.00
DI-24V-TR40-48-BL Black
ETL Dimmable Recognized Component 24V DC
UL CERTIFIED DIMMABLE CE 24V DC
BACK to TOP

CLICK IMAGE for LARGER VIEW
TRU-LINK FIXTURE ACCESSORIES
DI-TR-TD-SV
DI-TR-TD-BK
DI-TR-MS-SV DI-TR-ETE
DI-TR-PWR-DC-W
DI-TR-PWR-DC-B
DI-TR-PWR-TB-W
DI-TR-PWR-TB-B
DI-TR-TD-SV   DI-TR-TD-BK   DI-TR-MS-SV   DI-TR-ETE DI-TR-PWR-DC-W   DI-TR-PWR-DC-B   DI-TR-PWR-TB-W   DI-TR-PWR-TB-B
In-Line Touch
Dimmer
In-Line Occupancy
Sensor
End-To-En
Connector
12" DC Plug
Connector
12" Terminal Block
Connector
Inline Dimmer which attaches to TRU-LINK™ LED Light Bar allowing dimming through the touch of a finger.
Inline Switch which attaches to TRU-LINK™ LED Light Bar allowing On/Off switching using motion.
.43 inch wide connector attaches two TRU-LINK LED Light Bars together end-to-end.
.43 inch wide connector attaches the TRU-LINK LED Light Bar to a DC Plug-In Adapter. Wire: 22/4 AWG
.43 inch wide connector attaches to the TRU-LINK LED Light Bar allowing a hard-wired connection. Wire: 22/4 AWG
Silver / Black Silver   White / Black White / Black
2.17” x 0.75” x 0.59” 2.48” x 0.75” x 0.7” 0.91" x 0.43” x 0.14” 12“ x 0.43” x 0.14” 12“ x 0.43” x 0.14”
$56.70 / $56.70 $56.70 $9.00 $11.70 / $11.70 $12.60 / $12.60

DI-TR-PWRSF-DC-W
DI-TR-PWRSF-DC-B
DI-TR-PWRSF-TB-W
DI-TR-PWRSF-TB-B
DI-TR-12BX-W
DI-TR-12BX-TB-B
DI-TR-MCLIP-S
DI-TR-MCLIP-B
DI-TR-45CLIP-S
DI-TR-45CLIP-B
DI-TR-PWRSF-DC-W   DI-TR-PWRSF-DC-B   DI-TR-PWRSF-TB-W   DI-TR-PWRSF-TB-B   DI-TR-12BX-W   DI-TR-12BX-TB-B   DI-TR-MCLIP-S   DI-TR-MCLIP-B   DI-TR-45CLIP-S   DI-TR-45CLIP-B
12" Right Angl
DC Plug Connector
12" Right Angle
Terminal Block Connector
12" Bending
Extension
Mounting
Clip
45° Mounting
Clip

Using the side feed connection, this .43 inch wide connector attaches the TRU-LINK LED Light Bar to a DC Plug-In Adapter. Wire: 22/4 AWG

Using the side feed connection, this .43 inch wide connector attaches to the TRU-LINK LED Light Bar allowing a hardwired connection. Wire: 22/4AWG

.43 inch wide connector attaches one TRU-LINK LED Light Bar to another. Wire: 22/4 AWG
Mounting Clip used for attaching TRU-LINK™ bars directly to a surface.
Mounting Clip used for attaching TRU-LINK™ bars at a 45° angle from a surface.
White / Black White / Black White / Black Silver / Black Silver / Black
12“ x 0.43” x 0.14” 12“ x 0.43” x 0.14” 12“ x 0.43” x 0.14” 2.17“ x 0.75” x 0.59” 2.48“ x 0.75” x 0.7”
$32.40 / $32.40 $31.50 / $31.50 $10.80 / $10.80 $6.30 / $6.30 $9.000 / $9.00

DC CONNECTORS
DI-PVC2464-DL42-SPL-F DI-PVC2464-DL42-SPL-M DI-0708 DI-0720 DI-0705 DI-DCSP4 DI-0707
DI-0712F DI-0712M DI-0708 DI-0720 DI-0705 DI-DCSP4 DI-0707
12V Adapter Splice Cable
Female
12V Adapter Splice Cable
Male
1 Meter DC
Extension Cable
2-Way DC Splitter 3-Way DC Splitter 4-Way DC Splitter 5-Way DC Splitter
Allows for solder connection to a strip and connect to a Plug-In Driver or connect TRIANT Puck Lights to a Hard-Wired Driver.
Connects TRIANT LED Puck Lights and DC Splitter Plugs to a hard-wired driver. Connects an RGB Signal Amplifier to a hardwire non-dimmable driver
Creates an extension between any fixtures or accessories that use DC plugs
Allows 2 fixtures with DC plugs to be powered by the same source.
Allows 3 fixtures with DC plugs to be powered by the same source.
Allows 4 fixtures with DC plugs to be powered by the same source.
Allows 5 fixtures with DC plugs to be powered by the same source.
42" x 0.45" 42" x 0.45" 39.4" x 0.5" 5.7" x 0.4" 8" x 0.6" 8" x 0.6" 8" x 0.6"
$4.50 $4.50 $6.30 $6.30 $6.60 $7.20 $7.60
BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers
Hard-Wired
Dimmable Drivers
12V and 24V
DRIVER / DIMMER
REIGN
In-Wall Controls
In-Line Controls
Plug-In Adapters Hard-Wired Non-Dimmable Drivers Hard-Wired Dimmable Drivers Hard-Wired Dimmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
