Klus Design
HR-LINE
Designed to obtain an IP67 waterproof rating
Resistant to pedestrian and road traffic
Outdoor housing for flexible or hard LED strips that are 8-11.5mm wide (0.45”)
Application

- construction of watertight, ground lighting fixtures inside and outside buildings (walkways, car parks,
driveways)

Assembly

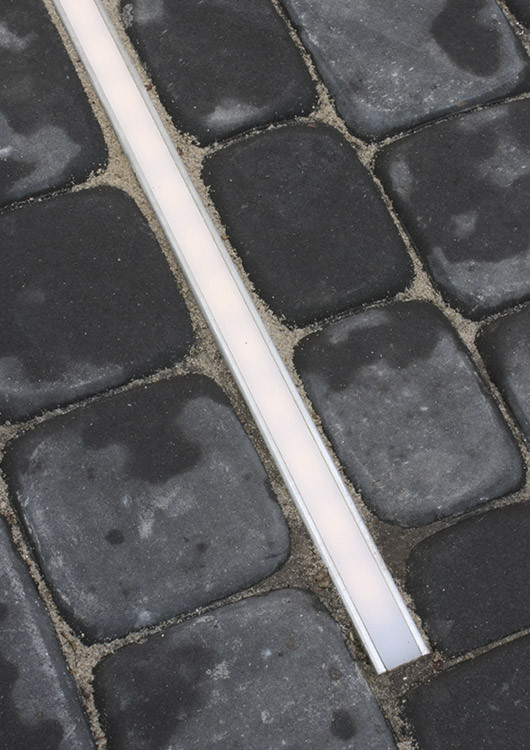

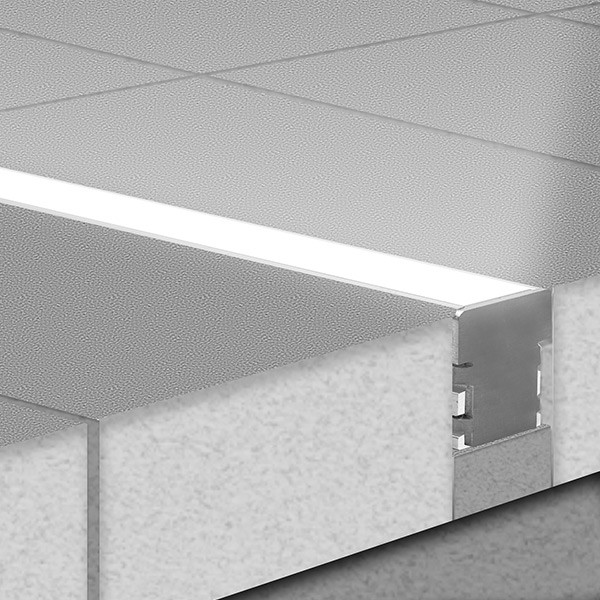

- mounted on spacer foam in a prepared gap in the hardened surface (e.g. paving stones)

- the remaining gap is filled with sand
Additional information

- dedicated glands must be used for the correct application of the profile
- water-tight splitters and couplers are used to run the cables powering the light fixture in the ground
- it is extremely important to properly seal HR-LINE components ( extrusion, covers, end caps, LEDs) if the fixture are assembled by KLUS
- for sealing HR-LINE extrusion we recommend using – DOW CORNING 3145 , transparent Neutral Silicone
- when choosing other sealing materials it is important to know their quality, applications and that they do not
conduct electricity
- the quality of HR-LINE extrusion sealing depends solely on the quality and precision of the sealing process as well as the quality of the sealing material
- profile construction makes it durable and sturdy, resistant to standard loads (up to 20 kN)
Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

HR-LINE
EXTRUSIONS
COVERS /
LENSES
END CAPS /
ACCESSORIES
KLUS Extrusions KLUS Accessories KLUS Fixtures KLUS Tape Light
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

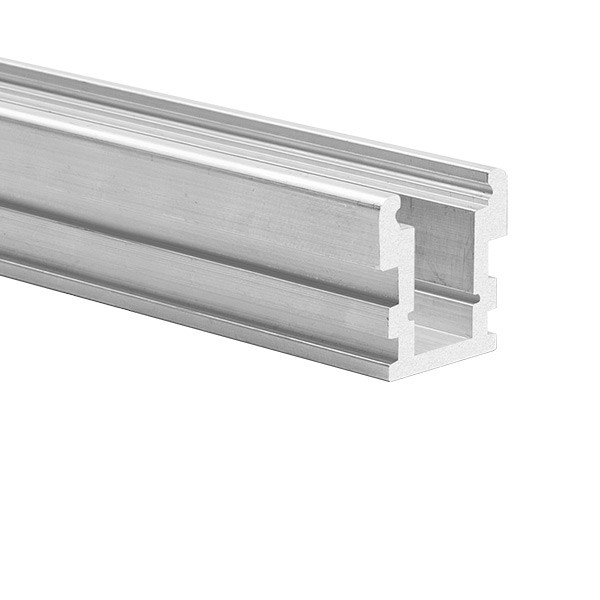

HR-LINE Extrusion
B3579NA_1  B3579NA_2  B3579NA_3  B3579NA_1  B3579NA_2  B3579NA_3  B3579NA_1  B3579NA_2  B3579NA_3  B3579NA_1  B3579NA_2  B3579NA_3
ITEM DESCRIPTION PRICE
B3579NA_1 39.4" / 1M Non- Anodized Extrusion $46.40
B3579NA_2 79.75" / 2M Non- Anodized Extrusion $92.80
B3579NA_3 118.11" / 3M Non- Anodized Extrusion $151.60
Download for Full Specifications, Dimensions and Instructions
CLICK for PDF: HR-LINE Specifications HR-ALU How To
EXAMPLE EXAMPLE EXAMPLE
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
17151 1316
17151 1316
HR-LINE-2 Cover
HR-LINE Cover
Frosted
ITEM DESCRIPTION PRICE
17151_1 39.4" / 1M HR-LINE-2 Cover $35.00
17151_2 78.75" / 2M HR-LINE-2 Cover $70.00
17151_3 118.11" / 3M HR-LINE-2 Cover $106.50
1316_1 39.4" / 1M HR-LINE-2 Cover Frosted $12.95
1316_2 78.75" / 2M HR-LINE-2 Cover Frosted $25.90
1316_3 118.11" / 3M HR-LINE-2 Cover rFrosted $40.50

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
1445 1384 24199
1445 1384 24199
HR-LINE
End Cap with Hole
HR-LINE
End Cap
HR-LINE-STN
End Cap
ITEM DESCRIPTION PRICE

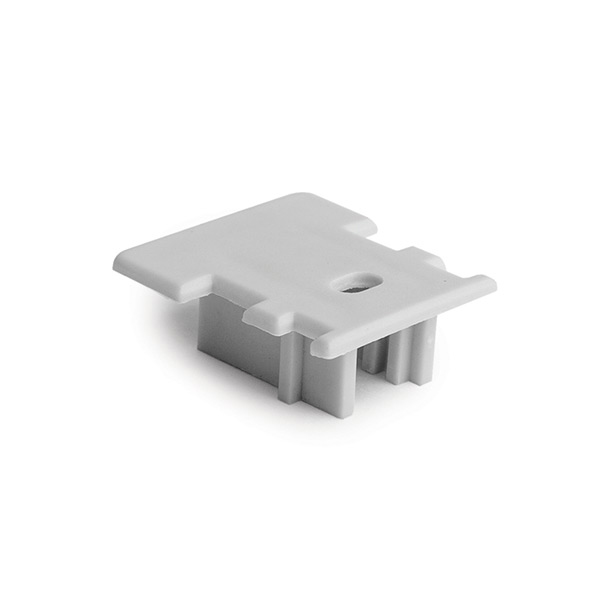

1445 HR-LINE End Cap with Hole $3.80

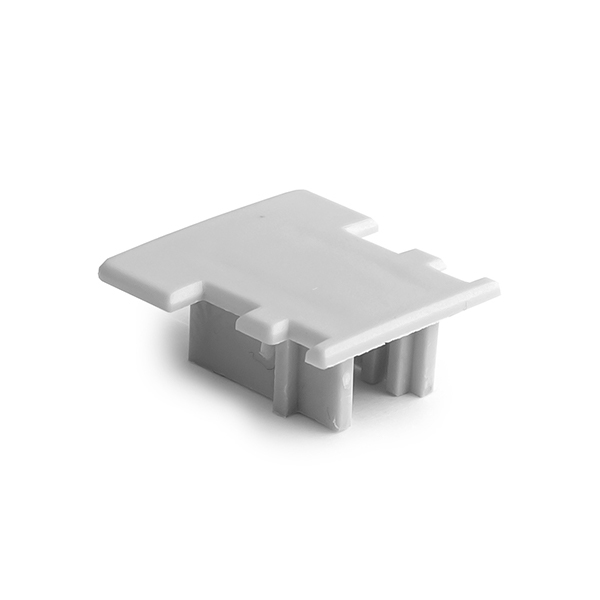

1384 HR-LINE End Cap $3.60
24199 HR-LINE-STN End Cap $9.00

42702 42703 00802L 00078
42702 42703 00802 00078
WATERPROOF
COUPLER
WATERPROOF
Splitter
8,8x1,2
Gland
HR-LINE
Gland
ITEM DESCRIPTION PRICE
42702 WATERPROOF COUPLER $14.10
42703 WATERPROOF Splitter $24.70
00802L 8,8x1,2 Gland $1.35
00078 HR-LINE Gland $6.00
