Klus Design
Nisa-Kra
Illumination of niches with the effect of a thin edge of a suspended ceiling
Easy servicing
ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or les
Application

- ambient lighting of architectural niches located a short distance from the wall

- the light is directed to the ceiling
Assembly

- using screws appropriately selected for the mounting surface

Additional information

- the light source is placed in the easily disassembled ONISA lighting fixture

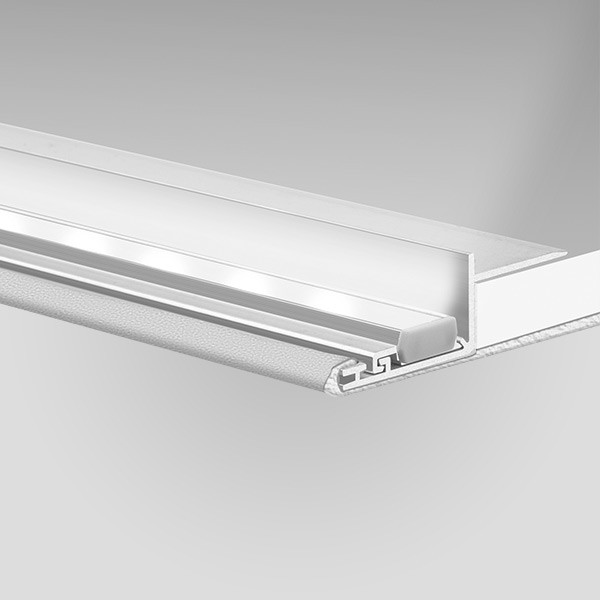

NISA-KRA is a set of two extrusions designed for recess illumination purposes. It consists of TENIKRA mounting strip and ONISA extrusion recessed in it. The complete set enables the parallel direction of light to the wall, facing up. TENIKRA strip is step-shaped, which makes possible drywall edge mounting. The lower edge of TENIKRA strip is an extension of the recess, and once sealed, forms a thin aesthetic edge.
ONISA extrusion holds a single 10.8 mm (0.42") max. wide LED. TENIKRA strip enables the extension of the drywall recess and serves as a horizontal fixing element for ONISA extrusion. TENIKRA mounting strip is drywall mounted using mounting screws. NOTE! Prior to mounting, the strip must be pre-drilled to avoid unwanted deflection. The manual provides all details of mounting methods and direction of screw mounting. Once mounted, seal the lower edge of the strip. Rigid mounting of ONISA extrusion can performed with a silicone cord (included in the set). Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which willresult in diminished LED life.

NISA-KRA
EXTRUSIONS
COVERS /
LENSES
END CAPS /
ACCESSORIES
KLUS Extrusions KLUS Accessories KLUS Fixtures KLUS Tape Light
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

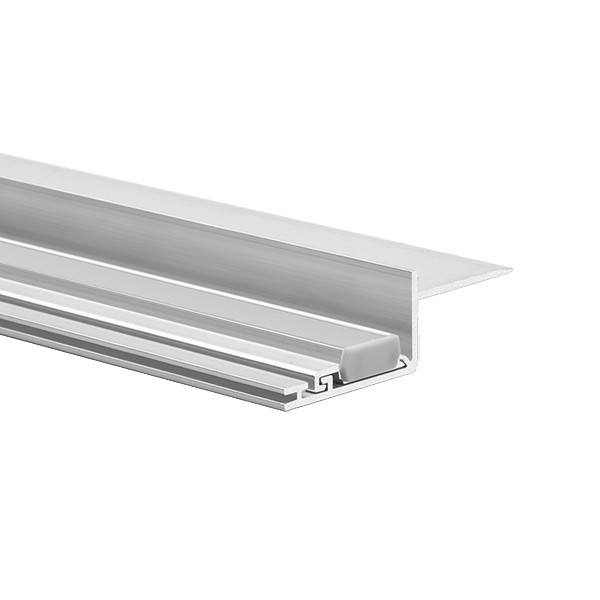

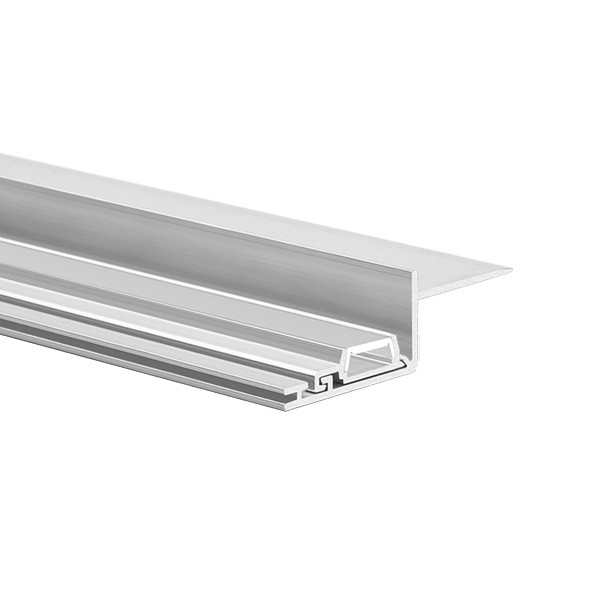

NISA-KRA Extrusion
18026NA_1  18026NA_2  18026NA_1  18026NA_2  18026NA_1  18026NA_2  18026NA_1  18026NA_2
ITEM DESCRIPTION PRICE
18026NA_1 39.4" / 1M Non -Anodized Extrusion $35.80
18026NA_2 79.75" / 2M Non-Anodized Extrusion $71.60
Download for Full Specifications, Dimensions and Instructions
CLICK for PDF: Nisa-KRA Specifications Nisa-Kra How To
EXAMPLE EXAMPLE
Nisa-Kra Nisa-Kra
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
1370 17072 1369 17037 17071
1370 17072 1369 17037 17071
HS Cover
Clear
KA-BIS Cover
Clear
HS Cover
Frosted
LIGER Cover
Frosted
KA-BIS Cover
Frosted
ITEM DESCRIPTION PRICE
1370_1 39.4" / 1M HS Cover Clear $22.30
1370_2 78.75" / 2MHS Cover Clear $44.60
17072_1 39.4" / 1M KA-BIS Cover Clear $22.30
17072_2 78.75" / 2M KA-BIS Cover Clear $44.60
1369_1 39.4" / 1M HS Cover Frosted $20.40
1369_2 78.75" / 2M HS Cover Frosted $40.80
17037_1 39.4" / 1M LIGER Cover -Frosted $20.40
17037_2 78.75" / 2M LIGER Cover -Frosted $40.80
17071_1 39.4" / 1M KA-BIS Cover Frpsted $20.40
17071_2 78.75" / 2M KA-BIS Cover Frpsted $40.80
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24100 00802L
24100 00802
ONISO
End Cap
8,8x1,2 Gland
ITEM DESCRIPTION PRICE
24100 ONISA End Cap $2.90
00802L 8,8x1,2 Gland $1.35

42725 42723 42729 42726
42720 42723 42729 42718
ZM-NA-135
Connector
ZM-NA-90
Connector
ZM-NA-120
Connector
ZM-NA-PION-90
Connector
ITEM DESCRIPTION PRICE
42729 ZM-135 Non Anodized Connector $10.20
42723 ZM-90 Non Anodized Connector $9.20
42729 ZM- Non Anodized-135 Connector $9.80
42726 ZM-PION- Non Anodized90 Connector $9.20
BACK to TOP
