Klus Design
PDS-ZMG

Equipped with a small lock that allows the use of system fasteners and extrusion connectors

Multiple applications

ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less.
Application

- for use in interior architecture in numerous configurations
- small lock facilitates building long linear, suspended, and polygonal lighting fixtures
- the sealed version can be used in external applications
Assembly

- mounted to the surface with appropriate mounting adhesives, mounting springs or screws
- mounted to the surface with appropriate mounting adhesives, mounting springs or screws
Additional information

- the extrusion is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- can be equipped with transparent and frosted covers, as well as aluminum-colored or metallized plastic end
caps The side surfaces of the extrusion are smooth, without heat sinks. There is a ‘small lock’ on top of the extrusion which e ables you to connect extrusions into extended polygonal lighting fixtures. Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will
PDS-ZMG
EXTRUSIONS		 COVERS /
LENSES 		END CAPS /
ACCESSORIES
KLUS Extrusions KLUS Accessories KLUS Fixtures KLUS Tape Light
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
Please Provide SHIPPING ZIP CODE for Shipping Quote



CLICK IMAGE for LARGER VIEW
PDS-ZMG Extrusion
C1418ANODA_1 C1418ANODA_2 C1418ANODA_1 C1418ANODA_2 C1418ANODA_1 C1418ANODA_2
C1418K7_1 C1418K7_2 C1418K7_1 C1418K7_2 C1418K7_1 C1418K7_2 C1418K7_1 C1418K7_2
ITEM DESCRIPTION PRICE

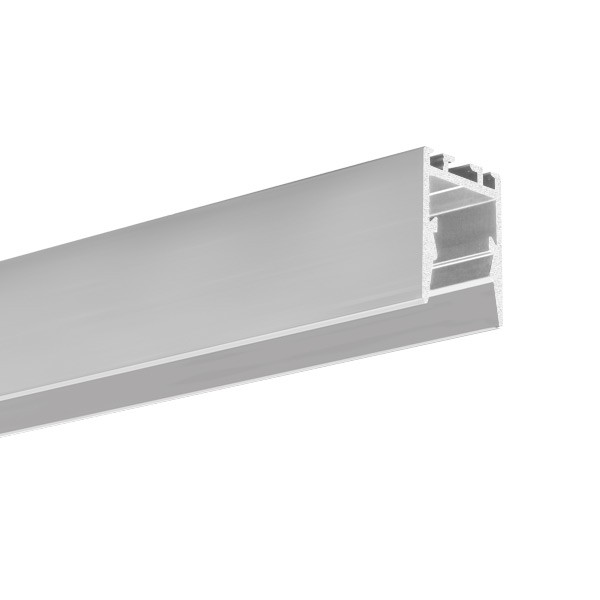

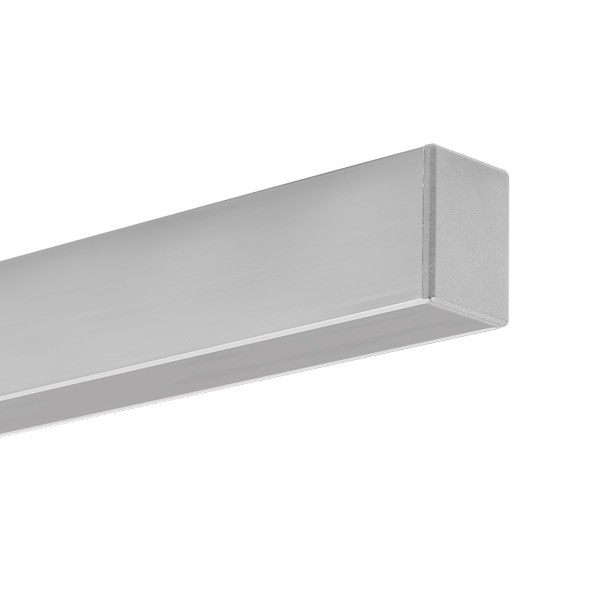

C1418ANODA_1 39.4" / 1M Silver Anodized Extrusion $20.90
C1418ANODA_2 79.75" / 2M Silver Anodized Extrusion $41.80

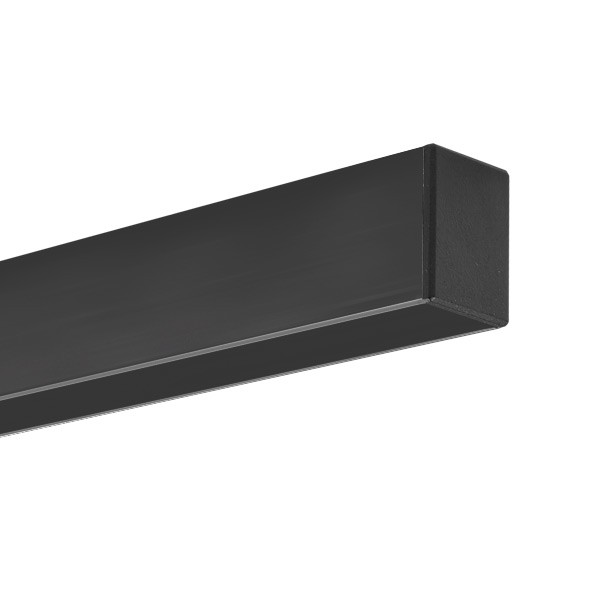

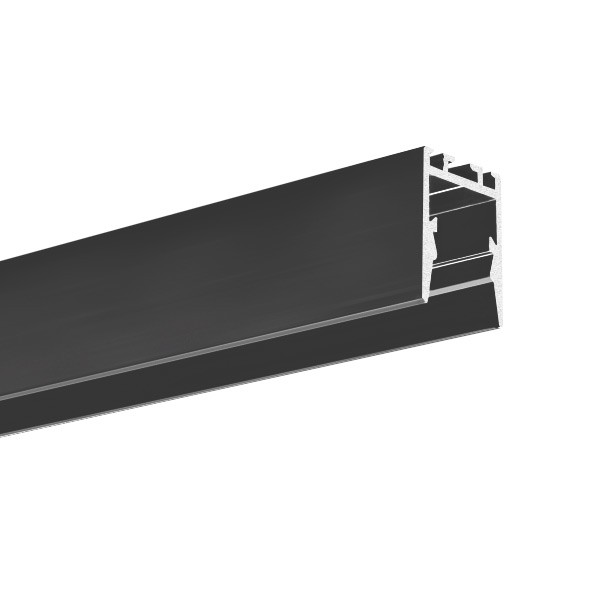

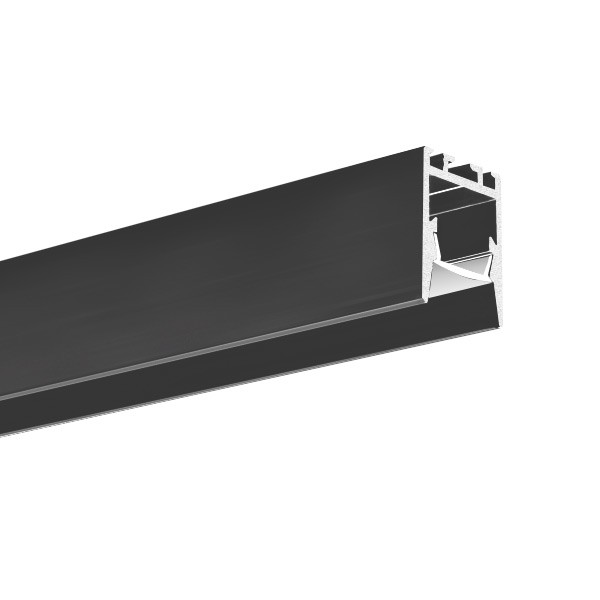

C1418K7_1 39.4" / 1M Black Anodized Extrusion $22.70
C1418K7_2 79.75" / 2M Black Anodized Extrusion $45.40
Download for Full Specifications, Dimensions and Instructions
CLICK for PDF: PDS-ZMG Specifications PDS-ZMG How To

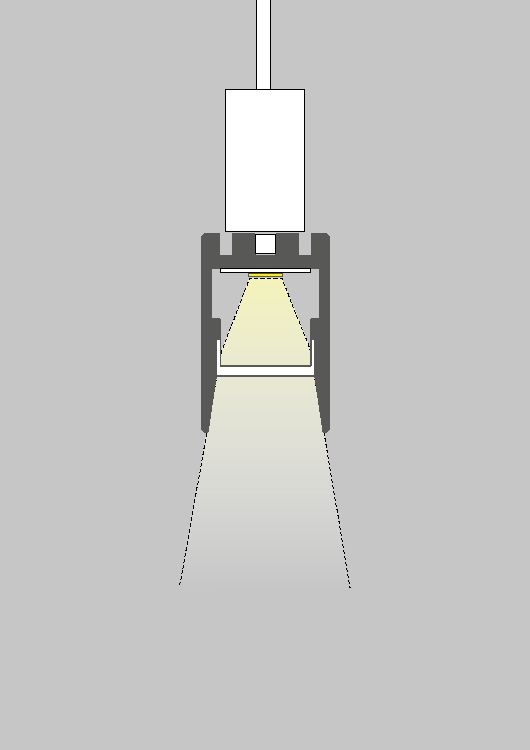

EXAMPLE EXAMPLE
PDS-ZMG PDS-ZMG
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
1370 1369 17036 17035 17037 17040
1369 1370 17036 17035 17037 17040
HS Cover
Frosted		 HS Cover
Clear		 KA Cover
Clear		 KA Cover
Frosted 		LIGER Cover
Frosted		 LIGER Cover
Black
ITEM DESCRIPTION PRICE
1370_1 39.4" / 1M HS Cover Frosted $9.50
1370_2 78.75" / 2M HS Cover Frosted $19.00
1369_1 39.4" / 1M HS Cover Clear $9.50
1369_2 78.75" / 2M HS Cover Clear $19.00
17036_1 39.4" / 1M KA Cover Clear $6.30
17036_2 78.75" / 2M KA Cover Clear $12.60
17035_1 39.4" / 1M KA- Cover Frosted $6.30
17035_2 78.75" / 2M KA- Cover Frosted $12.60
17037_1 39.4" / 1M Liger Cover Frosted $10.90
17037_2 78.75" / 2M Liger Cover Frosted $21.80
17040_1 39.4" / 1M Liger Cover Black $16.40
17040_2 78.75" / 2M Liger Cover Black $32.80
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24330 24320 00293 42717 42715 42718
24330 24320 00293 42717 42719 42718
PDS-G
End Cap		 PDS-G
End Cap Black		 GP
Spring		 ZM-180
Connector 		ZM-PION 135
Connector		 ZM-PION 90
Connector
ITEM DESCRIPTION PRICE

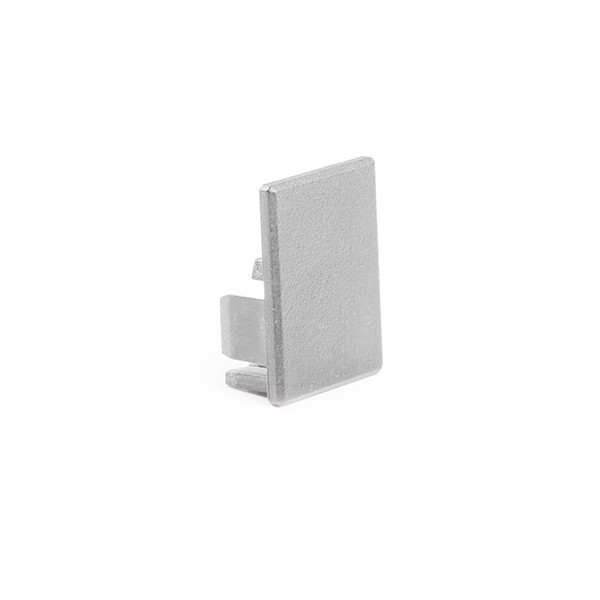

24330 PDS-ZM End Cap $3.90
24320 PDS-ZM End Cap Black $3.90
00293 GP Spring $4.10
42717 ZM-180 Connector $9.20
42719 ZM-PION 135 Connector $9.80
42718 ZM-PION -90 Connector $9.20

42303 42716 00651 42728 52512 42720
42303 42716 00651 42728 42512 42720
M1
Mouting Set 		ZM-90
Connector 		DP-ZZ
Fastener		 ZM 120
Connector		 ZD UCHO
Hanger		 ZM-135
Connector
ITEM DESCRIPTION PRICE
42303 M1 Mounting Set $40.50
42716 ZM-90 Connector $9.20
00643 W-BOX-Z Fasener 17.90
42728 ZM-120 Connector $10.30
42513 ZD UCHO Hanger $4.90
42720 ZM-135 Connector $9.80

42215 42213 42256 42250 00802L 42520
42215 42213 42256 42250 00802 42520
BZP-ZZ
Head Conductive		 BZP
Head		 PUSZ-LIN-ZD
Fastener

PUSZ-PRET-ZD
Fastener

 8,8x1,2 Gland ZM
Block
ITEM DESCRIPTION PRICE
42215 BZP-ZZ Head Conductive $11.60
42213 BZP-ZZ Head $10.30
42256 PUSZ-LIN-ZD Fastener $29.00
42250 PUSZ-PRET-ZD Fastener $27.00
00802L 8,8x1,2 Gland $1.35
42520 ZM Block $6.40
BACK to TOP
