LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
ASSEMBLED, BUILT or MODIFIED

in the USA
KLUS Design 4050 Extrusion
ARCHITECTURAL LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
4050
Possibility of suspending or mounting directly to a surface

Lighting fixtures can be connected into linear and polygonal lighting lines (ZM / ZM-G Connectors)
Cables can be routed in the profile, which also serves as a mounting strip
Wall-to-wall installation possible
Application

- for the construction of serviceable linear lighting fixtures with a line of light.
Assembly

- surface or suspended mounting using systems offered by KLU?.
Additional information

- Wall-to-wall installation possible as end caps can be attached from below. To mount the lighting fixture from
below, snap off the inner upper plastic parts of the end cap. Then fit the assembled set of elements (end caps, extrusion with LED tapes) in the mounting strip.
4050
EXTRUSIONS		 COVERS / LENSES END CAPS /
ACCESSORIES
KLUS Extrusions MiFor-70S ystem KLUS Accessories KLUS Fixtures KLUS Tape Light
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

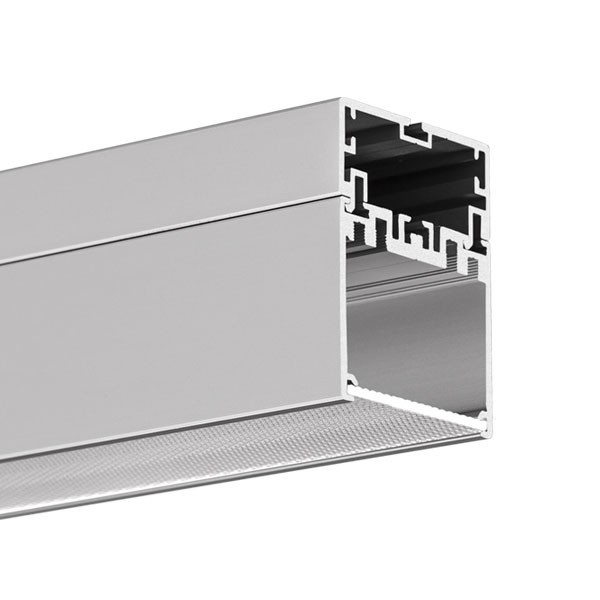

4050 Extrusion
18050ANODA_1 18050ANODA_2 18050ANODA_1 18050ANODA_2 18050ANODA_1 18050ANODA_2
18050ANODA_1 18050ANODA_2 18050ANODA_1 18050ANODA_2 18050ANODA_1 18050ANODA_2 18050ANODA_1 18050ANODA_2
ITEM DESCRIPTION PRICE
18050ANODA_1 39.4" / 1M Silver Anodized Extrusion $115.00
18050ANODA_2 79.75" / 2M Silver Anodized Extrusion $230.00
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart 4050 Specifications 4050 How To
EXAMPLES
4050 4050
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
17057
17057
POL-40
Clear
ITEM DESCRIPTION PRICE
17057_1 39.4" / 1M POL-40 Cover Frosted $22.40
17057_2 78.75" / 2M HPOL-40 Cover Frosted $44.80
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24335 42285 42285L9005 42286 42286L9005 42647NI
24335 42285 42285L9005 42286 42286L9005 42647NI
4050
End Cap		 FI-8-LIN-ZM
Fastener Silver		 FI-8-LIN-ZM
Fastener Black		 FI-8-LIN-ZMZ
Fastener Silver		 FI-8-LIN-ZMZ
Fastener Black		 RG-1 Mounting
set Silver
ITEM DESCRIPTION PRICE
24335 4050 End Cap $8.00
42285 FI-8-LIN-ZM Fastener Silver $18.20
42285L9005 FI-8-LIN-ZM Fastener Black $28.80
42286 FI-8-LIN-ZMZ Fastener Silver $27.50
42286L9005 FI-8-LIN-ZMZ Fastener Black $22.00
42647NI RG-1 Mounting set Silver $22.90

42215 42213 42244 42242 42512 00293
42215 42213 42244 42242 42512
00293
BZP-ZZ
Head Conductive		 BZP
Head		 FI-10-ZM-P
Fastener		 FI-10-ZM-W
Fastener		 ZM-EYE UCHO
Hanger		 GP
Spring
ITEM DESCRIPTION PRICE
42215 BZP-ZZ Head Conductive $12.90
42213 BZP-ZZ Head $11.40
42244 FI-10-ZM-P Fastener $16.20
42242 FI-10-ZM-W Fastener $16.20
42512 ZM-EYE UCHO Hanger $5.60
00293 GP Spring $4.65

42731V1 42320 42720 42717 42719 42718¥¥
42731V1
42302
42720
42717
42719
42718
BLOK
Spring		 ZM-120-G
Connector		 ZM-135
Connector		 ZM-180
Connector		 ZM-PION-135
Connector		 ZM-PION-90
Connector
ITEM DESCRIPTION PRICE
42731V1 BLOK Spring $3.70
42320 ZM-120 Connector-G $13.15
42720 ZM-135 Connector $10.30
42717 ZM-180 Connector $10.30
42716 ZM-90 Connector $10.30
42719 ZM-PION-135 Connector $11.00
42718 ZM-PION-90 Connector $10.30

42718 42716 42719 42728 42130
42724 42723 42727 42729 42725
ZM-PION-90
Connector		 ZM-90
Connector		 ZM-PION-135
Connector		 ZM-120
Connector		 ZM-135-G
Connector
ITEM DESCRIPTION PRICE
42718 ZM-PION-90 Connector $10.30
42716 ZM-90 Connector $10.30
42719 ZM-PION-135 Connector $11.00
42728 ZM-120 Connector $11.60
42130 ZM-135-G Connector $11.60

42324 42326 42328 42332 42334 42336
42324 42326 42328 42332 42334 42336
ZM-T45-G
Connector		 ZM-T60-G
Connector		 ZM-T90-G
Connector		 ZM-X60-G
Connector		 ZM-X90-G
Connector		 ZM-Y120-G
Connector
ITEM DESCRIPTION PRICE
42324 ZM-T45-G Connector $16.00
42326 ZM-T60-G Connector $16.00
42328 ZM-T90-G Connector $16.00
42332 ZM-X60-G Connector $21.90
42334 ZM-X90-G Connector $21.90
42336 ZM-Y120-G Connector $21.90

42717 42338 43230 42314 44501
42724 42339 43230 42315 44501
ZM-180
Connector		 ZM-45-G
Connector		 ZM-PION-120
Connector		 ZM-PION-45
Connector		 ZM-MINI-180
Connector
ITEM DESCRIPTION PRICE
42717 ZM-180 Connector $10.30
42338 ZM-45-G Connector $13.10
42330 ZM-PION-120 Connector $21.90
42314 ZM-PION-45 Connector $10.50
44501 ZM--MINI-180 Connector $9.90
BACK to TOP
