KLUS Design EX-ALU Extrusion

EDGE LIT LED EXTRUSION

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

216-352-3685

EMAIL US

WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US

These Cards Accepted and PROCESSED SECURELY

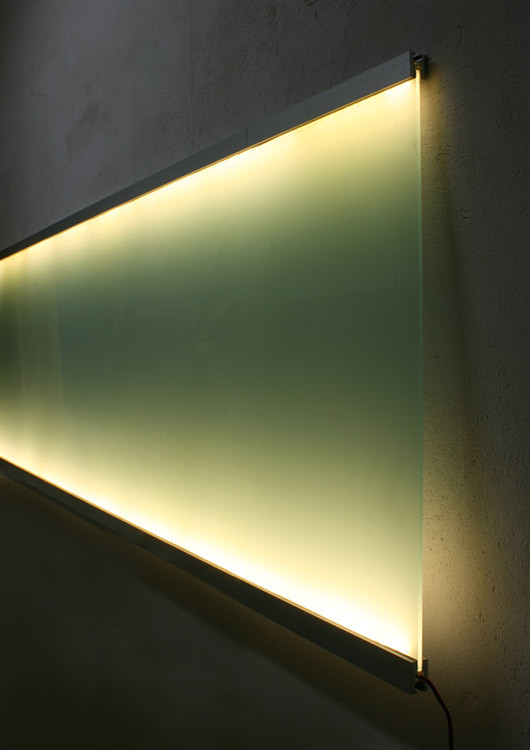

Solid fixing and backlighting of transparent glass or plastic panel

Application

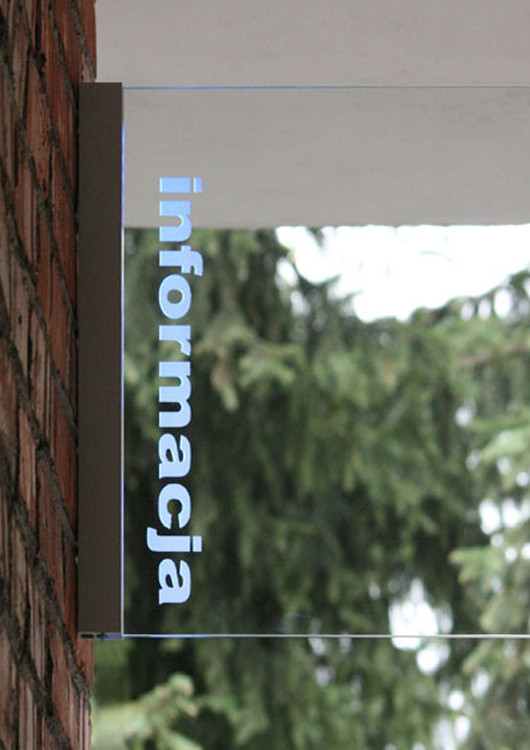

- for making appealing, backlit decorations on the edge of signs and boards

Assembly

- panel held in the fixture by means of a series of expansion bolts hidden in the profile interior - on the surface of walls and ceilings it is mounted on the heads of bolts

Additional information

- panel thickness approximate. 6 mm (0.25”)
- with the profile attached horizontally, the panel cannot stand from the ceiling more than 51 cm (20")
- when the profile is mounted vertically, the panel cannot protrude more than 51 cm (20") from the wall. Its
vertical dimension may not be less than 60% of the horizontal dimension
- the length of the panel cannot exceed the length of the profile
Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

EX-ALU
EXTRUSIONS

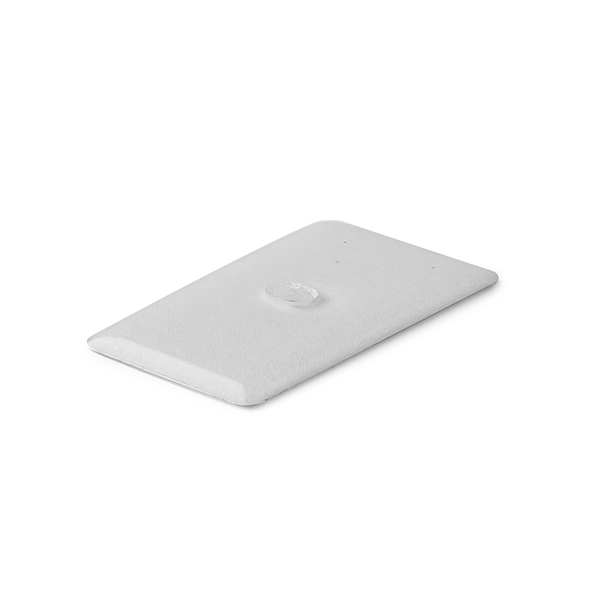

END
CAPS

STANDARD LEAD TIMES

Lead Time May Vary Based on Product Mix / Quantities Ordered

Standard Order - No Cutting

2 - 3 Days

Custom Cuts - Extrusions, Covers or LED Tape

3 - 5 Days

Custom Builds

2 - 3 Weeks

The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.

ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE

Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

EX-ALU Extrusion

ITEM	DESCRIPTION	PRICE
B1890ANODA_1	39.4" / 1M Silver Anodized Extrusion	$107.00
B1890ANODA_2	79.75" / 2M Silver Anodized Extrusion	$214.00

Download for Full Specifications, Dimensions and Instructions

Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions

Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic componentsproduces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
