KLUS Design HR-ALU Extrusion
TRAFFIC AREAS LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
Designed to reach an IP67 waterproof rating
Small size
Resistant to standard loads expected for floors
Application

- waterproof, floor-mounted lighting fixtures in rooms briefly exposed to water (e.g. bathrooms)
Assembly

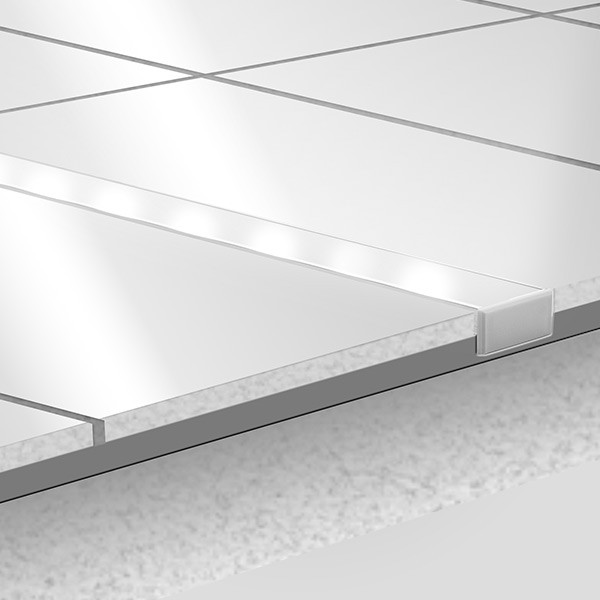

- glued into the prepared gap between floor tiles (or wall tiles)
- the remaining gap is filled with grout
Additional information

- the profile withstands the standard load resulting from pedestrian traffic, typical of domestic rooms
- it is extremely important to properly seal HR-ALU components (extrusion, covers, end caps, LEDs) if the fixture are assembled by KLUS
- for sealing HR-ALU extrusion we recommend using DOW CORNING 3145 , transparent Neutral Silicone
- when choosing other sealing materials it is important to know their quality, applications and that they do not
conduct electricity
- the quality of HR-ALU extrusion sealing depends solely on the quality and precision of the sealing process as well as the quality of the sealing material
Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

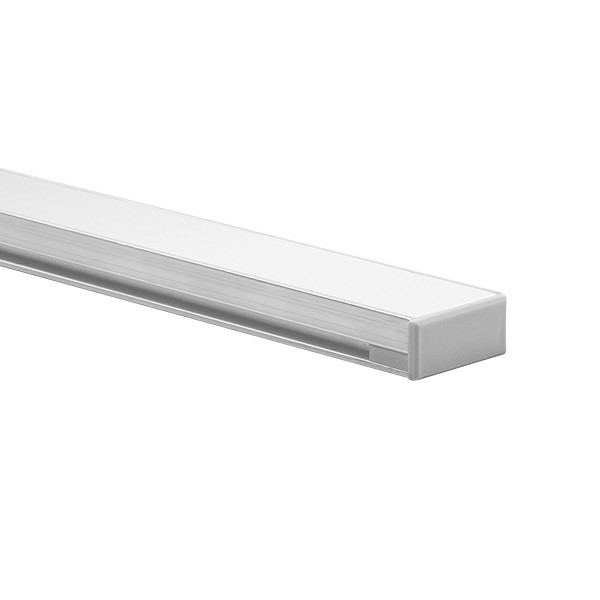

HR-ALU
EXTRUSIONS		 COVERS /
LENSES		 END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

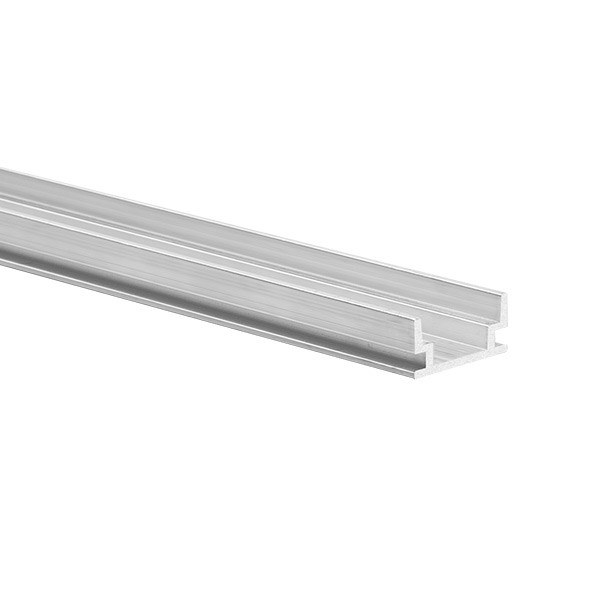

HR-ALU Extrusion
B1889NA_1 B1889NA_2 B1889NA_3 B1889NA_1 B1889NA_2 B1889NA_3 B1889NA_1 B1889NA_2 B1889NA_3 B1889NA_1 B1889NA_2 B1889NA_3
ITEM DESCRIPTION PRICE
B1889NA_1 39.4" / 1M Non- Anodized Extrusion $18.10
B1889NA_2 79.75" / 2M Non- Anodized Extrusion $36.20
B1889NA_3 118.11" / 3M Non- Anodized Extrusion $56.20
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic componentsproduces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart HR-ALU Specifications HR-ALU How To
EXAMPLE EXAMPLE
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
0945
0945

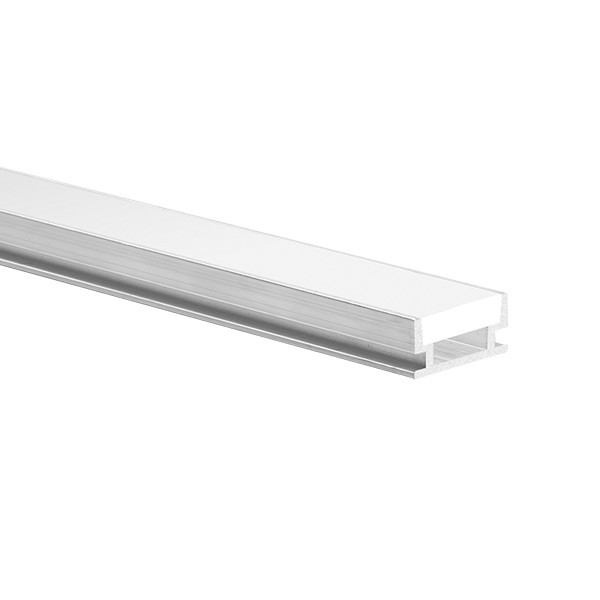

HR-ALU Cover
Frosted
ITEM DESCRIPTION PRICE
0945_1 39.4" / 1M HR-ALU Cover Frosted $16.20
0945_2 78.75" / 2M HR-ALU Cover Frosted $32.40
0945_3 118.11" / 3M HR-ALU Cover Frosted $48.40

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
00347 00010 00802 00802L
00347 00010 00802 00802L
HR-ALU
End Cap with Hole		 HR-ALU
End Cap with Hole		 8,8x1,2
Gland		 8,8x2,0
Gland
ITEM DESCRIPTION PRICE

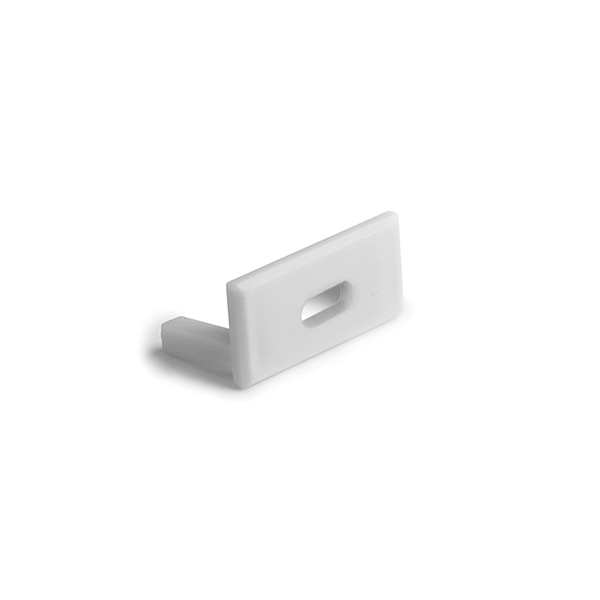

00347 HR-ALU End Cap with Hole $4.20

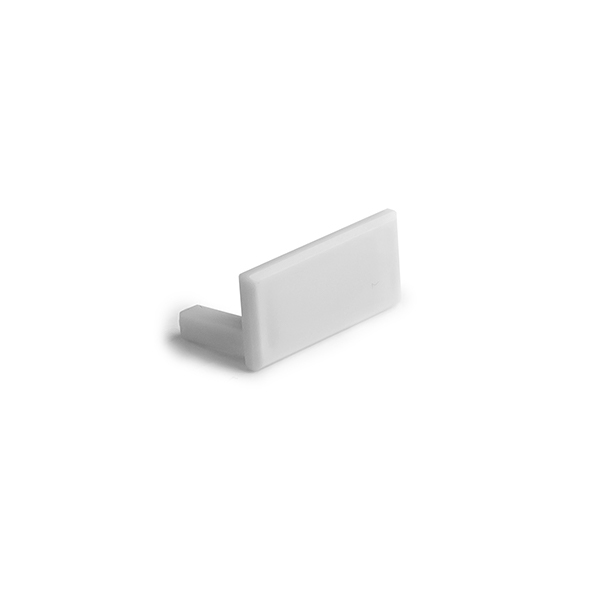

00010 HR-ALU End Cap $4.20
00802 8,8x1,2 Gland $1.40
00802L 8,8x2,0 Gland $1.40
