LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
ASSEMBLED, BUILT or MODIFIED

in the USA
KLUS Design INTER Extrusion
ARCHITECTURAL LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
inter
Large chamber for power supply, electronic components and electrical connection
Simple design
Easy assembly and disassembly
Application

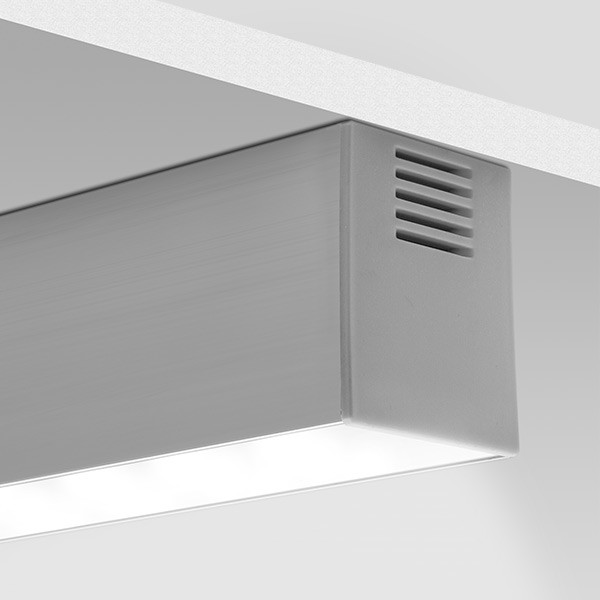

- for construction of wall lamps illuminating at a 90-degree angle

Assembly
- with a mounting strip, fixed with screws appropriately selected for the mounting surface
Additional Information

- can be mounted vertically using a locking bolt
- set includes Fi-0,15" plastic rod
- for indoor application
Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

INTER
EXTRUSIONS
COVERS /
LENSES
END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

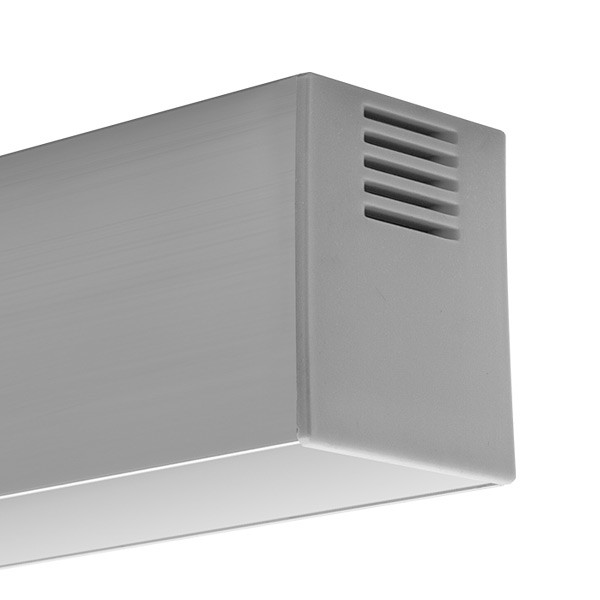

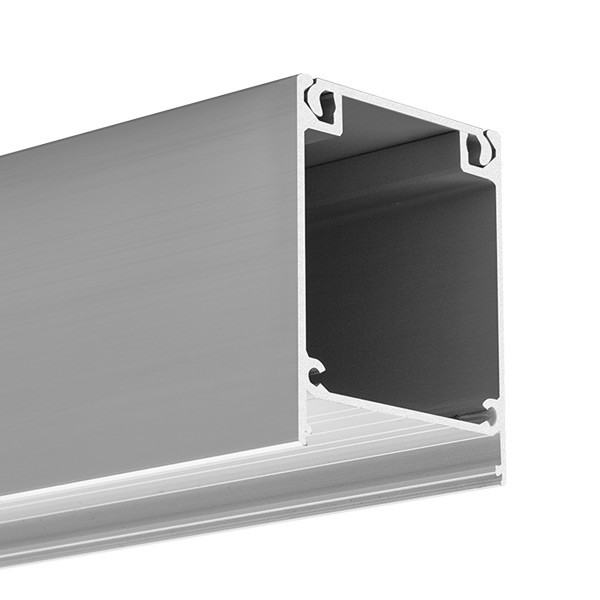

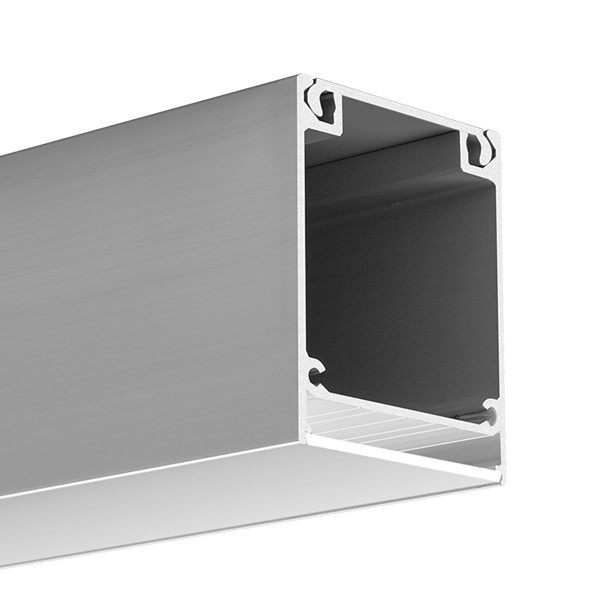

INTER Extrusion
18011ANODA_1  18011ANODA_2  18011ANODA_1  18011ANODA_2  18011ANODA_1  18011ANODA_2  18011ANODA_1  18011ANODA_2
ITEM DESCRIPTION PRICE
18011ANODA_1 39.4" / 1M Silver-Anodized Extrusion $127.00
18011ANODA_2 78.75" / 2M Silver-Anodized Extrusion $254.00
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart INTER Specifications LINO How To

BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
17062 17051
17062 17051
HSP-47 Cover

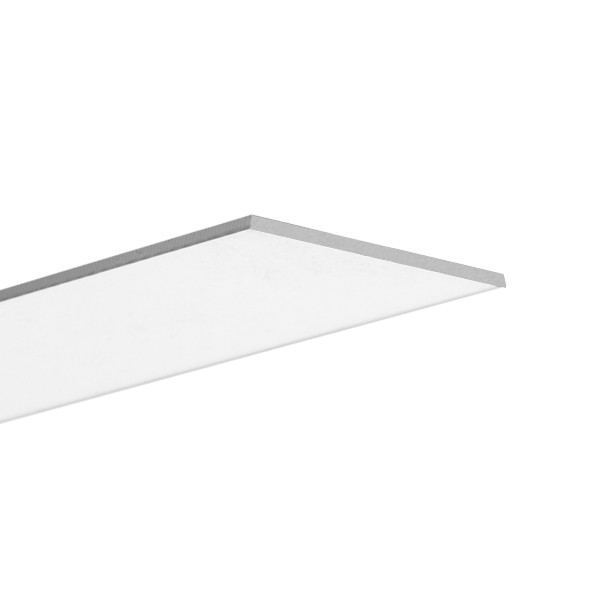

Clear
HSP-47 Cover

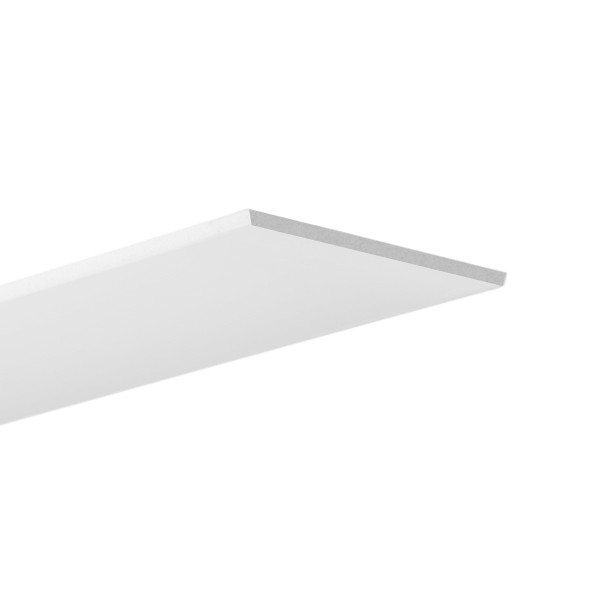

Frosted
ITEM DESCRIPTION PRICE
17062_1 39.4" / 1M HS Cover Clear $22.90
17062_2 79.75" / 2M HS Cover Clear $45.80
17051_1 39.4" / 1M HS Cover Frosted $22.90
17051_2 79.75" / 2M HS Cover Frosted $45.80
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24011 00643 42614 00802L 00820
24011 00643 42614 00802 00820
INTER
End Cap
W-BOX--Z
Fastener
M15
Mounting Set

8,8x1,2 Gland

24x1,6 Gland
ITEM DESCRIPTION PRICE
24011 INTER End CAP $6.40
00643 W-BOX--Z Fastener $24.40
42614 M15 Mounting Set $66.50
00802L 8,8x1,2 Gland $1.40
00820 24x1,6 Gland $2.65
BACK to TOP
