kides
Ability to create a line of light
IP54 protection class without the need for sealing
Simple design
Large space for power supply, electronic components and electrical connection
Application

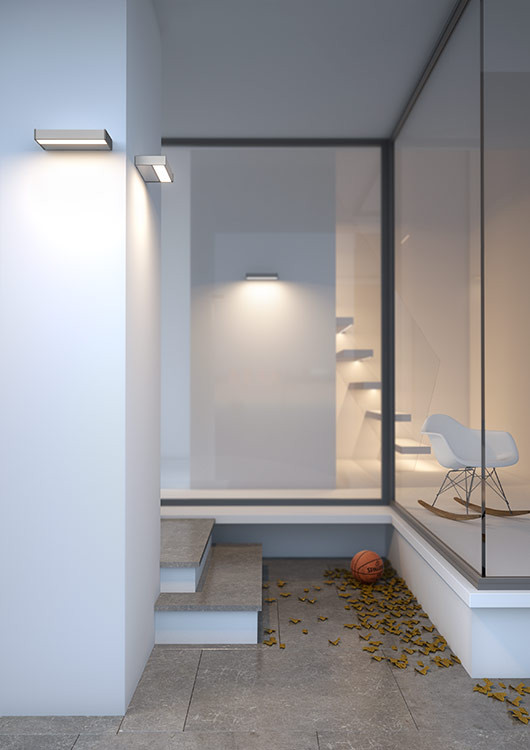

- for construction of splash-proof wall lamps with high light efficiency
Assembly
- using a mounting strip fastened with screws appropriately selected for the mounting surface
Additional information
- wide range of end caps

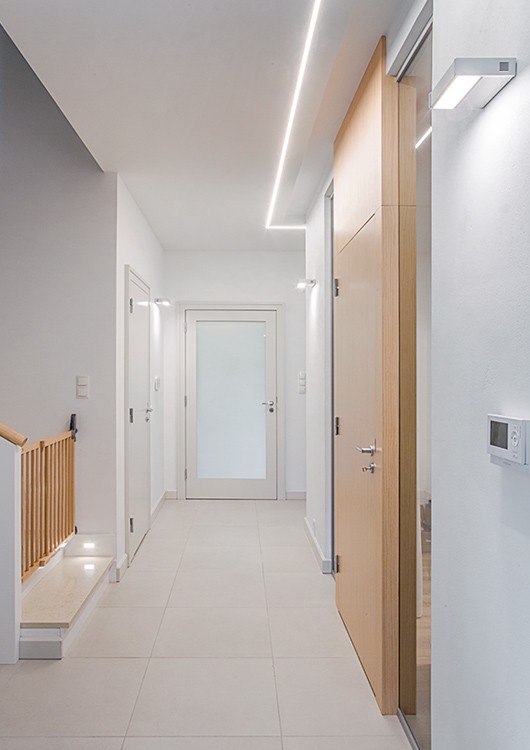

- for outdoor and indoor applications
- good heat dissipation
- IP54 ingress protection only with the KIDES cap
Fixtures made of KIDES series extrusions are made for indoor and outdoor applications. They are resistant to rain and snow, but are not IP68 rated (they cannot be immersed in water). They should be mounted in
accordance with the guidelines contained in the manual. When used outdoors, use only KIDES series end caps. When used indoors, the above-mentioned caps can be used, or simplified caps from KIDESIN series for indoor applications.
KIDES is made of TEKIDES mounting extrusion and OKIDES extrusion. This extrusion has a compartment for the selected power supplies. In this section, HSP47 covers are applied. Following the mounting of TEKIDES extrusion on the surface and after power supply cable has been installed, click-mount OKIDES extrusion. Finally, end caps are mounted. Details of installation and a list of necessary components are contained in the manual. Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will

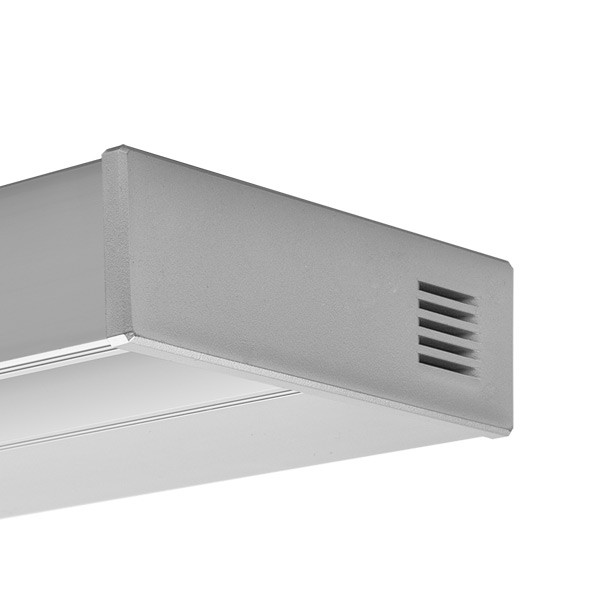

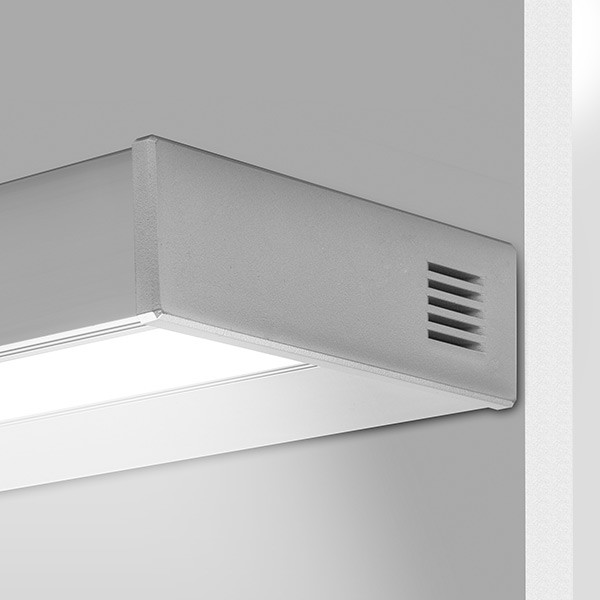

KIDES
EXTRUSIONS		 COVERS /
LENSES 		END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

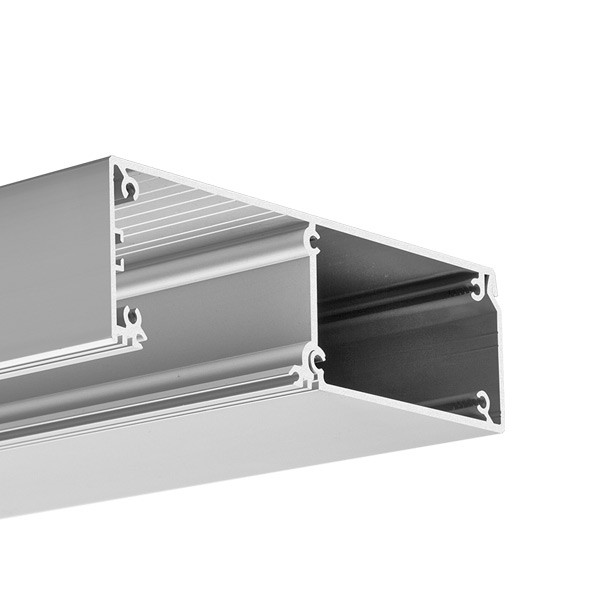

KIDES Extrusion
18031ANODA_1 18031ANODA_2 18031ANODA_1 18031ANODA_2 18031ANODA_1 18031ANODA_2 18031ANODA_1 18031ANODA_2
ITEM DESCRIPTION PRICE
18031ANODA_1 39.4" / 1M Kidos Silver Anodized Extrusion $206.00
18031ANODA_2 79.75" / 2M Kidos Silver Anodized Extrusion $412.00
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart KIDES-DUO Specifications KIDES-DUO How To
EXAMPLE EXAMPLE
Kides Kides
BACK to TOP

CLICK IMAGE for LARGER VIEW
ASSOCIATED EXTRUSIONS and COVERS / LENSES
17063 17062
17063 17062

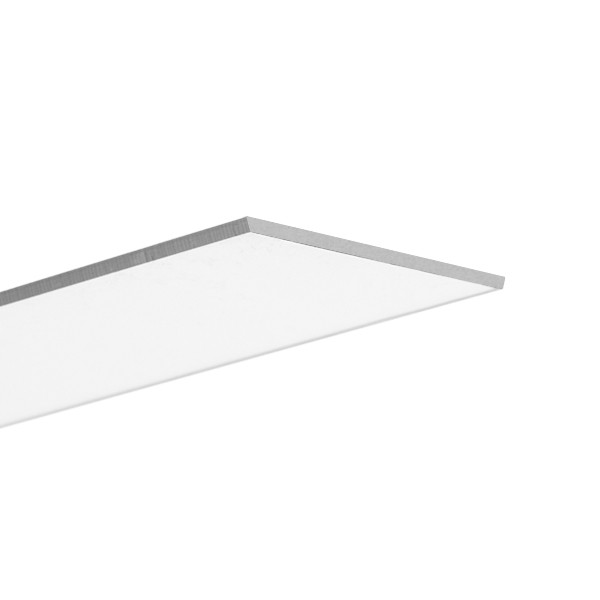

DHS Cover
Clear		 DHS Cover
Clear
ITEM DESCRIPTION PRICE
17063_1 39.4" / 1M DHS Cover Clear $21.40
17063_2 78.75" / 2M DHS Cover Clear $42.80
17052_1 39.4" / 1M DHS Cover Clear $27.40
17052_2 78.75" / 2M DHS Cover Clear $54.80
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24152 42628 00643 42728 42720 42717
24152 42628 00643 42728 42720 42717
KIDESIN MET
End Cap		 IDES-HQ
End Cap SET		 W-BOX-Z
Fastener		 ZM 120
Connector		 ZM-135
Connector 		ZM-180
Connector
ITEM DESCRIPTION PRICE

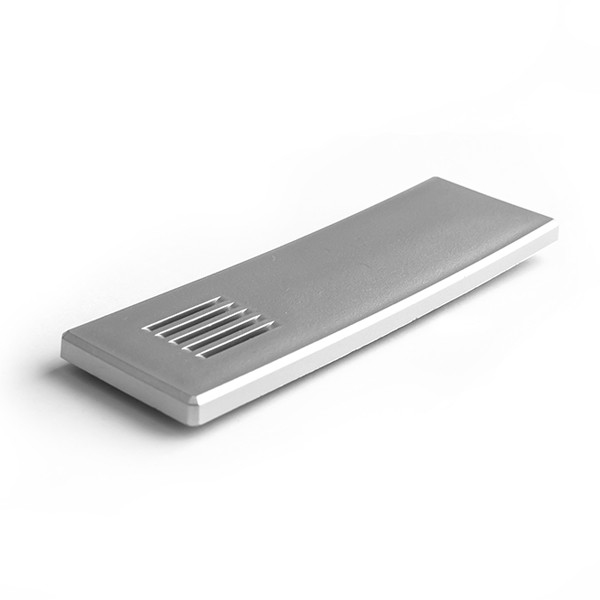

24152 KIDESIN MET End Cap $14.40

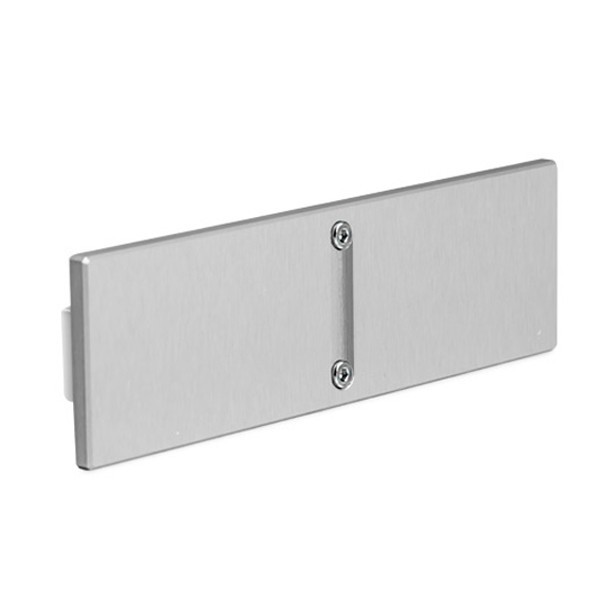

42628 KIDES-HQ End Cap Set
Premium product / Highest quality of workmanship / Elegant finish /
No light penetration / Secure mounting
$108.00
00643 W-BOX-Z Fastener $28.40
42728 ZM 120 Connector $11.60
42720 ZM 135 Connector $11.60
42717 ZM 180 Connector $10.30

42716 42419 42718 00802L 00820
42716 42719 42718 00802 00820
ZM-90
Connector 		ZM-PION 135
Connector		 ZM-PION 90
Connector		 8,8x1,2 Gland 24x1,6 Gland
ITEM DESCRIPTION PRICE
42716 ZM 90Connector $10.30
42719 ZM-PION 135 Connector $10.30
42718 ZM-PION -90 Connector $11.00
00802L 8,8x1,2 Gland $1.40
00820 24x1,6 Gland $2.80
