KLUS Design KRAV-05IN Extrusion
EDGE LIT LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
18045ANODA_1  18045ANODA_2

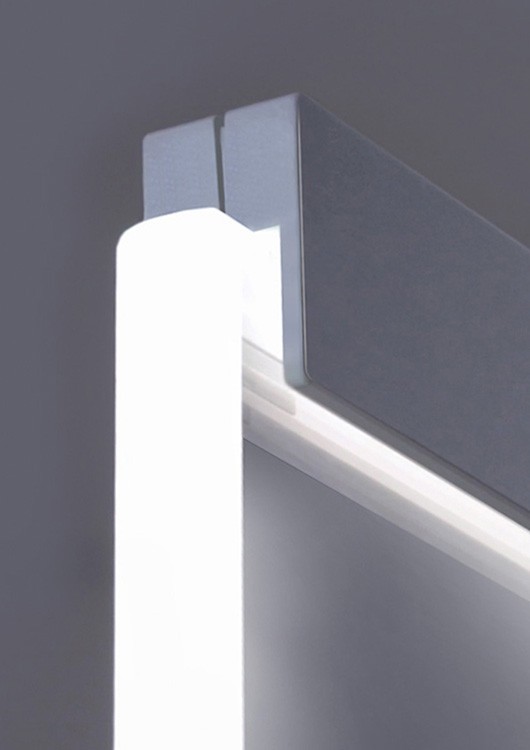

The interior is softly and pleasantly lit

Facilitates the mounting of LED strips

The extrusion includes a tolerance for the thickness of glass and plastics, which improves appearance if the dimensions of the illuminated surface do not match
Tight grip on the edge
Application

- edge illumination of glass panes and translucent plastics

Assembly
- with double-sided adhesive tape and a silicone cord
Additional information

- KRAV-05IN extrusions can accommodate LED strips up to 0.55'' / 14 mm. RGB-W strips
- KRAV-05IN is made of two extrusions so that it fits the thickness of glass and plastics ranging from 0.46'' /
11.90 mm to 0.53'' / 13.50mm
- KRAV-05IN is not a construction extrusion

KRAV-05IN
EXTRUSIONS
  END CAPS
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

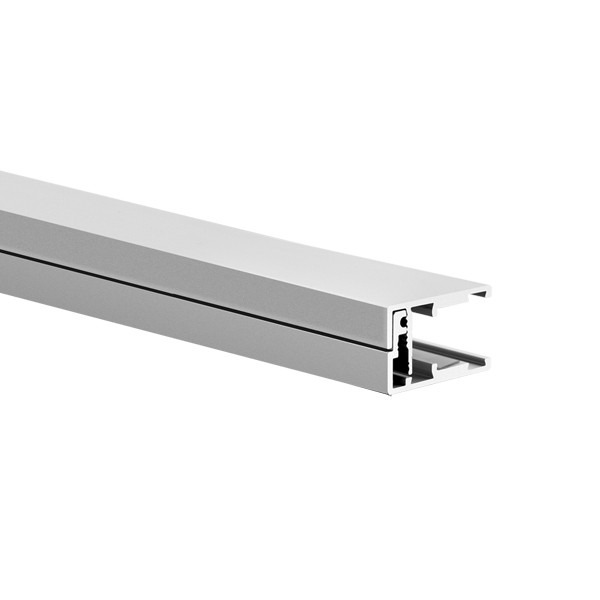

KRAV-05IN Extrusion
18045ANODA_1  18045ANODA_2  18045ANODA_1  18045ANODA_2  18045ANODA_1  18045ANODA_2
ITEM DESCRIPTION PRICE
18045ANODA_1 39.4" / 1M Silver Anodized Extrusion $81.80
18045ANODA_2 79.75" / 2M Silver Anodized Extrusion $163.60
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic componentsproduces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart KRAV-05 Specifications KRAV-05 How To

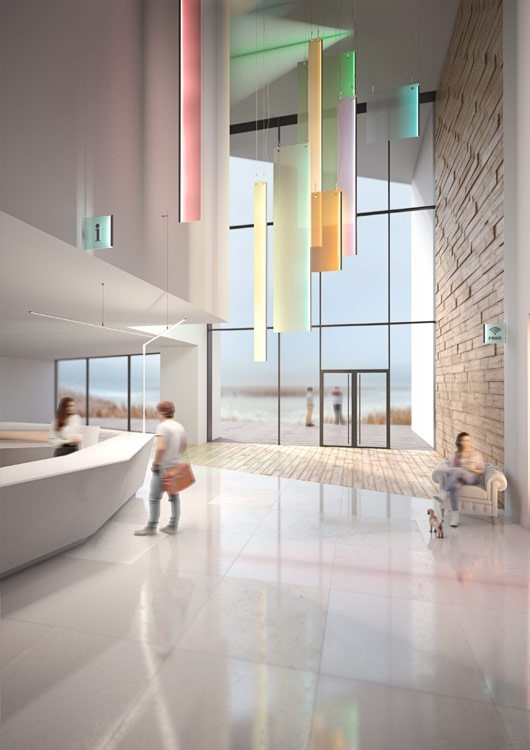

EXAMPLE EXAMPLE
KRAV-05IN KRAV-05IN
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24308 00802L
24028 00802
KRAV-05IN
End Cap
8,8x1,2 Gland
ITEM DESCRIPTION PRICE
24308 KRAV-05IN End Cap $7.00
00802L 8,8x1,2 Gland $1.40
