KLUS Design KRAV-810 Extrusion

EDGE LIT LED EXTRUSION

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

216-352-3685

EMAIL US

WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US

These Cards Accepted and PROCESSED SECURELY

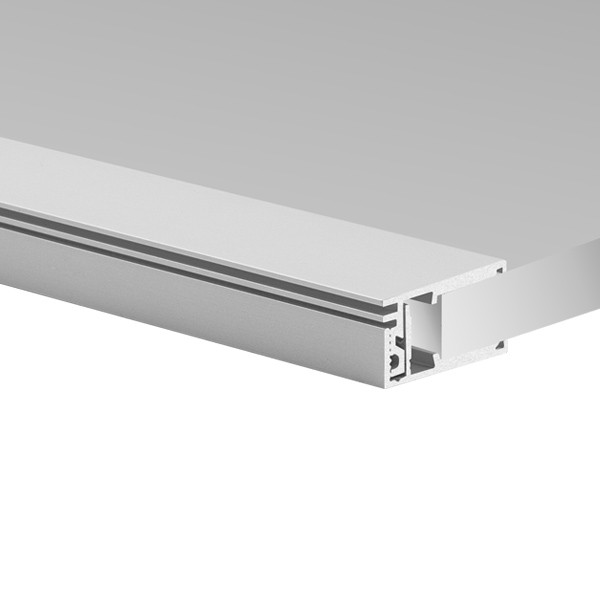

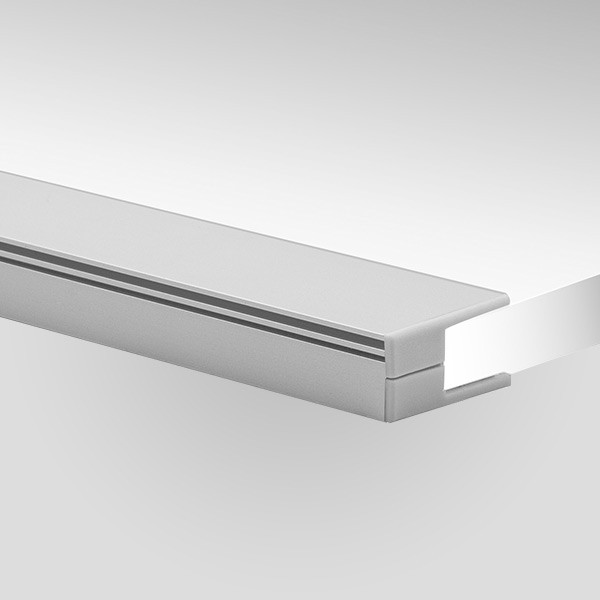

Easy and secure mounting to panel edges

Convenient installation of LED strips

Dedicated for mounting LED tape up to 10 mm (0.39")

Application

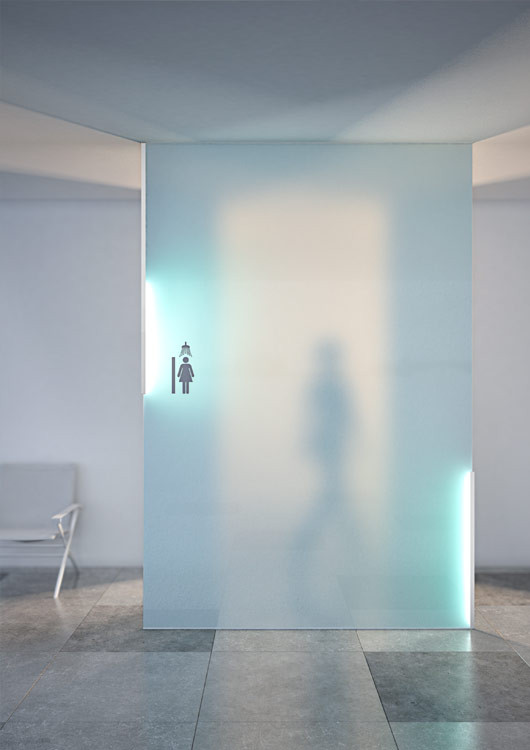

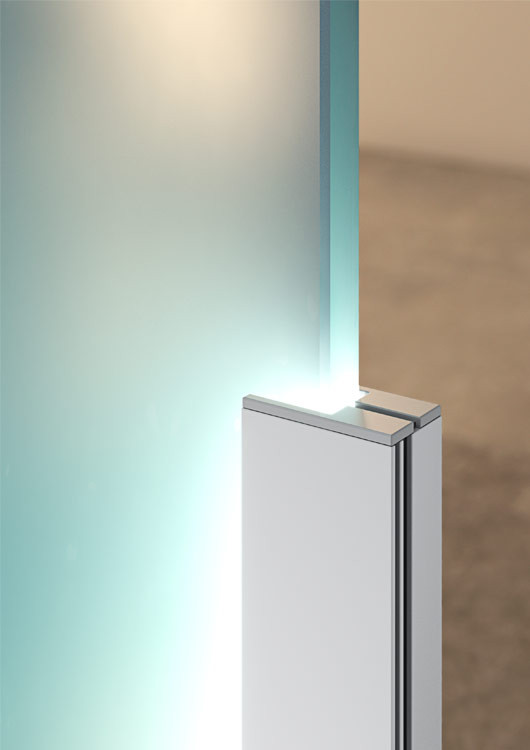

- edge illumination of transparent and frosted panels

Assembly

- installation using self-adhesive tape and clasps

Additional information

- the extrusion is a lighting fixture, not a structural element
KRAV extrusions are not construction extrusions! They are designated exclusively to illuminate glass or acrylic. Therefore, assembly, suspension, or other technical activities related to the panels should be performed using standard elements. Complete KRAV 810 extrusion consists of 2 extrusions: KRAV-D810 dedicated for mounting LED tape up to 10 mm (0.39") wide and KRAV-Z810 extrusion – the closing extrusion. Additionally the extrusions are equipped with mounting adhesive tape and a silicone strip that assures a solid connection of the two extrusions. Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

KRAV-810
EXTRUSIONS

END CAPS

STANDARD LEAD TIMES

Lead Time May Vary Based on Product Mix / Quantities Ordered

Standard Order - No Cutting

2 - 3 Days

Custom Cuts - Extrusions, Covers or LED Tape

3 - 5 Days

Custom Builds

2 - 3 Weeks

The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.

ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE

Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

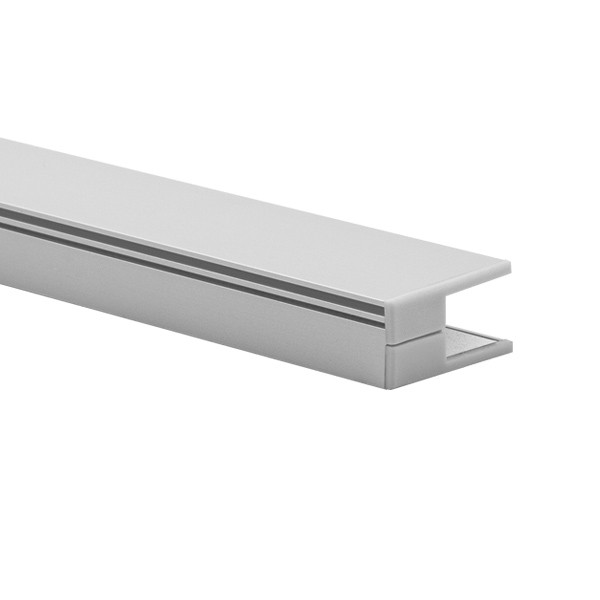

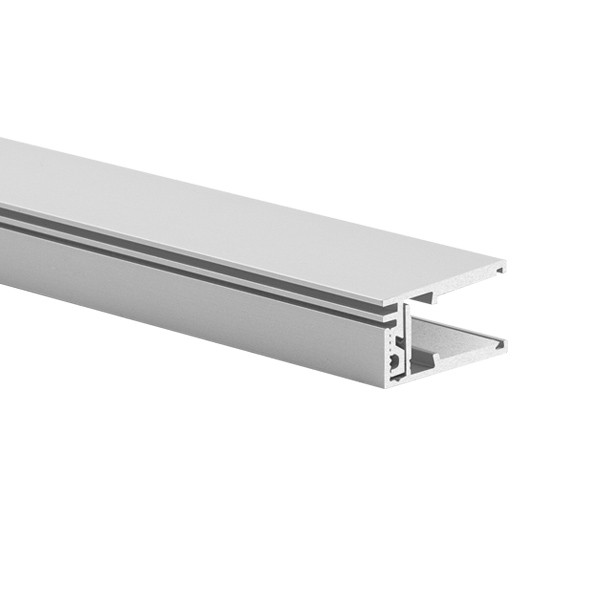

KRAV-810 Extrusion

ITEM	DESCRIPTION	PRICE
18016ANODA_1	39.4" / 1M Silver Anodized Extrusion	$55.30
18016ANODA_2	79.75" / 2M Silver Anodized Extrusion	$110.60

Download for Full Specifications, Dimensions and Instructions

Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions

Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic componentsproduces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.

CLICK for PDF:

EXAMPLE

END CAPS / ACCESSORIES

24028

KRAV-810

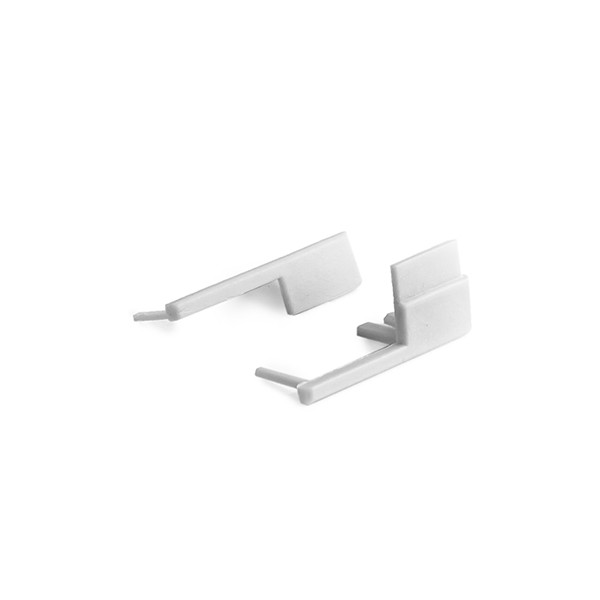

End Cap

$6.40
