KLUS LED Power Supplies / Wiring and Mounting Accessories

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

216-352-3685

WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US

These Cards Accepted and PROCESSED SECURELY

Originally founded in 1977 in Warsaw Poland, Klus has become a leading designer of LED extrusions throughout Europe and has now expanded to open a parent company to support the ever changing market of LED lighting in the United States.

LED TAPE LIGHT CATEGORIES - ALL AVAILABLE IN UP TO 7 COLOR TEMPERATURES
HIGH EFFICACY	CRI 95+	WHITE	RGB / RGB-W	ADJUSTABLE WHITE / DIM TO WARM

CERTIFIED WILDLIFE LIGHTING

KLUD DESIGN LED POWER SUPPLIES / CONTROLS / WIRING AND MOUNTING ACCSSORIES

CLICK CATALOG BUTTON

For FULL SPECIFICATIONS and INSPIRATION for Your LED Application:

Lead Time May Vary Based on Product Mix / Quantities Ordered

Standard Order - No Cutting

2 - 3 Days

Custom Cuts - Extrusions, Covers or LED Tape

3 - 5 Days

Custom Builds

2 - 3 Weeks

The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.

ORDERS BELOW $150.00 are
SUBJECT to a $15.00 SERVICE CHARGE

Please Provide SHIPPING ZIP CODE for Shipping Quote

BACK to TOP

DIMMABLE MAGNETIC
POWER SUPPLIES

E-SERIES ELECTONIC
POWER SUPPLIES

ADJUSTABLE WIRELESS CONTROL DRIVER & WALL CONTROLS

010-DIMMABLE ELECTRONIC
POWER SUPPLIES

PWM DIMMABLE
POWER SUPPLIES

CONSTANT VOLTAGE- PHASE CUT
DIMMABLE DRIVERS

NON-DIMMABLE ELECTRONIC PLUG-IN POWER SUPPLIES

CONTROLS AND
WIRING OPTIONS

CLICK IMAGE for LARGER VIEW

MAGNETIC DIMMABLE POWER SUPPLIES

Klus's ’s UL Listed dimmable voltage LED driver is class 2 rated and designed to operate with any standard MLV/ Incandescent TRIAC (Leading edge) dimmer switch. Encased in a low Profile aluminum enclosure that includes 2 knock-outs to enable easy installation makes it the perfect choice for under cabinet lights, tape lights and various LED fixtures installations.

• Dimmable with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch

• Dual protection – primary and secondary auto-reset circuit breakers Up To 150W

• Class 2 Up to 100W

• Nema 3R Enclosure – Outdoor Use

• ETL Listed

• Certified to CSA Standard

• Two knock-outs one on each side

277V Units Available - Add 7%

CLICK for COMPATIBLE DIMMERS:

ITEM

MAX.
LOAD

OUTPUT
VOLTAGE

DIMENSIONS

CLICK for
SPECIFICATIONS

PRICE

MD-20-12

20W

12V DC

5.60" x 2.00" x 2.14"

$116.80

MD-40-12

40W

12V DC

5.60" x 2.00" x 2.14"

$118.00

MD-50-12

50W

12V DC

6.55" x 2.25" x 2.55"

$129.00

MD-60-12

60W

12V DC

6.55" x 2.25" x 2.55"

$136.00

MD-100-12

100W

12V DC

9.80" x 3.00" x 3.00"

$148.60

MD-150-12

150W

12V DC

9.80" x 3.00" x 3.00"

$159.80

MD-200-12

200W

12V DC

9.80" x 3.00" x 3.00"

$168.00

MD-300-12

300W

12V DC

9.80" x 4.20" x 3.50"

$259.00

MD-20-24

20W

24V DC

5.60" x 2.00" x 2.14"

$116.80

MD-40-24

40W

24V DC

5.60" x 2.00" x 2.14"

$118.00

MD-60-24

60W

24V DC

6.55" x 2.25" x 2.55"

$136.00

MD-96-24

96W

24V DC

6.55" x 2.25" x 2.55"

$148.60

MD-150-24

150W

24V DC

9.80" x 3.00" x 3.00"

$158.80

MD-200-24

200W

24V DC

9.80" x 3.00" x 3.00"

$168.00

MD-300-24

300W

24V DC

9.80" x 4.20" x 3.50"

$259.00

BACK to TOP/ BACK to POWER SUPPLIES

CLICK IMAGE for LARGER VIEW

E-SERIES Constant Voltage Electronic Phase Dimmable LED Driver

This Listed driver is an electronic Class 2, phase dimmable LED driver with a low profile aluminum case, making it the perfect choice for tape lighting, kick/cove lighting, under cabinet lighting and multiple other residential and commercial lighting applications. The UL Listed enclosure includes a wiring compartment with two ½" knockouts for easy installation, eliminating the need for a separate junction box. The driver features auto reset, over current and short circuit protection as well as an efficiency over 90% -- resulting in low operating case temperature. The driver is phase-dimmable down to 1% with leading edge TRIAC dimmers.

12V E-SERIES ELECTRONICFORWARD PHASE DIMMABLE DRIVERS

ITEM

WATTAGE

VOLTS

DIMENSIONS
L x W x H

CLICK for
SPECIFICATIONS

PRICE

E-20-12

20

12

6.77 x 2.87 x 1.30

$115.20

E-40-12

40

$117.00

E-60-12

60

$133.80

24V E-SERIES ELECTRONICFORWARD PHASE DIMMABLE DRIVERS

E-20-24

20

24

6.77 x 2.87 x 1.30

$115.20

E-40-24

40

$117.00

E-60-24

60

$133.80

E-75-24

75

$141.30

E-96-24

96

$146.20

BACK to TOP/ BACK to POWER SUPPLIES

CLICK IMAGE for LARGER VIEW

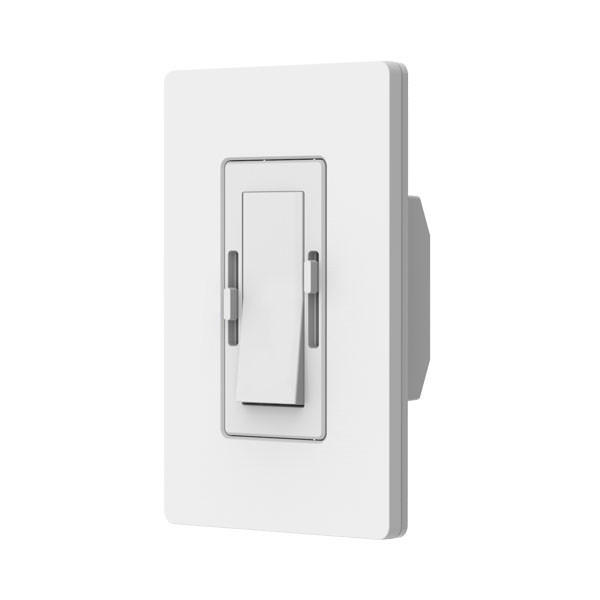

24V DIMMABLE / ADJUSTABLE WIRELESS CONTROL DRIVER AND WALL CONTROLS

Wireless System Drivers and Wall Switch offers a single-switch, end-to-end approach, eliminating redundant components and compatibility issues for superior performance. With its wireless support, Wall Switch requires only the same wire set as a standard dimmer switch,

24V DIMMABLE / ADJUSTABLE WIRELESS CONTROL DRIVER AND WALL CONTROLS *

* NOT A STANDARD STOCK ITEM - EXPECT LEAD TIMESOF 2 -3 WEEKS ONCE AN ORDER IS PLACED

ITEM

WATTAGE

VOLTS

DIMENSIONS
L x W x H

CLICK for
SPECIFICATIONS

PRICE

WSD-40-24V

40

24

N/a

$265.00

WSD-60-24V

60

$315.00

WSD-96-24V

96

$345.00

WS-AW-W

WS-DTW-W

WS-AW-W

Adjustable White Dimmable Wall Control

Fits in a

Standard J-BOX

$184.00

WS-DTW-W

Dim to Warm
Wall Itch Control

COMIING SOON

BACK to TOP/ BACK to POWER SUPPLIES

CLICK IMAGE for LARGER VIEW

0 -10 CONSTANT VOLTAGE DRIVERS

The KLUS Constant Voltage Driver is an electronic Class 2, 0-10V dimmable LED driver with an integrated junction box, making it the perfect choice for tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The UL enclosure is rated IP66 for indoor or outdoor installations and includes a separate input and output wiring compartment, each with three ?" knockouts for easy installation. The driver features hiccup mode, over current and short circuit protection, as well as an efficiency over >84% resulting in low operating case temperature. This driver is dimmable down to 1% with a 0-10V dimmer.

12V 0 - 10V DIMMABLE POWER SUPPLIES

ITEM

WATTAGE

VOLTS

DIMENSIONS
L x W x H

CLICK for
SPECIFICATIONS

PRICE

010-50W-12V

50

12

12.10 x 2.36
x 1.40

$150.80

24V 0 - 10V DIMMABLE POWER SUPPLIES

010-30W-24V

30

24

12.10 x 2.36
x 1.40

$149.60

010-50W-24V

60

$154.80

010-96W-24V

96

$170.00

BACK to TOP/ BACK to POWER SUPPLIES

CLICK IMAGE for LARGER VIEW

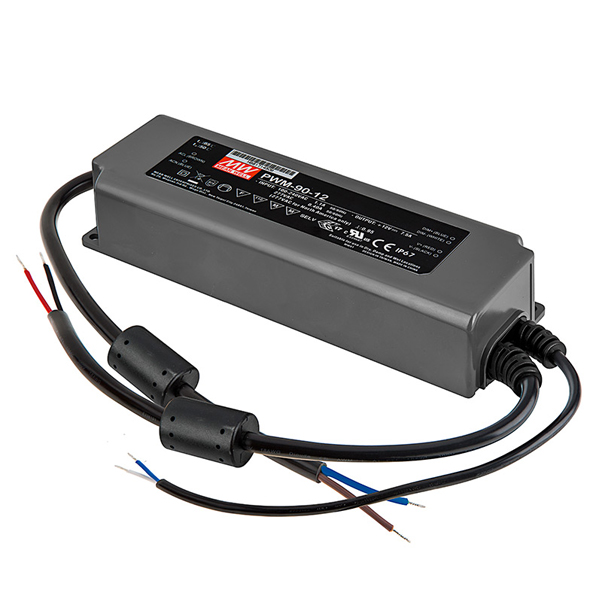

PWM DIMMABLE POWER SUPPLIES

The PWM series is a 120W AC/DC driver featuring the constant voltage mode with PWS style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. The entire series is rated with IP67 ingress protection and is suitable to work for dry,damp or wet locations.

12VPWM DIMMABLE POWER SUPPLIES

90W PWM DRIVER

ITEM

WATTAGE

VOLTS

DIMENSIONS
L x W x H

CLICK for
SPECIFICATIONS

PRICE

EDPS-40-24V

40

12

6.73 x 2.49 x 1.48

$106.00

EDPS-60-24V

60

$112.50

EDPS-90-24V

90

$147.60

EDPS-120-24V

120

$165.80

24V PWM DIMMABLE POWER SUPPLIES

EDPS-40-24V

40

24

6.73 x 2.49 x 1.48

$106.00

EDPS-60-24V

60

$112.50

EDPS-90-24V

90

$147.60

EDPS-120-24V

120

$165.80

90W PWM DRIVER

BACK to TOP/ BACK to POWER SUPPLIES

CLICK IMAGE for LARGER VIEW

I24V Constant Voltage Phase-Cut Dimmable LED DriveR

The KLU? Constant Voltage Driver is an electronic Class 2, dimmable LED driver with an integrated junction box, making it the perfect choice for tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The UL enclosure is rated IP66 for indoor or outdoor installations and includes a separate input and output wiring compartment,.

24V Constant Voltage Phase-Cut Dimmable LED DriveRS

ITEM

WATTAGE

VOLTS

DIMENSIONS
L x W x H

CLICK for
SPECIFICATIONS

PRICE

ND-50-12

30

12

12.10 x 2.36 x 1.40

$134.00

ND-30-24

30

24

$134.00

ND-60-24

60

$148.80

ND-96-24

96

$160.00

BACK to TOP/ BACK to POWER SUPPLIES

CLICK IMAGE for LARGER VIEW

ELECTRONIC NON-DIMMABLE PLUG-IN POWER SUPPLIES

The KLU? Constant Voltage Driver is an electronic Class 2, non-dimmable LED driver with an integrated junction box, making it the perfect choice for tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The UL enclosure is rated IP66 for indoor or outdoor installations

12V and 24V NON-DIMMABLE PLUG-IN POWER SUPPLIES

ITEM

WATTAGE

VOLTS

PRICE

4011

18

12

$63.80

4015

36

12

$53.00

4011-24V

18

24

$66.00

4015-24V

36

24

$66.00

BACK to TOP/ BACK to POWER SUPPLIES

CLICK IMAGE for LARGER VIEW

CONTROLS

R+AWC

R+RGBC

R+RGBWC

WMP-AW DMX

WMP-RGB+CCT DMX

WMP-RGBW DMX

Adjustable White
LED Remote Control
and Receiver

RGB
LED Remote Control
and Receiver

RGB-W
LED Remote Control
and Receiver

Adjustable White
LED Touch Sensitive
Wall Control

RGB
LED Touch Sensitive
Wall Control

RGB-W
LED Touch Sensitive
Wall Control

$146.80

$115.00

$118.20

$115.00

CONTROLS

LED-ADW-A

WP-DMX512

LED-RGB+W-A

LED-RGB-A

60228

60233

Adjustable White Amplifier

Waterproof DMX512 decoder

LED RGB-W
Amplifier

-LED RGB
Amplifier

LED MONO
ontroller, Wlightboxs

LED RGB+W controller, Wlightbox

$41.60

$188.00

$48.50

$54.80

$114.20

$153.30

CONTROLS

62072

8202

62066

1576 / 1491

00234 / 00235

62047 / 1750

PROXIDIMMER Proximity dimmer

Cabinet Switch
White

Cainet Switch
Black

Micro / Switch
with 57" Lead

Proximity Switch /
Proximity Switch
with 57" Lead

Dimmer Switch /
with 59" Lead

$57.50

$28.20

$36.50 / $39.50

$52.60 / $55.60

$53.80 / $56.80

BACK to TOP/ BACK to POWER SUPPLIES

CLICK IMAGE for LARGER VIEW

WIRING SUPPLIES

CONNECTION WIRE

C1-0W

C2-1.5W

C3-6W

ITEM	DESCRIPTION	PRICE / FT
4119	18 Gauge	$2.00
4120	22 Gauge	$1.00
4121	20 Gauge - Grey	$1.10
4118	18 Gauge Outdoor	$2.35
1502	Non-Waterproof Soldering - Per Solder	$8.00

Solderless Strip to Strip Connector

1.5" Solderless Jumper Extension

6" Solderless Connector

0.41W x 0.18H x 0.63L

$1.60

$3.25

$1.95

BACK to TOP/ BACK to POWER SUPPLIES

CLICK IMAGE for LARGER VIEW

WIRING SUPPLIES

NON-WATERPROOF CONNECTORS

WATERPROOF CONNECTORS

Female DC Connector

Male DC Connector

2-Way Splitter
2 Male / 1 Female Ends

Waterproof
Female DC Connector

Waterproof
Male DC Connector

ITEM		PRICE
FC-DC -15	6"	$1.75
FC-DC -92	36"	$2.95
FC-DC -183	72"	$4.35

ITEM		PRICE
MC-DC -15	6"	$1.75
MC-DC -92	36"	$2.95
MC-DC -183	72"	$4.35

2M-1F-S

ITEM		PRICE
WP-FC-DC -92	36"	$2.95
WP-FC-DC -183	72"	$4.35

ITEM		PRICE
WP-MC-DC-92	36"	$2.95
WP-MC-DC -183	72"	$4.35

$3.95

BACK to TOP/ BACK to POWER SUPPLIES
