KLUS Design LIT-L Extrusion
COVES / NICHES LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure

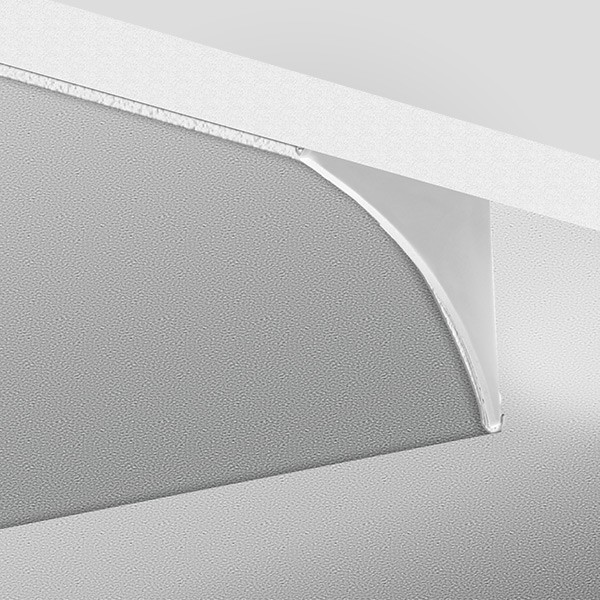

LIT-L
Concealed source of light
Easy mounting using various techniques. Concealed aluminum components
Appealing shape
Ease of service
ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less
Application

- for creating a variety of light compositions integrated with the mounting surface
Assembly

- using screws appropriately selected for mounting surface, and then covered with a gypsum finish
- finishing with the material used on the mounting surface
Additional Information
- sections of the extrusion can be joined with ZM connectors
Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.
LIT-L
EXTRUSIONS		 COVERS /
LENSES 		END CAPS /
ACCESSORIES




STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

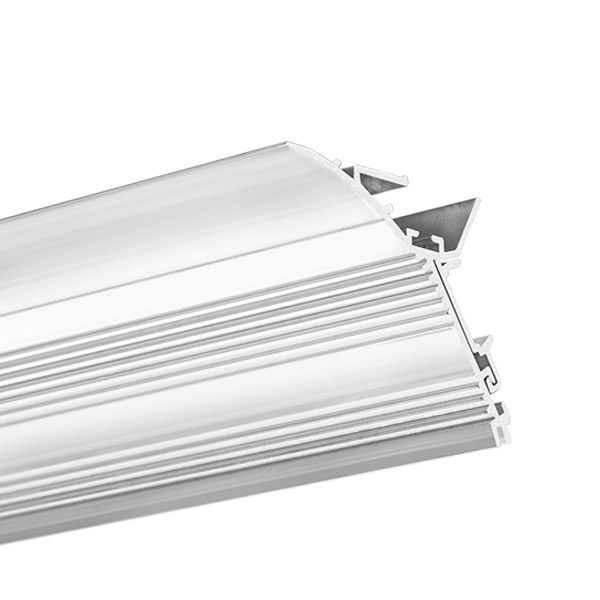

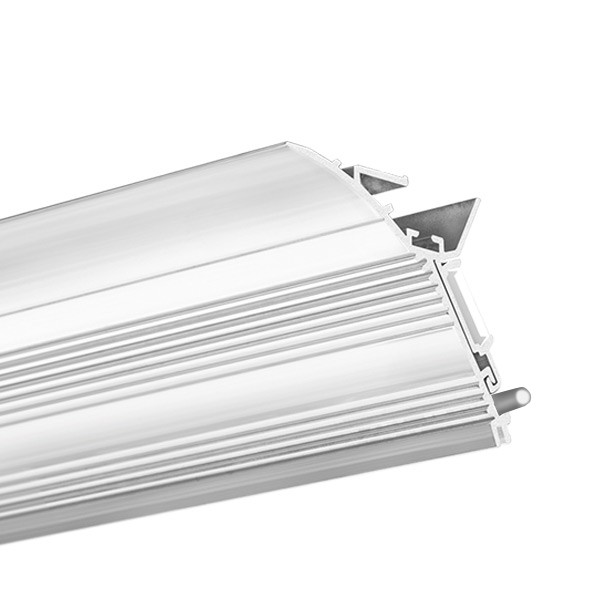

LIT-L Extrusion
ITEM DESCRIPTION PRICE
18033NA_1 39.4" / 1M Non-Anodized Extrusion $64.60
18033NA_2 78.75" / 2M Non-Anodized Extrusion $129.20
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart LIT-L Specifications LIT-L How To

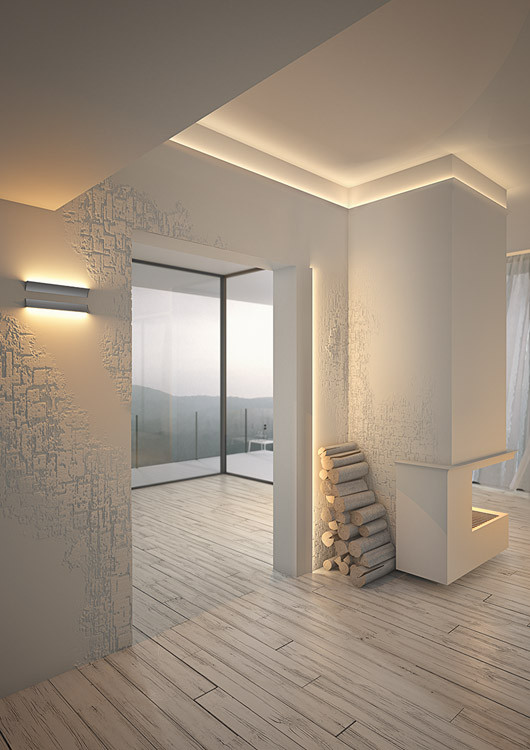

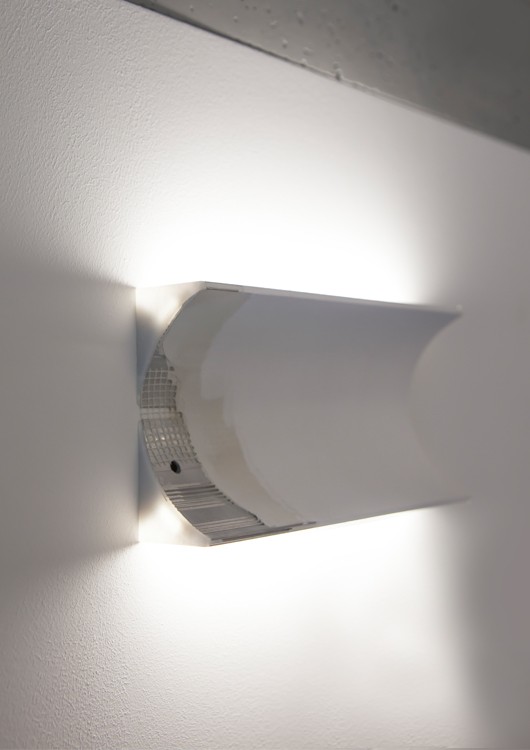

EXAMPLE EXAMPLE
LIT-L Lit-L
BACK to TOP

CLICK IMAGE for LARGER VIEWCLICK IMAGE for LARGER VIEW
COVERS / LENSES
1370 1369
1370 1369
HS Cover
Clear		 HS Cover
Frosted
ITEM DESCRIPTION PRICE
1370_1 39.4" / 1M HS Cover Clear $11.90
1370_2 78.75" / 2M HS Cover Clear $23.80
1369_1 39.4" / 1M HS Cover Frosted $11.90
1369_2 78.75" / 2MHS Cover -Frosted $23.80
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24100 24180 24181 00802L
24100 24180 24181 00802
ONISA
End Cap		 TELIT-L-R
Right End Cap

TELIT-L-L
Left End Cap

 8,8x1,2 Gland
ITEM DESCRIPTION PRICE

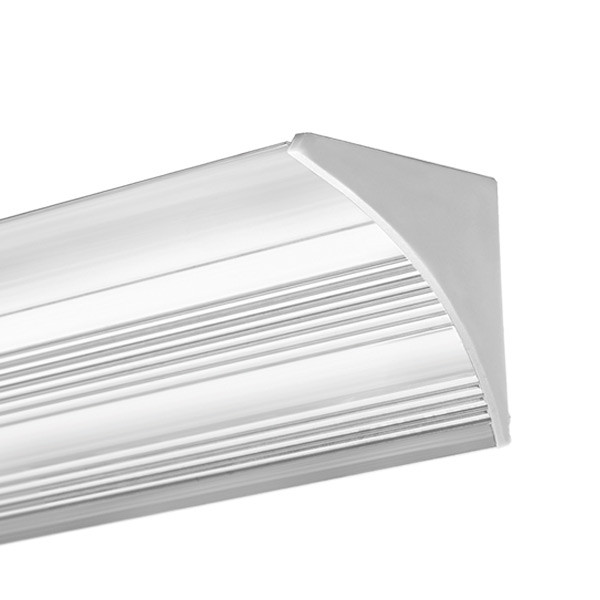

24100 ONISA End Cap $3.30

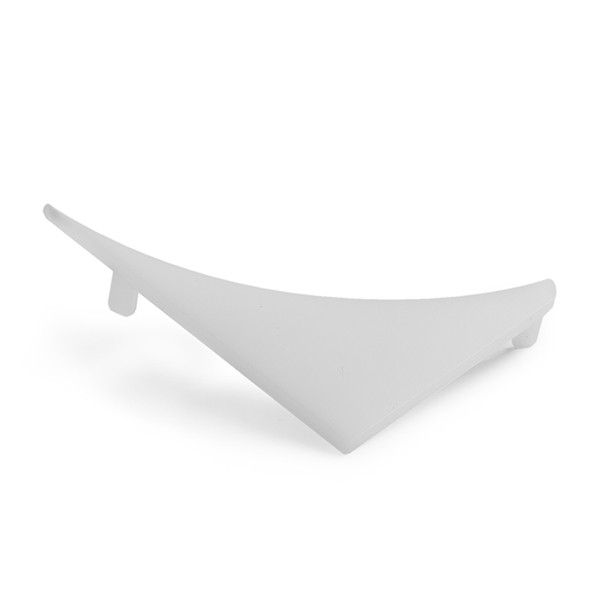

24180 TELIT-L-R Right End Cap $4.20

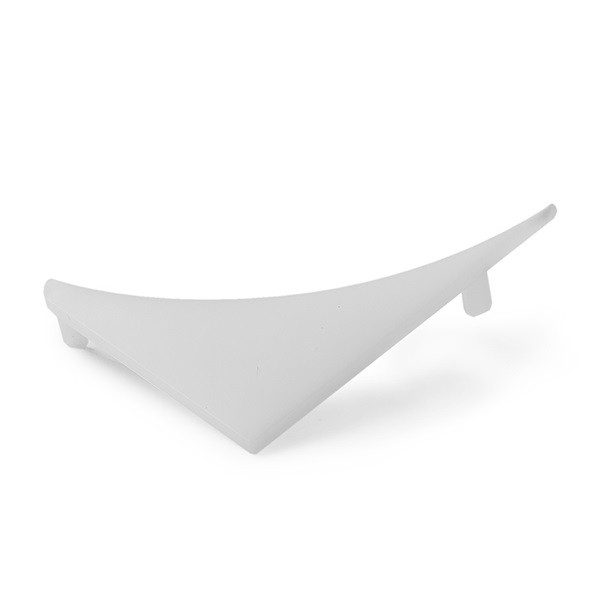

24181 TELIT-L-Left End Cap $4.20
00802L 8,8x1,2 Gland $1.40

42717 42726 42723 42725 42729
42717 42718 42723 42725 42728
ZM-180
Connector		 ZM-NA-PION-90
Connector		 ZM-PION-135
Connector		 ZM-PION-90
Connector		 ZM-120
Connector
ITEM DESCRIPTION PRICE
42717 ZM-180 Connector $10.30
42726 ZM-NA-PION-90 Connector for Non Anodized Extrusions $10.30
42723 ZM-NA--90 Connector for Non Anodized Extrusions $10.30

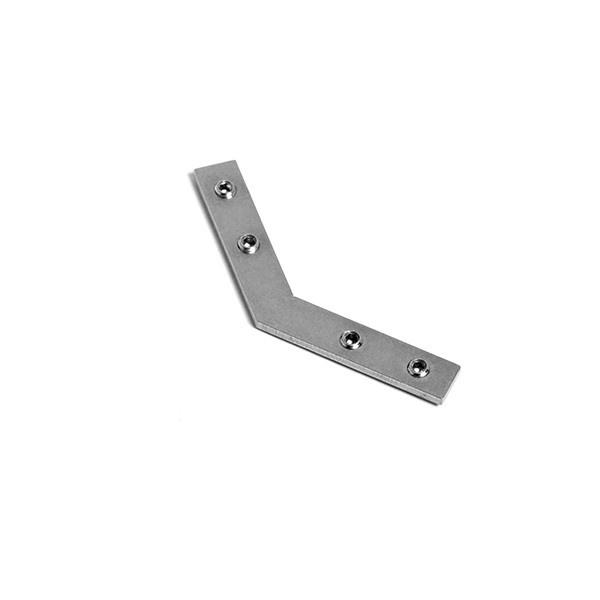

42725 ZM-NA-135 Connector $10.30
42729 ZM-nA-120 Connector $11.60
