KLUS MOD-50 Extrusion

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

216-352-3685

WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US

These Cards Accepted and PROCESSED SECURELY

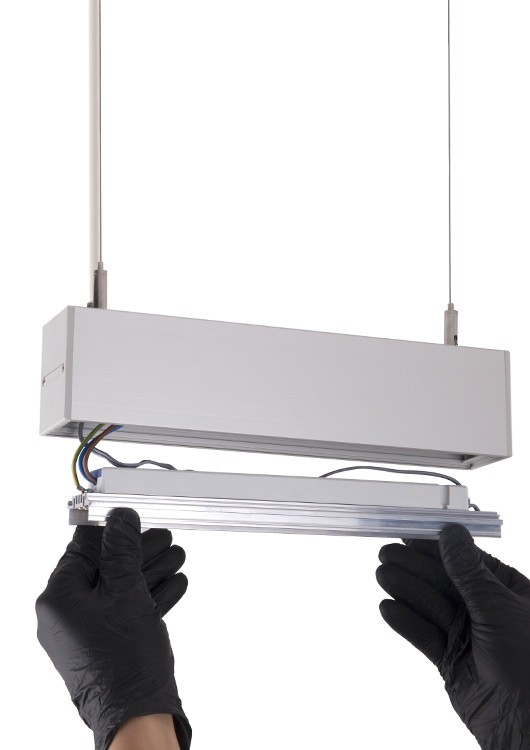

Serviceable from the bottom, which allows it to be placed “wall to wall

Possibility to build an LED lighting fixture with a low unified glare rating (UGR) below 19 (with the JUN-50 Prismatic cover)

The fixture can accommodate power supplies and control electronics

A system solution for convenient assembly and disassembly

Upward/downward illumination possible

Ability to create lighting fixtures with high luminous efficiency The possibility of increasing light efficiency by 20% when using REFLEX 16-60 reflectors

Can be combined into singular and sectioned runs

Can be lacquered (without affecting the color of light)

Application

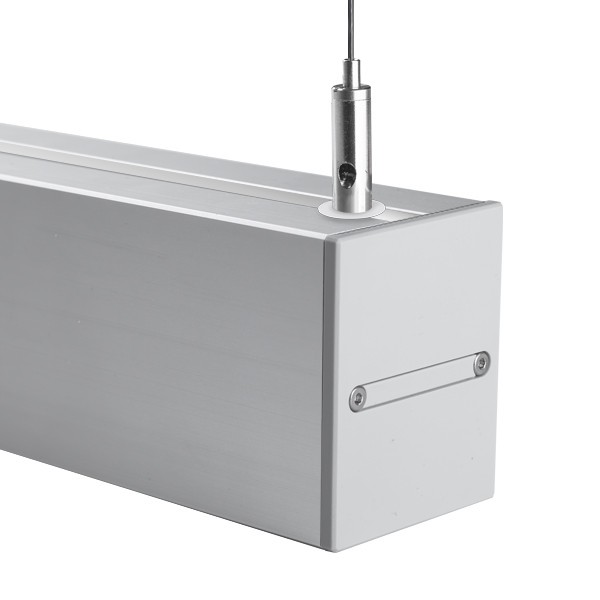

for the construction of advanced ceiling light fixtures, mounted to the surface or suspended where surface
mounting is difficult.

Assembly

comfortable and reliable assembly / the possibility of using self-tapping screws

MOD-50 EXTRUSIONS

COVERS /
LENSES

END CAPS /
ACCESSORIES

STANDARD LEAD TIMES

Lead Time May Vary Based on Product Mix / Quantities Ordered

Standard Order - No Cutting

2 - 3 Days

Custom Cuts - Extrusions, Covers or LED Tape

3 - 5 Days

Custom Builds

2 - 3 Weeks

The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.

ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE

Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

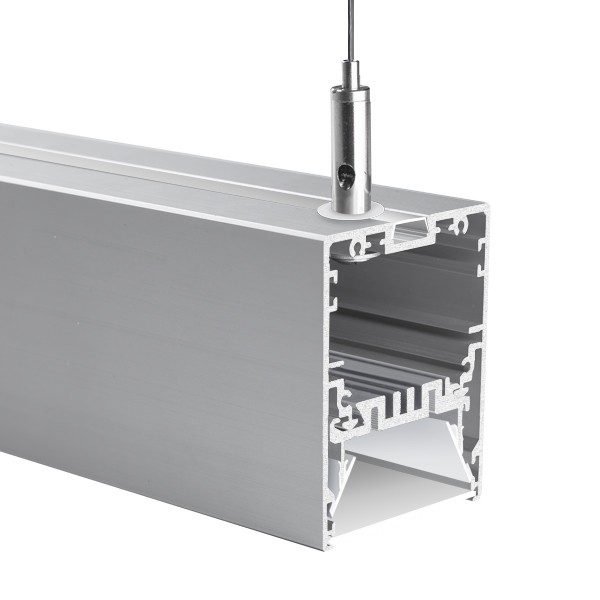

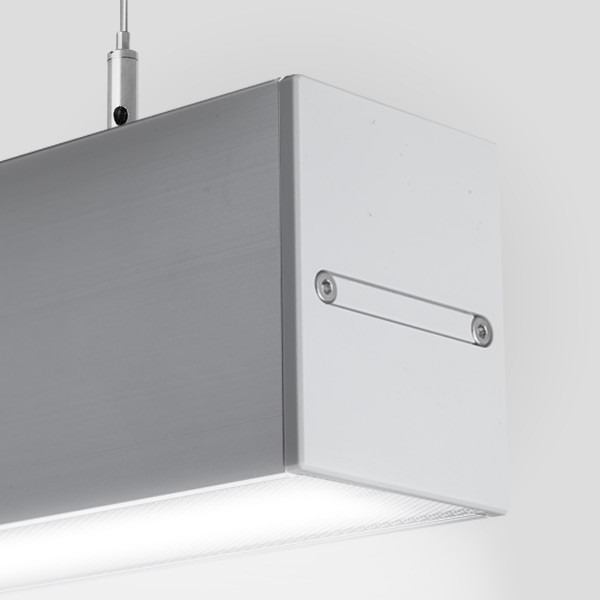

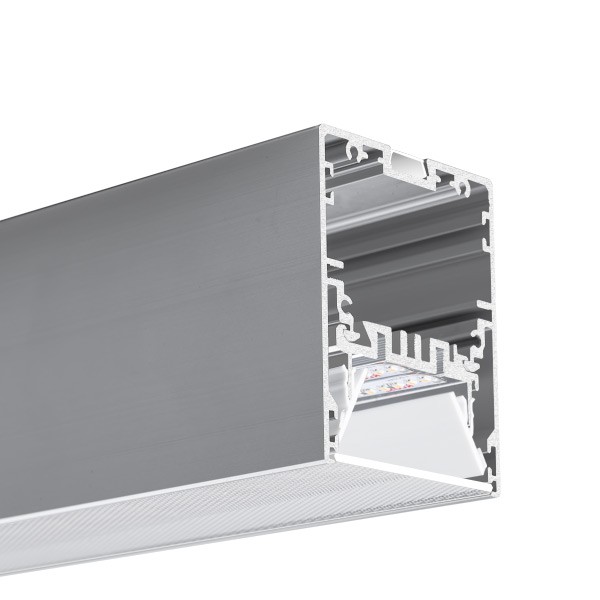

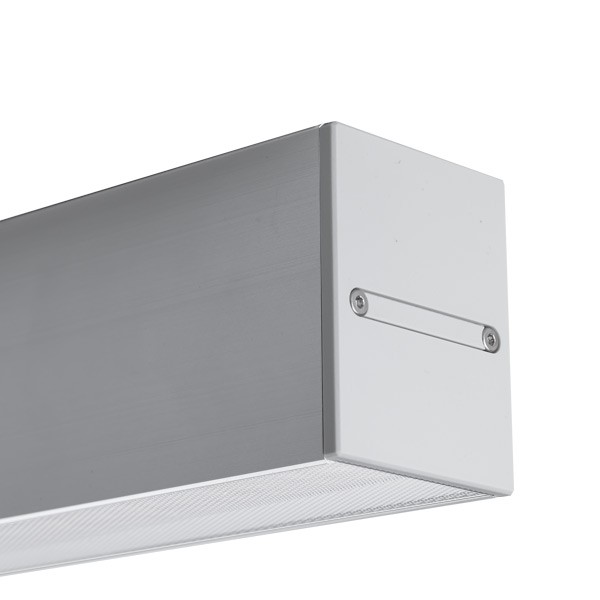

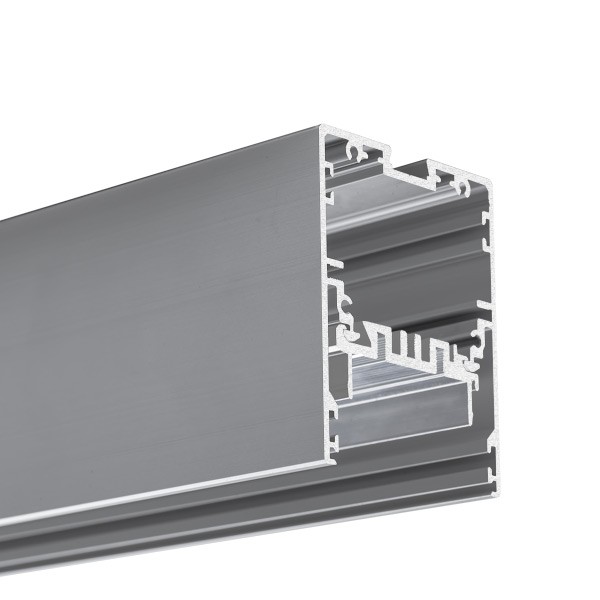

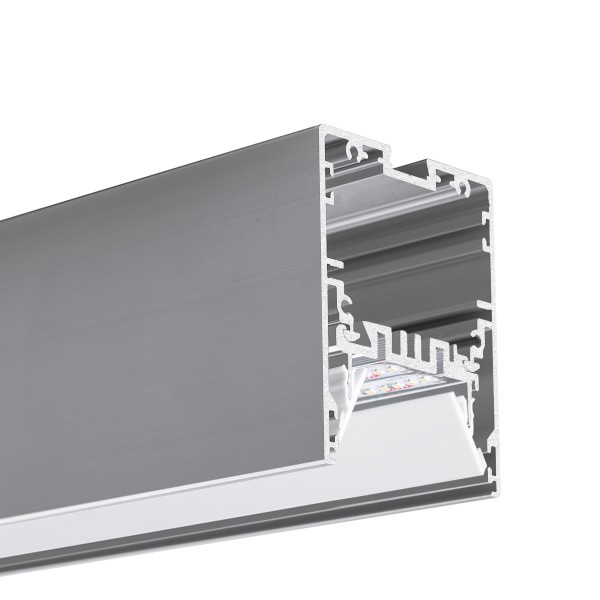

MOD-50 Extrusion

ITEM	DESCRIPTION	PRICE
18047ANODA_1	39.4" / 1M Silver-Anodized Extrusion	$179.00
18047ANODA_2	78.75" / 2M Silver-Anodized Extrusion	$358.00

Download for Full Specifications, Dimensions and Instructions

Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions

Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.

CLICK for PDF:

EXAMPLE

BACK to TOP

CLICK IMAGE for LARGER VIEW

COVERS / LENSES

17056_1.5

17058

17037

17040

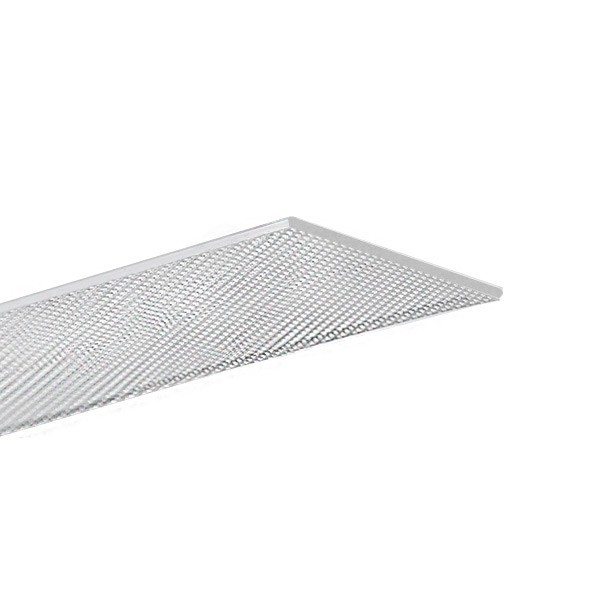

JUN-50 Prismatic Cover
Clear

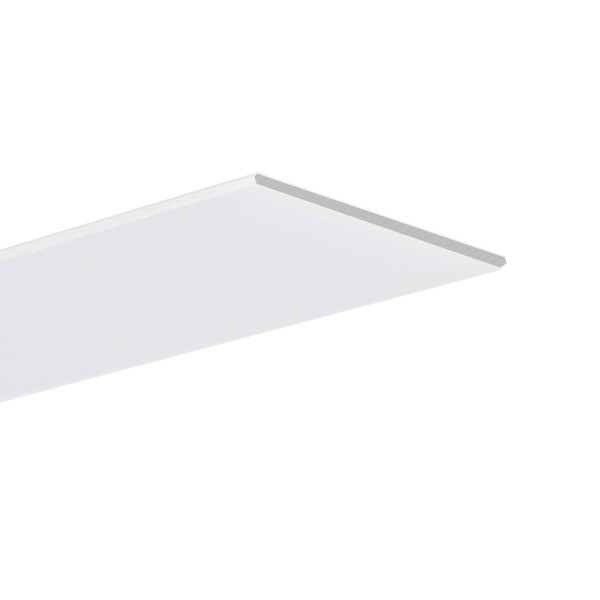

POL-50 Cover
Frosted

LIGER Cover
Frosted

LIGER Cover
Black

ITEM	DESCRIPTION	PRICE
17056_1.5	58.9" / 1.5M JUN-50 Prismatic Cover Clear	$67.60
17058_1	39.4" / 1M POL-50 Cover Cover Frosted	$24.10
17058_2	78.75" / 2M POL-50 Cover Cover Frosted	$48.20
17037_1	39.4" / 1M Liger Cover Frosted	$13.80
17037_2	78.75" / 2M Liger Cover Frosted	$27.60
17040_1	39.4" / 1M Liger Cover Black	$20.50
17040_2	78.75" / 2M Liger Cover Black	$41.00

COVERS / LENSES

1370

1369

17036

17035

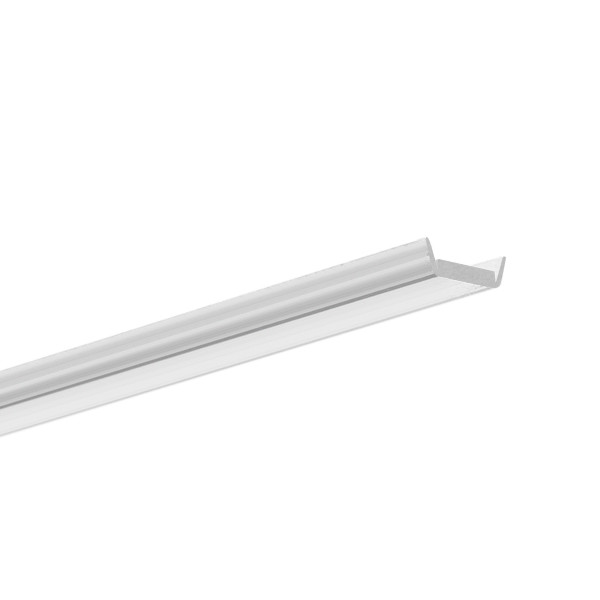

HS Cover
Frosted

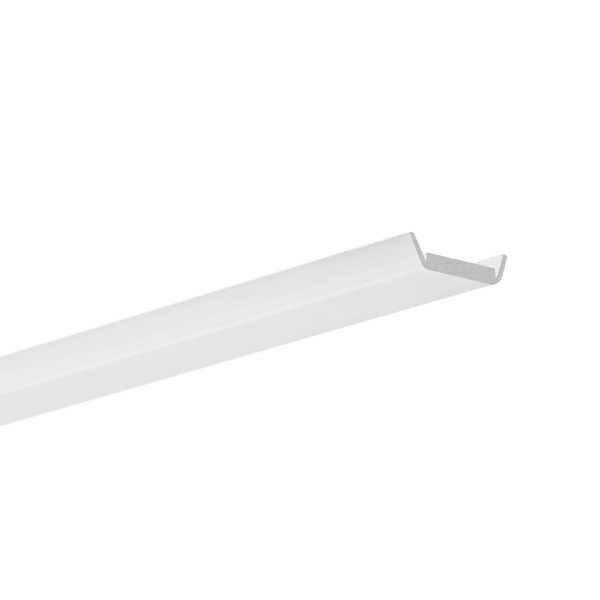

HS Cover
Clear

KA Cover
Clear

KA Cover
Frosted

ITEM	DESCRIPTION	PRICE
1370_1	39.4" / 1M HS Cover Frosted	$11.90
1370_2	78.75" / 2M HS Cover Frosted	$23.80
1369_1	39.4" / 1M HS Cover Clear	$11.90
1369_2	78.75" / 2M HS Cover Clear	$23.80
17036_1	39.4" / 1M KA Cover Clear	$8.10
17036_2	78.75" / 2M KA Cover Clear	$16.20
17035_1	39.4" / 1M KA- Cover Frosted	$8.10
17035_2	78.75" / 2M KA- Cover Frosted	$16.20

BACK to TOP

CLICK IMAGE for LARGER VIEW

END CAPS / ACCESSORIES

24329

17003

42265M8X1

42246

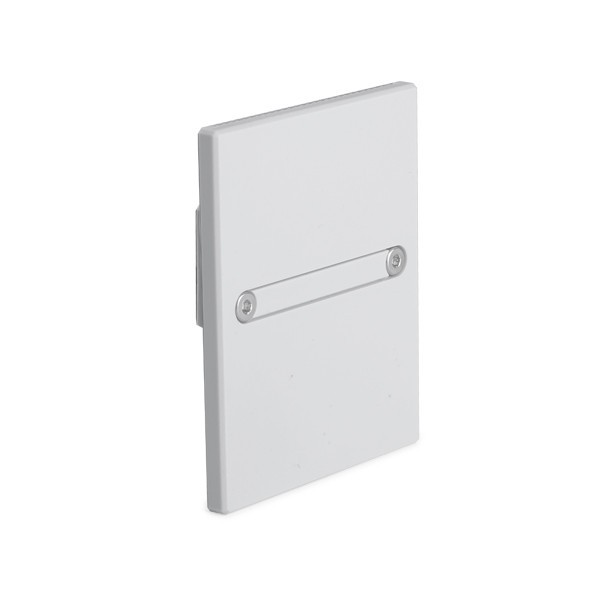

MOD-50
End Cap

REFLEX 16-60
Reflector

DES Gland

M4-12
Fastener

ITEM	DESCRIPTION	PRICE
24329	MOD-50 End Cap	$5.70
17003_1	39.4" / 1M REFLEX 16-60 Reflector	$13.00
17003_2	78.75" / 2M REFLEX 16-60 Reflector	$26.00
42265M8X1	DES Gland	$32.60
42246	M4-12 Fastener	$13.90

BACK to TOP

M4-12 Fastener

M4-12
Fastener
