KLUS Design MOD-KOZE-100 SYSTEM Extrusion
ARCHITECTURAL LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure

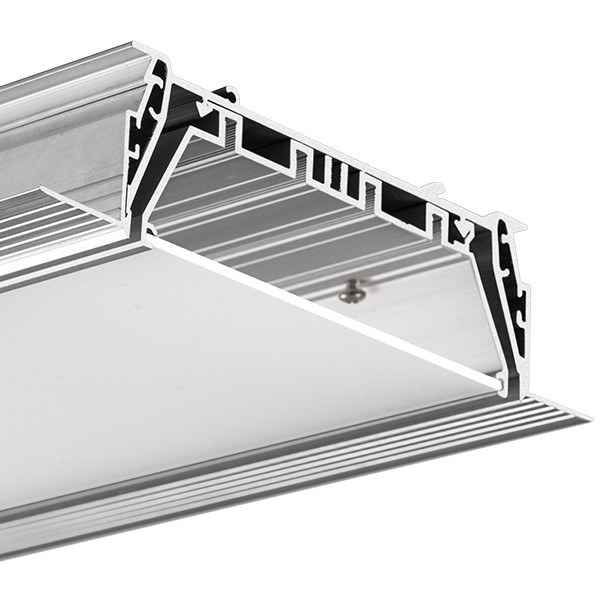

MOD-KOZE-100
The open style structure of the mounting channel and its adjustable elements (bridges) eliminates the need for unsightly inspection openings in the ceilings

The lighting fixture can be removed and remounted without damaging the ceiling
An LED lighting fixture with a low glare rating UGR below 19 can be built when utilizing the JUN-100 prismatic cover
The profile can be mounted "from below" allowing to build ceiling lighting fixtures that run "wall to wall"
Either LED tapes or LED current modules can be used
Linear and polygonal connections are possible with ZM connectors
Secure mounting, resistant to vibration
Application

- for the construction of professional lighting fixtures with a cover mounted flush with the ceiling or wall surface
- for LED lighting fixtures recessed in the ceiling, installed and serviced as a system
- for creating precise mounting channels in drywall for LED lighting fixtures
- for building LED lighting fixtures that can have a glare rating UGR ≤ 19
Assembly

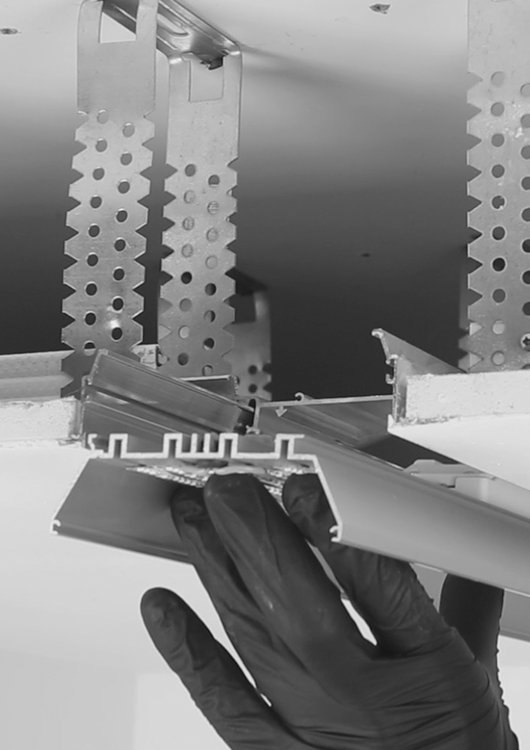

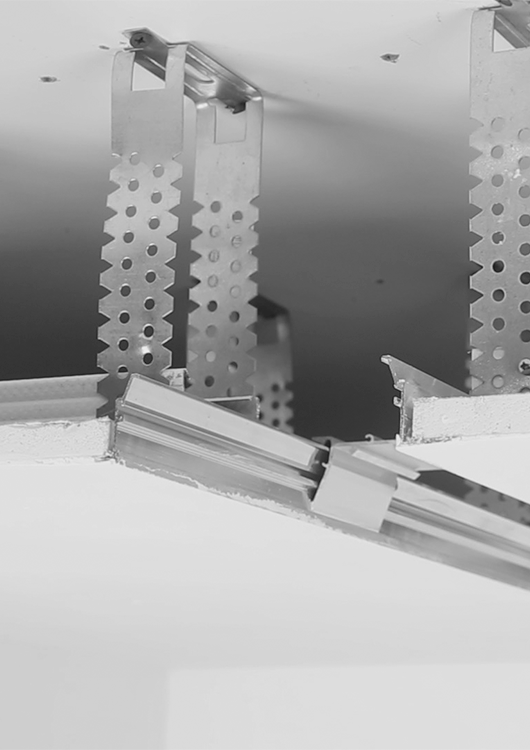

- recessing the “mounting channel” (RAM-KOZE-100) in the surface of a drywall ceiling
- mounting the "core" of the lighting fixture (OMODO-100) in the “mounting channel” (RAM-KOZE-100)
Additional information

MOD-KOZE-100 fixtures are designed for 7 LED strips (0.39"/10 mm wide), 8 strips (0.31"/8 mm wide) or a LED current module up to 0.94"/24 mm wide

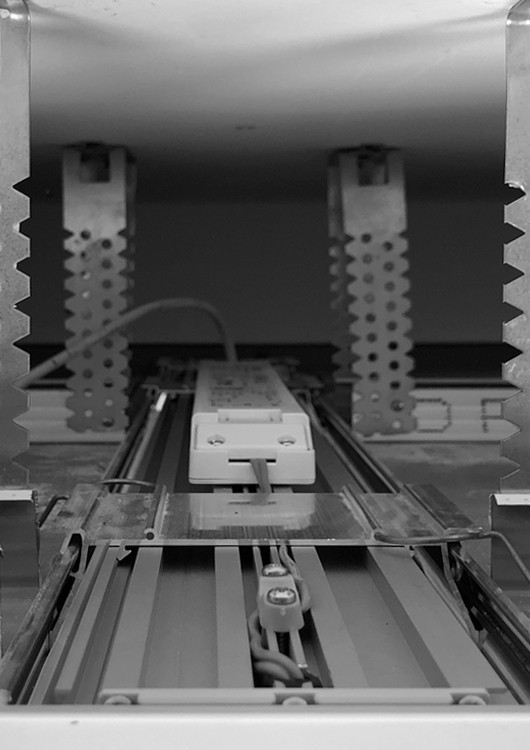

- the lighting fixture is designed so that the "core" of the lighting fixture (profile with LED tapes, power supply, wires and end caps) can be prepared in advance, in factory conditions
- the only thing to be done at the installation site is to insert the prepared "core" (OMODO-100) into the pre-installed mounting channel (RAM-KOZE-100)
- the width of the gap in the drywall for (RAM-KOZE-100): from 4.25" (108 mm) to 4.45" (113 mm)
- two locking bolts must be used for every 39.4" (1 Meter) of lighting fixture. For lighting fixtures shorter than 39.4" (1 Meter), at least 2 bolts
- the gaps between the edges of the mounting channel and the "core" of the fixture can be finished with a
dedicated silicone cord
MOD-KOZE-100
EXTRUSIONS		 ASSOCIATED EXTRUSIONS
and COVERS / LENSES 		END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

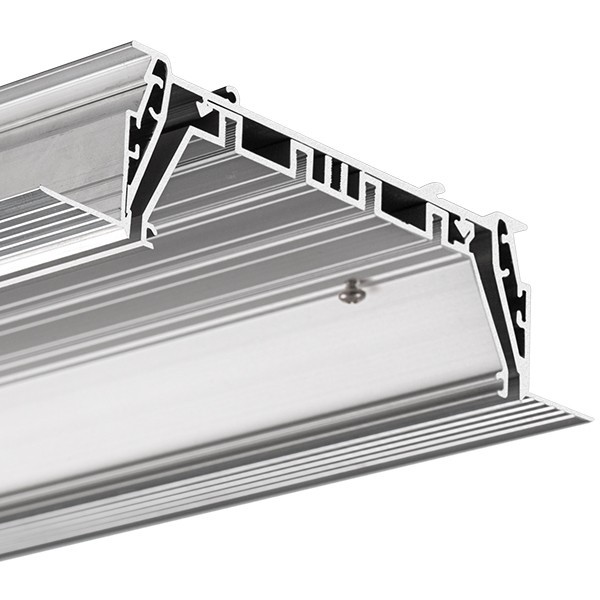

18057 (RAM-KOZE-100) + 18058 (OMODO-100) Extrusion SYSTEM
18057+18058_2 18057+18058_2 18057+18058_2
ITEM DESCRIPTION PRICE
18057+18058_2 78.75" / 2M Non- Anodized Extrusion System $354.00
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart MOD-KOZE-100 Specifications MOD-KOZE 100 How To
EXAMPLE EXAMPLE EXAMPLE
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
17165_1.5 17166
17165_1.5 17166_1 17166_2

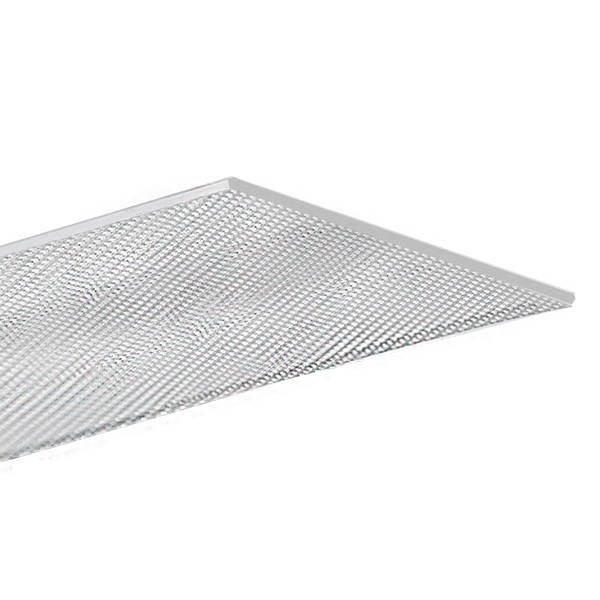

JUN-100 Prismatic Cover

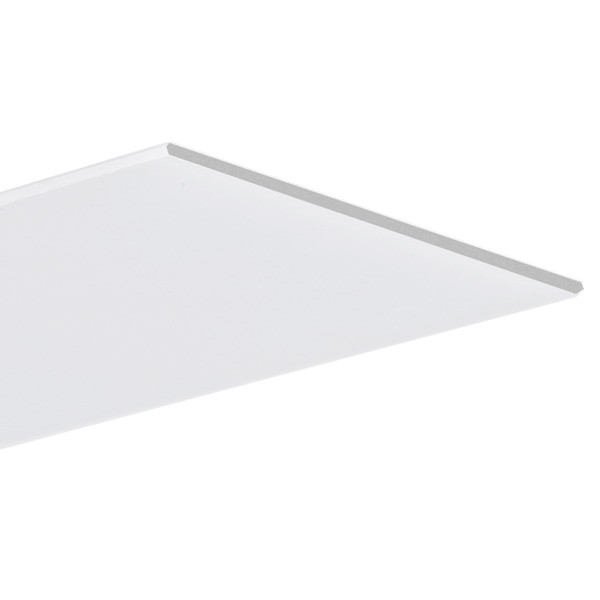

Clear		 POL-100 Cover
Frosted
ITEM DESCRIPTION PRICE
17165_1.5 58.9" / 1.5M JUN-100 Prismatic Cover Clear $112.00
17166_1 39.4" / 1M POL-100 Cover Cover Frosted $36.60
17166_2 78.75" / 2M POL-100 Cover Cover Frosted $73.20
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24354 24351 42737 42738 42728 70397 70049
24354 24351 42737 42738 42265M8X1 70397 70049
OMODO 100
End Cap		 RAM KOZE 100
End Cap		 KR
Spring		 RAM-1
Spring		 ZM-120
Connector		 Mounting
Wedge		 KR
Tool
ITEM DESCRIPTION PRICE

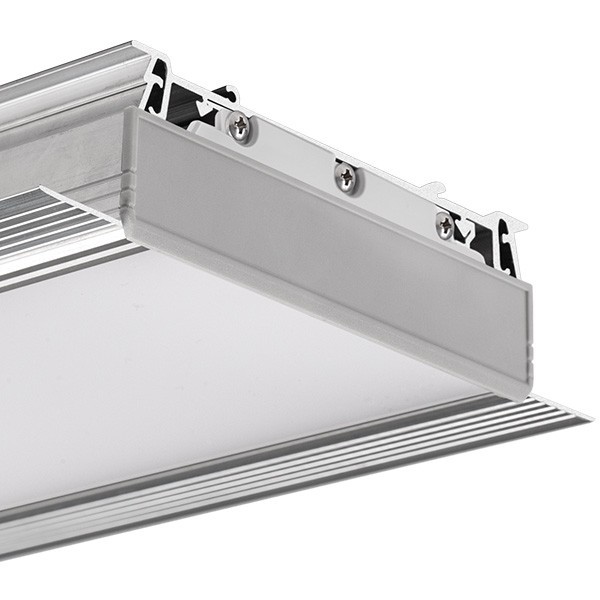

24354 OMODO 100 End Cap $6.90
24351 RAM KOZE 100 End Cap $5.10
42737 KR Spring $Call$
42738 RAM-1 Spring $Call$

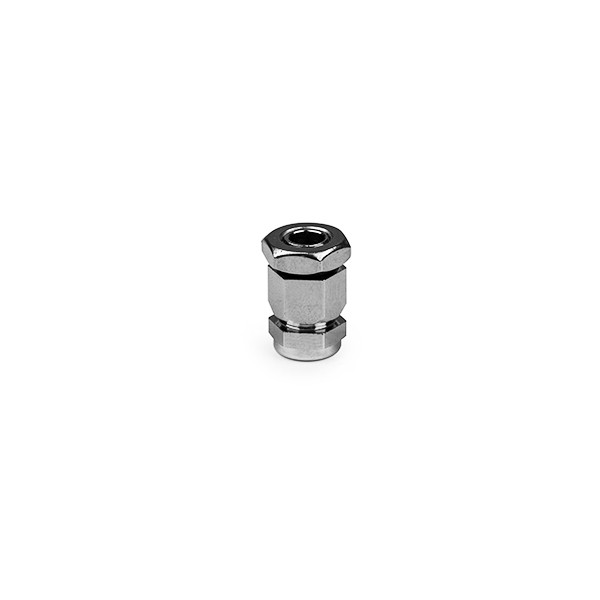

42265M8X1 DES Gland $32.60
70397 Mounting Wedge $Call$
70949 KR Tool $Call$

42728 42720 42717 42716 42719 42718 00802
42728 42720 42717 42718 42719 42718 00802
ZM-120
Connector		 ZM-135
Connector		 ZM-180
Connector		 ZM-90
Connector		 ZM-PION-135
Connector		 ZM-PION-90
Connector		 8,8x1,2 Gland
ITEM DESCRIPTION PRICE
42728 ZM-120 Connector $11.60
42720 ZM-135 Connector $11.60
42717 ZM-180 Connector $10.30
42718 ZM-90 Connector $10.30
42719 ZM-PION-135 Connector $11.60
42718 ZM-PION-90 Connector $10.30
00802 8,8x1,2 Gland $1.40
