KLUS Design MOD-TEK-100 Extrusion
ARCHITECTURAL LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
MOD-TEK-100
MOD-TEC-100 is
FACTORY BUILT to
YOUR SPECIFICATIONS by KLUS
and SHIIPPED
READY for INTALLATION
MOD-TEK-100 system (a set of RAM-TEK-100 and OMODO-100 extrusions):

• The open style structure of the mounting channel and its adjustable elements (bridges) eliminates the need for unsightly inspection openings in the ceilings
• Repeated removal and remounting of the lighting fixture does not damage the ceiling
• A LED lighting fixture with a low glare rating UGR below 19 (with the prismatic JUN-100 cover)
• The extrusion can be mounted “from below” and thus build ceiling lighting fixtures that run “wall to wall”
• Either LED tapes or LED current modules can be used
• Linear and polygonal connections are possible with ZM connectors
• Secure mounting resistant to vibration
Application

- for the construction of professional lighting fixtures with a cover mounted flush with the ceiling or wall surface
- for LED lighting fixtures recessed in the ceiling, installed and serviced as a system
- for creating precise mounting channels in drywall for LED lighting fixtures (RAM-TEK-100)
• for building LED lighting fixtures capable of reaching a glare rating UGR ≤ 19
Assembly

•embedding the "mounting channel" (RAM-TEK-100) in the surface of a drywall ceiling using screws. Mounting
the "core" of the lighting fixture (OMODO-50) in the "mounting channel" (RAM-TEK-100)
Additional information

MOD-TEK-100 fixtures are designed for 3 LED tapes (10 mm wide) or 4 tapes (8 mm wide) or a LED current module up to 24 mm wide. The lighting fixture is designed so that the “core” of the lighting fixture (extrusion with LED tapes and end caps)can be prepared in advance, in factory conditions. The only thing to be done at the installation site is to insert the prepared “core” (OMODO-100) into the pre-installed mounting channel (RAM-TEK-50)
MOD-TEK-100
EXTRUSION SYSTEM		 COVERS / LENSES END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

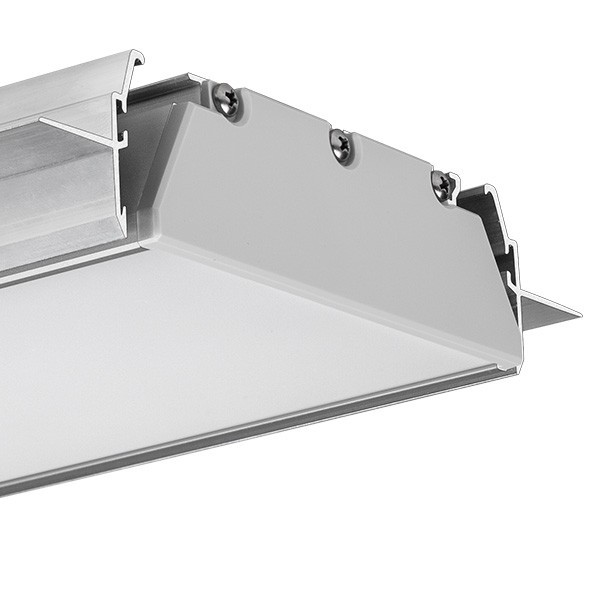

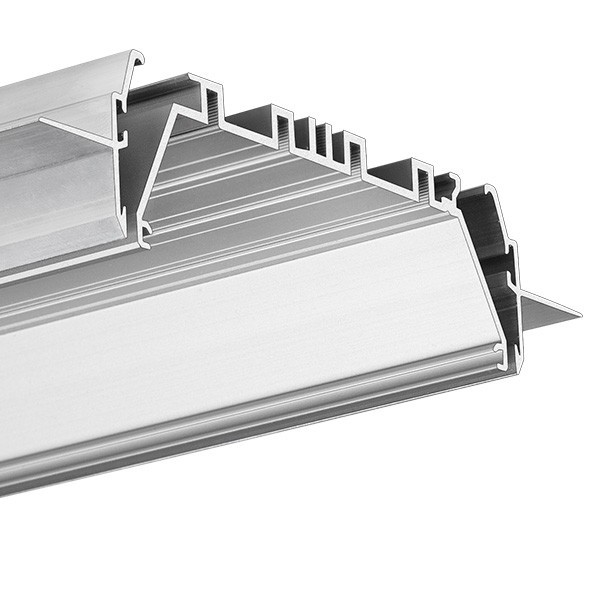

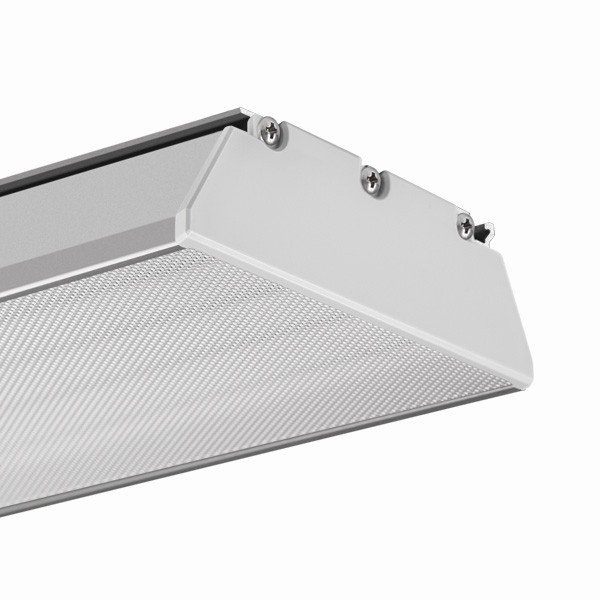

MOD-TEK-100 Extrusion SYSTEM - 18061 (RAM-TEK-100) + 18058 (OMODO-100)
18061+18058_2 18061+18058_2 18061+18058_2 18061+18058_2

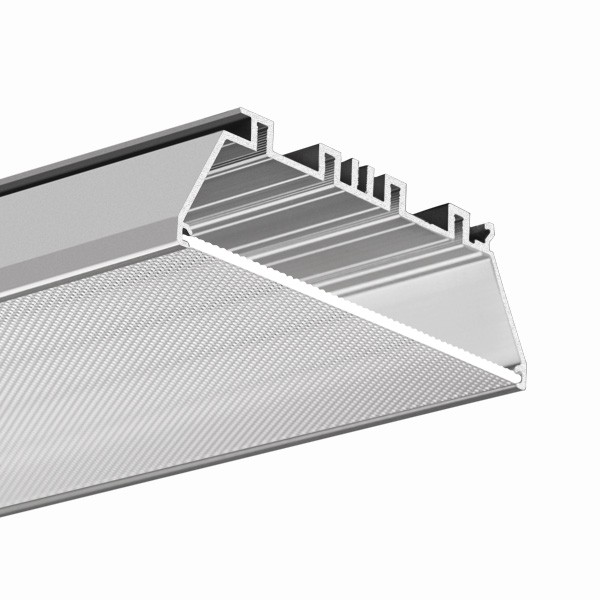

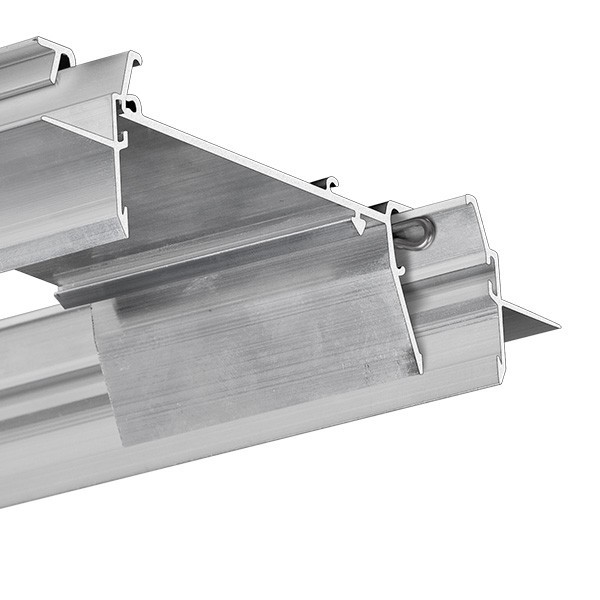

18058 (OMODO-100) 18061 (RAM-TEK-100)
18058 18058 18061
ITEM DESCRIPTION PRICE
18061+18058_2 78.75" / 2M Non- Anodized Extrusion Set $358.00
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF:   MOD-TEK-100 OMODO-100 RAM-TEK-100
KLUS Line of Light Chart MOD-TEK-100 Specifications OMODO-100 Specifications RAM-TEK-100 Specifications MOD-TEK-100 How To

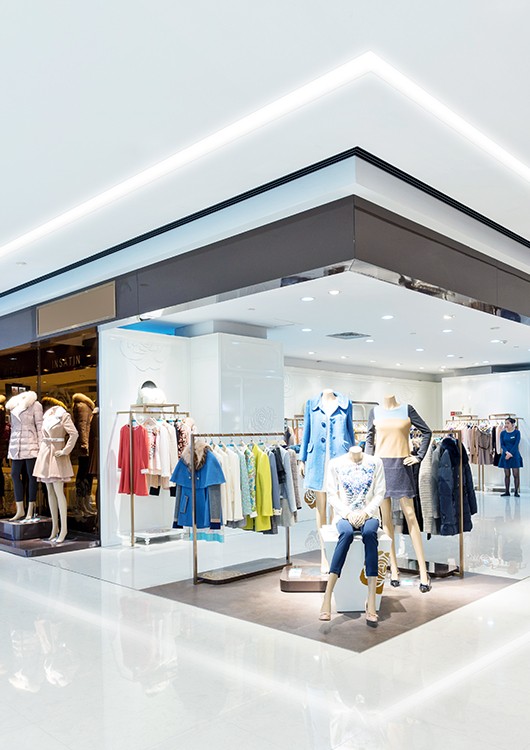

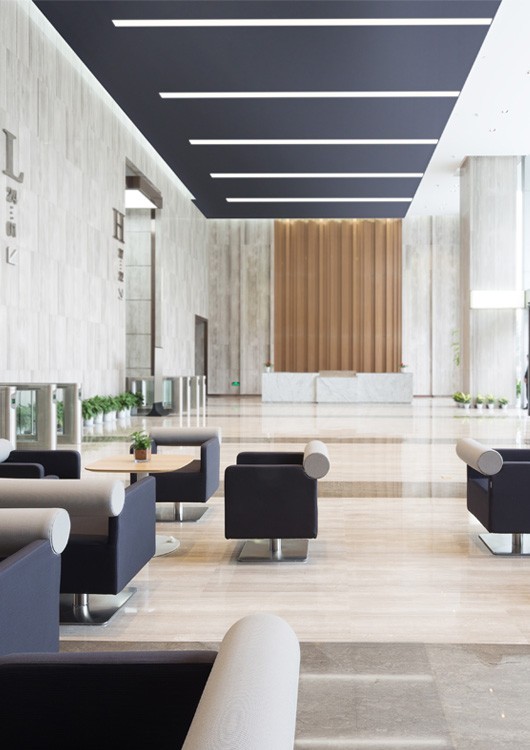

EXAMPLE EXAMPLE EXAMPLE
MOD-TEK-100 Extrusion SYSTEM MOD-TEK-100 Extrusion SYSTEM MOD-TEK-100 Extrusion SYSTEM
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
17165 17058
17165_1.5 17166_1 17166_2
JUN-50
Prismatic Cover		 POL-50
Frosted Cover
ITEM DESCRIPTION PRICE

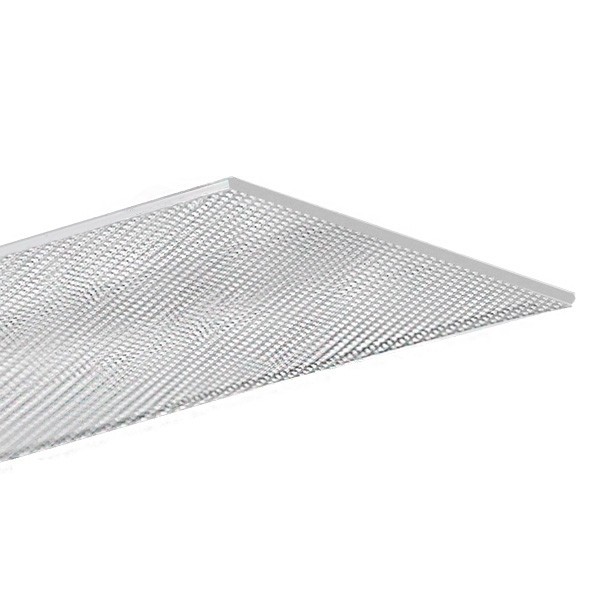

17165_1.5 59.1" / 1.5M JUN-100 Prismatic Cover $112.00

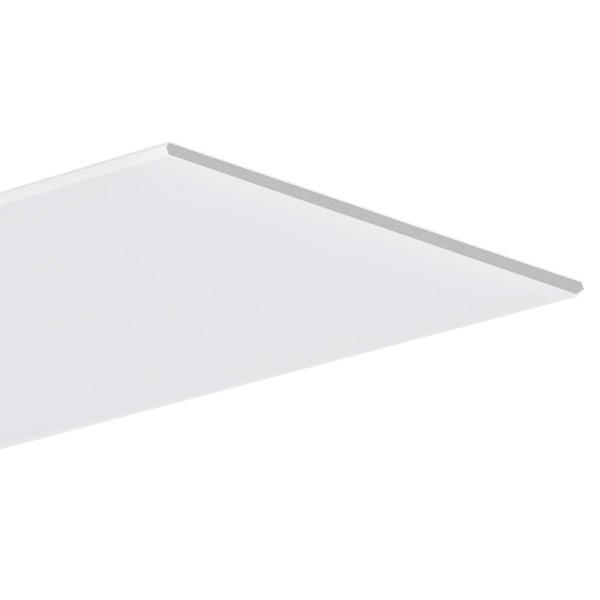

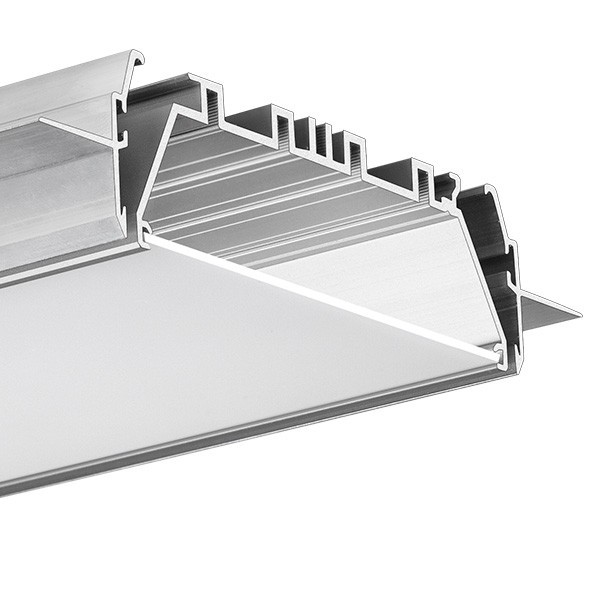

17166_1 39.4" / 1M POL-100 Frosted Cover $36.60
17166_2 78.75" / 2M POL-100 Frosted Cover $73.20
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24354 24357
24354 24357

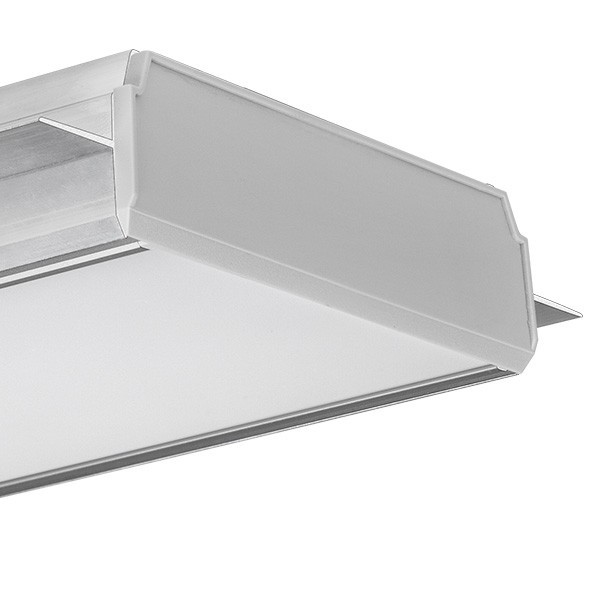

OMODO-100
Grey End Cap		 RAM-TEK-100
Grey End Cap
ITEM DESCRIPTION PRICE

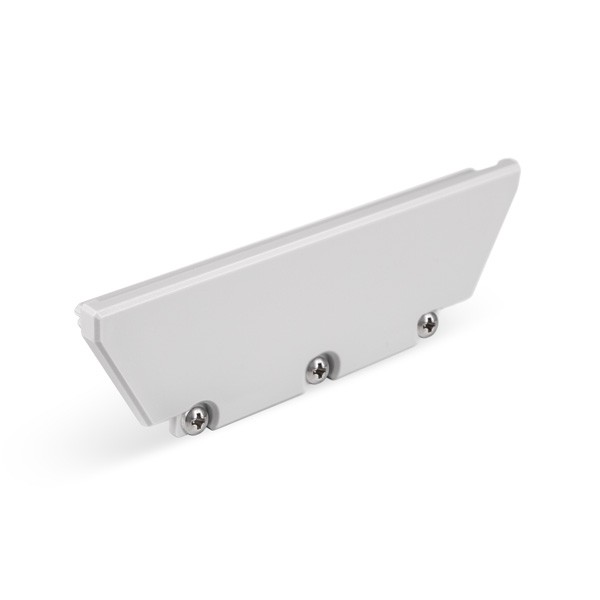

24354 OMODO-100 Grey End Cap $6.90

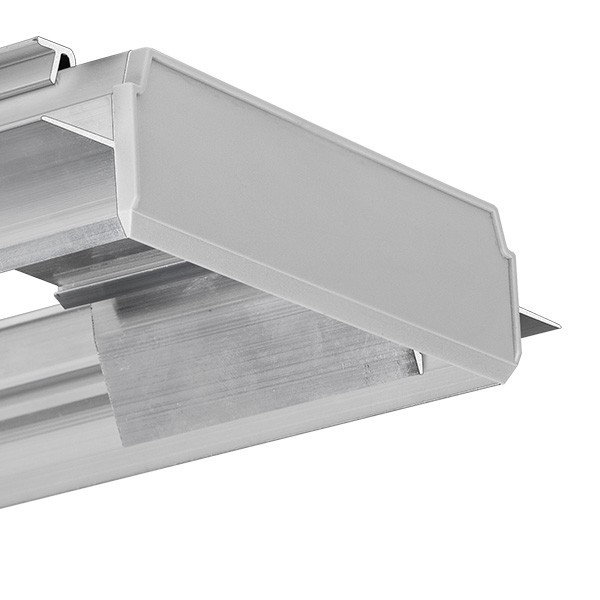

24357 RAM-TEK-100 Grey End Cap $7.30

42738 42737 70397 42317 42265MBX1 00802
70449 00802
RAM-1
Spring		 KR
Spring		 MOUNTING
Wedge		 KR
Tool		 DES
Gland		 8,8x1,2 Gland
ITEM DESCRIPTION PRICE

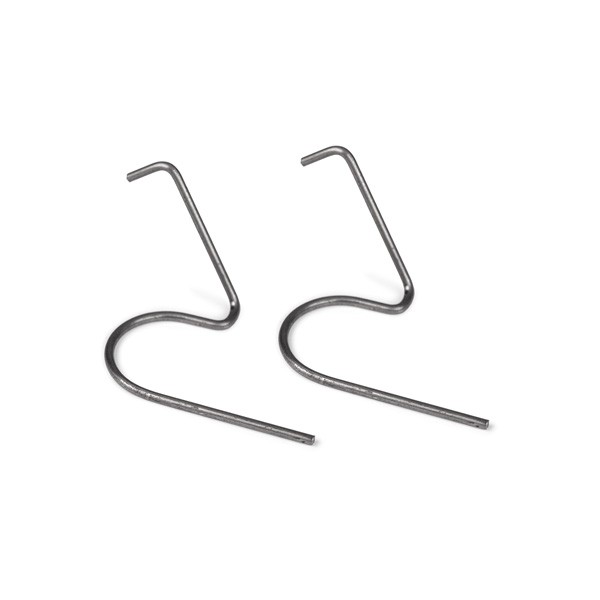

42738 RAM<-1 Spring $Call$

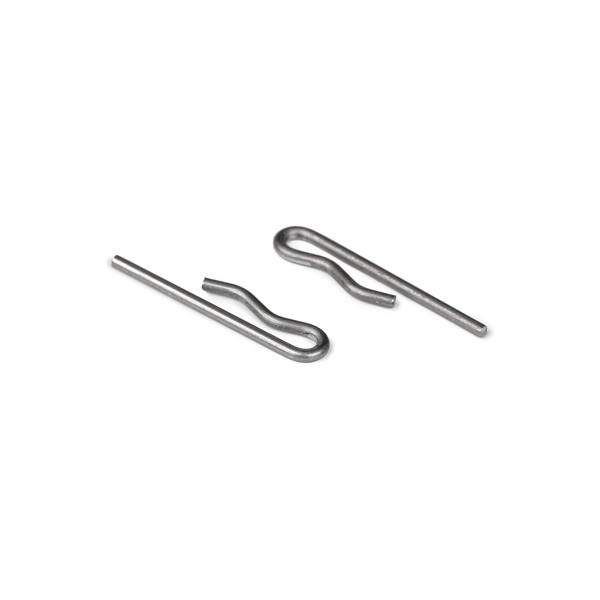

42737 KR Spring $Call$

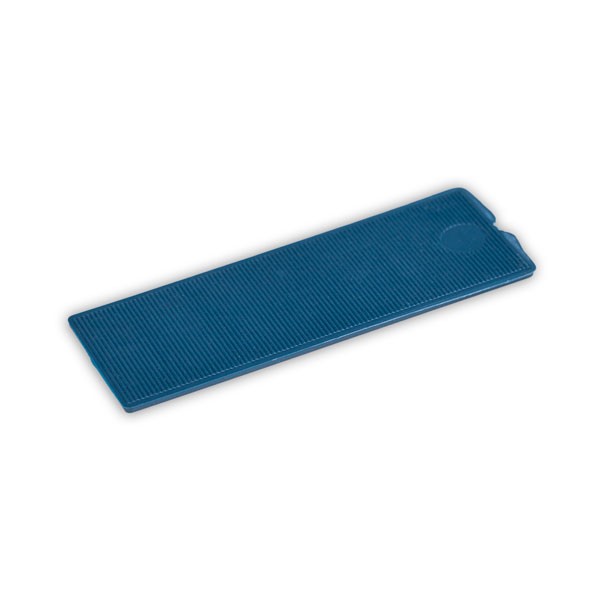

70397 MOUNTING Wedge $Call$

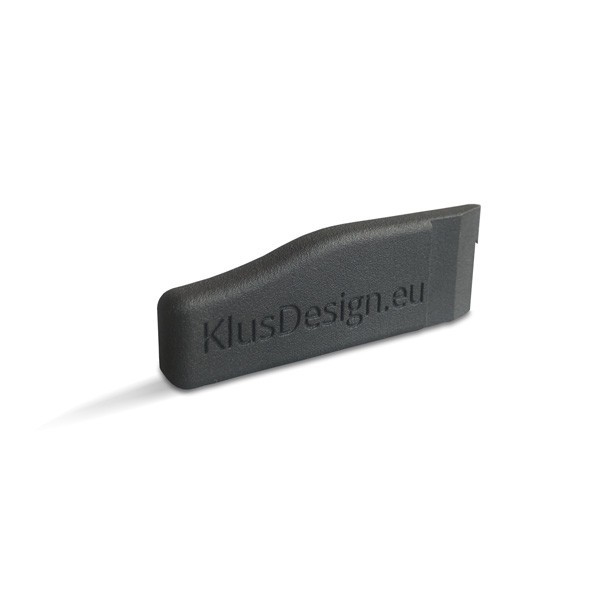

42317 KR Tool $Call$

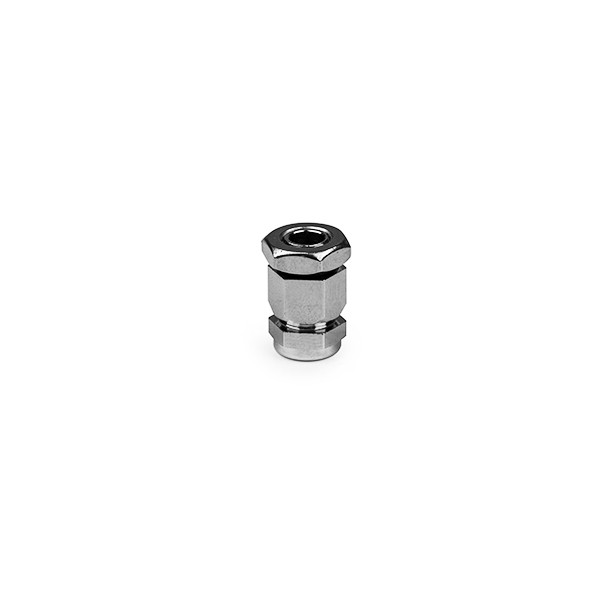

42265MBX1 DES GLand $32.60
00802 8,8x1,2 Gland $1.40

42724 42339 42321 42317 42315
42724 42339 42321 42319 42315
ZM-NA-180
Connector		 ZM-NA-45

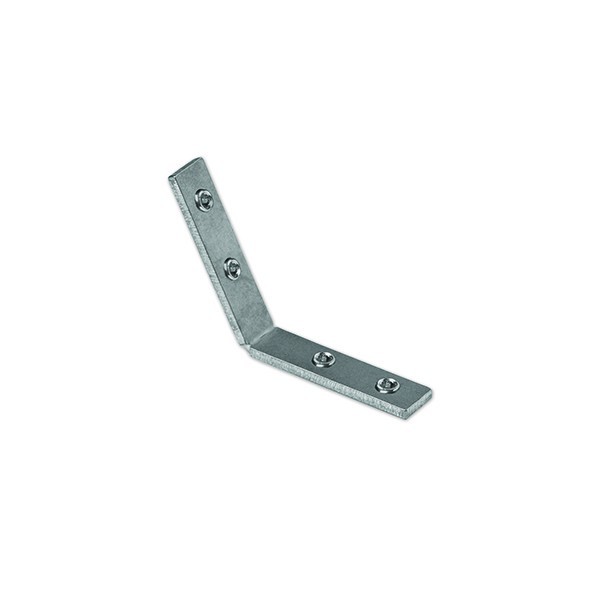

Connector		 ZM-NA-PION-120
Connector		 ZM-NA-PION-60
Connector		 ZM-NA-PION-45
Connector
ITEM DESCRIPTION PRICE

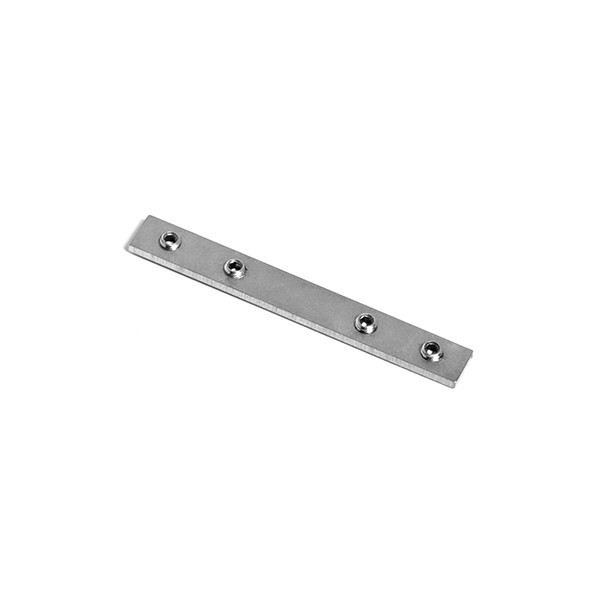

42724 ZM-NA-180 Connector $10.30

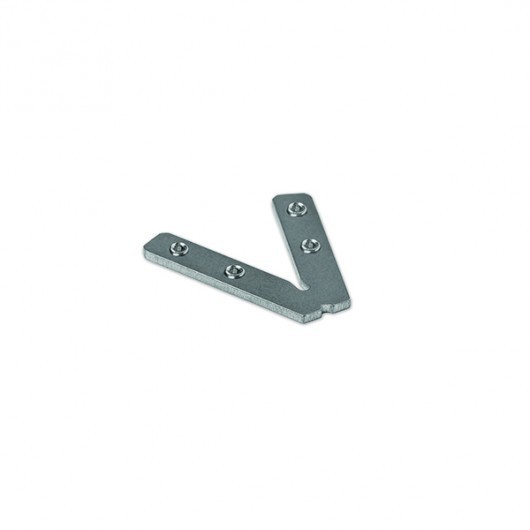

42339 ZM-NA-45 Connector $11.30

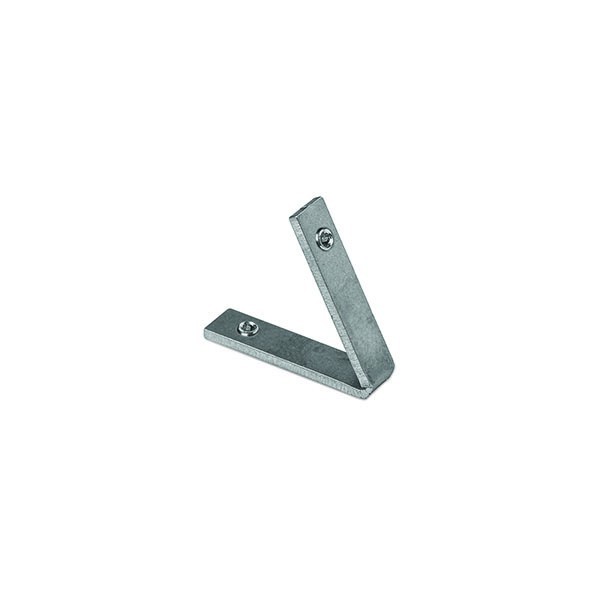

42321 ZM-NA-PION-60 Connector $11.60

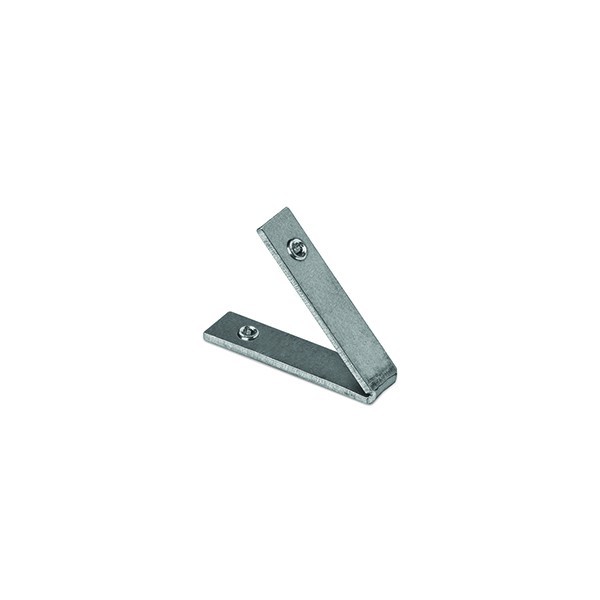

42317 ZM-NA-PION-45Connector $10.30
42315 ZM-X60-G Connector $11.30

42326 42723 42729 42725
42326 42723 42729 42725
ZM-T60-G
Connector		 ZM-NA-PION-90
Connector		 ZM-NA-120
Connector



ZM-NA-135
Connector
ITEM DESCRIPTION PRICE

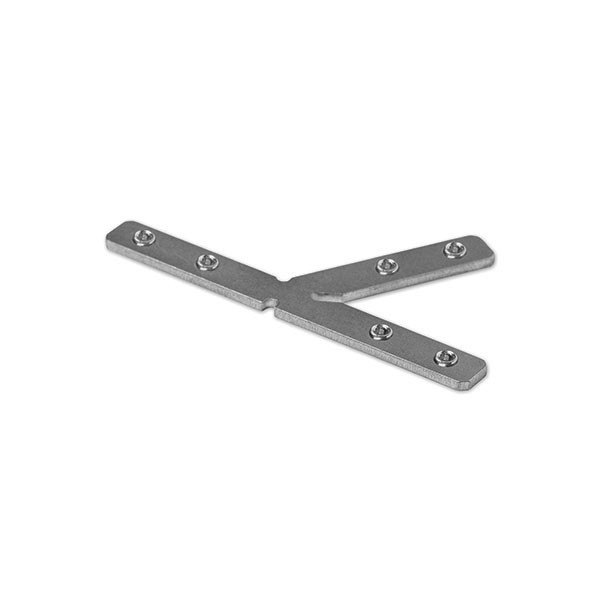

42326 ZM-T60-G Connector $10.30
42723 ZM-NA-PION-90 Connector $10.30

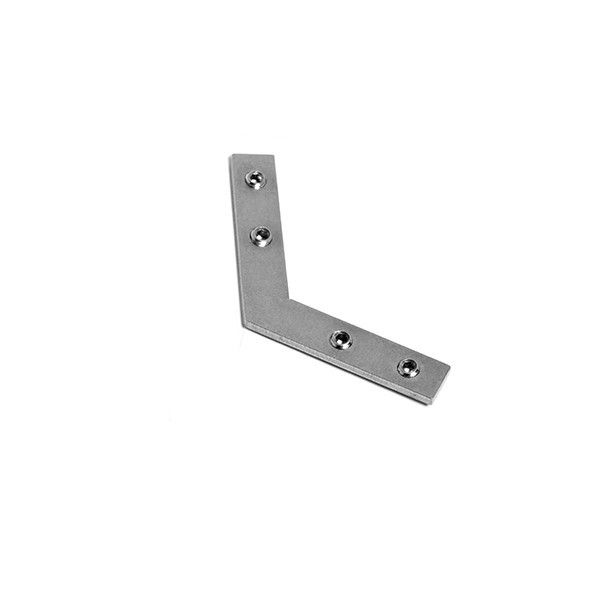

42729 ZM-NA-120 Connector $11.60

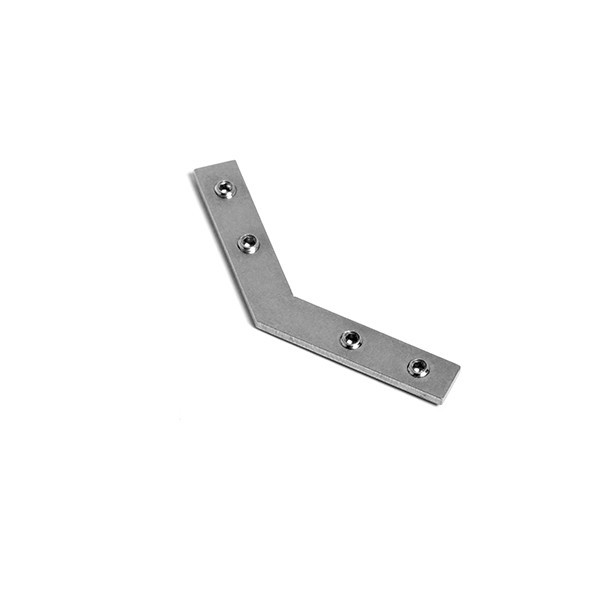

42725 ZM-NA-135 Connector $11.60
