Nisa-Kon
Illumination of niches of any thickness, depth and height

Can be mounted at any distance from the edge of the niche

Easy servicing
ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or lees
Application

- ambient lighting of architectural niches located a short distance from the wall and directed towards it

Assembly

- using screws appropriately selected for the mounting surface

Additional information

- can be mounted horizontally or vertically
- the light source is placed in the easily disassembled ONISA lighting fixture

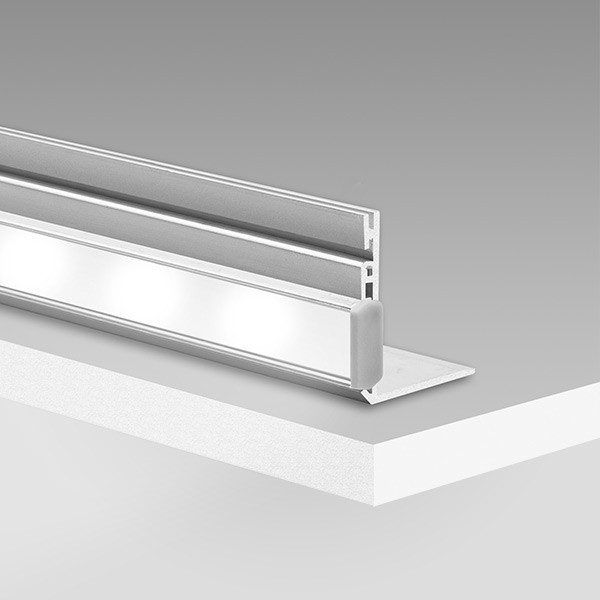

NISA-KON is a set of two extrusions designed for recess illumination purposes. It consists of TENIKON mounting strip and ONISA extrusion recessed in it. The complete set enables the perpendicular direction of light to the wall. TENIKON strip is angle-bracket-shaped. The horizontal edge (without brackets) is drywall mounted. The vertical edge serves as a fixing element for ONISA extrusion, directing its light perpendicularly to the wall. ONISA extrusion holds a single 10.8 mm (0.42") max. wide LED strip. TENIKON strip can be fitted deeper in the recess, which completely hides the structure from view. TENIKON mounting strip is drywall mounted using mounting screws. NOTE! Prior to mounting, the strip must be pre-drilled to avoid unwanted deflection. The manual provides all details of mounting methods and direction of screw mounting. Rigid mounting of ONISA extrusion is performed with a silicone cord (included in the set). Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

NISA-KON
EXTRUSIONS
COVERS /
LENSES
END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

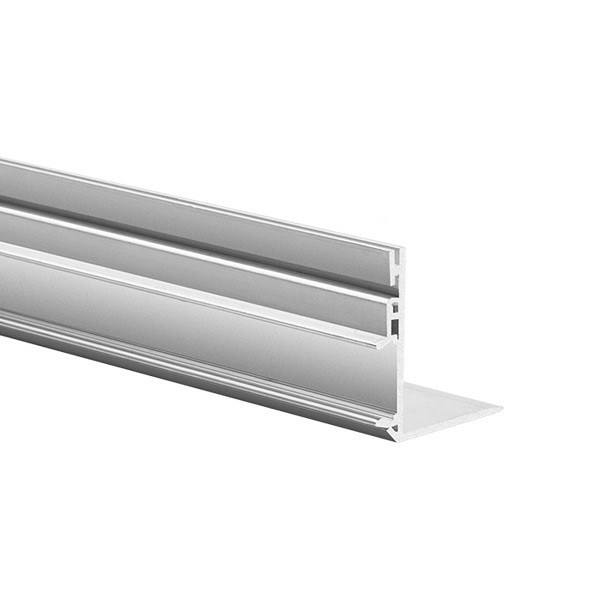

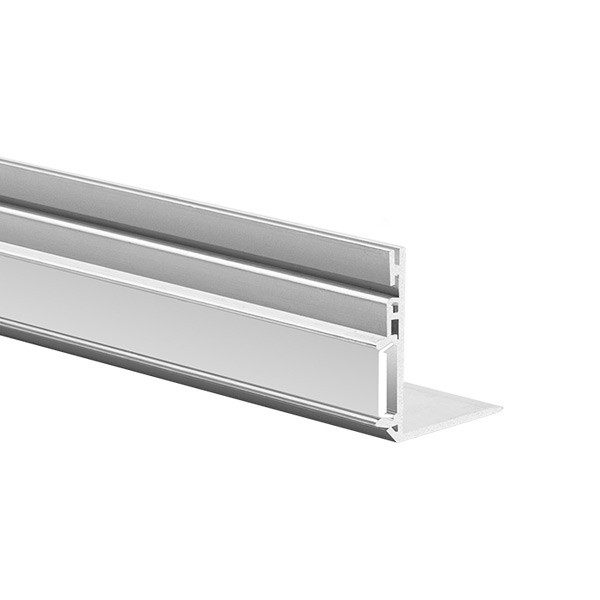

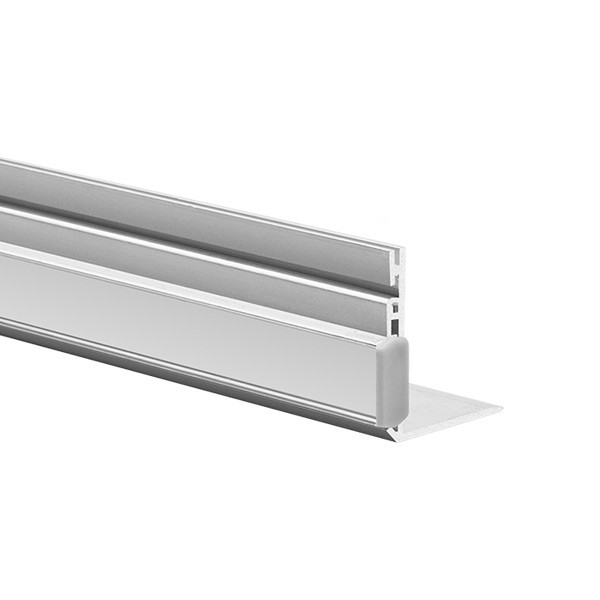

NISA-KON Extrusion
18027NA_1  18027NA_2  18027NA_1  18027NA_2  18027NA_1  18027NA_2  18027NA_1  18027NA_2
ITEM DESCRIPTION PRICE
18027NA_1 39.4" / 1M Non- Anodized Extrusion $39.50
18027NA_2 79.75" / 2M Non -Anodized Extrusion $79.00
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart Nisa-Kon Specifications Nisa-Kon How To

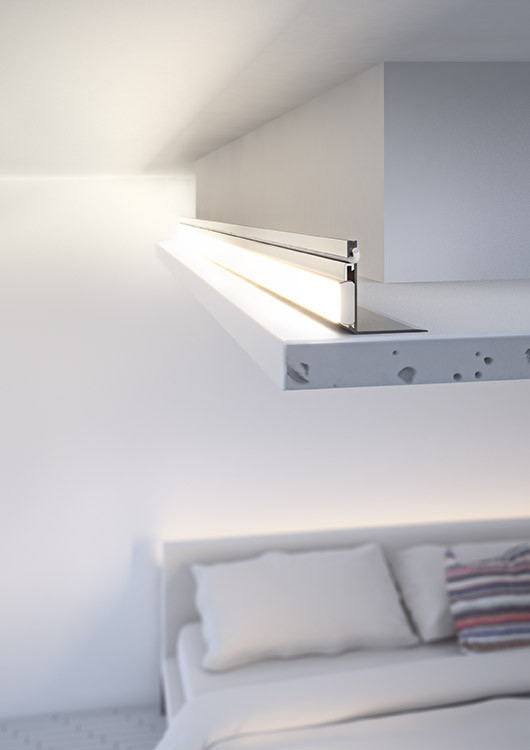

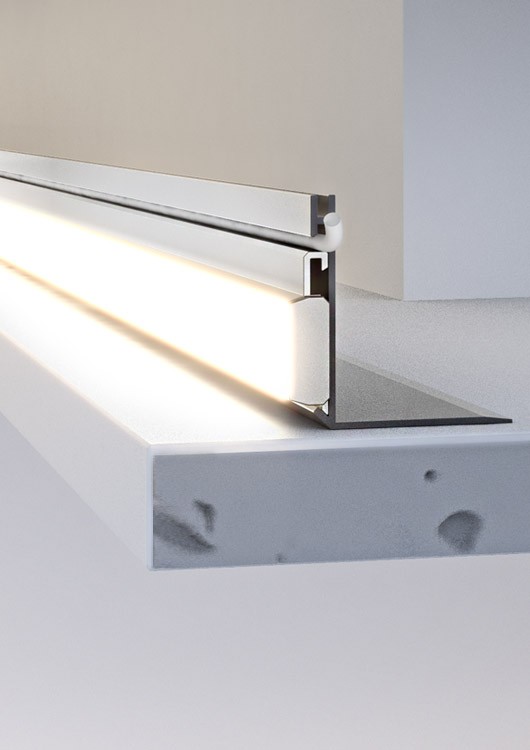

EXAMPLE EXAMPLE
Nisa-Kon Nisa-Kon
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
1370 1369 17037
1370 1369 17037
HS Cover
Clear
HS Cover
Frosted
LIGER Cover
Frosted
ITEM DESCRIPTION PRICE
1370_1 39.4" / 1M HS Cover Clear $11.90
1370_2 78.75" / 2MHS Cover Clear $23.80
1369_1 39.4" / 1M HS Cover Frosted $11.90
1369_2 78.75" / 2M HS Cover Frosted $23.80
17037_1 39.4" / 1M LIGER Cover -Frosted $13.80
17037_2 78.75" / 2M LIGER Cover -Frosted $27.60
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24100 00802L
24100 00802
ONISA
End Cap
8,8x1,2 Gland
ITEM DESCRIPTION PRICE

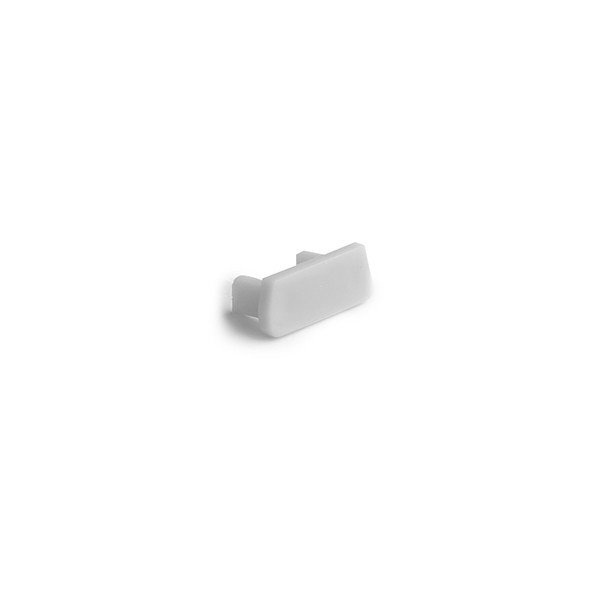

24100 ONISA End Cap $3.30
00802L 8,8x1,2 Gland $1.40

42725 42724 42723 42729 42726
42720 42717 42723 42729 42718
ZM-NA-135
Connector
ZM-NA-180
Connector
ZM-NA-90
Connector
ZM-NA-120
Connector
ZM-NA-PION-90
Connector
ITEM DESCRIPTION PRICE
42725 ZM-135 Non Anodized Connector $11.60
42724 ZM-180 Non Anodized Connector $10.30

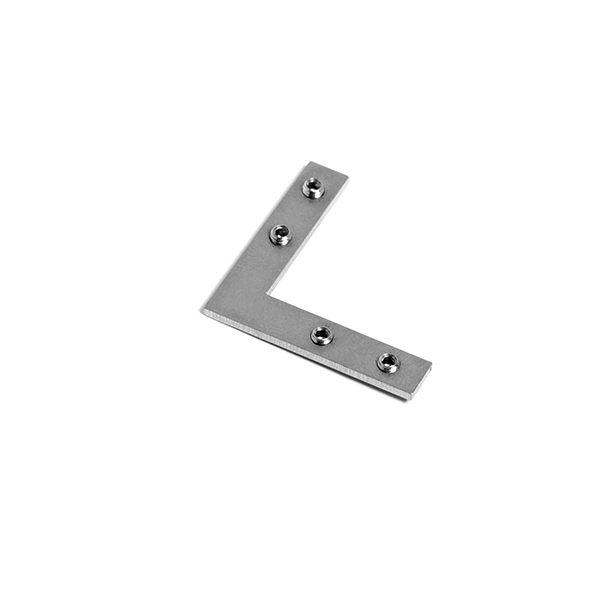

42723 ZM-90 Non Anodized Connector $10.30
42729 ZM- Non Anodized-135 Connector $11.60
42726 ZM-PION- Non Anodized90 Connector $10.30
BACK to TOP
