KLUS Design OPAC-30 Extrusion
ARCHITECTURAL LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
OPAC-30
Masking the uneven edges of grooves

Profile height not exceeding the thickness of drywall
Easy mounting
ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less.
Application

- construction of lighting fixtures in shallow grooves
Assembly

- in grooves with KMA mounting springs or with mounting adhesive.
Additional information

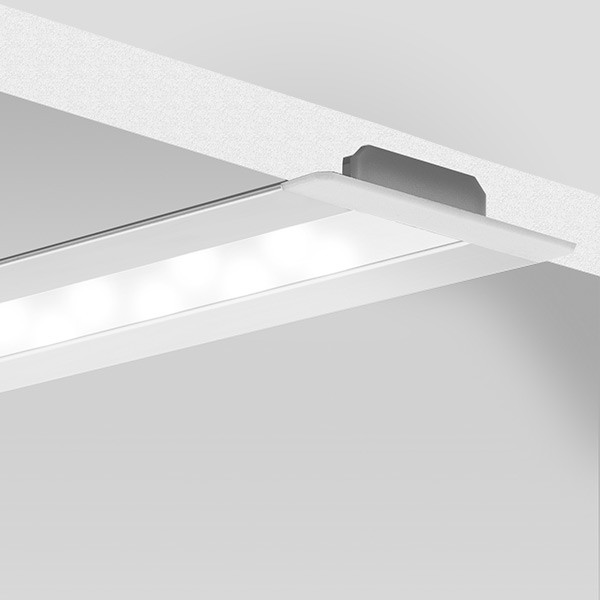

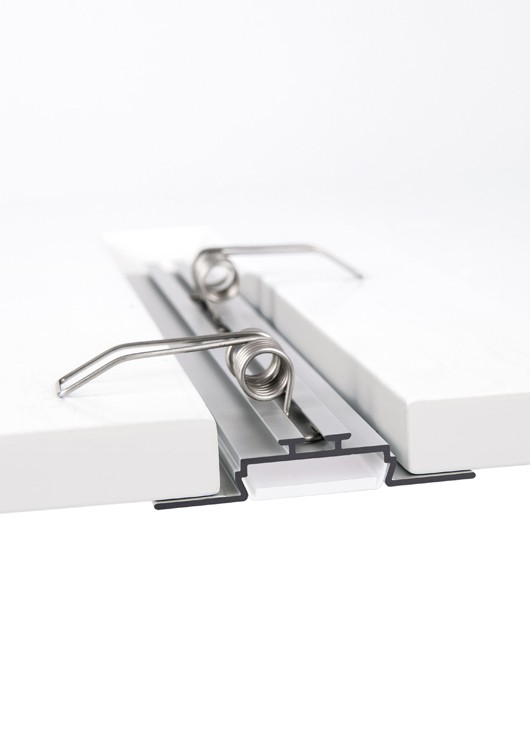

OPAC-30 extrusion is used to build flat fixtures with large shielding collars. Designed for mounting in slots made in dry-wall, flush with its surface and not exceeding their thickness. The smallest depth of the mounting slots for OPAC-30 is 9 mm (0.35"). In dry-wall ceilings, the extrusion can be mounted using KMA mounting springs. The extrusion can fit two 10 mm (0.39") - wide LED strips or one LED strip with a width of more than 10 mm (0.39") but not greater than 21 mm (0.82"). Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.
OPAC-30
EXTRUSIONS		 COVERS /
LENSES		 END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

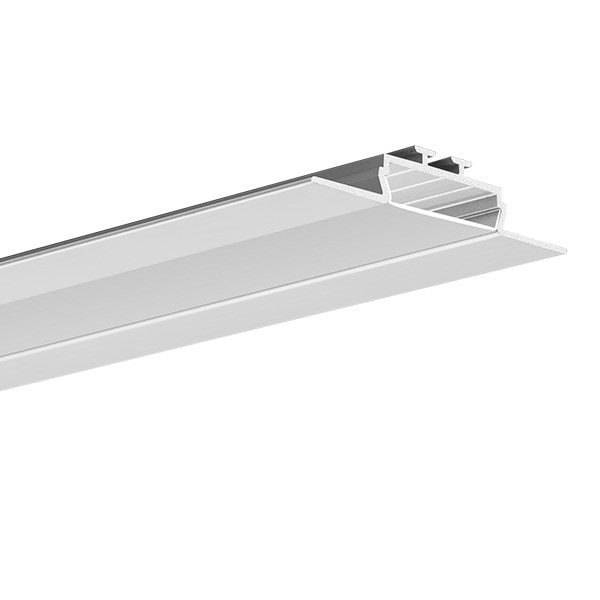

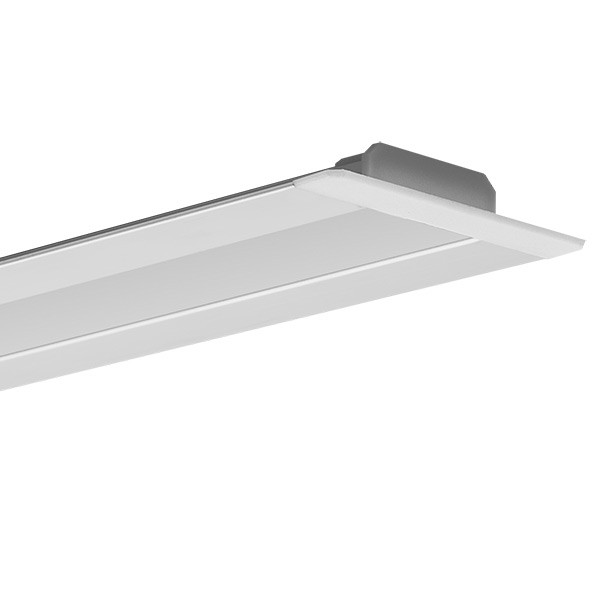

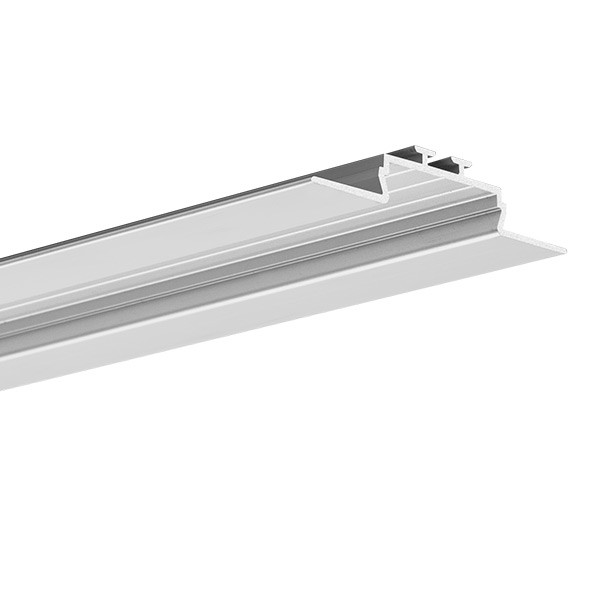

OPAC-30 Extrusion
B6164ANODA_1 B6164ANODA_2 B6164ANODA_1 B6164ANODA_2 B6164ANODA_1 B6164ANODA_2 B6164ANODA_1 B6164ANODA_2
ITEM DESCRIPTION PRICE
B6164ANODA_1 39.4" / 1M Silver Anodized Extrusion $28.30
B6164ANODA_2 79.75" / 2M Silver Anodized Extrusion $56.60
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart OPAC-30 Specifications OPAK-30 How To
EXAMPLE EXAMPLE
OPAC-30 OPAC-30
BACK to TOP

CLICK IMAGE for LARGER VIEW
00415 17007 00413
00415 17007 00413
G-K Cover
Semi-Transparent		 G-K Cover
Frosted		 G-L Cover
Frosted
ITEM DESCRIPTION PRICE
00415_1 39.4" / 1M G-K Cover Semi-Trasparent $27.90
00415_2 78.75" / 2M G-K Cover Semi-Trasparent $55.80
17007_1 39.4" / 1M G-K Cover Semi-Frosted $27.90
17007_2 78.75" / 2M G-K Cover Semi-Frosted $55.80
00413_1 39.4" / 1M G-L Cover Semi-Frosted $25.50
00413_2 78.75" / 2M G-L Cover Semi-Frosted $51.00

17022 17011 17032 17044
17022 17011 1703 17044
HS-22 Cover
Clear		 HS-22 Cover
Frosted 		LIGER-22 Cover
Frosted 		LIGER-22 Cover
Black
ITEM DESCRIPTION PRICE
17022_1 39.4" / 1M HS-22 Cover Clear $13.90
17022_2 78.75" / 2M HS-22 Cover Clear $27.80
17037_1 39.4" / 1M HS-22 Cover Frosted $13.00
17037_2 78.75" / 2M HS-22 Cover Frosted $26.00
17032_1 39.4" / 1M Liger Cover Frosted $18.80
17032_2 78.75" / 2M Liger Cover Frosted $37.60
17044_1 39.4" / 1M Liger Cover Black $26.50
17044_2 78.75" / 2M Liger Cover Black $51.00

MP-22 MASKING COVER
• Aesthetically separates the luminous and non-luminous sections cover
• Masks electronic devices housed inside the profile
• Compatible with profiles adapted to the dimensions of the LIGER-22
17167_1 17167L9005_1 17167L9010_1
17167_1 17167_1
17167L9005_1 17167L9005_1
17167L9010_1 17167L9010_1
MP-22 Masking Cover
METALLIZED		 MP-22 Masking Cover
BLACK 		MP-22 Masking Cover
WHITE
ITEM DESCRIPTION PRICE
17167_1 39.4" / 1M MP-22 Masking Cover METALLIZED $21.20
17167L9005_1 39.4" / 1M MP-22 Masking Cover BLACK $32.80
17167L9010_1 39.4" / 1M MP-22 Masking Cover WHITE $32.80
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24045 24003 00838 42728
24045 24003 00838 42728
OPAC
End Cap		 TEKNIK
Clip		 KMA
Spring		 ZM-120
Connector
ITEM DESCRIPTION PRICE

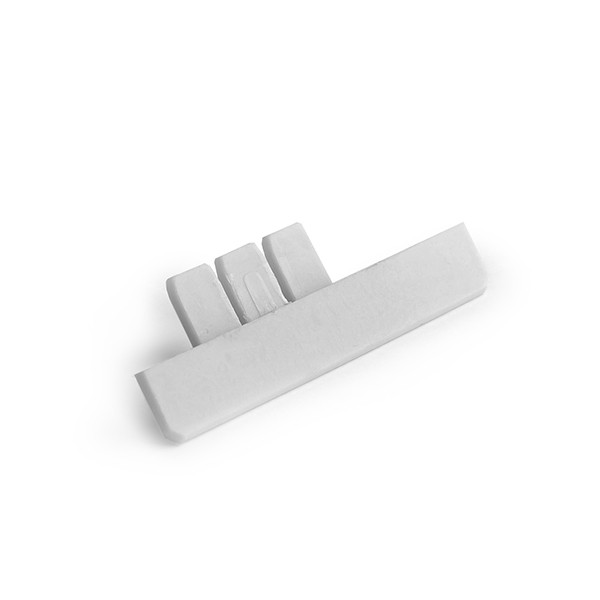

24045 OPAC End Cap $4.90
24003 TEKNIK CLIP $2.20
00938 KMA Spring $8.80
42728 ZM-120 Connector $11.60

42717 42716 42719 42718 00802L
42717 42718 42719 42718 00802
ZM-180
Connector		 ZM-90
Connector		 ZM-PION-135
Connector		 ZM-PION-90
Connector		 8,8x1,2 Gland
ITEM DESCRIPTION PRICE
42717 ZM-180 Connector $10.30
42718 ZM-90 Connector $10.30
42719 ZM-PION-135 Connector $11.60
42718 ZM-PION-90 Connector $10.30
00802L 8,8x1,2 Gland $1.40
