KLUS PDS-O Extrusion

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

216-352-3685

WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US

These Cards Accepted and PROCESSED SECURELY

Small dimensions, lightweight

Appealing form

Good heat dissipation, environment friendly

Ability to create a line of light

ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less

Application

- for construction of linear suspended lighting fixtures

- indoor: interior design, advertisement, work stations (hardly accessible – shaded spots)

- outdoor ( IP 65 waterproof level can be achieved )

Assembly

- for construction of linear suspended lighting fixtures

- indoor: interior design, advertisement, work stations (hardly accessible – shaded spots)

- extrusion assembled with various KLUS components enables creation of customized LED Lamps;

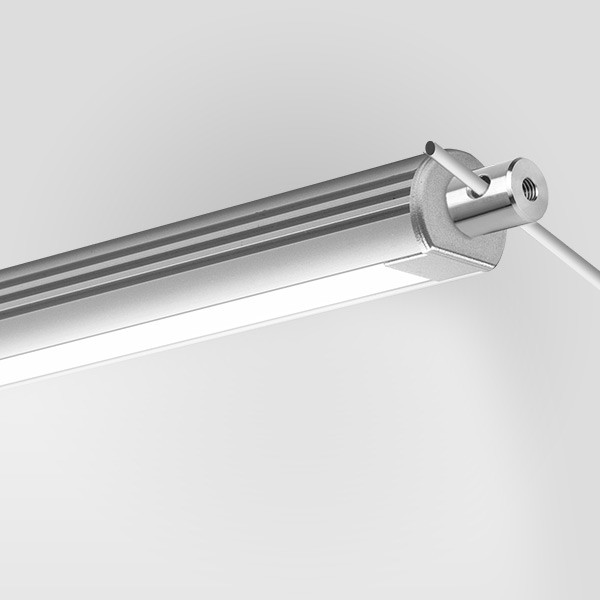

PDS-O Suspended:, Wall Sconce, PDS-O Countertop Lamp:

- can be mounted with appropriately selected fixing glues, professional double-sided adhesive tapes, metal and
plastic mounting brackets, as well as mounting brackets with angle adjustment, and by means of a mounting spring

Additional Information

- a wide range of accessories

• Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

PDS-O
EXTRUSIONS

COVERS /
LENSES

END CAPS /
ACCESSORIES

STANDARD LEAD TIMES

Lead Time May Vary Based on Product Mix / Quantities Ordered

Standard Order - No Cutting

2 - 3 Days

Custom Cuts - Extrusions, Covers or LED Tape

3 - 5 Days

Custom Builds

2 - 3 Weeks

The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.

ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE

Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

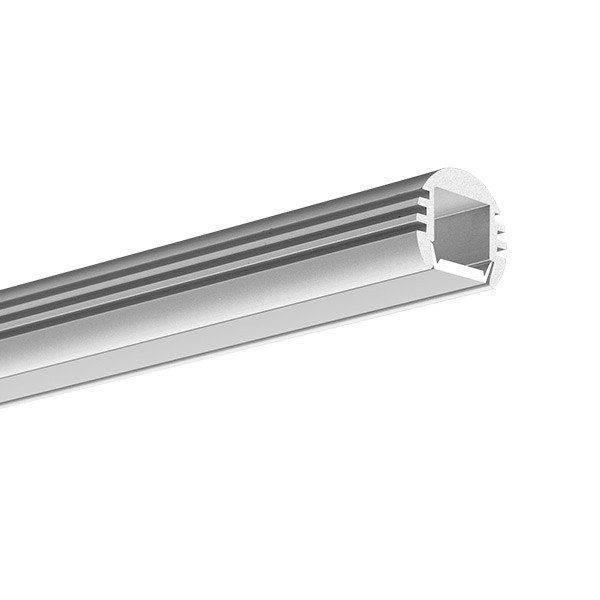

PDS-O Extrusion

ITEM	DESCRIPTION	PRICE
B3777ANODA_1	39.4" / 1M Silver-Anodized Extrusion	$19.90
B3777ANODA_2	78.75" / 2M Silver-Anodized Extrusion	$39.80
B3777ANODA_3	118.11" / 3M Silver-Anodized Extrusion	$55.60

Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions

Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.

CLICK for PDF:

EXAMPLES

BACK to TOP

CLICK IMAGE for LARGER VIEW

COVERS / LENSES

1369

1370

17037

17040

HS Cover
Frosted

HS Cover
Clear

LIGER Cover
Frosted

LIGER Cover
Black

ITEM	DESCRIPTION	PRICE
1369_1	39.4" / 1M HS Cover Frosted	$11.90
1369_2	78.75" / 2M HS Cover Frosted	$23.80
1369_3	118.11" / 3M HS Cover Frosted	$31.30
1370_1	39.4" / 1M HS Cover Clear	$11.90
1370_2	78.75" / 2M HS Cover Clear	$23.80
1370_3	118.11" / 3M HS Cover Clear	$31.30
17037_1	39.4" / 1M LIGER Cover Frosted	$13.80
17037_2	78.75" / 2M LIGER Cover Frosted	$27.60
17037_3	118.11" /32M LIGER Cover Frosted	$42.00
17040_1	39.4" / 1M LIGER Cover Black	$20.50
17040_2	78.75" / 2M LIGER Cover Black	$41.00

17072

17076

17071

KA-BIS Cover
Clear

PDS-LUK
Cover

KA-BIS Cover
Frosted

ITEM	DESCRIPTION	PRICE
17072_1	39.4" / 1M KA-BIS Cover Clear	$13.80
17072_2	78.75" / 2M KA-BIS Cover Clear	$27.60
17076_1	39.4" / 1M PDS-LUK Cover	$20.20
17076_2	78.75" / 2M PDS-LUK Cover	$40.40
17071_1	39.4" / 1M KA-BIS Cover Frosted	$13.80
17071_2	78.75" / 2M KA-BIS Cover Frosted	$27.60

BACK to TOP

CLICK IMAGE for LARGER VIEW

END CAPS / ACCESSORIES

1435

00029

00028

1441

24059

PDS-O
End Cap Electrically Conductive

MW-PDS-0
End Cap with Hole

MW-PDS-0
End Cap

PDS-0
End Cap with Hole

PDS-O MET
End Cap

ITEM	DESCRIPTION	PRICE
1435	PDS-O End Cap Electrically Conductive	$18.80
00029	MW-PDS-0 End Cap with Hole	$4.20
00028	MW-PDS-0 End Cap	$4.20
1441	PDS-0 End Cap with Hole	$4.20
24059	PDS-O MET End Cap	$6.20

01439

24062

1059

24216

00802L

PDS-0
End Cap

MICRO-ALU MET
End Cap

MICRO-ALU
End Cap

M-K
End Cap

8,8x1,2 Gland

ITEM	DESCRIPTION	PRICE

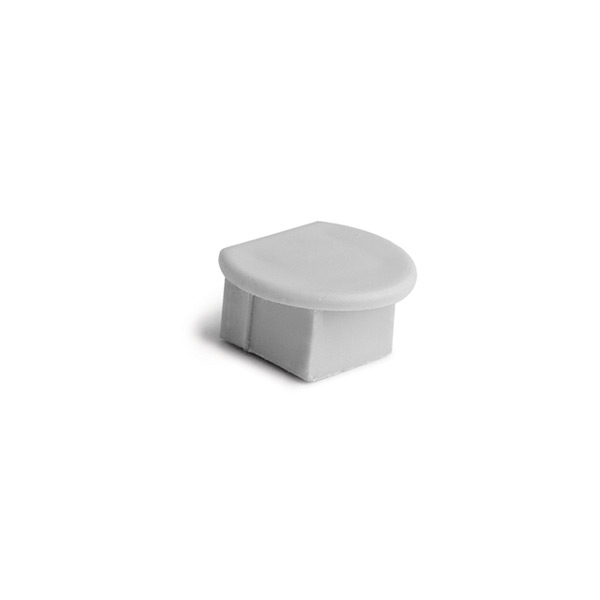

01439	PDS-0 End Cap	$4.20
24062	MICRO-ALU MET End Cap	$6.10
1059	MICRO-ALU End Cap	$4.20
24216	M-K End Cap	$4.00
00802L	8,8x1,2 Gland	$1.35

42213

42215

42216

42218

24189

1345

BZP
Head

BZP-ZZ
Head Conductive

ST
Head

BZP-ZZ
Head Conductive

Black PDS / MICRO
Mounting Bracket

PDS
Mounting Bracket

ITEM	DESCRIPTION	PRICE
42213	BZP Head	$11.40
42215	BZP-ZZ Head Conductive	$12.90
42216	ST Head	$13.00
42218	BZP-ZZ Head Conductive	$15.00
24189	Black PDS / MICRO Mounting Bracket	$5.80
1345	PDS Mounting Bracket	$5.80

24190

24041

24270

24223

00645

00647

PDS-STN
Mounting Bracket

PL-PDM
Mounting Bracket

REG-PD-UV Adjustable
Mounting Bracket

White PDS / MICRO
Mounting Bracket

DP-MOC
Fastener

DP-MOC-ZZ
Fastener

ITEM	DESCRIPTION	PRICE
24190	PDS-STN Mounting Bracket	$3.40
24041	PL-PDM Mounting Bracket	$2.90
24270	REG-PD-UV Adjustable Mounting Bracket	$15.10
24223	White PDS / MICRO Mounting Bracket	$5.80
00645	DP-MOC Fastener	$20.40
00647	DP-MOC-ZZFastener	$22.00
