LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
ASSEMBLED, BUILT or MODIFIED

in the USA
KLUS Design POLI Extrusion
COVES / NICHES LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
Poli
Installation in tight spaces

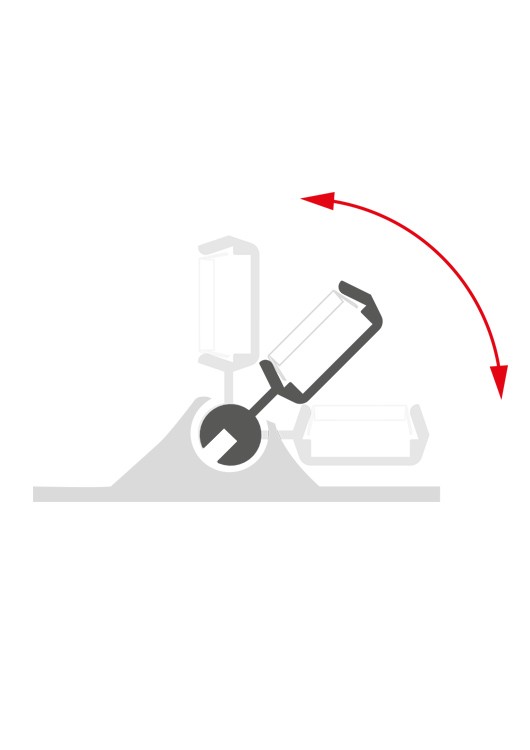

Infinitely variable adjustment of the lighting angle

ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less.
Application

- for backlighting niches
Assembly
- POLI system consists of POLI extrusion and mounting brackets.
- with mounting brackets that are glued or screwed to the surface with appropriately selected screws
Additional Information
- the lighting fixture can be inserted into the mounting brackets so that the light is directed up or down and
furthermore the light angle can be adjusted
- a major advantage of this system is the possibility of mounting in locations hardly accessible to mounting
tools.
• Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.
POLI
EXTRUSIONS		 COVERS /
LENSES 		END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote
CLICK IMAGE for LARGER VIEW

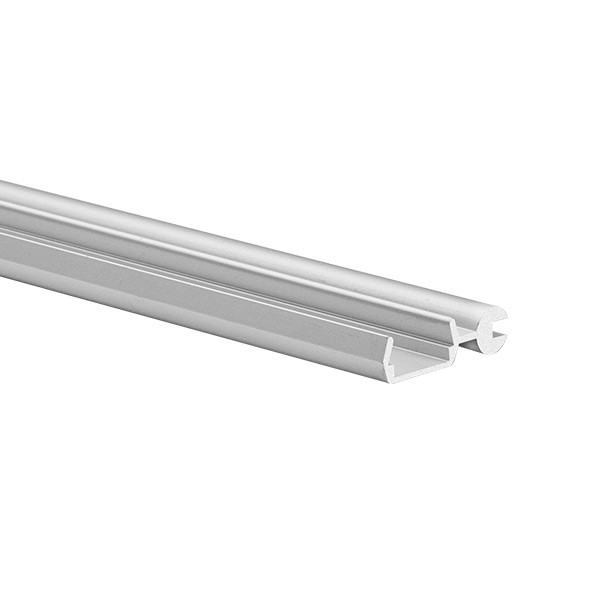

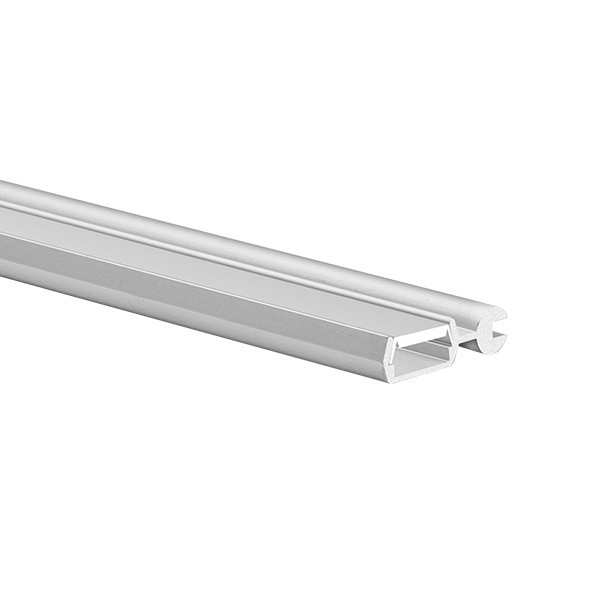

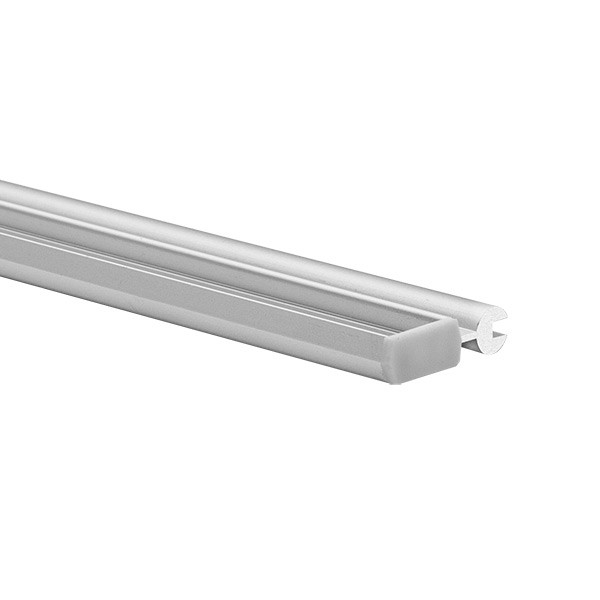

POLI Extrusion
B7176ANODA_1 B7176ANODA_2 B7176ANODA_1 B7176ANODA_2 B7176ANODA_1 B7176ANODA_2 B7176ANODA_1 B7176ANODA_2

ITEM DESCRIPTION PRICE
B7176ANODA_1 39.4" / 1M Silver-Anodized Extrusion $23.00
B7176ANODA_2 78.75" / 2M Silver-Anodized Extrusion $46.00
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart POLI Specifications POLI How To
EXAMPLE EXAMPLE
Poli Poli
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
1370 1369 17037 17040
1370 1369 1717037031 17040
HS Cover
Clear		 HS Cover
Frosted 		LIGER-22 Cover
Frosted 		LIGER-22 Cover
Black
ITEM DESCRIPTION PRICE
1370_1 39.4" / 1M HS Cover Clear $11.90
1370_2 78.75" / 2M HS Cover Clear $23.80
1369_1 39.4" / 1M HS Cover Frosted $11.90
1369_2 78.75" / 2M HS Cover Frosted $23.80
17037_1 39.4" / 1M Liger Cover Frosted $13.80
17037_2 78.75" / 2M Liger Cover Frosted $27.60
17040_1 39.4" / 1M Liger Cover Black $20.50
17040_2 78.75" / 2M Liger Cover Black $41.00
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24128 24112 00802L
24128 24112 00802
POLI
End Cap		 POLI|
Mounting Bracket		 8,8x1,2 Gland
ITEM DESCRIPTION PRICE
24128 POLI End Cap $4.20
24112 POLI| Mounting Bracket $6.15
00802L 8,8x1,2 Gland $1.40
BACK to TOP
