Regulor
A movable insert for LEDs enabling four different lighting angles

Four beam angles: 10, 30, 60 and 90 degrees
Housing for flexible or hard LED strips that are 8-10mm wide (0.4")
ETL listed and approved for installation in all closet storage areas
when factory built by KLUS as fixtures with 4.5w/ft or less.
Application

- extrusion for construction of surface mounted fixtures with a focused beam of light
Assembly

- with screws appropriately selected for the surface
- with mounting brackets
- with suspension accessories
- with mounting adhesives
Additional information

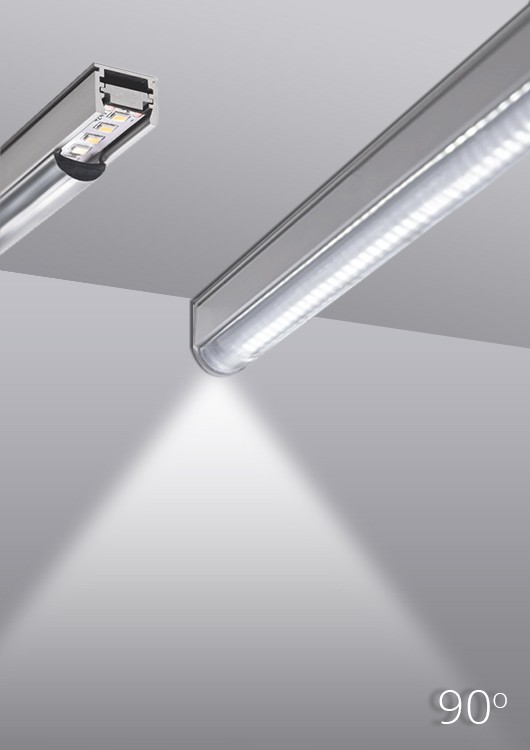

- the insert setting adjustment enables 10, 30, 60 and 90 degree beam angles
- eliminates obstacles related to LED light strip mounting
- extrusion acts as the connector between the light source and the application area and provides a stylish and
finished look
- lighting or illumination of certain areas (stream of light may vary depending on the power of applied LEDs)
- extrusion can be made waterproof ( IP 67 ) and be used as an outdoor lighting for elevations or architectural
elements of gardens Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.
REGULOR
EXTRUSIONS		 ASSOCIATED EXTRUSIONS
AND COVERS / LENSES 		END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

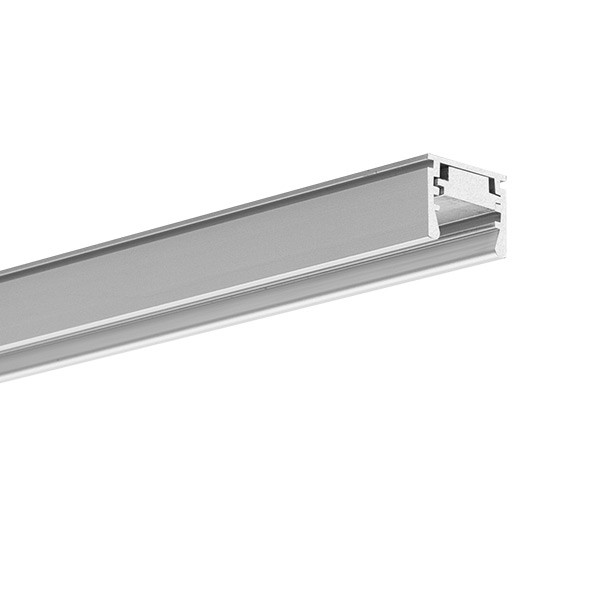

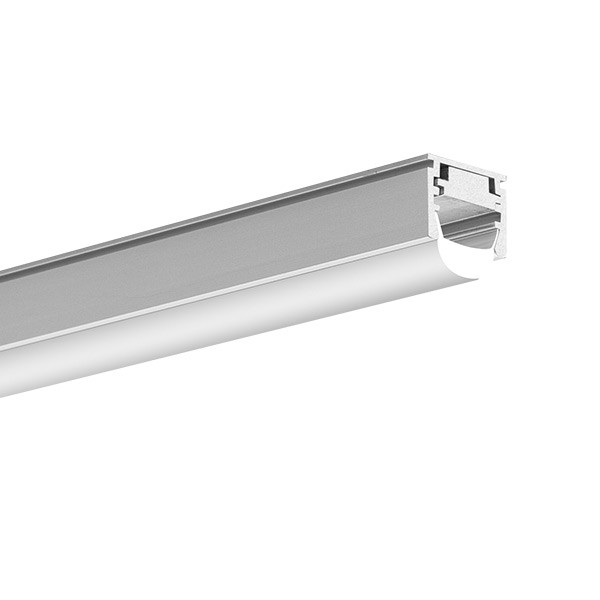

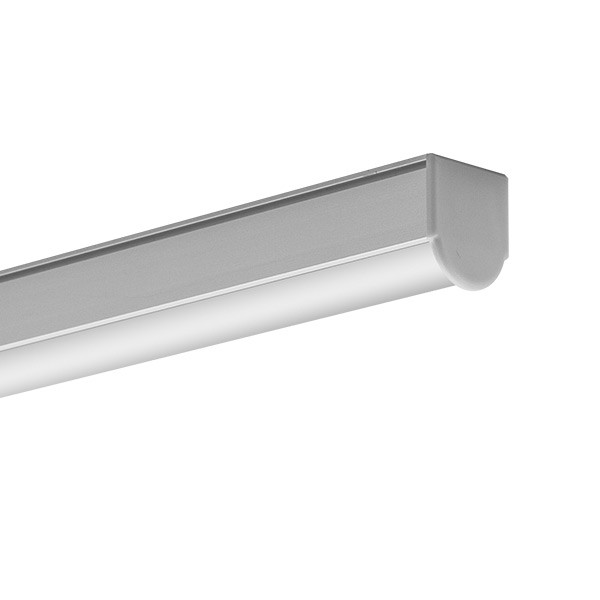

REGULOR Extrusion
B468+43ANODA_1 B468+43ANODA_2 B468+43ANODA_3 B468+43ANODA_1 B468+43ANODA_2 B468+43ANODA_3 B468+43ANODA_1 B468+43ANODA_2 B468+43ANODA_3 B468+43ANODA_1 B468+43ANODA_2 B468+43ANODA_3

ITEM DESCRIPTION PRICE
B468+43ANODA_1 39.4" / 1M Silver Anodized Extrusion $23.60
B468+43ANODA_2 79.75" / 2M Silver Anodized Extrusion $47.20
B468+43ANODA_3 118.11" / 3M Silver Anodized Extrusion $84.80
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart REGULOR Specifications RGULOR How To

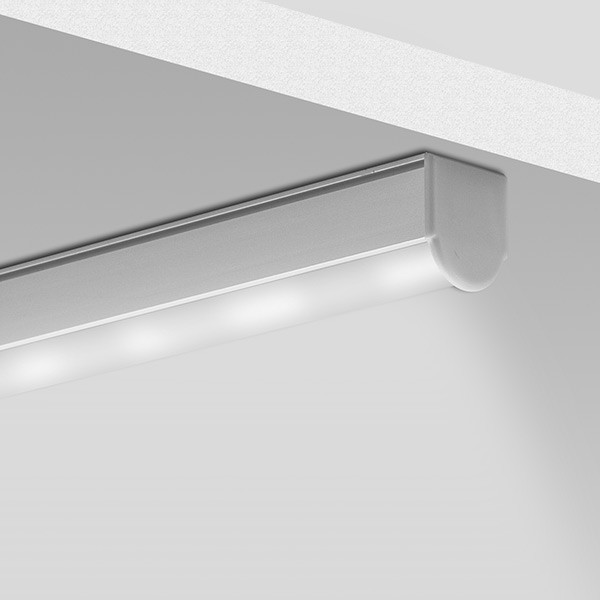

EXAMPLES
Regulor Regulor Regulor Regulor
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
1370 1369 17037 17040
1370 1369 1717037031 17040
HS Cover
Clear		 HS Cover
Frosted 		LIGER-22 Cover
Frosted 		LIGER-22 Cover
Black
ITEM DESCRIPTION PRICE
1370_1 39.4" / 1M HS Cover Clear $11.90
1370_2 78.75" / 2M HS Cover Clear $23.80
1370_3 188.11" / 3M HS Cover Clear $31.20
1369_1 39.4" / 1M HS Cover Frosted $11.90
1369_2 78.75" / 2M HS Cover Frosted $23.80
1369_3 188.11" / 3M HS Cover Frosted $30.00
17037_1 39.4" / 1M Liger Cover Frosted $13.80
17037_2 78.75" / 2M Liger Cover Frosted $27.60
17037_3 118.11" /32M Liger Cover Frosted $42.00
17040_1 39.4" / 1M Liger Cover Black $20.50
17040_2 78.75" / 2M Liger Cover Black $41.00

17111 17072 17071
17111 17072 17071
SATIN-S
Focusing Cover		 KA-BIS Cover
Clear 		KA-BIS Cover
Frosted
ITEM DESCRIPTION PRICE
17111_1 39.4" / 1M SATIN-S Focusing Cover $22.50
17111_2 78.75" / 2M SATIN-S Focusing Cover $45.00
17111_3 188.11" / 3M SATIN-S Focusing Cover $74.90
17072_1 39.4" / 1M KA-BIS Cover Clear $13.50
17072_2 78.75" / 2M KA-BIS Cover Clear $27.00
17071_1 39.4" / 1M KA-BIS Cover Frosted $13.50
17071_2 78.75" / 2M KA-BIS Cover Frosted $27.00
.90
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
00313 1407 00310
00313 1407 00310
REGULOR-OTW
End Cap		 PDS4-ALU End Cap
Electrically Conductive		 REGULOR
End Cap
ITEM DESCRIPTION PRICE
00313 REGULOR-OTW End Cap $4.20
1407 PDS4-ALU End Cap Electrically Conductive $19.60
00310 REGULOR End Cap $4.20

42213 42215 42216 42218 24189 1345
42213 42215 42216 42218 24189 1345
BZP
Head

BZP-ZZ
Head Conductive

ST
Head		 BZP-ZZ
Head Conductive 		Black PDS / MICRO
Mounting Bracket		 PDS
Mounting Bracket
ITEM DESCRIPTION PRICE
42213 BZP Head $11.50
42215 BZP-ZZ Head Conductive $12.90
42216 ST Head $13.90
42218 BZP-ZZ Head Conductive $15.00
24189 Black PDS / MICRO Mounting Bracket $5.80
1345 PDS Mounting Bracket $5.80

24190 24720 24223 00645 00647
24190 24270 24223 00645 00647
PDS-STN
Mounting Bracket		 REG-PD-UV Adjustable
Mounting Bracket		 White PDS / MICRO
Mounting Bracket		 DP-MOC
Fastener		 DP-MOC-ZZ
Fastener
ITEM DESCRIPTION PRICE
24190 PDS-STN Mounting Bracket $3.40
24270 REG-PD-UV Adjustable Mounting Bracket $15.10
24223 White PDS / MICRO Mounting Bracket $5.80
00645 DP-MOC Fastener $20.50
00647 DP-MOC-ZZFastener $22.00

00651 42612 42303 42301 42302 42150
00651 42612 42303 42301 42302 42150
DP-ZZ
Fastener		 M14
Mounting Set 		M3
Mounting Set 		M4
Mounting Set 		M15
Mounting Set 		PD-MICRO
Connector
ITEM DESCRIPTION PRICE
00651 DP-ZZ Fastener $19.80
42612 M14 Mounting Set $43.00
42303 M3 Mounting Set $45.40
42301 M4 Mounting Set $24.90
42302 M5 Mounting Set $24.80
42150 PD-MICRO Connector $5.30
