LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
ASSEMBLED, BUILT or MODIFIED

in the USA
KLUS Design SILER Extrusion
UNIVERSAL LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure

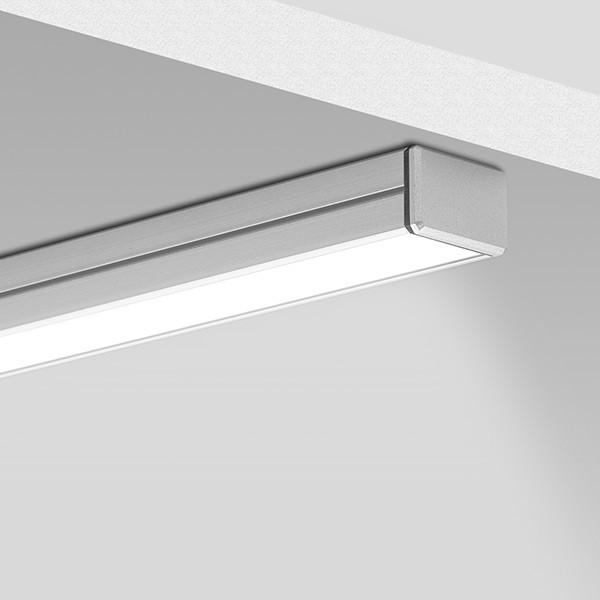

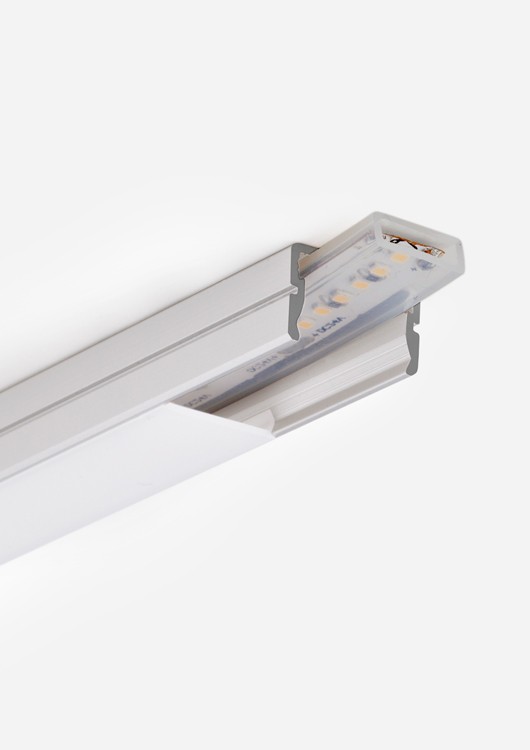

SILER
Will accommodate LEDs up to 14.6 mm wide
Possible to obtain a watertight lighting fixture
ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less
Application

- for the construction of watertight lighting fixtures, for external use. For example, to highlight elements of
building facades, elements of street furniture, to illuminate garage driveways, etc.
Assembly
• with fixing glues, professional double-sided adhesive tapes
• with mounting brackets 45
Additional Information
• basic accessories: frosted cover and gray end caps
• Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.
SILER
EXTRUSIONS		 COVERS /
LENSES 		END CAPS /
ACCESSORIES
KLUS Extrusions MiFor-70S ystem KLUS Accessories KLUS Fixtures KLUS Tape Light
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

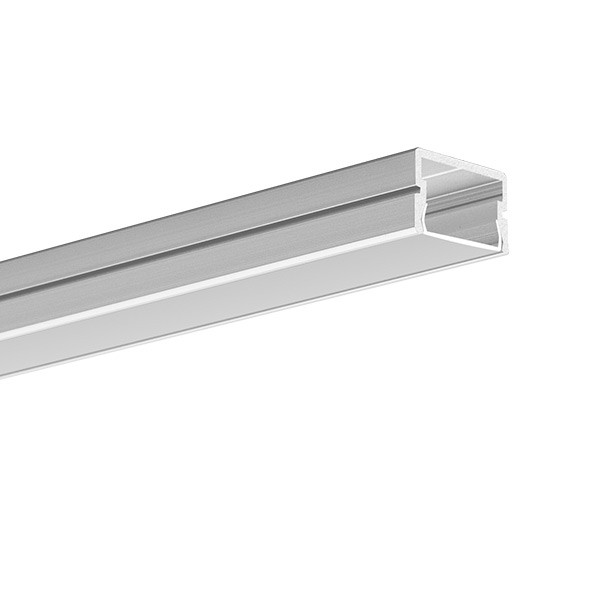

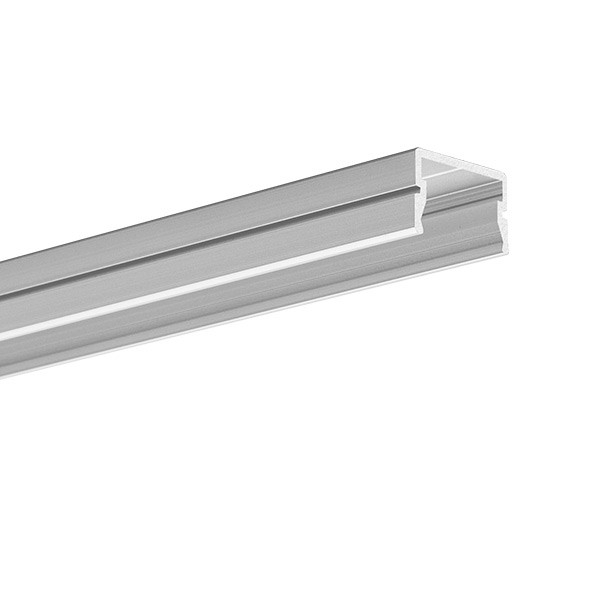

SILER Extrusion
B9325ANODA_1 B9325ANODA_2 B9325ANODA_1 B9325ANODA_2 B9325ANODA_1 B9325ANODA_2 B9325ANODA_1 B9325ANODA_2
ITEM DESCRIPTION PRICE
B9325ANODA_1 39.4" / 1M Silver-Anodized Extrusion $21.90
B9325ANODA_2 78.75" / 2M Silver-Anodized Extrusion $43.80
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart SILER Specifications SILER How To

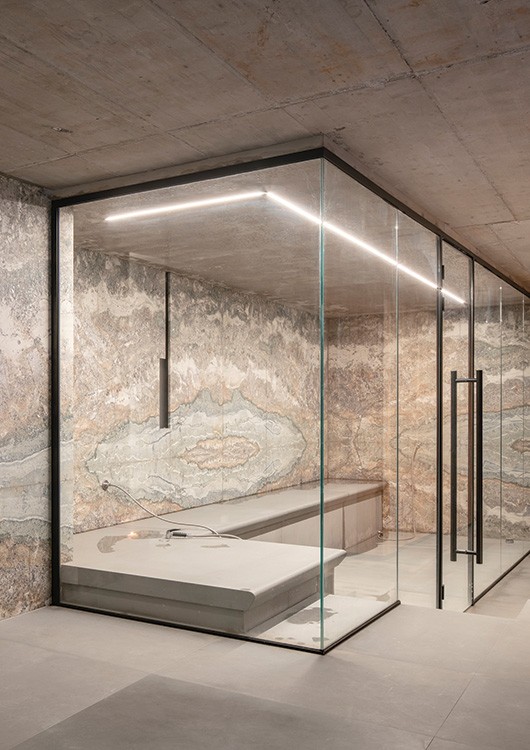

EXAMPLES
SILER SILER
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
17039
17039
SILER Cover
Frosted Line of Light
ITEM DESCRIPTION PRICE
17039_1 39.4" / 1M SILER Cover $13.30
17039_2 78.75" / 2M SILER Cover $26.60
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24236 42630 24144 42212 00652 42210
24236 42630 24144 00802 00802 52210
SILER-H
End Cap		 SILER-HQ
End Cap		 45-STN
Mounting Bracket

45-ZZ
Head Conductive

DP-45-MOC
Fastener		 45-ST
Head
ITEM DESCRIPTION PRICE
24261 SILER End Cap $4.00
42630 SILER-HQ End Cap Set
Premium product / Highest quality of workmanship / Elegant finish /
No light penetration / Secure mounting
$67.40
24144 45-STN Mounting Bracket $4.30
42212 45-ZZ Head Conductive $15.00
00652 DP-45-MOC Fastener $20.50
42210 BZP-ZZ Head Conductive $12.90

42215 42213 00651 00654 00802L
42215 42213 42213 00654 00802
BZP-ZZ
Head Conductive		 BZP
Head		 DP-ZZ
Fastener		 DP-45-MOC-ZZ
Fastener

8,8x1,2 Gland
ITEM DESCRIPTION PRICE
42215 BZP-ZZ Head Conductive $12.90
42213 BZP-ZZ Head $11.40
00651 DP-ZZ Fastener $19.90
00654 DP-45-MOC-ZZ Fastener $22.00
00802L 8,8x1,2 Gland $1.40
BACK to TOP
