KLUS STEPUS Extrusion

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

216-352-3685

WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US

These Cards Accepted and PROCESSED SECURELY

A compact shape of the extrusion eliminates the danger of "tripping on entering"

Three lighting variants

Non-slip parts

High mechanical resistance

Application

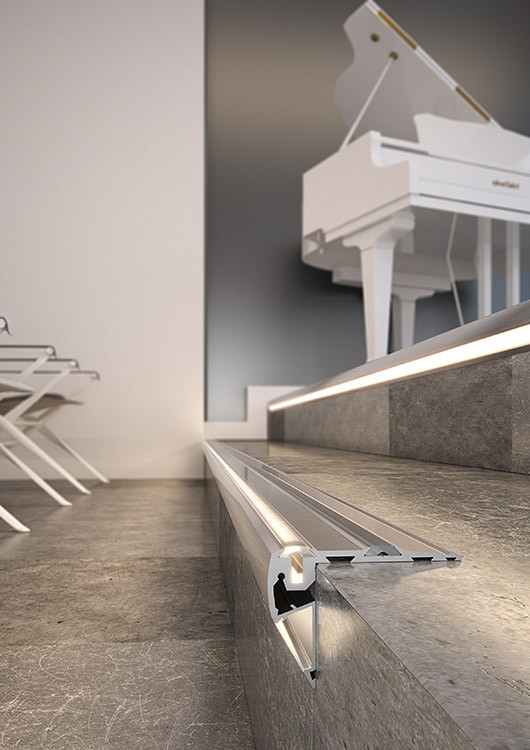

- protects the edge of the step and has two types of lighting modes: warning and lighting the steps

Assembly

- with bolts appropriately selected for the type of the mounting surface

Additional Information

- the extrusion is sold with two Anti-slip rubber strips
- it contains a LED strip in a silicone sleeve
- part flush to the vertical plane of the step fits in the angle of 30 degrees
- the bottom LED strip directs the light forward and is secured with the LIGER-22 cover
- narrow LED strips (up to 6 mm) that emit light from the side in the channel under the silicone strip
- standard LED strip width (up to 10 mm) to illuminate the step

• Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

STEPUS
EXTRUSIONS

COVERS /
LENSES

END CAPS /
ACCESSORIES

STANDARD LEAD TIMES

Lead Time May Vary Based on Product Mix / Quantities Ordered

Standard Order - No Cutting

2 - 3 Days

Custom Cuts - Extrusions, Covers or LED Tape

3 - 5 Days

Custom Builds

2 - 3 Weeks

The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.

ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE

Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

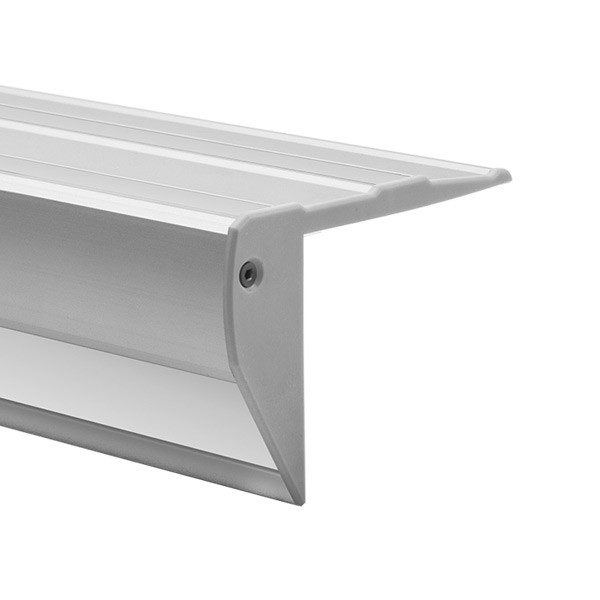

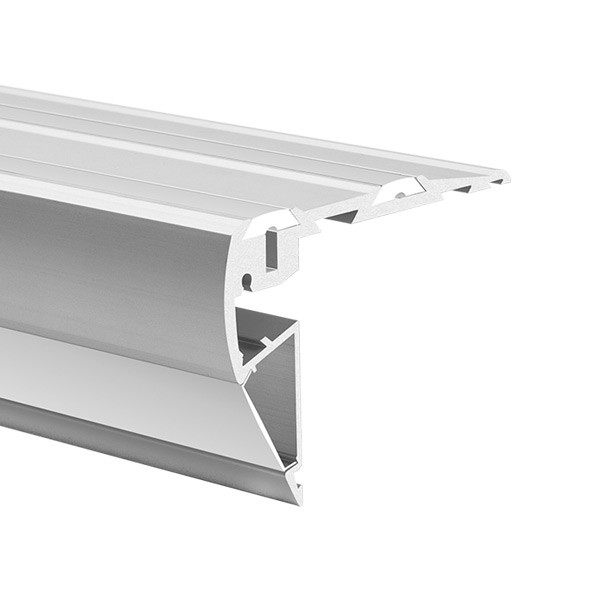

STEPUS Extrusion

ITEM	DESCRIPTION	PRICE
18038ANODA_1	39.4" / 1M Silver-Anodized Extrusion	$151.00
18038ANODA_2	78.75" / 2M Silver-Anodized Extrusion	$302.00

Download for Full Specifications, Dimensions and Instructions

Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions

Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.

CLICK for PDF:

EXAMPLE

BACK to TOP

CLICK IMAGE for LARGER VIEW

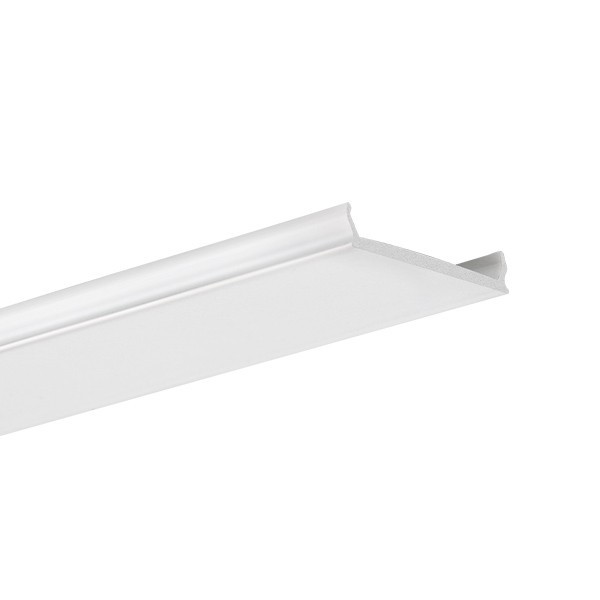

COVERS / LENSES

17022

17011

17022

17044

HS-22 Cover
Clear

HS-22 Cover
Frosted

LIGER-22 Cover
Frosted

LIGER-22 Cover
Black

ITEM	DESCRIPTION	PRICE
11022_1	39.4" / 1M HS-22 Cover Clear	$16.10
11022_2	78.75" / 2M HS-22 Cover Clear	$32.20
17011_1	39.4" / 1M HS-22 Cover Frosted	$16.10
17011_2	78.75" / 2M HS-22 Cover Frosted	$32.20
17022_1	39.4" / 1M Liger -22 Cover Frosted	$13.80
17022_2	78.75" / 2M Liger-22 Cover Frosted	$27.60
17044_1	39.4" / 1M Liger-22 Cover Black	$25.50
17044_2	78.75" / 2M Liger-22 Cover Black	$53.00

MP-22 MASKING COVER

• Aesthetically separates the luminous and non-luminous sections cover

• Masks electronic devices housed inside the profile

• Compatible with profiles adapted to the dimensions of the LIGER-22

17167_1

17167L9005_1

17167L9010_1

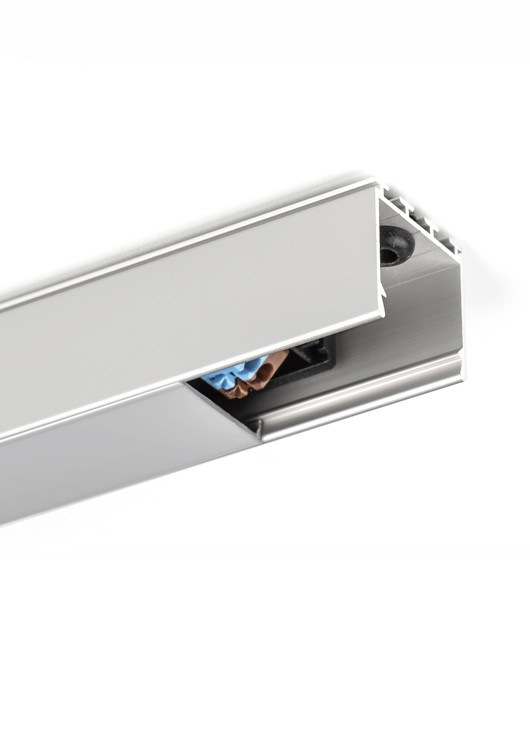

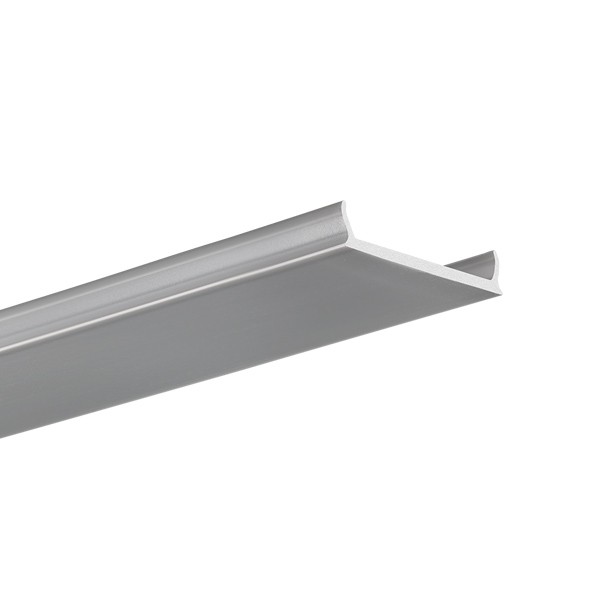

MP-22 Masking Cover
METALLIZED

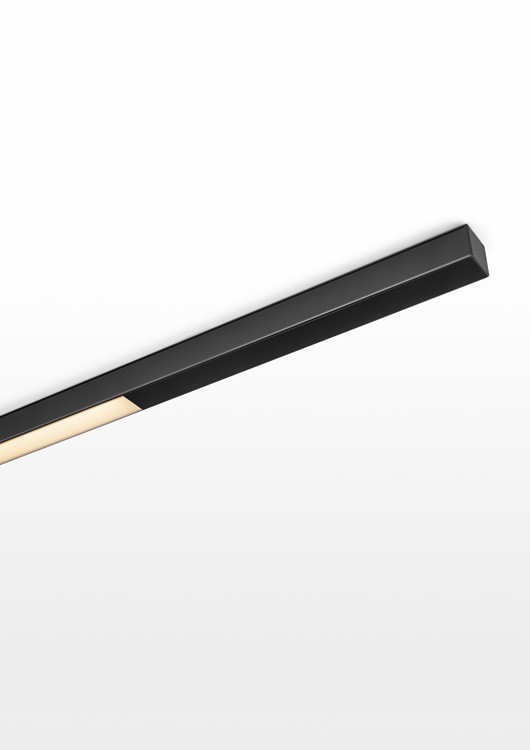

MP-22 Masking Cover
BLACK

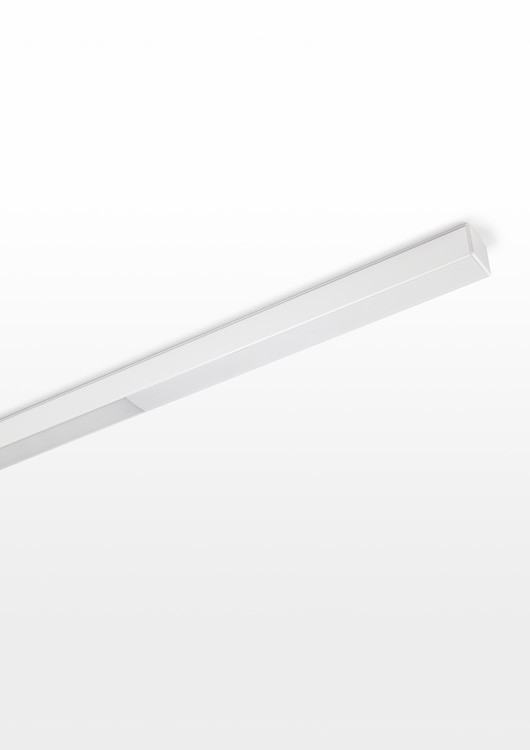

MP-22 Masking Cover
WHITE

ITEM	DESCRIPTION	PRICE
17167_1	39.4" / 1M MP-22 Masking Cover METALLIZED	$21.20
17167L9005_1	39.4" / 1M MP-22 Masking Cover BLACK	$32.20
17167L9010_1	39.4" / 1M MP-22 Masking Cover WHITE	$32.80

BACK to TOP

CLICK IMAGE for LARGER VIEW

END CAPS / ACCESSORIES

24229

24230

00802L

00023

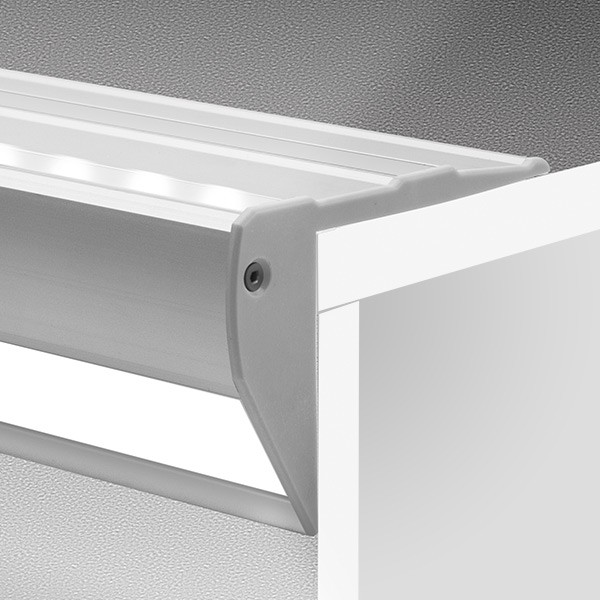

STEPUS-L
End Cap Left

STEPUS-P
End Cap Right

8,8x1,2 Gland

Tool for Mounting
Anti-Slip Rubber Strip

ITEM	DESCRIPTION	PRICE
24229	STEPUS-L End Cap Left	$8.80
24230	STEPUS-P End Cap Right	$8.80
00802L	8,8x1,2 G land	$1.40
00023	Tool for Mounting Anti-Slip Rubber Strip	$Call$

BACK to TOP
