KLUŚ KUBIK-45 Extrusion

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

216-352-3685

WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US

These Cards Accepted and PROCESSED SECURELY

Can create illuminated skeletal form

Appealing concealed extrusion connections

Modern cross-section design

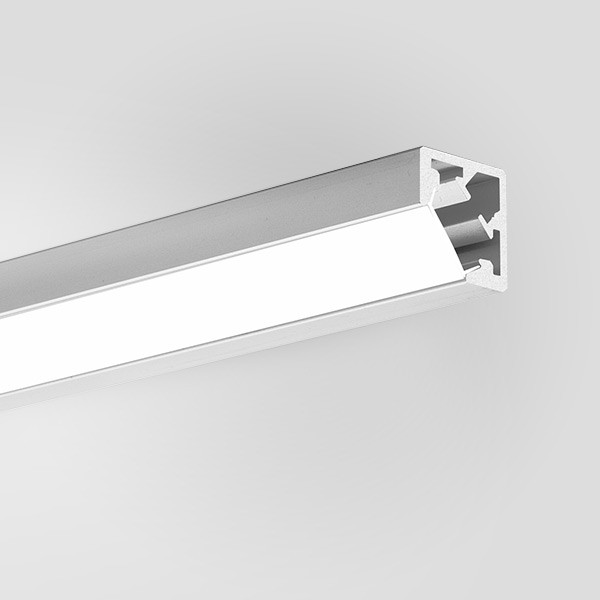

Ability to create a line of light

Application

- construction of skeletal forms for display lighting

Assembly

- with ZM connectors

Additional Information

- accommodates 2 types of covers

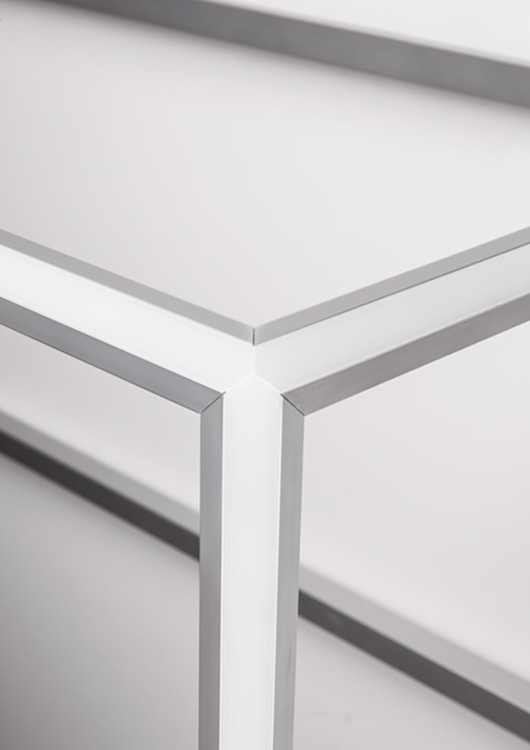

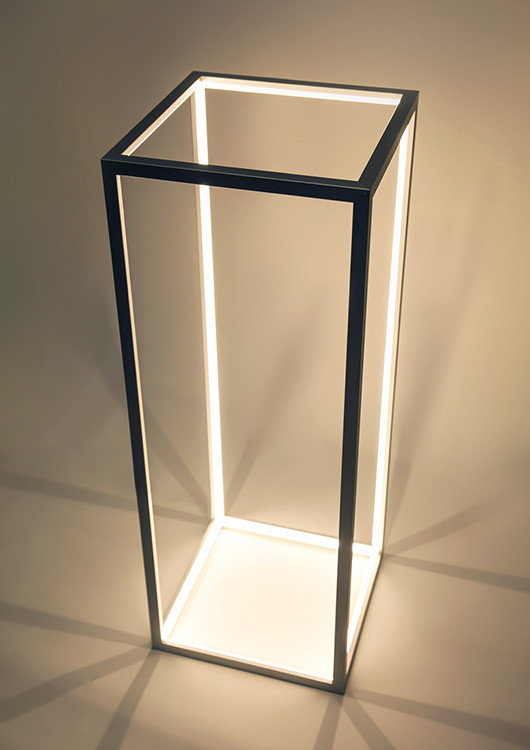

Designed to shape Cupboard structures into various lighting forms. KUBIK 45 extrusion is shaped in a way that, once a structure is built of its sections. e.g. a Cupboard, the light of the extrusions can be directed inside it or
outside at an angle of 45° to its sides. Such forms can be used for the construction of lamps used for
illumination in a standing, hanging, or wall arrangement. It is also possible to create lighting compositions made of a number of Cupboard structures. Can also be used for exhibition purposes, e.g. KUBIK Cupboard fixtures can illuminate objects disposed in their space. Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

KUBIK-45
EXTRUSIONS

COVERS /
LENSES

ACCESSORIES

STANDARD LEAD TIMES

Lead Time May Vary Based on Product Mix / Quantities Ordered

Standard Order - No Cutting

2 - 3 Days

Custom Cuts - Extrusions, Covers or LED Tape

3 - 5 Days

Custom Builds

2 - 3 Weeks

The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.

ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE

Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

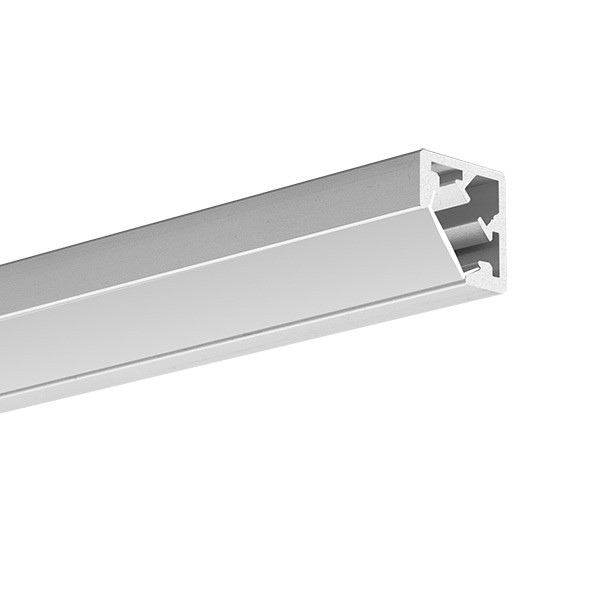

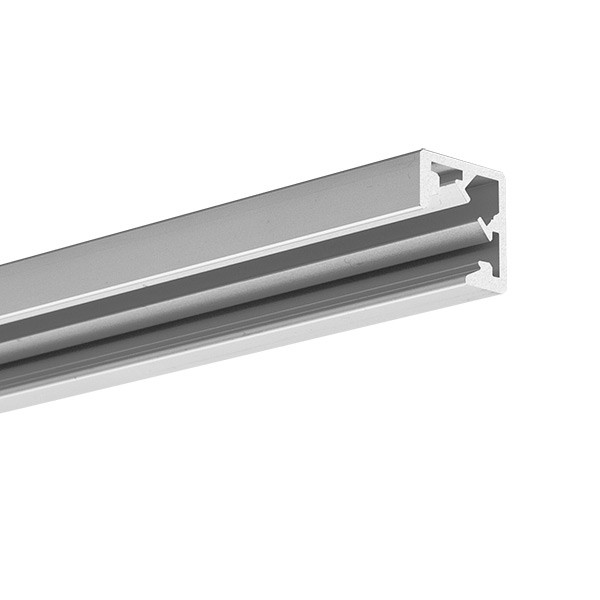

KUBIK-45 Extrusion

ITEM	DESCRIPTION	PRICE
B7697ANODA_1	39.4" / 1M Silver-Anodized Extrusion	$33.50
B7697ANODA_2	78.75" / 2M Silver-Anodized Extrusion	$67.00

Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions

Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.

CLICK for PDF:

EXAMPLES

BACK to TOP

CLICK IMAGE for LARGER VIEW

COVERS / LENSES

1369

1370

17037

17040

17076

HS Cover
Frosted

HS Cover
Clear

LIGER Cover
Frosted

LIGER Cover
Black

PDS LUK
Cover

ITEM	DESCRIPTION	PRICE
1369_1	39.4" / 1M HS Cover Frosted	$11.80
1369_2	78.75" / 2M HS Cover Frosted	$23.60
1370_1	39.4" / 1M HS Cover Clear	$11.80
1370_2	78.75" / 2M HS Cover Clear	$23.60
17037_1	39.4" / 1M LIGER Cover Frosted	$13.70
17037_2	78.75" / 2M LIGER Cover Frosted	$27.40
17040_1	39.4" / 1M LIGER Cover Black	$20.50
17040_2	78.75" / 2M LIGER Cover Black	$41.00
17076_1	39.4" / 1M PDS LUK Cover	$20.20
17076_2	78.75" / 2M PDS LUK Cover	$40.40

BACK to TOP

CLICK IMAGE for LARGER VIEW

END CAPS / ACCESSORIES

42717

42716

42718

ZM-180
Connector

ZM-90
Connector

ZM-90-Pion
Connector

ITEM	DESCRIPTION	PRICE
48717	ZM-180 Connector	$10.30
48716	ZM-90 Connector	$10.30
41718	ZM-90-PION Connector	$10.30

BACK to TOP

ZM-90-Pion Connector

ZM-90-Pion
Connector
