Nora step lights create a safe path of light or warn of elevation change in residential and commercial applications. The completely recessed fixtures blend with any architectural design. The LED step lights are maintenance free and available with lensed and louvered faces rated for wet label applications. Nora steps lights offer solutions for pathway and stair safety lighting in patio, deck,
hospital, hotel, school, airport, and residential applications.
Nora Lighting
ARI DIE-CAST LED
STEP LIGHTS		 LED
BRICK STEP LIGHTS		 MIA DIE-CAST LED
MINI STEP LIGHTS		 MINI LED STEP LIGHTS
with OPTIONAL PHOTOCELL


ALL DIMENSIONS in INCHES
ARI STEP LIGHTS
INTERCHANGABLE
FACE PLATE		 VERTICLAL
FACE PLATE		 HORIZONTAL
FACE PLATE
CLICK to DOWNLOAD PDF SPECS: NULB-8 Specifications
CLICK IMAGE for LARGER VIEW

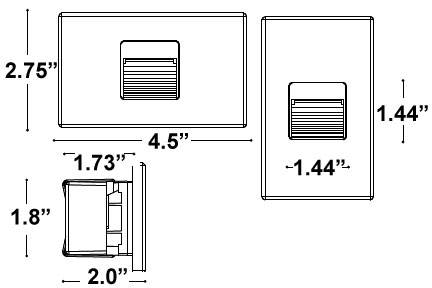

ARI LED Step Lights with interchangable face plate
Long lasting, energy efficient LED step lights provide illumination for safety around steps, balcony areas, or walkways. Efficient
LED light sources are low maintenance and savings over 80% in running costs when compared to 10W incandescent step lights
• 40 Lumen
• Power Consumption: 2.5 Watts
• Horizontal or Vertical Installation
• 3000K or 4000K
• Screwless Face Flate
• 90+ Color Rendering Index (CRI)
• Driver: 120V AC Integrated Non-Dimmable
• Construction: Die cast aluminum face plates mounted
to a heavy duty sealed polycarbonate
• cULus Listed for Wet Location
NSW-720W NSW-720BN NSW-720BZ
NSW-720W NSW-720BN NSW-720BZ
Horizontal / Vertical Mount
Shown in White		 Vertical Mount
Shown in Brushed Nickle		 Horizonal Mount
Shown in Bronze
Available in WHITE (W) / BRUSHED NICKLE (BN) or BRONZE (BZ) - 3000K or 4000K
ITEM COLOR TEMP FINISH PRICE
NSW-720/30W 3000K WHITE $41.50
NSW-720/40W 4000K $41.50
NSW-720/30BN 3000K BRUSHED NICKEL $41.50
NSW-720/40BN 4000K $41.50
NSW-720/30BZ 3000K BRONZE $41.50
NSW-720/40BZ 4000K $41.50
BACK to TOP

CLICK IMAGE for LARGER VIEW
ARI LED Step Lights with VERTCAL face plate
Long lasting, energy efficient LED step lights provide illumination for safety around steps, balcony areas, or walkways. Efficient
LED light sources are low maintenance and savings over 80% in running costs when compared to 10W incandescent step lights
• 30 Lumen
• Power Consumption: 2.5 Watts
• Vertical Installation
• 3000K or 4000K
• Screwless Face Flate
• 90+ Color Rendering Index (CRI)
• Driver: 120V AC Integrated Non-Dimmable
• Construction: Die cast aluminum face plates mounted
to a heavy duty sealed polycarbonate
• cULus Listed for Wet Location
NSW-730W NSW-730BN
NSW-730W NSW-730BN
Vertical Mount
Shown in White		 Vertical Mount
Shown in Brushed Nickle
Available in WHITE (W) or BRUSHED NICKLE (BN) - 3000K or 4000K
ITEM COLOR TEMP FINISH PRICE
NSW-730/30W 3000K WHITE $39.25
NSW-730/40W 4000K $39.25
NSW-730/30BN 3000K BRUSHED NICKEL $39.25
NSW-730/40BN 4000K $39.25
BACK to TOP

CLICK IMAGE for LARGER VIEW

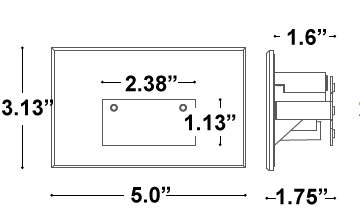

ARI LED Step Lights with HORIZONTAL face plate
Long lasting, energy efficient LED step lights provide illumination for safety around steps, balcony areas, or walkways. Efficient
LED light sources are low maintenance and savings over 80% in running costs when compared to 10W incandescent step lights
• 80 Lumen
• Power Consumption: 5.0 Watts
• Horizontal Installation
• 3000K or 4000K
• Screwless Face Flate
• 90+ Color Rendering Index (CRI)
• Driver: 120V AC Integrated Non-Dimmable
• Construction: Die cast aluminum face plates mounted
to a heavy duty sealed polycarbonate
• cULus Listed for Wet Location
NSW-740W NSW-740BN
NSW-740W NSW-740BN
Vertical Mount
Shown in White		 Vertical Mount
Shown in Brushed Nickle
Available in WHITE (W) or BRUSHED NICKLE (BN) - 3000K or 4000K
ITEM COLOR TEMP FINISH PRICE
NSW-740/30W 3000K WHITE $39.25
NSW-740/40W 4000K $39.25
NSW-740/30BN 3000K BRUSHED NICKEL $39.25
NSW-740/40BN 4000K $39.25
BACK to TOP

CLICK IMAGE for LARGER VIEW
LED Brick Step Lights
Nora’s new LED Brick Step Light can be used indoors or outdoors to efficiently illuminate a change in elevation, provide a path of light, light a staircase or act as a safety night light. The architectural louverd and shroud diecast aluminum face plate creates a beautiful non-glare source of LED light to guide the way.
• 24 LEDs for even illumination
• Power Consumption: 4 Watts
• Life Expectancy: 50,000 Hours
• LED Source: 24 LEDs offer a total load of 4W
• Beam Angle: 110°
• Driver: 120V AC Integrated Non-Dimmable
• Construction: Die cast aluminum face plates mounted
to a heavy duty sealed polycarbonate
• cULus Listed and IP65 Rated for Wet Location
NSW-851/32 NSW-852/32 NSW-853/32 NSW-800
NSW-851/32 NSW-852/32 NSW-853/32 NSW-800
Louver
Shown in White		 Lensed
Shown in Brushed Nickle		 Shroud
Shown in Bronze		 LED Brick Step Light HOUSING
Required for Installation
Available in WHITE (W) / BRUSHED NICKLE (BN) or BRONZE (BZ) Housing Dimensions
8 1/2 x 3 x 3 1/8
$114.00 / $114.00 $114.00 / $114.00 $125.00 / $125.00 $42.50
BACK to TOP

CLICK IMAGE for LARGER VIEW
Mia Die-Cast LED Mini Step Lights
Nora's New Mia LED Step Lights with Die-Cast face plates use the latest in technology in solid state lighting. The step lights include an integrated driver and twelve LEDs offer a total load of 3W. Mia Step Lights are available with louvered, lensed, or shroud face plates and can be easily installed in a standard single gang switch box.
• Color Temperature: 3000K
• Power Consumption: 3 Watts
• Life Expectancy: 50,000 Hours
• LED Source: Twelve LEDs offer a total load of 3W
• Beam Angle: 110°
• Driver: 120V AC Integrated Non-Dimmable
• Construction: Die cast aluminum face plates mounted
to a heavy duty sealed polycarbonate
• cULus Listed for Wet Location
NSW-671/30 NSW-672/30 NSW-673/30 NSW-674/30 NSW-675/30
NSW-671W/30
NSW-671BN/30
NSW-671BZ/30
NSW-672W/30
NSW-672BN/30
NSW-672BZ/30
NSW-673W/30
NSW-673BN/30
NSW-673BZ/30
NSW-674W/30
NSW-641BN/30
NSW-674BZ/30
NSW-675W/30
NSW-675BN/30
NSW-675BZ/30
Horizontal Louver Lensed Horizontal Shroud Vertical Louver Vertical Shroud
Available in WHITE (W) / BRUSHED NICKLE (BN) or BRONZE (BZ)
$101.00 / $101.00 $101.00 / $101.00 $101.00 / $101.00 $101.00 / $101.00 $101.00 / $101.00
BACK to TOP

CLICK IMAGE for LARGER VIEW
Mini LED Step Lights with Optional Photocell
Nora's Mini LED Step Lights use the latest technology in solid state lighting. The energy saving photocell option allows the step light
to turn on in the dark and off in the morning or at presence of light. Mini Step Lights are available with louvered or lensed face and can
be easily installed in a standard single gang switch box. Louvered unit includes both a horizontal and vertical louver.
• Color Temperature: 3000K dimeNSWons
• Power Consumption: 1.44 Watts / 1.08 Watts with Photocell
• Life Expectancy: 30,000 Hours
• LED Source: Twelve LEDs offer a total load of 1.44W / Nine LEDs offer a total load of 1.08W
• Beam Angle: 110?
• Driver: 120V AC Integrated Non-Dimmable
• Optional Photocell: Photocell sensor comes pre-installed in step light's face. The energy saving dusk to dawn feature turns the LEDs on in the dark and off in the morning or the presence of light.
• cULus Listed for Damp Location
NSW-661 NSW-661PC NSW-662 NSW-662PC
NSW-661 NSW-661PC NSW-662 NSW-662PC
Louver Shown Vertical Louver Shown Horizontal
with Photocell		 Lensed Lensed
with Photocell
Included Vertical and Horizontal Louvers Mounts Horizontal or Vertical
Available in WHITE (W) / BRUSHED NICKLE (BN) / PRIMER (Ready to Paint)-(P)
Without Photocell
$24.50 / $24.50 /
$25.50		   $24.50 / $24.50 /
$25.50
With Optional Photocell Installed
  $39.50 / $39.50 /
$41.50		   $39.50 / $39.50 /
$41.50
BACK to TOP
