NSL Xenon Brick Lights come in 3 Styles and 4 Finishes. They Provide Safety and Security. Xenon Bulbs Burn Cool and Bright plus have a 10,000 Hour Average Life.
NSL - National Specialty Lighting

Available in

LED Configuration


Click for
on Exterior Lighting
XENON BRICK LIGHTS are Being PHASED OUT. Contact Us for Availability.

Xenon Brick Lights are Ideal for Interior and Exterior Steps, Aisles, Halls, Paths, Patios, Entries, Ceilings and Showers. Xenon Brick Lights are Designed to Fit a Standard Brick Void. Our new Concrete Cap make Concrete pours a snap.
XENON BRICK LIGHTS CONCRETE CAP DIMENSIONS and EXTRA INFORMATION PHOTOMETRICS
Click Button for Xenon Brick Lighting PDF Instructions Xenon Brick Lighting Instructions

ALL DIMENSIONS in INCHES

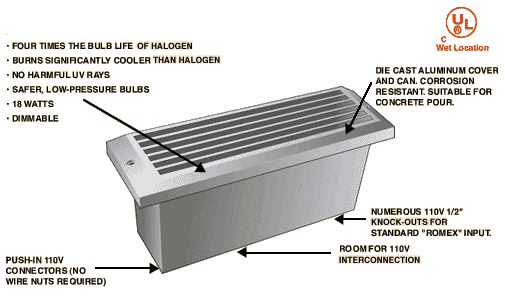

Xenon BRICK Lights
• Die Cast Aluminum Can and Cover; Suitable for Concrete Pour • 110V Input - Integral 12V Class II Electronic Transformer
• UL Listed for Wet and Insulation Contact Locations • Frosted Glass Lens
* Can be Daisy Chained up to 1188 Watts - 66 Bulbs • 18W Wedge based Xenon 10,000 Hour Bulb Included
XBL-L XBL-P XBL-S XBL-L-SS
Louver Prism Scoop Stainless Steel Louver
Stainless Steel Louver Cover and Specially Coated Housing Recommended for Use in Corrosive Environments such as Salt Air, Adjacent Bodies of Water or Installed in Caustic Materials such as Limestone.
All Available in Aluminum, Black, Bronze or White
$62.00 $62.00 $62.00 $125.00
XBL-L-AL
XBL-L-BK
XBL-L-BZ
XBL-L-WH
XBL-P-AL
XBL-P-BK
XBL-P-BZ
XBL-P-WH
XBL-S-AL
XBL-S-BK
XBL-S-BZ
XBL-S-WH
XBL-L-SS
BACK to TOP

CONCRETE CAP
BL-CC

Concrete Cap for Brick Light

Concrete Cap for Brick Light
Shown with Housing 		Makes Concrete Pour a Snap!
$6.50
BACK to TOP

EXTRA INFORMATION
DIMENSIONS
COVER (L x W x D)
Louver 9 x 3 x .75
Prism 9 x 3 x .75
Scoop 9 x 3 x 1.5
Can (L x W x D)
Can 7.7 x 2.4 x 3.2
Hole 7.7 x 2.4 x 3.2
Replacement Bulb - $3.00
BACK to TOP

PHOTOMETRICS
Click for: Lighting Levels - Guidelines and Definitions associated with this table.
Xenon Brick Light
FLOOR PHOTOMETRICS - H = 9 "
GRID LOCATION: A A1 A2 B B1 B2 C C1 C2 D D1 D2
ILLUMINANCE IN FOOTCANDLES: 0 0 0 4.5 1.8 0.4 1.9 1.3 0.5 0.8 0.6 0.4
