Klus Design
Jaz
Ability to obtain a line of light

Ability to create a line of light Large area of illumination (angle of illumination 180 degrees)

Small surface of the visible aluminum structure
Application

- for the construction of hanging lighting fixtures with a circular cross-section

- for the construction of hanging lighting lines
Assembly

- with various suspension systems compatible with the PUSZ system or the UCHO ZM hanger.

Additional information

- simple, solid construction
- for low voltage power supply
JAZ is designed mainly for suspended lighting fixtures. The cross-section of the fixture made of JAZ and a cover fixed to it is round. The area of the cover in this cross-section is mostly larger than the area of the aluminum. The lighting fixture made of the JAZ profile is supposed to illuminate with a large area of the cover.
Proportionally to the entire fixture, with the smallest possible overall size, the aluminum element can hold two
LED strips 10 mm (0.39") wide. It has cover fasteners and a small lock, which enables the following elements of the Klu? system to be inserted into it: fasteners, ZM connectors, ZM eyes, ZM eye locks.
Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

JAZ
EXTRUSIONS
COVERS /
LENSES
END CAPS /
ACCESSORIES
KLUS Extrusions KLUS Accessories KLUS Fixtures KLUS Tape Light
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

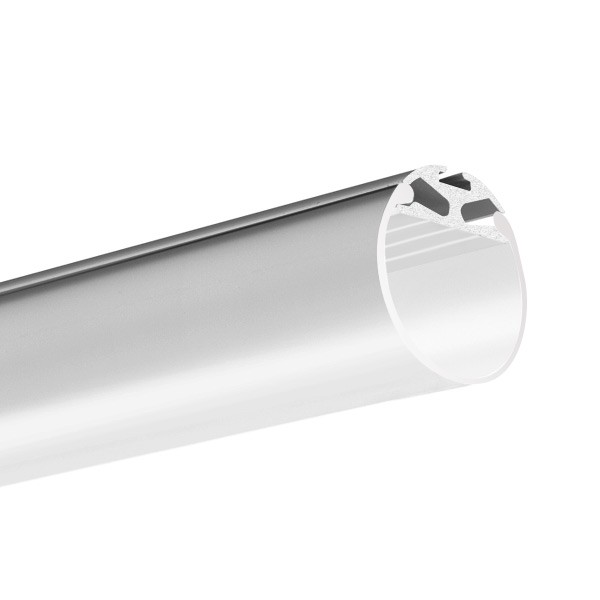

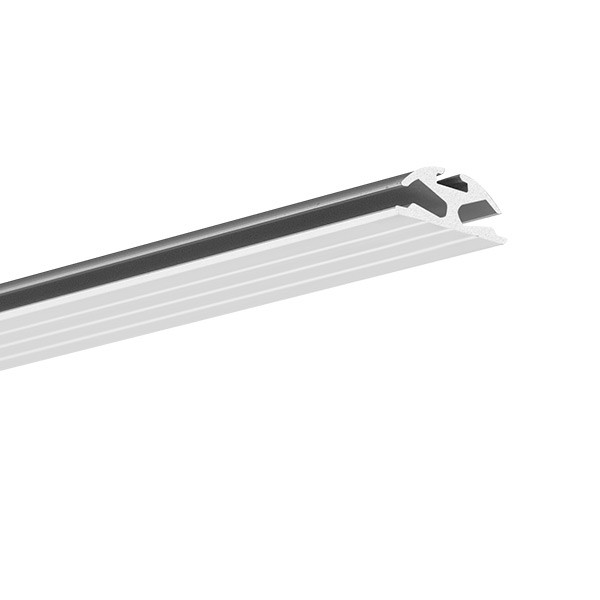

JAZ Extrusion
B8547ANODA_1  B8547ANODA_2  B8547ANODA_1  B8547ANODA_2  B8547ANODA_1  B8547ANODA_2  B8547ANODA_1  B8547ANODA_2
ITEM DESCRIPTION PRICE
B8547ANODA_1 39.4" / 1M Silver Anodized Extrusion $16.30
B8547ANODA_2 79.75" / 2M Silver Anodized Extrusion $32.60
Download for Full Specifications, Dimensions and Instructions
CLICK for PDF: JAZ Specifications JAZ How To

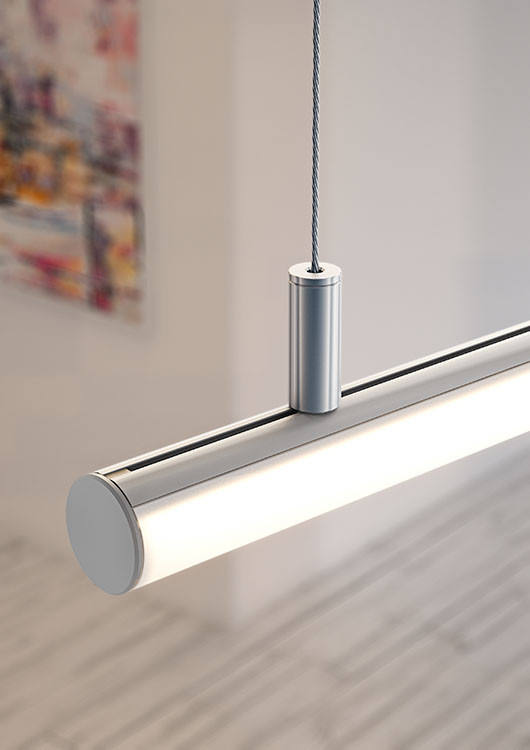

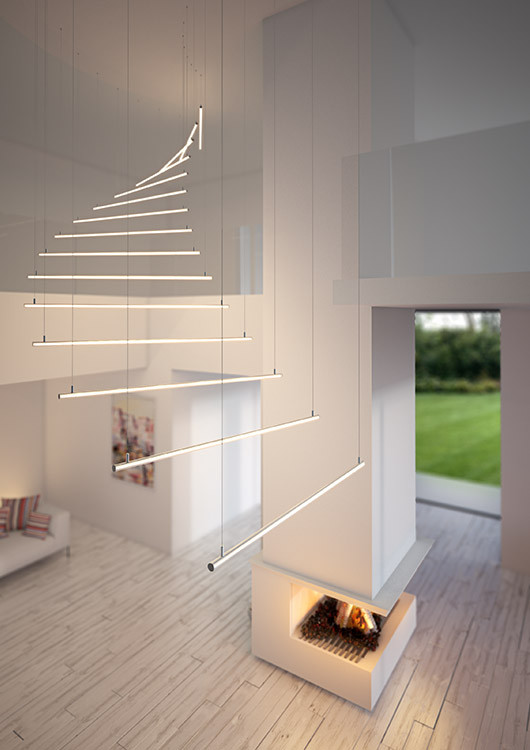

EXAMPLE EXAMPLE
Jaz Jaz
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
17162V1
17162V1
JAZ Cover - Frosted
ITEM DESCRIPTION PRICE
17162V1_1 39.4" / 1M JAZ Cover - Frosted $27.60
17162V1_2 78.75" / 2M JAZ Cover - Frosted $55.20
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24224V1 24224 42627 42717 42719 42718
24224V1 24224 42627 42717 42719 42718

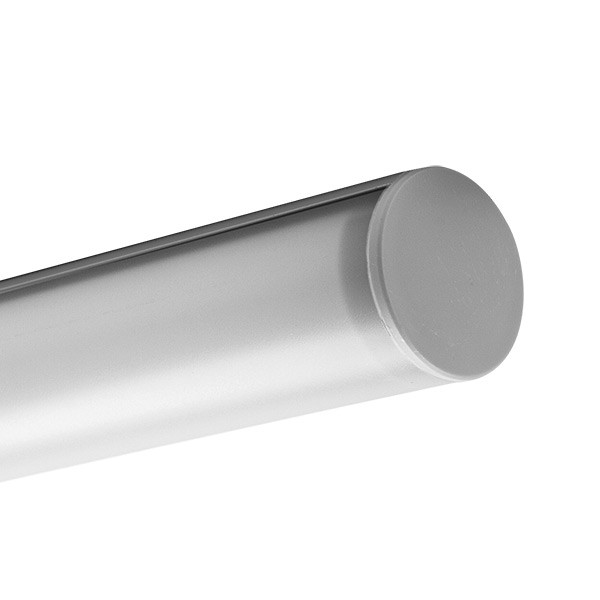

JAZ
End Cap
JAZ
End Cap

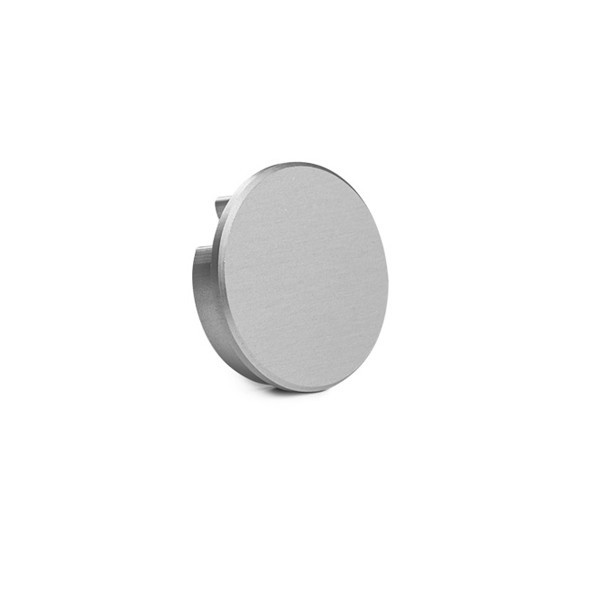

JAZ-HQ
End Cap SET
ZM-180
Connector
ZM-PION 135
Connector
ZM-PION 90
Connector
ITEM DESCRIPTION PRICE
24224V1 JAZ End Cap $4.70
24224 JAZ End Cap $4.70
42627 JAZ-HQ End CapSet
Premium product / Highest quality of workmanship / Elegant finish /
No light penetration / Secure mounting
$78.00
42717 ZM-180 Connector $9.20
42719 ZM-PION 135 Connector $9.80
42718 ZM-PION -90 Connector $9.20

  00293 00651 42728 52512 42720
42716 00293 00651 42728 42512 42720
  GP
Spring
DP-ZZ
Fastener
ZM 120
Connector
ZD UCHO
Hanger
ZM-135
Connector
ITEM DESCRIPTION PRICE
42716 ZM-90 Connector $9.20
00293 GP Spring $4.10
00651 DP-ZZ Fastener $17.90
42728 ZM-PION 135 Connector $10.30
42513 ZD UCHO Hanger $4.90
42720 ZM-135 Connector $9.80

42215 42213 42250 42256 00802L 42520
42215 42213 42250 42256 00802 42520
BZP-ZZ
Head Conductive
BZP
Head
PUSZ-LIN-ZM
Fastener

PUSZ-PRET-ZM
Fastener

8,8x1,2 Gland ZM
Block
ITEM DESCRIPTION PRICE
42215 BZP-ZZ Head Conductive $11.60
42213 BZP-ZZ Head $10.30
42250 PUSZ-LIN-ZM Fastener $27.10
42256 PUSZ-PRET-ZM Fastener $29.30
00802L 8,8x1,2 Gland $1.35
42520 ZD Block $18.00
