Klus Aluminum Extrusions
Originally founded in 1977 in Warsaw Poland, Klus has become a leading designer of LED extrusions throughout Europe and has now expanded to open a parent company to support the ever changing market of LED lighting in the United States.

Aluminum Extrusion is a process used to create objects of a fixed cross-sectional Profiles. Anodized Aluminum increases corrosion resistance and allows for dyeing, improved lubrication, or improved adhesion. The anodized layer is non-conductive.
Klus Design
KLUS Extrusions KLUS Accessories KLUS Fixtures KLUS Tape Light
ACCESSORIES Page 1 (This Page)
CONDUCTIVE MOUNTING, HEADS, FASTENERS MOUNTING BRACKETS, CONNECTORS ELECTRICAL COMPONENTS, SWITCHES, WATERPROOF
ACCESSORIES Page 2
COVERS END CAPS

CLICK IMAGE for LARGER VIEW

FASTENERS AND MOUNTING ACCESSORIES - FASTER SETS
42614 42303 42301 42302
42614 42303 42301 42302
TESPO Fastener M3 Mounting Set M4 Mounting Set M5 Mounting Set

Fastener used for mounting  TESPO extrusion. It also serves to carry current of 12V and 24V. Length of the steel rod: 500mm - 19.66" Surface type: drywall

Fastening element with ST head (standard) for the primary group extrusions, arm length – 15 mm. For extrusions: PDS 4-ALU, PDS-O, MICRO-ALU, REGULOR ZWK. Surface type: drywall

Fastening element with ST head (standard) for the primary group extrusions, arm length – 15 mm. For extrusions: PDS 4-ALU, PDS-O, MICRO-ALU, REGULOR ZWK. Surface type: wall, stone, concrete

Fastening element with ST head (standard) for the primary group extrusions, arm length – 15 mm.For extrusions: PDS 4-ALU, PDS-O, MICRO-ALU, REGULOR ZWK. Surface typewall, stone, concrete

$58.00 $39.70 $20.90 $33.10
CLICK for PDF: Standard Mounting System Brochure Klus Accesoories
BACK to TOP

CLICK IMAGE for LARGER VIEW
FASTENERS AND MOUNTING ACCESSORIES - HEADS / ARMS

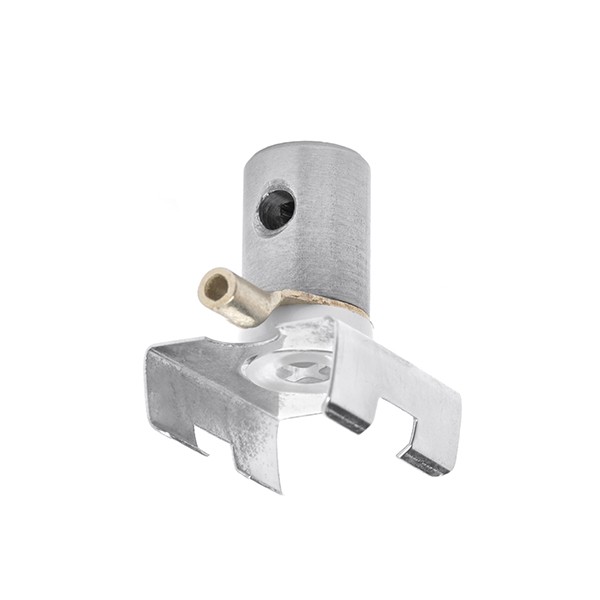

42218 42212 42210 42216 42215 42213 42101
42218 42212 42210 42216 42215 42213 42101
ZZ 45-ZZ 45-ST ST SZP-ZZ SZP-Head KO-AB

Conductive 12 V or 24 V head with a mounting bracket. For extrusions: PDS 4-ALU, PDS-O, MICRO-ALU, REGULOR ZWK, TAMI. Use with 42101 K0-AB smooth arm

Conductive 12 V or 24 V head with a mounting bracket. For extrusions: 45-ALU, TAN-CS. Use with 42101 K0-AB smooth arm

Standard head with mounting bracket. For extrusions:45-ALU. Use with 42101 K0-AB smooth arm

Standard head with mounting bracket. For extrusions: PDS 4-ALU, PDS-O, MICRO-ALU, REGULOR ZWK, TAMI etc. Use with 42101 K0-AB smooth arm

Conductive 12 V or 24 V head mounts directly For extrusions: KLUS Extrusions. Use with 42101 K0-AB smooth arm

Standard head mounts directly For extrusions: KLUS Extrusions. Use with 42101 K0-AB smooth arm

6" smooth arm for assembly in longitudinal or transverse fasteners  or for own processing. Available max length: 35" (900mm)

$13.00 $13.00 $11.20 $11.20 $11.20 $9.95 $8.70 for 6"
CLICK for PDF: Standard Mounting System Brochure Klus Accesoories
BACK to TOP

CLICK IMAGE for LARGER VIEW
FASTENERS AND MOUNTING ACCESSORIE
FASTENER TYPES FOR MOUNTING SYSTEM HANGING BRACKETS
42108 42107 42103 42512 42513 42251 42257
42108 42107 42103 42512 42513 42251 42257
C6 Fastener C5 Fastener C1 Fastener ZM Ucho Hanger Set ZD Ucho Hanger Set ZD Pret Pusz
Fastener
ZD Lin Pusz
Fastener

Fastener with the option of assembly and disassembly of the arm in a longitudinal configuration. With an aesthetic masking of the fitting place. Surface type: drywall

Fastener with the option of assembly and disassembly of the arm in a longitudinal configuration. With an aesthetic masking of the fitting place. Surface type: wall, stone, concrete

Fastener with with a screw anchor Possible use of M3 Masking cover. Surface type: wall, stone, concrete

ZM eye hanger consists of two identical elements. Place both elements in the lock, and then slide them together so that they overlap. For LIPOD, GIZA, GIP, PDS ZM and SEPOD Extrusions

ZD eye hanger consists of two identical elements. Place both elements in the lock, and then slide them together so that they overlap. For TRIADA and DES KPL exreusions

Element dedicated for KLUS fixtures equipped with a ‘big lock’. It serves simultaneously as a power connector and a fastener. It carries the load from the light fixture suspended with the use of the rod. For TRIADA and DES KPL exreusions

Component is dedicated for KLUS fixtures with a large groove. It carries the load from a light  fixture to a wire. For TRIADA and DES KPL exreusions
$24.95 $16.50 $3.00 $4.75 $4.75 $26.25 27.50
CLICK for PDF: Standard Mounting System Brochure Klus Accesoories
BACK to TOP

CLICK IMAGE for LARGER VIEW
FASTENERS AND MOUNTING ACCESSORIES - DP FASTENERS

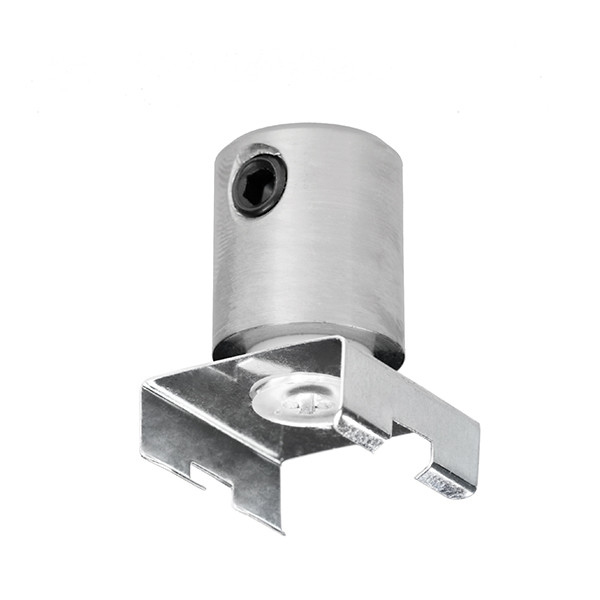

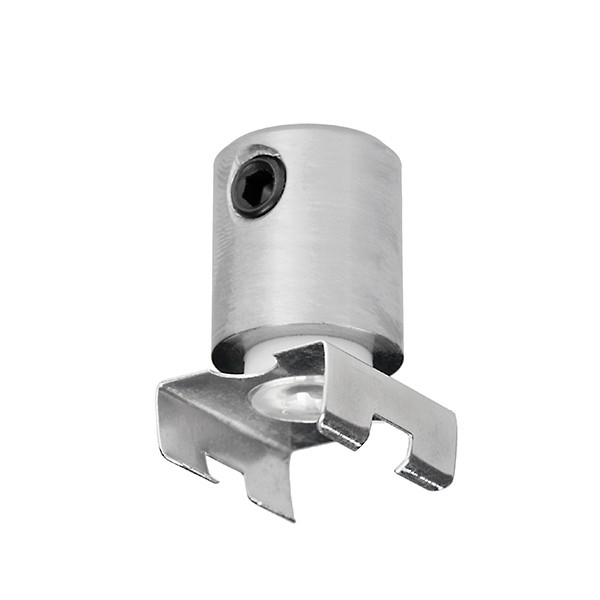

00647 00652 00645 00655 00654 00651
00647 00652 00645 00655 00654 00651
DP-MOC-ZZ DP-45-MOC DP-MOC DP-ZZ-PDS-O DP-45-MOC-ZZ DP-ZZ

Electricity conductive ZZ fasteners are designed for the suspension and support of extrusions and also provide power  to the LED strip. Fasteners are mounted to the extrusion with a mounting bracket. External electricity conductive fasteners are used for the transfer of 12 and 24 V power. For the extrusions: PDS 4-ALU, MICRO-ALU, GIP, REGULOR ZWK.

Fasteners are used for the suspension and support of the fixtures, especially the long ones, in order to rid of uneven suspension obstacles. Fasteners are mounted to the extrusion with a mounting bracket. For: 45-ALU

Fasteners are used for the suspension and support of the fixtures, especially the long ones, in order to rid of uneven suspension obstacles. Fasteners are mounted to the extrusion with a mounting bracket. For the extrusions: PDS 4-ALU, MICRO-ALU, GIP, REGULOR ZWK.

Electricity conductive ZZ fasteners are designed for the suspension and support of extrusions and also provide power  to the LED strip. Fasteners are mounted to the extrusion with a mounting bracket. External electricity conductive fasteners are used for the transfer of 12 and 24 V power.
For: PDS-O.

Electricity conductive ZZ fasteners are designed for the suspension and support of extrusions and also provide power  to the LED strip. Fasteners are mounted to the extrusion with a mounting bracket. External electricity conductive fasteners are used for the transfer of 12 and 24 V power.
For: 45-ALU.

Electricity conductive ZZ fasteners are designed for the suspension and support of extrusions and also provide power  to the LED strip. Fasteners are mounted to the extrusion with a mounting bracket. External electricity conductive fasteners are used for the transfer of 12 and 24 V power.
For the extrusions:
PDS 4-ALU, MICRO-ALU, GIP, REGULOR ZWK, TRIADA

$19.30 $17.95 $17.90 $18.75 $19.25 $17.40
CLICK for PDF: Standard Mounting System Brochure Klus Accesoories
BACK to TOP

CLICK IMAGE for LARGER VIEW
FASTENERS AND MOUNTING ACCESSORIES - FASTENERS AND MOUNTING Springs
42552 00643 1559 1524 00293 00838 00844
42552 00643 1559 1524 00293 00838 00844
        GP Surface Spring KMA Spring
for Grooves
KDU Spring
for Grooves

Longitudinal conductive fastener for drywall. It has the power connect on the front side of the ceiling.

The fastener for Box Profiles is an element that allows to hang Klus fixtures to the Box with the possibility to supply electricity 12 and 24V. To hang the fixture you can either use rods or wires. The fastener also allows to adjust the height of the fixture.

Longitudinal Fastener for drywall ceiling.  It has the power connected on the back side of the ceiling.

Longitudinal Fastener for countertops. For use with PDS-O contertop lamp.

Surface spring mounts extrusion-fixtures designed for surface mounting (not embedded in the so - called slot.) The minimum required thickness of the surface, i.e. mounting surface is 10 mm (0.39"). For the extrusions: GIP, GIXA, LIPOD.

Springs for grooves – used for mounting recessed extrusions. For the extrusions: LARKO, LESTO

Springs for grooves – used for mounting recessed extrusions. For the extrusion: TRIADA-K

$31.80 $21.25 $24.75 $22.45 $3.95 $7.60 $7.60
CLICK for PDF: Standard Mounting System Brochure Klus Accesoories
BACK to TOP

CLICK IMAGE for LARGER VIEW
FASTENERS AND MOUNTING ACCESSORIES - Mounting Brackets
24014 24111 24155 24154 24112 24143
24014 24111 24155 24154 24112 24143
POR
Mounting Insert
PORPLUS
Mounting Insert
REGIP
Mounting Bracket
REG-PD Adjustable
Mounting Bracket
POLI
Mounting Bracket
GIP
Mounting Bracket

POR mounting insert is applied to install POR fixtures in handrails, mezzanines, balconies, etc. made of stainless steel or other metal. It is placed inside the railing. When mounted, it is completely invisible. POR Insert  is dedicated for the rail that has an inner diameter of 1 1/2" POR mounting insert fits into pipe of the following diameter:  Ø ext. 42 mm, wall thickness 2 mm

PORPLUS mounting insert is applied to install POR fixture in handrails of stairs, mezzanines, balconies, etc. made of stainless steel or other metal. It is placed inside the railing When mounted, it is completely invisible. PORPLUS insert can be used in rails that range in inner diameter from 1 5/8" - 1 3/4

REGIP Mounting bracket allows end user to regulatate beam angle of the mounted fixture. It can be mounted to a surface with the use of mounting screws. After installation, mounting screws are hidden behind  a removable cover. The adjustable moutning bracket is dedicated for fixtures assemled with the use of architectural extrusions: GIP, GIZA, LIPOD.

REG-PD adjustable mounting bracket allows end user to regulate  beam angles of mounted fixtures. It can be mounted to a surface with the use of mounting screws. After installation, mounting screws are hidden behind a  removable cover. The adjustable bracket is dedicated for fixtures assembled with use of universal extrusions: MICRO - ALU and PDS4 - ALU.

POLI mounting brackets are made of polystyrene which allows them to be glued to different surfaces with the use of majority of assembly adhesives available on the market. They can also be painted,. The control of the light beam angle can be performed within a range of 90 degrees.

GIP mounting bracket is designated for mounting architectural extrusions (GIP, GIZA, LIPOD). Made of plastic, the bracket is attached to the surface with the use of appropriate screws. Mounting of the extrusion itself is done by snapping  it into the bracket. Removing extrusion from the mounting bracket can be done for example by levering the extrusion with a flat-blade screwdriver.

$4.85 $4.85 $11.95 $11.30 $5.30 $4.70

FASTENERS AND MOUNTING ACCESSORIES - Mounting Brackets

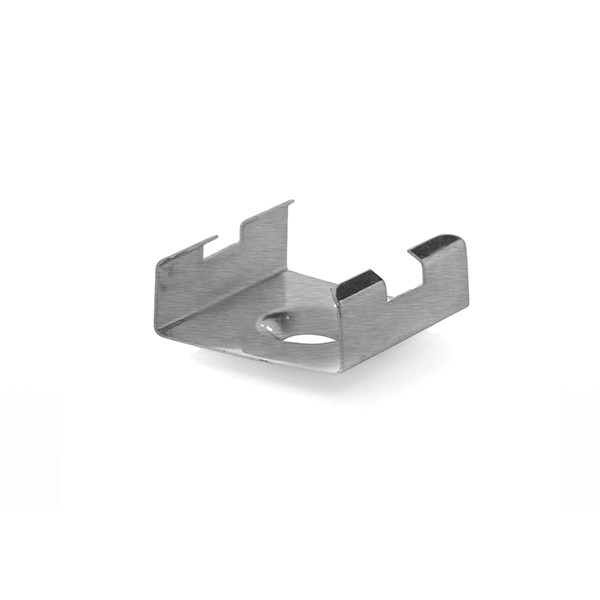

24041 24144 1455 24190 1345
24041 24144 1455 24190 1345
PL-PDM
Mounting Bracket
Zinc
Mounting Bracket
Chrome Matte
Mounting Bracket
Zinc
Mounting Bracket
Chrome Matte
Mounting Bracket

Small size, easy fitting, secure and stable mounting to different types of surfaces. Clipping and unclipping of the Profiles is possible without the use of tools. KLUS heads and fasteners can be configured with PL-PDM mounting brackets. For Use with: MICRO-ALU, PDS4-ALU, PDS-O, REGULOR ZWK. TAMI.

To mount Profiless to desired surfaces. To connect Profiless into one  integrated fixture that creates straight line of light of any desired length. For extrusions: TAN-CS, 45-ALU.
To mount Profiless to desired surfaces. To connect Profiless into one  integrated fixture that creates straight line of light of any desired length. For extrusions: TAN-CS, 45-ALU.
To mount Profiless to desired surfaces. To connect Profiless into one  integrated fixture that creates straight line of light of any desired length. For extrusions: MICRO-ALU, PDS4-ALU, PDS-O, REGULOR ZWK. TAMI.
To mount Profiless to desired surfaces. To connect Profiless into one  integrated fixture that creates straight line of light of any desired length. For extrusions: MICRO-ALU, PDS4-ALU, PDS-O, REGULOR ZWK. TAMI.
$2.50 $3.70 $4.70 $2.90 $4.70
CLICK for PDF: Standard Mounting System Brochure Klus Accesoories
BACK to TOP

CLICK IMAGE for LARGER VIEW
FASTENERS AND MOUNTING ACCESSORIES - ADDITIONAL ITEMS
1512 42161 42502 24003 42501 1528
1512 42161 42502 24003 42501 1528
M6
Pressure Screw
Masking Cover 78.75"
Brass Rod
TEKNIK $ TEKUS
Clip
39.4"
Brass Rod
Bent Rod
Stainless Steel

M6 pressure screw – a pressure screw for the longitudinal and transverse fasteners.

49 Masking cover – an element for the aesthetic finishing of the fitting place.

Brass rod, chrome matte, 3mm, threaded on both ends, dedicated for suspended MULTI fixture.

a plastic element which fits into a SMALL FASTENER inside KLUS extrusions. It is designed for ‘snap in’ mounting.

Brass rod, chrome matte, 3mm, threaded on both ends, dedicated for suspended MULTI fixture.

For use with PDS-O contertop lamp.

$0.70 $6.95 $33.10 $1.20 $20.60 $4.35
CLICK for PDF: Standard Mounting System Brochure Klus Accesoories
BACK to TOP

CLICK IMAGE for LARGER VIEW
COMPONENTS FOR BUILDING FIXTURES - CoNnector BRACKETS, WALL CEILING, BASE
42716 42718 42717 00067 00144
42716 42718 42717 00067 00144
ZM-90
Connector
ZM-PION
Connector
ZM-180
Connector
Sconce Bottom
Fastener
PATYK 26 Veneer
Round Base
FOR BUILDING LINEAR FIXTURES COMBINED IN MULTI ANGLE SETUPS. FOR BUILDING LED LIGHTING ARRANGED IN LONG RUNS.Designed for extrusions equipped with a small groove: LIPOD, LOKOM, LESTO, LARKO, GIZA, GIP, OPAC, KOZEL, SEKODU, SEPOD. Fittings are attached to extrusions by sliding them into the grooves and expanding with moderate force using M3 set screws (included).
FOR BUILDING LED LIGHT FIXTURES ARRANGED IN LONG RUNS. Designed for extrusions equipped with a small groove: LIPOD, LOKOM, LESTO, LARKO, GIZA, GIP, OPAC, KOZEL, SEKODU, SEPOD. Fittings are attached to extrusions by sliding them into the grooves and expanding with moderate force using M3 set screws (included).
FOR BUILDING LED LIGHT FIXTURES ARRANGED IN LONG RUNS. Designed for extrusions equipped with a small groove: LIPOD, LOKOM, LESTO, LARKO, GIZA, GIP, OPAC, KOZEL, SEKODU, SEPOD. Fittings are attached to extrusions by sliding them into the grooves and expanding with moderate force using M3 set screws (included).

Klus Sconce

Lamp Base with Power Supply.

$8.95 $8.95 $8.95 $49.5 $CALL$
CLICK for PDF: Standard Mounting System Brochure Klus Accesoories
BACK to TOP

CLICK IMAGE for LARGER VIEW
COMPONENTS FOR BUILDING FIXTURES - CONDUCTIVE END CAPS, ISOLATING ELEMENTS, SUSPENSION WIRE
42601 1391 1435 42205 42204 42203 1397
42601 1391 1435 42205 42204 42203 1397
For
MICRO-ALU
For
PDS4-ALU
For
PDS-O
3mm
Isolating Bases
5mm
Isolating Bases
63mm
Isolating Bases
Stainless Steel
Suspension Wire

Electricity conductive connector between the power source and diodes placed in the fixture. Enables mounting of fixtures with the use of  wires. Aesthetic finishing of the Profiles.

A set designed for the isolation of the ø 3mm fastener from the metal or glass fitting place.



$14.90 $14.90 $14.90 $2.20 $2.20 $2.20 $2.25 per FT
CLICK for PDF: Standard Mounting System Brochure Klus Accesoories
BACK to TOP

CLICK IMAGE for LARGER VIEW
COMPONENTS FOR BUILDING FIXTURES - SWITCHES
1491 1576 62047 00235 00234
1491 1576 62047 00235 00234
Micro Switch
wit Cable
Micro Switch Dimmer Switch Prosimity Switch
wit Cable
Prosimity Switch

Designed to be used in KLUS LED 12 / 24 V Linear fixtures. It is dedicated for switching LED lights on/off with the use of an “on” and “off” button.. The bottom of the Micro switch is equipped with tape that allows secure mounting of the switch and additionally cools down the switch when mounted into an extrusion.

Dimmer Switch  - dimmer for controlling monochrome LED strips with a rated voltage of 12V. It was designed to work together with a LED strip in linear fixtures made of aluminum extrusions and  plastic covers.

Lamp Base with Power SupplyThe Proximity Switch (motion sensor) is designed to be used in KLUS LED 12 / 24 V Linear fixtures. It is dedicated for switching LED lights “on” and “off” without the need of touching the switch. The bottom of the Proximity switch is equipped with tape that allows secure mounting of the switch and additionally cools down the switch when mounted into an extrusion.

$35.00 $31.65 $46.70 $49.80 $46.50
CLICK for PDF: Standard Mounting System Brochure Klus Accesoories
BACK to TOP

CLICK IMAGE for LARGER VIEW
COMPONENTS FOR BUILDING FIXTURES - MISCELANEOUS
00035 00036/1M 00036/2M 00023
00035 00036/1M 00036/2M 00023
MICRO SWITCH BASE
1.3"L x 0.44"W x 0.2"H
MICRO SWITCH BASE
39.4"L x 0.44"W x 0.2"H
MICRO SWITCH BASE
78.75 "L x 0.44"W x 0.2"H

Tool for mounting anti-slip rubber strip to STEP Extrusion

$2.00 $6.50 $13.00 $CALL$
BACK to TOP

CLICK IMAGE for LARGER VIEW
COMPONENTS FOR BUILDING FIXTURES - WATERPROOF
00802L 00802 00141 00078 42703 42702
00802L 00802 00141 00078 42703 42702
Plastic Gland
Gland O-Ring PG9 M16 HR-LINE Gland Waterpoof Splitter Waterpoof Coupler

Gland for the construction of LOC-30 fixtures and for leading the cable out of extrusions with a wall thicker than 1.5mm/ 0.06" (e.g. side of PDS4-ALU extrusion)

Gland for the construction of LOC-30 fixtures and for leading the cable out of extrusions with a wall thicker than 1.5mm/ 0.06" (e.g. side of PDS4-ALU extrusion)



Gland for the construction of HR-LINE fixtures. Suitable for an insulated cable with 4.5 mm - 10 mm circular cross section. For well-sealed connection with a Profiles, use 13 mm / 1,5 mm O-ring (REF. 00141). Use a standard 19 wrench to tighten the gland.

Waterproof Splitter - connects three cables to allow for their branching Waterproof Coupler – connects two cables. It allows for making power connections, e.g. supplying power to light fixtures. Waterproof  Splitters and Waterproof Couplers are designed for two-wire cables with insulation of circular cross section of outer diameters from 4 mm to 10 mm.

$1.25 $1.25 $1.45 $5.85 $23.90 $13.70
BACK to TOP

Thank You for visiting ILLUMENATE.COM
ILLUMENATE and NORTH COAST LIGHTING OUTLET are Registered Trademarks of Dynamic Lighting Sales Incorporated
Copyright © 1998 - 2018 Dynamic Lighting Sales Incorporated dba/ North Coast Lighting Outlet. All rights reserved
