Klus Design
JAZ-DUO
Impressive lighting of large rooms with high ceilings.

Impressive lighting of large rooms with high ceilings.

Possibility to mount vertically, horizontally or diagonally.
Can be used with up to 0.55" / 14mm wide LED strips.
Extended range of additional accessories.
Application

- For decorating large rooms with high ceilings, e.g. interiors of public facilities (stations, shopping malls,
theatres, libraries, staircases, etc.).

- For spatial light installations.
- For the construction of linear lighting fixtures which illuminate at a wide light angle.
Assembly

- On cables and conductive rods, through end caps.

Additional information

For lighting fixtures with increased power consumption and long suspension, it is recommended to use a
conductive end cap with a hole through which a wire with a suitable gauge wire can be run.

Due to the thermal expansion of the cover, the aluminum extrusion should be shortened by 0,39" / 10 to 0,47" / 12 mm with respect to the cover. For fixtures above 39,4" / 1m in length, it is recommended to shorten the rofile precisely by 0,39" / 10mm
End caps firmly mounted with the use of bolts with decorative heads.
Low voltage power.
Durable structure.
Very little aluminium visible.
Large lighting surface.

JAZ-DUO
EXTRUSIONS
COVERS /
LENSES
END CAPS /
ACCESSORIES
KLUS Extrusions KLUS Accessories KLUS Fixtures KLUS Tape Light
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

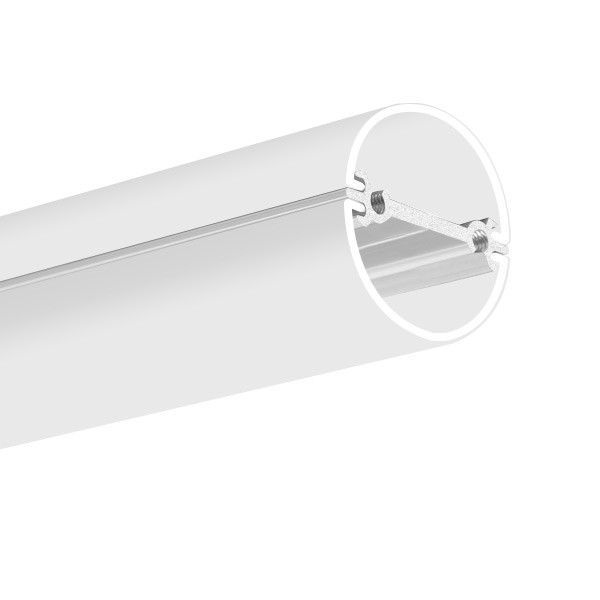

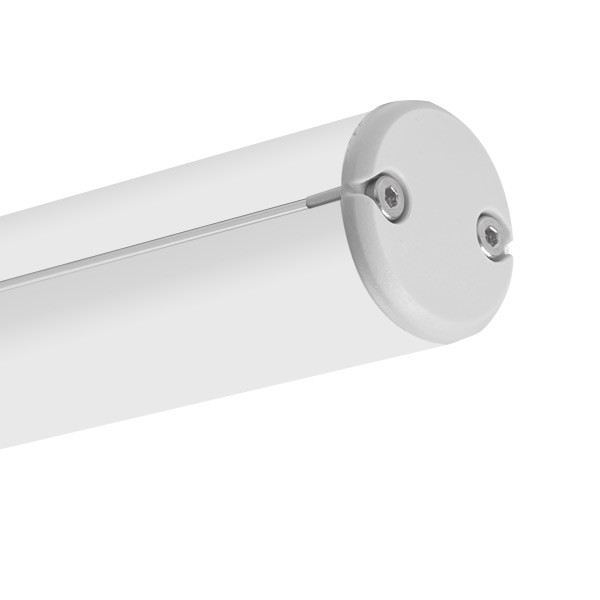

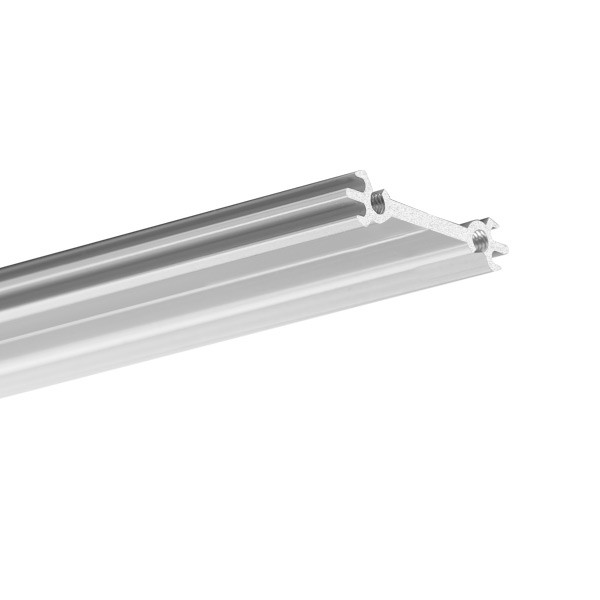

JAZ-DUO Extrusion
C0788ANODA_2 C0788ANODA_2 C0788ANODA_2 C0788ANODA_2
C0788ANODA_2 C0788ANODA_2 C0788ANODA_2
ITEM DESCRIPTION PRICE
C0788ANODA_2 79.75" / 2M Silver Anodized Extrusion $30.00
Download for Full Specifications, Dimensions and Instructions
CLICK for PDF: JAZ-DUO Specifications JAZ-DUO How To

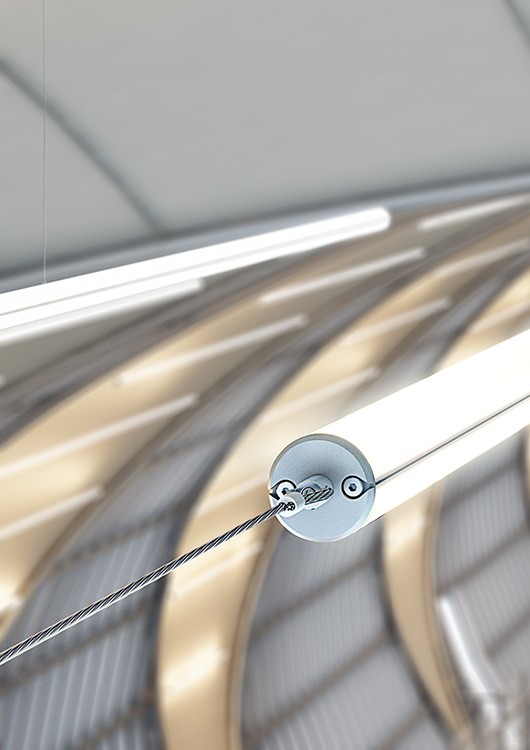

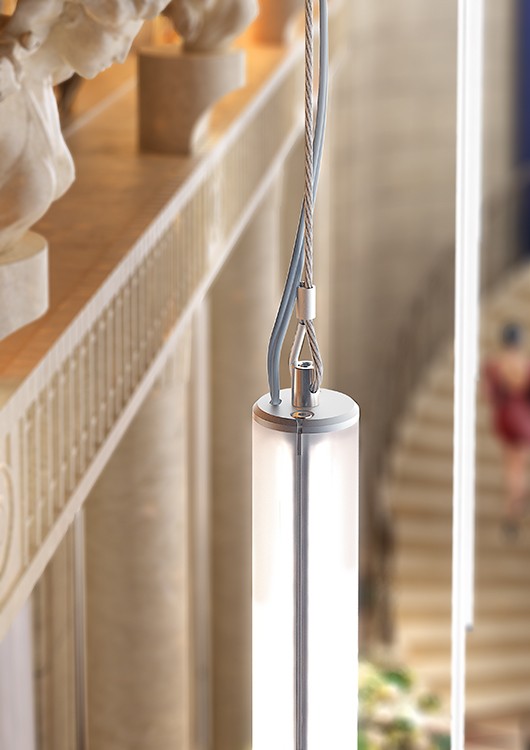

EXAMPLE EXAMPLE
Jaz-Duo Jaz-Duo
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
17163
17163

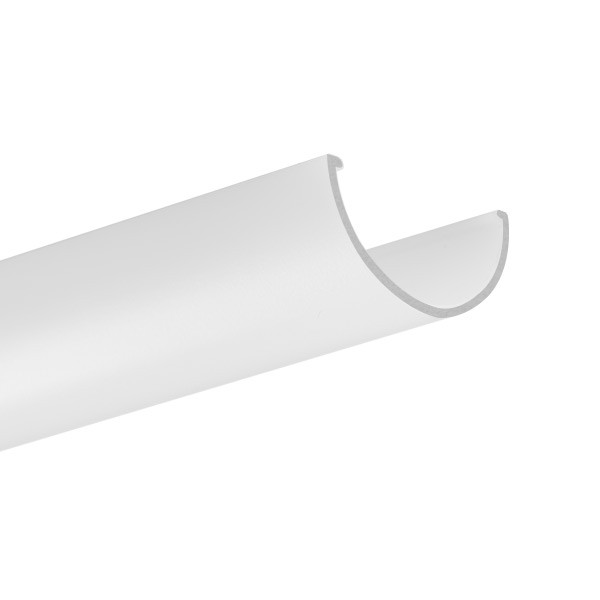

JAZ-DUO Cover - Frosted- 2 Covers Required
ITEM DESCRIPTION PRICE
17163_2 78.75" / 2M JAZ-DUO Cover - Frosted $34.20
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
42632 42633 42644 43643 42641 42642
42632 42633 42644 43643 42641 42642

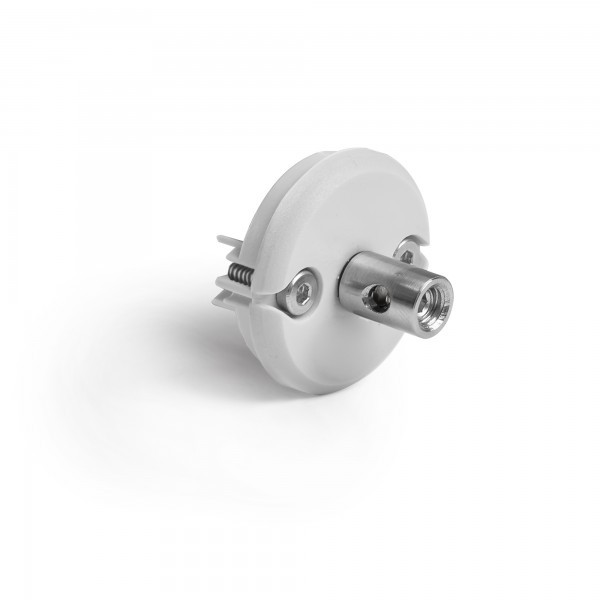

JAZ-DOU-N Grey
Conductive
End Cap

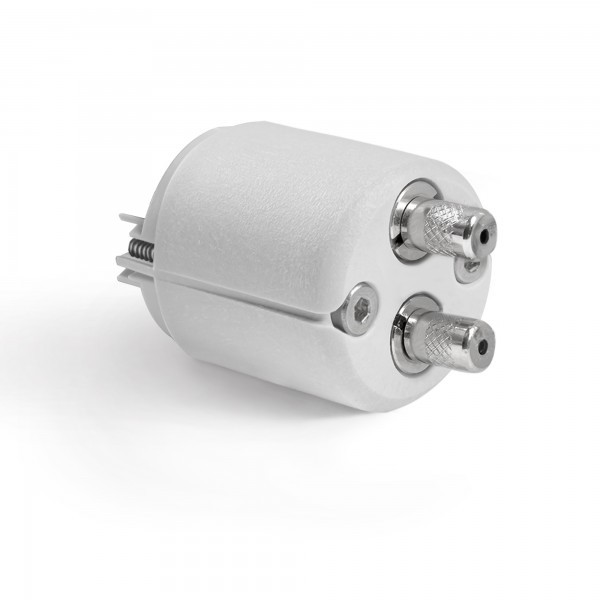

JAZ-DOU-W
Conductive
End Cap
JAZ-DOU-N-OTW Grey
End Cap

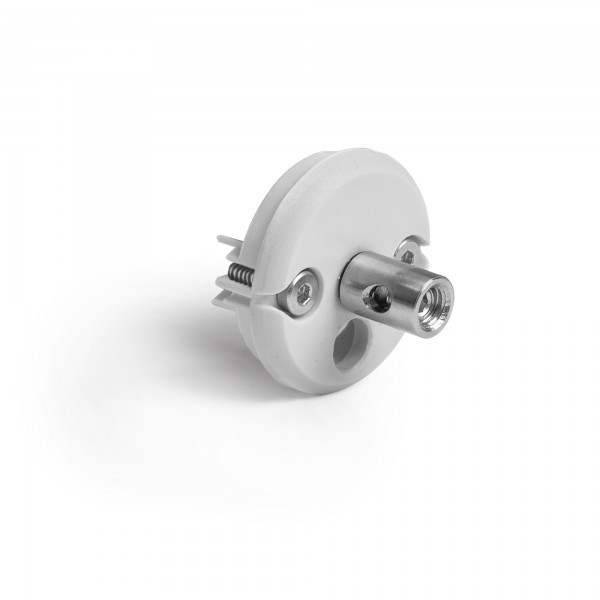

JAZ-DOU-N-R
0.25" / 6.5 mm
Grey End Cap

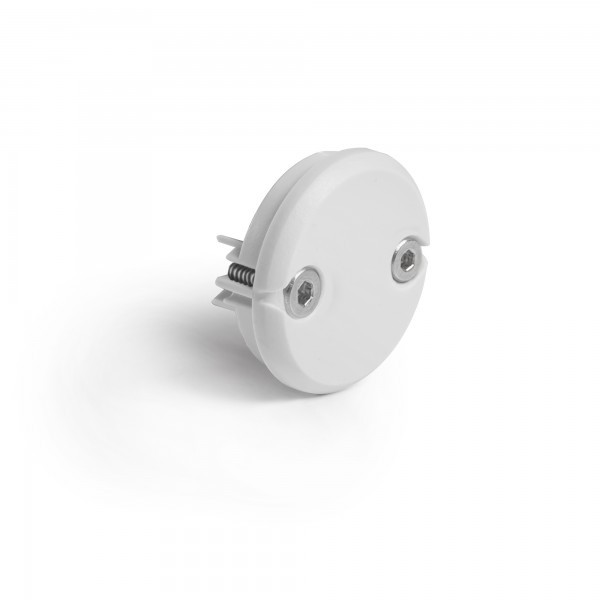

JAZ-DOU-N Grey
End Cap

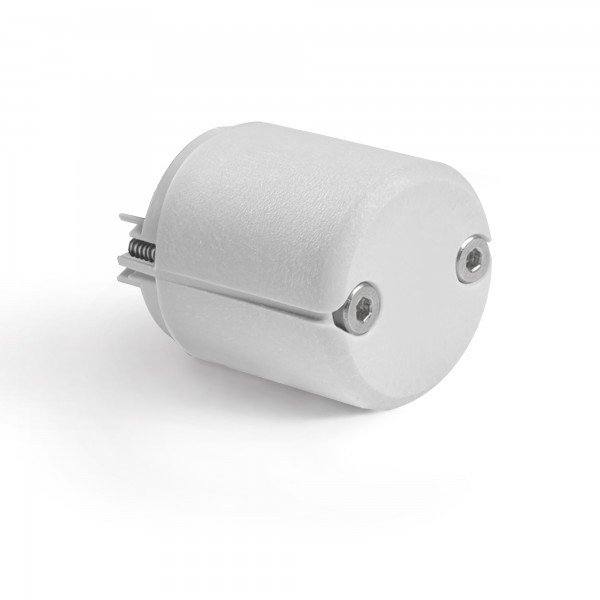

JAZ-DOU-W Grey
End Cap
ITEM DESCRIPTION PRICE
42632 JAZ-DOU-N Grey Conductive End Cap $22.40
42633 JAZ-DOU-W Conductive End Ca p $43.50
42644 JAZ-DOU-N-OTW Grey End Cap $17.00
42643 JAZ-DOU-N-R 0.25" / 6.5 mm Grey End Cap $17.00
42641 JAZ-DOU-N Grey End Cap $10.00
42642 JAZ-DOU-W Grey End Cap $14.50

00802L 70310
00802 70310
8,8x1,2 Gland Isolated CU
Cable
ITEM DESCRIPTION PRICE
00802L 8,8x1,2 Gland $1.35

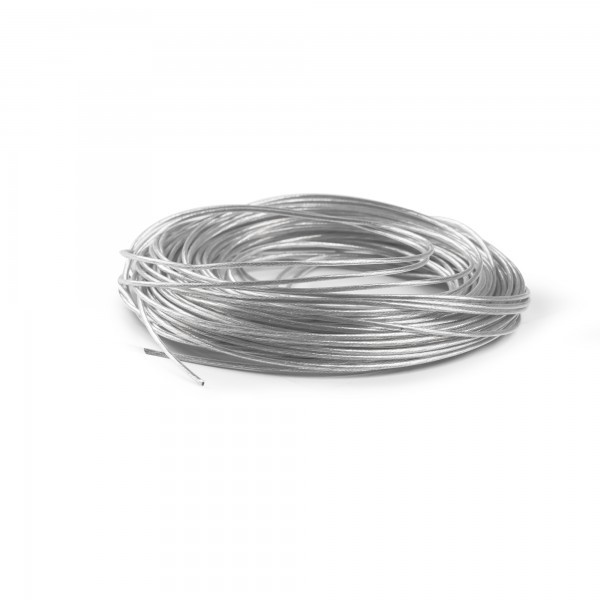

70210 Isolayrd CU Cable per Meter $15.50
