DIODE LED GRAZE X™ Linear Grazing
Custom Built LED Fixture
Graze Textured Walls, Architectural Accents, or Anything Else You want to Illuminate.
Crisp Performance with 10º, 30º or 60º Beam Spreads
with VALENT X™ or RGB-W Light Engines
Diode LED Directory Page Dode LED Quick Select Pull Down Menus

ILLUMENATE
LED High-Tech Lighting
Track and Monorail Lighting Systems
Mini Pendant Lighting
Undercabinet Lighting
Recessed Lighting
Recessed Lighting Conversion Optons
Bath Lighting
Outdoor Lighting
Art Glass Sconces
Commercial, Retail and Hospitality Lighting
Made in the USA
About Illumenate
How to Order
Supplier Directory
These Cards Accepted
Visa
Master Card
Discover
and
Processed Securely
Networks Solutions Secure
SecurityMetrics for PCI Compliance, QSA, IDS, Penetration Testing, Forensics, and Vulnerability Assessment


Search for
Diode LED Dimmable LEDs
Engineered, Designed and Assembled in the U.S.A.
Contemporary architectural design often features linear light, increasingly as the primary light source. Beam control and shaping of light is important to allow for nuanced lighting design. As linear LED technology advanced and adoption increased, expectations also increased for the optical performance of linear light. The discreet form factor of low-voltage linear light has always been one of its major appeals. Now, optical performance is the new focus.
Available Summer 2022
GRAZE X IS Custom Built to Your Specifications by Diode LED in Reno, NV
Contact US for Your GRAZE X Custom Built Fixture
800-844-3267 ILLUMENATE@ME.COM
GRAZER IMAGES GRAZER OPTICS HOW to SPECIFY YOUR GRAZE FIXTURE

CLICK IMAGE for LARGER VIEW
GRAZE FIXTURE NARROW BEAM GRAZER CHANNEL ASSYMMETRIC
LIGHT ENGINE		 NARROW BEAM
LIGHT ENGINE		 GRAZE RGB-W
LIGHT ENGINE
in APPLICATION

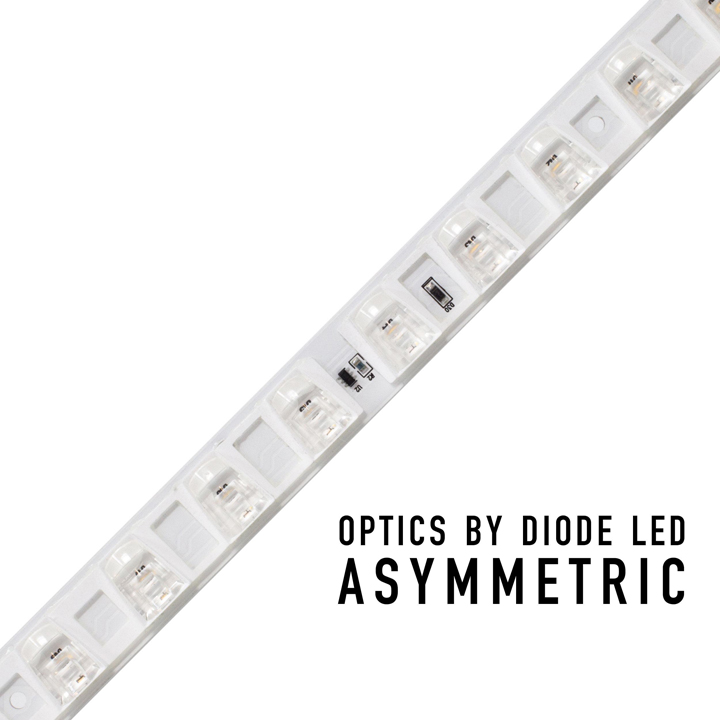

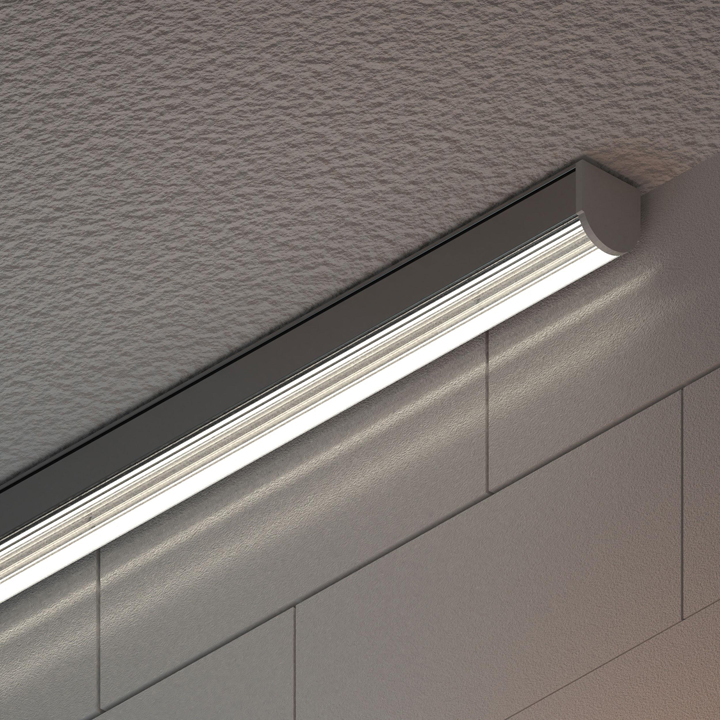

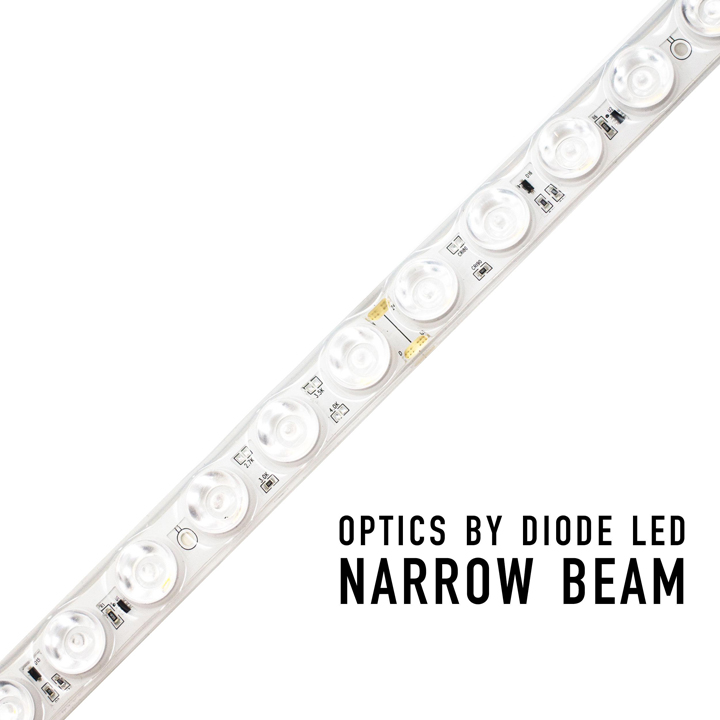

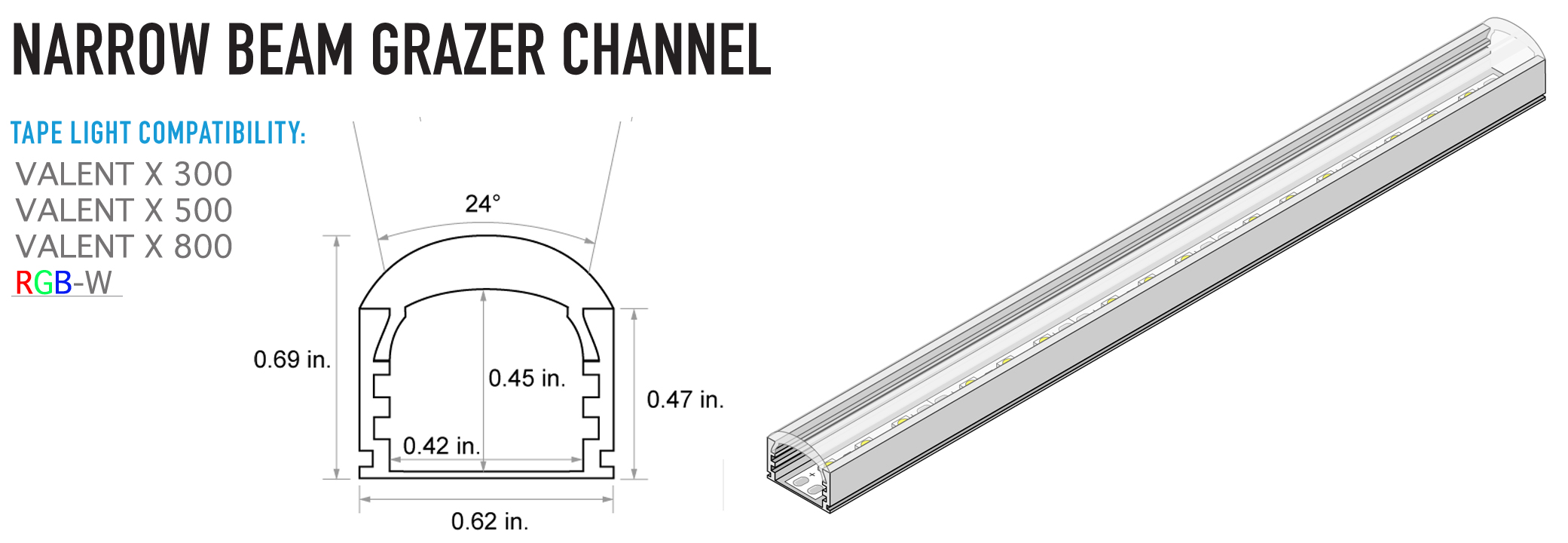

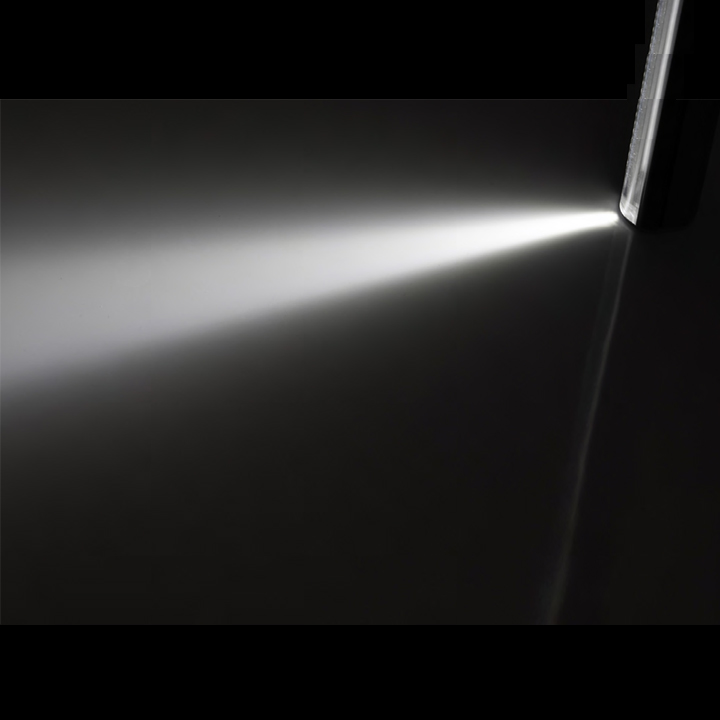

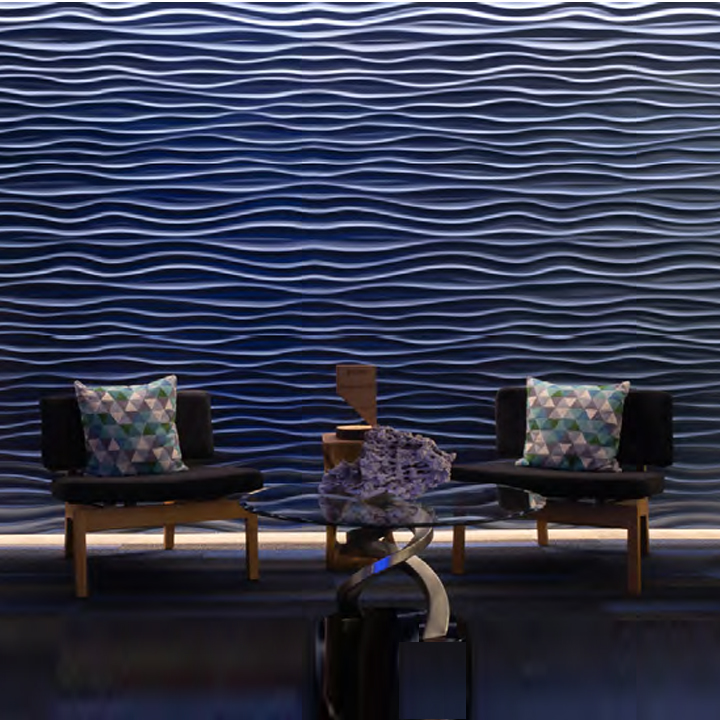

Graze Fixture Narrow Beam Grazer Channel Assymetric Beam Light Engine Narrow Beam Light Engine RGB-W Light Engine

CUSTOM
ASSEMBLY		 GRAZE FIXTURE
INSTALLED		 GRAZE BEAM SPREADS

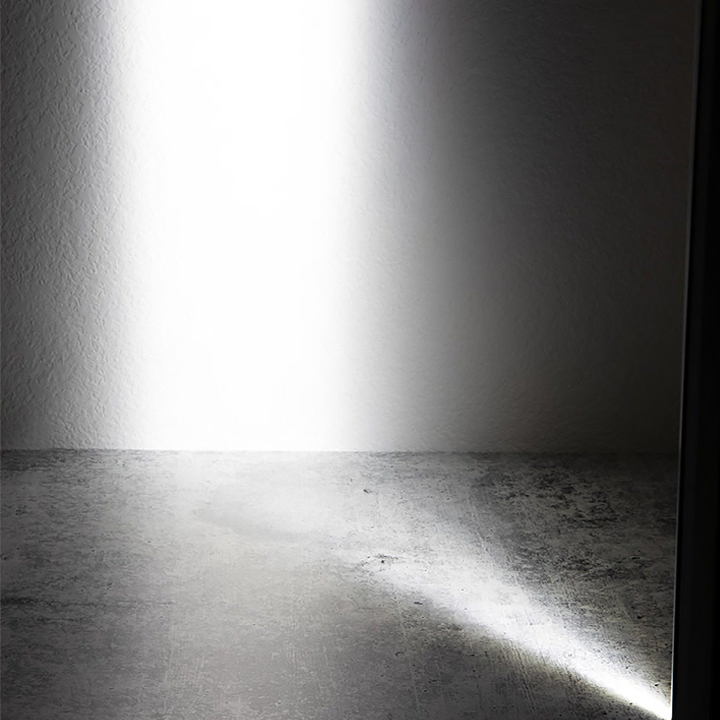

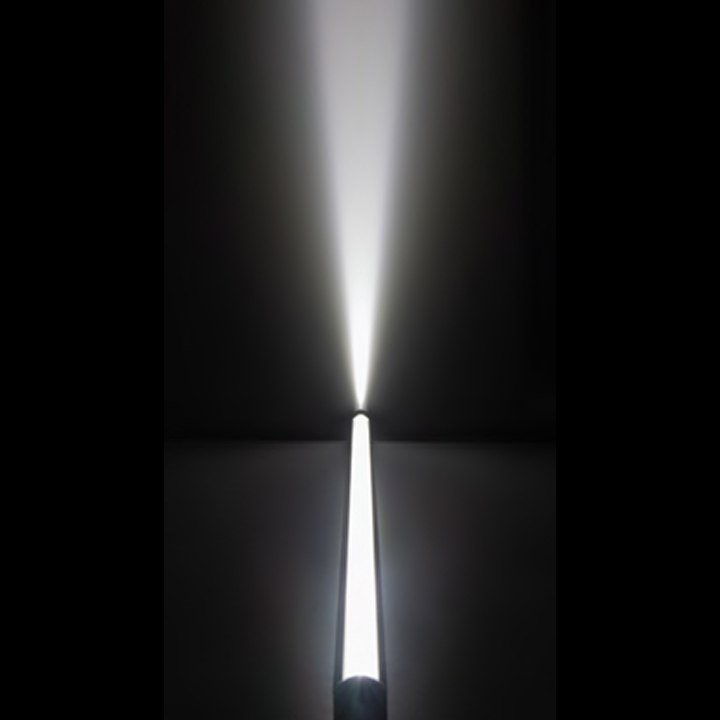

Custom Assembly Graze Fixture Installed Graze Beam Spread GRAZE w/ VALENT X Graze Beam Spread
BACK to TOP
Graze Optics
Diode LED's new patented CelTECH™ technology is a fixture design that creates a clean, precise beam by collimating light immediately after it leaves the light engine, which also increases overall efficiency of the fixture and requires less materials. This results in a beam with an exceptional aesthetic, delivered from a physically compact, modular fixture that can be manufactured domestically at a reasonable cost.

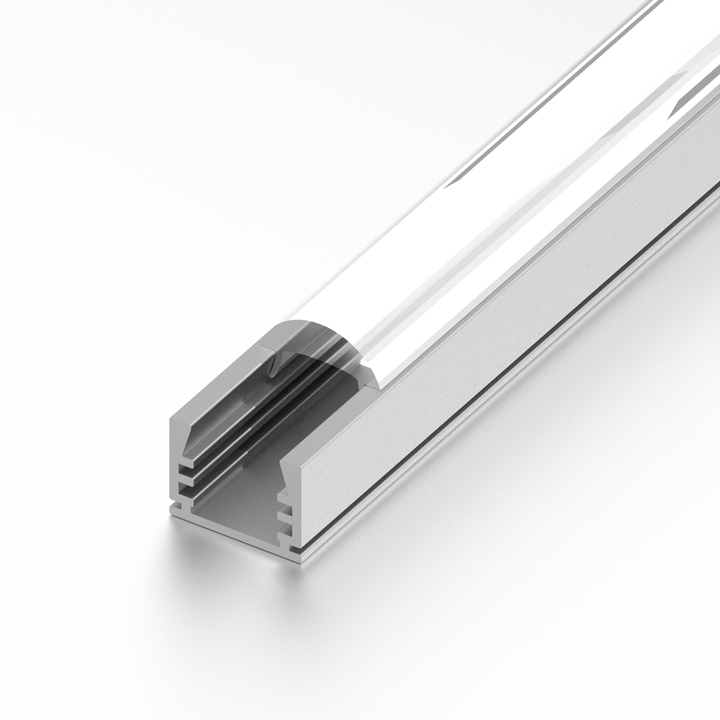

Grazer Channel
.
CLICK any ICON Below for Full Explanation:
ETL 24V DC No 120V Wet or Dry Location Dimmable RGB or RGBW
UL
LISTED		 24V DC NO
120V AC		 Indoor or
Outdoor		 Dimmable Color
Changing

• Crisp optical performance with 10°, 30° or 60° beam angles and near-zero glare
• CCT options from 2400K - 6300K and RGB-W
• Built to length in 1" increments, daisy-chain capable for long runs

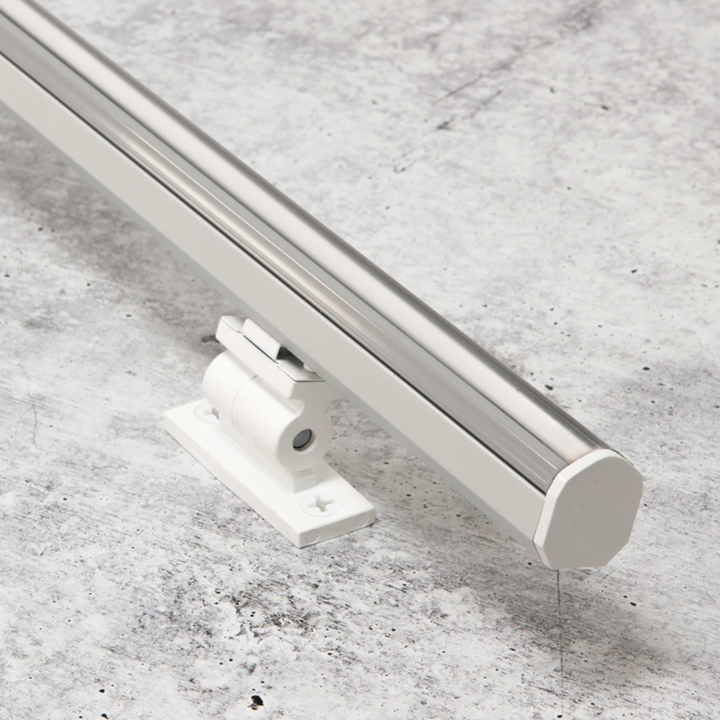

• Rotating aiming bracket or flat mounting clip
• CRI, hue & gamut matched to VALENT® X tape light
• 12 year warranty
Click Button for PDF GRAZE FIXTURE Installation Guide - COMING SOON PDF Installation Diagram
Click Button for GRAZE FIXTURE PDF Specifications STREAMLITE LED PDF Specifications
Click Button for GRAZE FIXTURE RGB-W PDF Specifications STREAMLITE LED PDF Specifications
Click Button for Full 12 Year
Warranty Information		 Diode LED Warranty
COLOR TEMPERATURE ILLUSTRATION
KChart
BACK to TOP

GRAZE FIXTURES ARE CUSTOM BUILT to YOUR Specifications
ORDERING CODES
Diode LED VOLTAGE MODEL CCT SERIES FINISH LENS MOUNTING LENGTH
DI 24V GRZX 24 (2400K) 42 (4200K) VALENT X 300 AL
(ALUMINUM)		 10° MC
(MOUNTING CLIP)		 LENGTH
(INCHES)
      27 (2700K) 50 (5000K) VALENT X 500 WH
(WHITE)		 30° AIM
(AIMING BRACKET)
      30 (3000K) 60 (6000K) VALENT X 800 BL
(BLACK)		 60°
      35 (3500K) RGB-W RGB-W
EXAMPLE: DI-24V-500-24-16-GRZX30-AIM-WH48 -SWITCHEX (ALL-in-ONE DRIVER / DIMMER
-
Driver and Controller OPTIONS BELOW
BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
MAGNETIC and ELECTRONIC
DIMMABLE DRIVERS		 12V and 24V
DRIVER / DIMMER		 COLOR
CONTOLLERS
Hard-Wired Dimmable Drivers Hard-Wired Dimmable Drivers DI-DMX-WIFI-WMUS-32-WH
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
C Chose from a Wide Range of Color Controls
