KLUS PIKO-ZM Extrusion

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

216-352-3685

WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US

These Cards Accepted and PROCESSED SECURELY

Super small - only 10mm wide (0.39")

Narrow line of light

Designed to build small, delicate light fixtures

Dedicated for 6mm (0.23") LED tape

ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less.

Application

for construction of serviceable LED lighting fixtures, straight and angled, built-in and suspended, producing the affect of a “thin line of light”

Assembly

- designed to be mounted to the surface with screws or two-sided adhesive tape.

Additional Information

- the extrusion is suitable for bending into gentle curves, in the plane adjacent to the LED strip
- the extrusion comes with frosted covers (diffusers) and aluminum-colored plastic end caps

• Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.

2-PART SYSTEM - CLICK TEPIKO TO OPEN PAGE
PIKO-ZM EXTRUSIONS	TEPIKO EXTRUSIONS	ASSOCIATED EXTRUSIONS AND COVERS / LENSES	END CAPS / ACCESSORIES

STANDARD LEAD TIMES

Lead Time May Vary Based on Product Mix / Quantities Ordered

Standard Order - No Cutting

2 - 3 Days

Custom Cuts - Extrusions, Covers or LED Tape

3 - 5 Days

Custom Builds

2 - 3 Weeks

The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.

ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE

Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

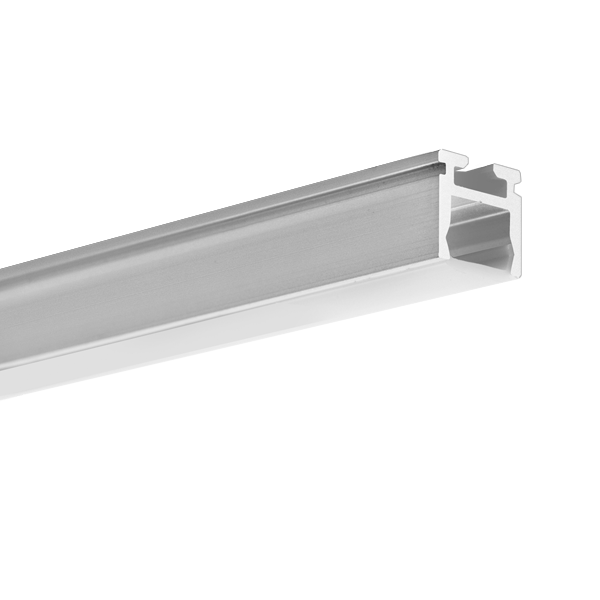

PIKO-ZM Extrusion

ITEM	DESCRIPTION	PRICE
C1168ANODA_1	39.4" / 1M Silver-Anodized Extrusion	$19.50
C1168ANODA_2	78.75" / 2M Silver-Anodized Extrusion	$39.00

Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions

Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.

CLICK for PDF:

EXAMPLES

BACK to TOP

CLICK IMAGE for LARGER VIEW

ASSOCIATED EXTRUTIONS and COVERS / LENSES

18046

17034

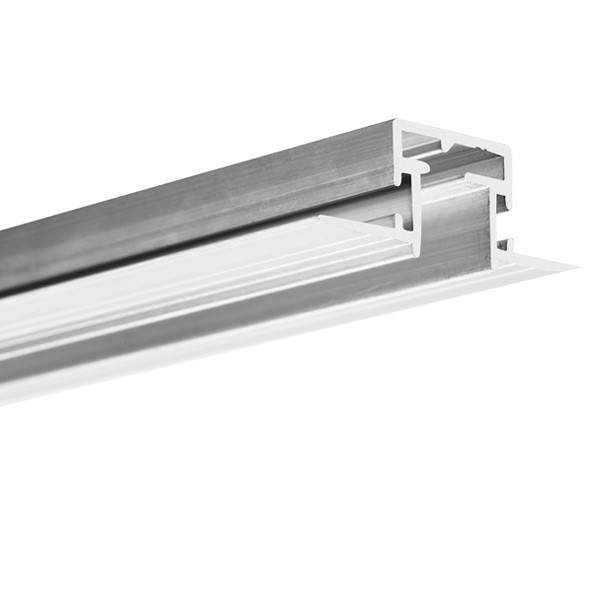

Tepiko
Extrusion

PIKO
Cover

ITEM	DESCRIPTION	PRICE
18046_1	39.4" / 1M TEPIKO Non-Anodized Extrusion	$43.00
18046_2	78.75" / 2M TEPIKO Non-Anodized Extrusion	$86.00
17034_1	39.4" / 1M PIKO Frosted Cover	$7.00
17034_2	78.75" / 2M PIKO Frosted Cover	$14.00

BACK to TOP

CLICK for PDF:

s

CLICK for TEPIKO:

CLICK IMAGE for LARGER VIEW

END CAPS / ACCESSORIES

24202

42728

42720

42717

42715

PIKO
End Cap

ZM 120
Connector

ZM-135
Connector

ZM-180
Connector

ZM-PION 135
Connector

ITEM	DESCRIPTION	PRICE
24202	PIKO End Cap	$3.50
42728	ZM-PION 135 Connector	$11.60
42720	ZM-135 Connector	$11.60
42717	ZM-180 Connector	$10.30
42719	ZM-PION 135 Connector	$11.60

BACK to TOP

CLICK IMAGE for LARGER VIEW

42718

42716

42244

42242

42275

47656

ZM-PION 90
Connector

ZM-90
Connector

GP
Spring

DP-ZZ
Fastener

PUSZ-LIN-ZM
Fastener

PUSZ-PRET-ZM
Fastener

ITEM	DESCRIPTION	PRICE
42718	ZM-PION -90 Connector	$10.30
42716	ZM-90 Connector	$10.30
42244	FI-10-ZM-P Fastener	$15.00
42242	FI-10-ZM-W Fastener	$15.00
42275	PUSZ-LIN-ZM Fastener	$23.70
42276	PUSZ-PRET-ZM Fastener	$22.00 M

42512

00802L

42520

ZD EYE UCHO
Hanger

8,8x1,2 Gland

ZM
Block

ITEM	DESCRIPTION	PRICE
42512	ZD UCHO Hanger	$5.60
00802L	8,8x1,2 Gland	$1.40
42520	ZD Block	$18.00

BACK to TOP

PUSZ-PRET-ZM Fastener

PUSZ-PRET-ZM
Fastener
