Diode LEDAn industry first, this patent pending UL Listed electrical enclosure meets electrical code requirements and cost saving measures with easy installation of LED power supplies in a wide range of environments.

UL Listed Industrial Control Panel Enclosure UL Standard 508A
Have confidence in your commercial, industrial or residential installation environment with a ready-to-use electrical enclosure that meets UL requirements for containing a power supply, controller or other electrical device.
Engineered and Designed in the U.S.A.
DIODE LED ACCESSORY LINKS
POWER SUPPLIES
POWER SUPPLIES OVERVIEW VIDEO
OmniDrive OmniDrive 2 SwitchEx Magnetic Constant Voltage Lo-Pro Combos
Omnidrive
Plug-In Commercial Plug-In Commercial
0 -10V
0-10V Lutron Hi-Lume 1% Lutron Hi-Lume 0.1% Battery
PLUG-IN 12V and 24V DRIVERS COMMERCIAL GRADE DIMMABLE 12V and 24V 0-10V DRIVERS
Click Button for Full 5 Year
Warranty Information
Diode LED Warranty
REIGN IN-WALL 12V / 24V DIMMING CONTROLS IN-LINE 12V / 24V CONTROLS
WIRING ACCESSORIES MULTI-CONDUCTOR WIRE TWO STRAND WIRE
DMX and RGB CONTROLLERS DAZZLE RGB ACCESSORIES
CHROMAPATH CHANNELS
and DIFFUSERS
ELEMENT DURABLE
OUTDOOR MOUNTING CHANNELS
CHROMAPATH
FIXTURE BUNDLES
TAPEGUARD
TAPE LIGHT COVER
LO-PRO UL CERTIFIED JUNCTION BOX
All of Diode LED's Lights are 12V or 24V DC Fixtures, which means they require a transformer to convert standard household 120V AC to 12V DC or 24V DC. Diode LED Provides Three Choices of Transformers.
LO-PRO UL CERTIFIED JUNCTION BOX 12V and 24V
OMNIDRIVE
DIMMABLE DRIVERS

0 -10V
DIMMABLE
DRIVERS
12V HARD-WIRED
CONSTANT VOLTAGE
NON-DIMMABLE DRIVERS
- Dimmable on 12V Side -
24V HARD-WIRED
CONSTANT VOLTAGE
NON-DIMMABLE DRIVERS
- Dimmable on 24V Side -
Note: All our power supplies are UL Listed or UL-Recognized Component. The manufacturer rates each power supply for maximum power output at optimum thermal and voltage conditions. As with any power supply, true actual maximum continuous current output depends upon various environmental factors such as ambient temperature, line voltage fluctuations, and orientation that may affect heat dissipation. For optimum performance, do not load the power supply to more than 80% of its labeled rating.
LO-PRO UL CERTIFIED JUNCTION BOX

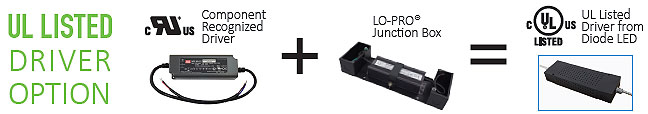

Lo-Pro Combo Option
DI-JBOX-LPS DI-JBOX-LPL
Diode LED recognized a tremendous demand for a solution that enables contractors to provide a junction box that not only encloses an LED driver but certifies the box/driver combination as a Class 2 UL Listed power supply suitable for in-field installation. The Lo-Pro Junction Box and Driver Combo includes an LED driver and Lo-Pro box with an additional UL sticker certifying the combination as a UL Listed Low Voltage Power Unit. Conforms to Article 725.121(A)(2) of the National Electrical Code®. LO-PRO / DRIVER COMBOS ARE ASSEMBLED IN THE USA BY DIODE LED AND SHIPPED READY TO INSTALL.
Click for More Info
Lo-Pro Junction Box Specs PDF Installation Guide
DI-0980
11.25" x 1.8" x 3.75" 13.5" x 1.8" x 4.5"

ALL DIMENSIONS in INCHES

CLICK IMAGE for LARGER VIEW
LO-PRO / OMNIDRIVE 12V and 24V ELECTRONIC DIMMABLE DRIVER COMBO
OMNIDRIVE™ Electronic Dimmable Drivers can support loads at their maximum wattage and still operate with optimal performance, unlike our magnetic dimmable drivers, where we traditionally recommend 20% less load than the rated wattage.
Max. Load: 100% of rated wattage Min. Load: 60% of rated wattage (for dimming only)
12V Model 24V Model
DI-TD-12V-10-LPS DI-TD-24V-10-LPS
DI-TD-12V-20-LPS DI-TD-24V-20-LPS
DI-TD-12V-30-LPS DI-TD-24V-30-LPS
12V Model 24V Model
DI-TD-12V-45-LPL DI-TD-24V-45-LPL
12V Model 24V Model
DI-TD-12V-60-LPL DI-TD-24V-60-LPL
DI-TD-12V-80 DI-TD-24V-80-LPL
DI-TD-12V-120 N/A
DI-TD-12V-10  DI-TD-24V-10  DI-TD-12V-20  DI-TD-24V-20  DI-TD-12V-30  DI-TD-24V-30  DI-TD-12V-45  DI-TD-24V-45  DI-TD-12V-60  DI-TD-24V-60  DI-TD-12V-80  DI-TD-24V-80
12V MODELS
ITEM INPUT POWER ENVIRONMENT DIMMABILITY CLASS 2 L x W x H * PRICE
DI-TD-12V-10W-LPS 90 -
135 AC
10W Dry / Indoor IP40
TRIAC dimmable with compatible Incandescent/
Halogen, MLV, ELV
dimming controls. On/Off switching compatible.
Click Button for PDF List
Compatible Dimmers
Yes 5.5 x 1.8  x1.1 $133.20
DI-TD-12V-20W-LPS 20W Dry / Indoor IP40 Yes $147.60
DI-TD-12V-30W-LPS 30W Dry / Indoor IP40 Yes $153.90
DI-TD-12V-45W-LPL 45W Dry / Indoor IP40 Yes 7.0 x 2.3 x 0.9 $191.70
DI-TD-12V-60W-LPL 60W Indoor/ Outdorr IP67 Yes 7.9 x 2.7 x 1.8

$206.10

24V MODELS
ITEM INPUT POWER ENVIRONMENT DIMMABILITY CLASS 2 L x W x H * PRICE
DI-TD-24V-10W-LPS 90 -
135 AC
10W Dry / Indoor IP40
TRIAC dimmable with compatible Incandescent/
Halogen, MLV, ELV
dimming controls. On/Off switching compatible. Click Button for PDF List
Compatible Dimmers
Yes 5.5 x 1.8  x1.1 $133.20
DI-TD-24V-20W-LPS 20W Dry / Indoor IP40 Yes $147.60
DI-TD-24V-30W-LPS 30W Dry / Indoor IP40 Yes $153.90
DI-TD-24V-45W-LPL 45W Dry / Indoor IP40 Yes 7.0 x 2.3 x 0.9 $191.70
DI-TD-24V-60W-LPL 60W Indoor/ Outdorr IP67 Yes 7.9 x 2.7 x 1.8

$206.10

DI-TD-24V-80W-LPL 80W Indoor/ Outdorr IP67 No $223.20
Click Button for OMNIDRIVE Installation Guide PDF Installation Guide
Click Button for OMNIDRIVE INDOOR IP 40 DIMMABLE DRIVER PDF Specifications OMNIDRIVE INDOOR IP 40 DIMMABLE DRIVERS PDF Specifications
Click Button for OMNIDRIVE OUTDOOR IP 67 DIMMABLE DRIVER PDF Specifications OMNIDRIVE OUTDOOR IP 67 DIMMABLE DRIVERS PDF Specifications
* Dimensions with LO-PRO Box LPS = 11.25" x 1.8" x 3.75" LPL = 13.5" x 1.8" x 4.5"
BACK to TOP

CLICK IMAGE for LARGER VIEW
LO-PRO / 0 - 10V 12V and 24V ELECTRONIC DIMMABLE DRIVER COMBO

Commercial-Grade 0-10V Dimmable LED Drivers are essential components commercial building applications and retrofits of low voltage LED fixtures in 0-10V control systems. These drivers are ideal for commercial applications designed with 0-10V systems, are rated for wet and dry locations, and offer a smooth, continuous dimming. These drivers are engineered to work with 0-10V dimming controls for superior dimming performance.

Max. Load: 100% of rated wattage Min. Load: 60% of rated wattage (for dimming only)
12V Model 24V Model
DI-TD-12V-10-LPS DI-TD-24V-10-LPS
DI-TD-12V-20-LPS DI-TD-24V-20-LPS
DI-TD-12V-30-LPS DI-TD-24V-30-LPS
12V Model 24V Model
DI-TD-12V-45-LPL DI-TD-24V-45-LPL
DI-TD-12V-10  DI-TD-24V-10  DI-TD-12V-20  DI-TD-24V-20  DI-TD-12V-30  DI-TD-24V-30  DI-TD-12V-45  DI-TD-24V-45
12V MODELS
ITEM INPUT POWER ENVIRON. DIMMABILITY CLASS 2 L x W x H * PRICE
DI-DM-MW12V40W-0-10V-LPS 120 -
270 AC
40W Dry / Indoor IP67
With any 0-10V dimmer or control. Output PWM Frequency to LED load is 300Hz. Compatible Dimmers Listed on How to Document.
Yes 5.9 x 2.1
x 1.4
$171.00
DI-DM-MW12V60W-0-10V-LPS 60W $194.40
24V MODELS
ITEM INPUT POWER ENVIRON. DIMMABILITY CLASS 2 L x W x H * PRICE
DI-DM-MW24V60W-0-10V-LPS 120 -
270 AC
60W Dry / Indoor IP67
With any 0-10V dimmer or control. Output PWM Frequency to LED load is 300Hz. Compatible Dimmers Listed on How to Document.
Yes 5.9 x 2.1
x1.4
$194.40
DI-DM-MW24V90W-0-10V-LPL 90W 6.74 x 2.48
x 1.48
$247.50
Click Button for 0 -10V Dimmable Driver Installation Guide PDF Installation Guide
Click Button for 0 1 10V DIMMABLE 12V DRIVER PDF Specifications OMNIDRIVE INDOOR IP 40 DIMMABLE DRIVERS PDF Specifications
Click Button for 0 1 10V DIMMABLE 24V DRIVER PDF Specifications OMNIDRIVE OUTDOOR IP 67 DIMMABLE DRIVERS PDF Specifications
* Dimensions with LO-PRO Box LPS = 11.25" x 1.8" x 3.75" LPL = 13.5" x 1.8" x 4.5"

ALL DIMENSIONS in INCHES
CLICK IMAGE for LARGER VIEW
LO-PRO HARD-WIRED CONSTANT VOLTAGE 12V NON-DIMMABLE DRIVERS - Dimmable on 12V Side -
Hard-Wired Non-Dimmable Drivers should be hard-wired to household AC power by a licensed electrician. Any of our dimmable light fixtures, powered by a Hard-Wired -Dimmable driver, can be dimmed using any of our 3 REIGN 12V / 24V in-wall switches or the inline 12V/ 24V Dimmer Switch. Note: DIMMING OCCURS on the 12V Side of the Installation.
  120 / 240 / 277VAC

• For Use with PWM Dimmers, On/Off Switches, DMX Systems, RGB Controllers

• Indoor / Outdoor Use
DI-0904-LPS DI-0918-LPS / DI-0906-LPS DI-CV-MW12V40W-277-LPS DI-DV-MW12V60W-277-LPS
DI-0904 DI-0918, DI-0906 DI-CV-MW12V40W-277 DI-DV-24V60W-277
20W Driver 35W Driver / 60W Driver 40W Driver 60W Driver
Wet / Dry Location Class 2 Wet / Dry Location Class 2 /
Wet / Dry Location Class 2
Wet / Dry Location Class 2 Wet / Dry Location Class 2
4.65" x 1.38" x 1.02" * 5.83" x 1.57" x 1.18" /
6.4" x 1.67" x 1.26"*
5.9" x 2.1" x 1.5" * 5.9" x 2.1" x 1.4" *
$95.40 $112.50 / $122.40 $171.00 $202.50
* Dimensions with LO-PRO Box LPS = 11.25" x 1.8" x 3.75"
BACK to TOP

CLICK IMAGE for LARGER VIEW
LO-PRO HARD-WIRED CONSTANT VOLTAGE 24V NON-DIMMABLE DRIVERS - Dimmable on 24V Side -
The ULTRA BLAZE 24V High Output Strip Light and ARRAY 24V Linkable Light Bar are Diode LED’s only 24V DC fixtures. They require a transformer to convert standard household 120V AC power to 24V DC. Diode LED provides three choices of transformers: a Plug-In Adapter, a Hard-Wired Non-Dimmable Driver, and a Hard-Wired Dimmable Driver.
  120 / 240 / 277VAC

• For Use with PWM Dimmers, On/Off Switches, DMX Systems, RGB Controllers

• Indoor / Outdoor Use
DI-0970-LPS DI-0954-LPS DI-CV-MW24V60W-277-LPS DI-DV-MW24V90W-277-LPL
DI-0970-LPS DI-0954-LPS DI-CV-MW24V60W-277-LPS DI-DV-MW24V60W-277-LPL
35W Class 2 Driver 96W Class 2 Driver 60W Class 2 Driver 90W Class 2 Driver
Wet / Dry Location Class 2
Hard-Wired Non-Dimmable Drivers should be hard-wired to household AC power by a licensed electrician. Any of our dimmable light fixtures, powered by a Hard-Wired -Dimmable driver, can be dimmed using any of our 3 REIGN 12V / 24V in-wall switches or the inline 12V / 24V Dimmer Switch. Note: DIMMING OCCURS on the 24V Side of the Installation.
5.83" x 1.57" x 1.18 * 7.87" x 2.78" x 1.38" * 5.9" x 2.1" x 1.4 * 6.75" x 2.5" x 1.5" *
$122.40 $272.70 $194.40 $243.00
* Dimensions with LO-PRO Box LPS = 11.25" x 1.8" x 3.75" LPL = 13.5" x 1.8" x 4.5"
