dlODE LED BLAZE MINI Strip Lights
12V 0.16" (4mm) Wide / 24V 0.16" (4mm) Wide
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL dlODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 dlode LED 2021 Catalog
Visa Master Card dlscover Networks Solutions Secure

BLAZE™ MINI LED Linear Lighting is designed as one of the slimmest form factors in linear lighting available in the industry. At 4mm wide, It’s offered in 12VDC and 24VDC platforms with a wide selection of popular color temperatures. BLAZE MINI is perfect for retail, shelving, dlsplay, and other small applications where space is limited and uniform, clean lines of light are desired.

BLAZE MINI
SPECIFICATIONS		 BLAZE MINI STRIP
POWER SUPPLIES and CONTROLS

Blaze basics 200
CLICK any ICON Below for Full Explanation:

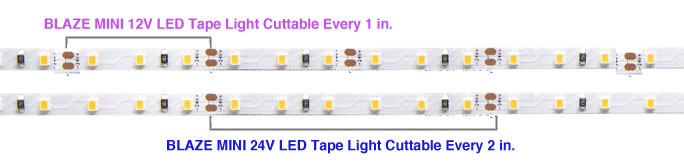

ETL Field Cuttable RoHS 24V DC 24V DC No 120V dlmmable
ETL
CERTIFIED		 FIELD
CUTTABLE		 RoHS
COMPLIANT		 BLAZE MINI DO NOT CONNECT TO
120V AC		 dlnmmable
12V DC 24V DC
• Kitchen cabinet, under cabinet, shelf, and case lighting
• Exhibit, presentation, and project lighting
• Close application task lighting
• Cove and interior accent lighting
• Shop windows, window dlsplays, dlsplay case lights, and uplighting
Click Button for PDF SOLID COLOR Installation Guide PDF Installation Guide
Click Button for BLAZE MINI LED PDF Specifications BLAZE MINI LED PDF Specifications
Click Button for Full 12 Year
Warranty Information		 dlode LED Warranty
BACK to TOP'
TECH SPECS
Sold in 16.4' for 24V Spools or 9.8' for 12V ' Spools Width : 0.16 in. / Height: 0.05 in.
100% dlmmable Operating Temp7: -4 ~ 176°F (-20 ~ 80°C)
Color Temperature Range: 2700K, 3000K, 3500K, 4200K, 5000K, 6300K LED Type: 2216 Guang Mau Chip
Beam Angle: 120° LED Spacing: 0.3 in. between centers
Working Voltage: 12VDC or 24V DC Lifespan: 50,000+ hours
LEDs Per Foot : 36 Lumens Per Foot: 154 - 193
IP Rating: Indoor / Damp UV/IR Radlation: None
Connectors: 16.4 ft. spools come with 3 foot bare lead wires on one end and a 12 inch white, female DC plug on the other end; 100 ft. spools come with 3 foot bare lead wires on both ends
BASICS MINI 12V Max. Run: 9.8' BASICS MINI 24V Max. Run: 16.4'
COLOR TEMPERATURE ILLUSTRATION
KChart
I
ITEM LENGTH OUTPUT VOLATGE LUMENS
/ FT		 COLOR COLOR
TEMP.		 CRI* POWER
CONS / FT		 LEDS
/ FT		 PRICE
12V BLAZE MINI
dl-12V-BL4MN150-27-009 9.8 ft. / 3m 12VDC 167 warm white 2700K 90+ 2.3W 36 $114.75
dl-12V-BL4MN150-30-009 9.8 ft. / 3m 12VDC 173 warm white 3000K 90+ 2.3W 36 $114.75
dl-12V-BL4MN150-35-009 9.8 ft. / 3m 12VDC 166 neutral white 3500K 90+ 2.3W 36 $114.75
dl-12V-BL4MN150-42-009 9.8 ft. / 3m 12VDC 172 neutral white 4200K 90+ 2.3W 36 $114.75
dl-12V-BL4MN150-50-009 9.8 ft. / 3m 12VDC 193 cool white 5000K 90+ 2.3W 36 $114.75
dl-12V-BL4MN150-63-009 9.8 ft. / 3m 12VDC 164 cool white 6300K 90+ 2.3W 36 $114.75
24V BLAZE MINI
dl-24V-BL4MN150-27-016 16.4 ft. / 5m 24VDC 154 warm white 2700K 90+ 2.3W 36 $191.25
dl-24V-BL4MN150-30-016 16.4 ft. / 5m 24VDC 168 warm white 3000K 90+ 2.3W 36 $191.25
dl-24V-BL4MN150-35-016 16.4 ft. / 5m 24VDC 163 neutral white 3500K 90+ 2.3W 36 $191.25
dl-24V-BL4MN150-42-016 16.4 ft. / 5m 24VDC 172 neutral white 4200K 90+ 2.3W 36 $191.25
dl-24V-BL4MN150-50-016 16.4 ft. / 5m 24VDC 177 cool white 5000K 90+ 2.3W 36 $191.25
dl-24V-BL4MN150-63-016 16.4 ft. / 5m 24VDC 162 cool white 6300K 90+ 2.3W 36 $191.25
* COLOR RENDERING INDEX

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-dlmmable Drivers		 Hard-Wired
dlmmable Drivers		 12V and 24V
DRIVER / dlMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Adapters Hard-Wired Non-dlmmable Drivers Hard-Wired dlmmable Drivers Hard-Wired dlmmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our dlmmable Light Fixtures Powered by a Plug-In Adapter, Can Be dlmmed Using the REIGN 12V In-Wall Switch or the In-Line dlmmer Switch.
Hard-Wired Non-dlmmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our dlmmable Light Fixtures Powered by a Hard-Wired Driver, Can Be dlmmed Using the REIGN 12V In-Wall Switch or the In-Line dlmmer Switch.
Hard-Wired Non-dlmmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our dlmmable Light Fixtures Can be Powered by Our Hard-Wired dlmmable Drivers and a 120V Magnetic Low Voltage dlmmer Switch
SWITCHEX combines an LED dlmmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% dlmming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our dlmmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be dlmmed Using the In-Line dlmmer Switch
