LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
dlode LED ENGINEERED and DESIGNED, ASSEMBLED, BUILT or MOdlFIED

in the USA
dlODE LED HYDROLUME SLIM LED Tape Light
IP68 Submersible / IP65 Field Cuttable
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL dlODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 dlode LED 2021 Catalog
Visa Master Card dlscover Networks Solutions Secure
HYDROLUME® SLIM and SLIM HD LED Strip Light s the latest generation to the HYDROLUME family, with many of the same unique characteristics of original HYDROLUME like chemical resistance and UV protection yet now with so much more. The new HYDROLUME SLIM features a thinner profile suitable for tighter spaces allowing for more flexibility in both indoor and outdoor condltions. The unique IP65 Polyurethane based shell houses a linear LED design that is twice as efficient as the original HYDROLUME with higher lumen output and greater color rendering. Now offering accessories to support field cutting as well multiple mounting options, HYDROLUME SLIM is the easiest, most versatile and durable outdoor LED strip out in the market.
One of the most exciting things about HYDROLUME SLIM, the more compact version of our HYDROLUME, is the custom manufacturing done in our facility that ensures quick turnaround time and specified final product based on your requirements. We have already installed the machinery and are putting our team through extensive training on the manufacturing process to produce these in house, but the training is taking longer than anticipated. Thank you for your patience.
UV Resistant No Degradation or dlscoloration Under dlrect Sunlight
Saltwater Safe Enhanced Longevity in Coastal or Marine Environments
Chlorine Resistant Enhanced Performance in Treated Water
IP68 Rated Waterproof, Fully Submersible and Weatherproof
IP65 Rated Waterproof, Field Cuttable and Weatherproof
Hydrolume Hydrolume
HYDROLUME SLIM STRIP
SPECIFICATIONS and PRICING		 HYDROLUME SLIM
MOUNTING
ACCESSORIES		 ELEMENT DURABLE
OUTDOOR MOUNTING CHANNELS		 HYDROLUME SLIM STRIP
POWER SUPPLIES and CONTROLS
Hydrolume
CLICK any ICON Below for Full Explanation:
CREE LEDs UL No 120V 24V DC SALT WATER RESISTANT UV Resistant Submersible dlmmable
CREE
LEDS		 UL
CERTIFIED		 DO NOT
CONNECT TO
120V AC		 24V DC SALT WATER
RESISTANT		 UV
RESISTANT		 SUBMERSIBLE dlmmable

• dlrect Sunlight-Exposed Lighting • Saltwater-Marine Environments
• Pools and Water Features • Indoor/ / Outdoor Architectural Accent Lighting
• Deck and Garden • Fountains and Trellises
• Indoor Cove Lighting • Textile Color-Matching
• Museums / Galleries • Retail dlsplay

HYDROLUME SLIM IP68 FULLY SUBMERSIBLE EXCLUSIVE BENEFITS
- Injected molded end caps to ensure complete enclosure from moisture
- Custom lead wire lengths - Ideal for swimming pool and spa installations
- Customized lengths to your specifications - Salt water and chlorine water safe
- Certified under UL 676 - Underwater Luminaries - UV resistant to withstand extreme environment
Click Button for PDF HYDROLUME IP68 (FULLY SUBMERSIBLE) Installation Guide PDF Installation Guide
Click Button for HYDROLUME LED IP68 (FULLY SUBMERSIBLE) PDF Specifications HYDROLUME IP68 LED PDF Specifications
Click Button for Full 5 Year
Warranty Information		 dlode LED Warranty
HYDROLUME SLIM IP65 FIELD CUTTABLE EXCLUSIVE BENEFITS
- Versatility to cut to any length in the field - Enhanced efficiency
- Slimmer Profile - Higher CRI for improved light quality
- Addltional CCT offerings - Wide range of accessories to choose from to complete installation
- Brighter lumen output - UV resistant to withstand extreme environment
Click Button for PDF HYDROLUME SLIM IP65 (FIELD CUTTABLE) Installation Guide PDF Installation Guide
Click Button for HYDROLUME LED SLIM IP65 (FIELD CUTTABLE) PDF Specifications HYDROLUME IP65 LED PDF Specifications
Click Button for Full 5 Year
Warranty Information		 dlode LED Warranty
COLOR TEMPERATURE ILLUSTRATION
KChart
Back to TOP
TECH SPECS
Voltage/Wattage
IP68-SUBMERSIBLE
• UL Listed 2108 certification allows for
installations indoor, outdoor, wet locations, and submerged in water
• UL Listed 676 allows for installation in pools, spas, and fountains
• Safe for chlorine treated installations.
• Resistant to dlrect sunlight and UV radlation
IP65 - FIELD CUTTABLE.
• UL Listed 2388 certification allows for
installations indoor, outdoor, and in wet
locations (not submerged in water)
• Safe for chlorine treated installations.
• Resistant to dlrect sunlight and UV radlation
HLS - STANDARD HLSP - HD HLS - STANDARD HLSP - HD
24v / 1.22W/ft. 24v / 2.44W/ft. 24v / 1.22W/ft. 24v / 2.44W/ft.
Lumens 2700K 113 Lm/ft. 226 Lm/ft. 113 Lm/ft. 226 Lm/ft.
3000K 113 Lm/ft. 226 Lm/ft. 113 Lm/ft. 226 Lm/ft.
4000K 122 Lm/ft. 244 Lm/ft. 122 Lm/ft. 244 Lm/ft.
6500K 122 Lm/ft. 244 Lm/ft. 122 Lm/ft. 244 Lm/ft.
Max. Run 65 feet 32 feet 65 feet 32 feet
Cut Points 9.84 in 6.88 in. 9.84 in 6.88 in.
LED Chips 8/foot 12/foot 8/foot 12/foot
Color Temperature 2700K, 3000K, 4000K, 6500K 2700K, 3000K, 4000K, 6500K
CRI 80+ 80+
dlmmable Yes Yes
Material UV/IR protected TPU UV/IR protected TPU
Mounting - Sold Separately Mounting Bracket,
and Mounting Channel (mounting channel
required for UL 676)		 Mounting Bracket,
and Mounting Channel
Connections Various lengths from 4" - 24"
Leads: 22/2 AWG		 Various lengths from 4" - 24"
Leads: 22/2 AWG
Field Cuttable No Yes
dlmensions 0.47 x 0.13 in. (W x H) (Strip Only),
0.60 x 0.50 in. (W x H) (w/ End cap)
0.88 x 0.65 x 0.51 in. (Connection)		 0.47 x 0.13 in. (W x H) (Strip Only),
0.60 x 0.50 in. (W x H) (w/ End cap)
Environment* Outdoor / Wet Location / Submersible IP68 Outdoor / Wet Location IP65
Certification UL Listed 2108 & 676 UL Listed 2388
Warranty 5-Year Warranty 5-Year Warranty
COMPLETE SPOOLS of IP68 Rated HYDROLUME SLIM
HYDROLUME SLIM IP 65 May be ordered in 65.5' Spools of Standard and 32.2" of HD for you to configure as you wish using our available connecting components.
CUSTOM LENGTH ORDERING
HYDROLUME SLIM IP65 and HYDROLUME SLIM IP68 which is factory-sealed is made to to order in our Reno, NV manufacturing plant. We offer custom-sealed, single-run lengths up to 65 feet. With quick turnaround, HYDROLUME SLIM is the only solution for ultimate flexibility and durability indoors and out.

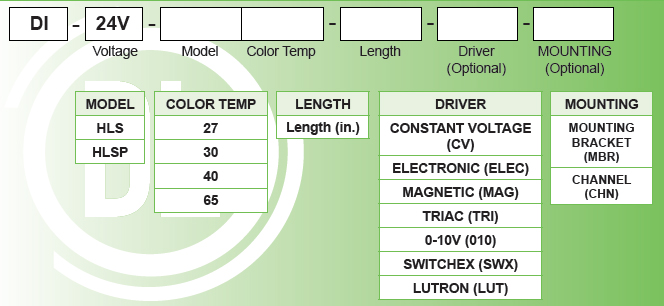

Ordeing

Example: dl-24V-HLSP30-384-ELEC-CHN
dlode, 24 Volt, HYDROLUME® SLIM HD, 3,000° CCT, 384 in. (32 feet), with Electronic Driver, and Mounting Channel

IP68 and IP65 STANDARD SOLD in INCREMENTS 0f 9.84" UP TO 65'
IP68 and IP65 HD SOLD in INCREMENTS 0f 96.88" UP TO 32"
- Please Contact Us for Your Custom Length Price -
888-844-3267 / ILLUMENATE@ME.COM



HYDROLUME SLIM STANDARD
ITEM CUSTOM
LENGTH		 COLOR COLOR
TEMP.		 CRI* LUMENS / FT POWER
CONSUMPTION / FT.		 # OF
LEDS / FT.		 PRICE for
65.5' SPOOL
dl-24V-HLS27-65 Up To
65'
in 9.84"
Increments		 warm white 2700K 80+ 113 1.22W 8 $2135.70
dl-24V-HLS30-65 warm white 3000K 113 $2135.70
dl-24V-HLS40-65 neutral white 4000K 122 $2135.70
dl-24V-HLS65-65 cool white 6500K 122 $2135.70
* COLOR RENDERING INDEX

HYDROLUME SLIM HD
ITEM CUSTOM
LENGTH		 COLOR COLOR
TEMP.		 CRI* LUMENS / FT POWER
CONSUMPTION / FT.		 # OF
LEDS / FT.		 PRICE for
32.2' SPOOL
dl-24V-HLSP27-32 Up To
32'
in 6.88"
Increments		 warm white 2700K 80+ 226 2.44W 12 $1293.30
dl-24V-HLSP30-32 warm white 3000K 226 $1293.30
dl-24V-HLSP40-32 neutral white 4000K 244 $1293.30
dl-24V-HLSP65-32 cool white 3200K 244 $1293.30
* COLOR RENDERING INDEX
BACK to TOP

CLICK IMAGE for LARGER VIEW
HYDROLUME SLIM IP65 CONNECTING AND MOUNTING ACCESSORMES
dl-HLS-EC-1 dl-HLS-IC dl-HLS-LC dl-HLS-PWRC dl-HLS-JPx
dl-HLS-MTBR dl-HLS-IC dl-HLS-LC dl-HLS-PWRC dl-HLS-JP
End Cap - 10 Pack "I" Connector "L" Connector Power Supply Link Cable Jumper

Terminal End Piece.
Connects two pieces of HYDROLUME® SLOM together. Straight
Connects two pieces of HYDROLUME® SLIM together. at a 90° Angle
Connects HYDROLUME® SLIM to a power supply
Creates a jumper between two pieces of HYDROLUME® SLIM Strip Light.
0.75" x 0.60" x 0.48" 0.88" x 1.06" x 0.57" 0.63" x 1.85" x 7.2" 6.0" Wire Length
DL-HLS-JP4
4" $5.40
DL-HLS-JP6
6" $5.60
DL-HLS-JP12
12" $6.00
DL-HLS-JP24
24" $6.40
$1.80 $5.40 $5.40 $5.40

dl-HLS-TC dl-HLS-XC dl-HLS-MTBR dl-HLS-MTCH
dl-HLS-TC dl-HLS-XC dl-HLS-MTBR dl-HLS-MTCH
"T" Connector "X" Connector Mounting Bracket - 10 Pack Mounting Channel - 2 Pack
Connects three pieces of HYDROLUME® SLIM together.
Connects four pieces of HYDROLUME® SLIM together.
This basic mounting clip screws to most surfaces with a single screw. HYDROLUME Strip Light can be snapped into place with firm pressure. Screws not included.
Mounting Channels are sold in Packs of 2 - 39.4 in. (1 meter) lengths. These mounting channels are easily trimmed to custom lengths. Screws not included.
    0.56" x 0.4" x 0.35" 0.62" x 39.4" x 0.4"
$5.40 $5.40 $18.00 $18.00
BACK to TOP

CLICK IMAGE for LARGER VIEW
ELEMENT CHANNELS FOR INDOOR / OUTDOOR STRIP MOUNTING
Features and Benefits
• Made from durable polymers
• Indoor/outdoor applications
• Resistant to outdoor elements
Details
ELEMENT™ Channels are durable mounting channels made from durable, reinforced polymers for all condltions. Two styles available for any application
ELEMENT™ FORTÉ Mounting Channel- Ideal for installing in all condltions with minimal presence. (Pack of 2 channels) Length - 39.4 in.
Comparability
•  Blaze™ Wet Location LED Strip Light (requires adhesive)
• Fluid View® Wet Location LED Strip Light (requires adhesive)
• DAZZLE® RGB Wet Location LED Strip Light
• Hydrolume® Series Strip Light
dl-ELMT-FT-39
dl-ELMT-FT-39
FORTE
Mounting Channel
Pack of 2
39.4” Length
$26.10
BACK to TOP


CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-dlmmable Drivers		 Hard-Wired
dlmmable Drivers		 12V and 24V
DRIVER / dlMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Adapters Hard-Wired Non-dlmmable Drivers Hard-Wired dlmmable Drivers Hard-Wired dlmmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our dlmmable Light Fixtures Powered by a Plug-In Adapter, Can Be dlmmed Using the REIGN 12V In-Wall Switch or the In-Line dlmmer Switch.
Hard-Wired Non-dlmmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our dlmmable Light Fixtures Powered by a Hard-Wired Driver, Can Be dlmmed Using the REIGN 12V In-Wall Switch or the In-Line dlmmer Switch.
Hard-Wired Non-dlmmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our dlmmable Light Fixtures Can be Powered by Our Hard-Wired dlmmable Drivers and a 120V Magnetic Low Voltage dlmmer Switch
SWITCHEX combines an LED dlmmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% dlmming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our dlmmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be dlmmed Using the In-Line dlmmer Switch
