Diode LED Dimmable LEDs
Engineered and Designed in the U.S.A.

Our patent-pending INFINILINE X LED Strip Light is a complete and robust solution for large-scale and commercial applications. The driverless AC power? design brings intuitive and labor saving installation to any continuous indoor/outdoor environment up to 200 feet. INFINILINE X is UL Listed to meet brand-new UL standards; making this flexible LED Strip light one of the safest and most advanced LED Lighting products on the market; giving you peace of mind with high performance. This unique plug-and-go lighting solution works well with any architectural or landscape project with cost-effective, hassle free installation.
INFINILINE X INFINILINE BASICS

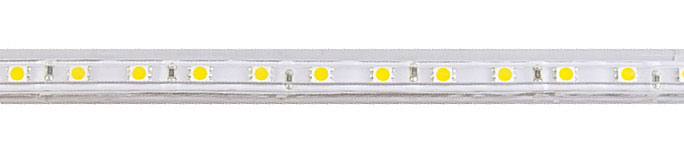

INFINILINE X STRIP
SPECIFICATIONS and PRICING		 INFINILINE X STRIP
ACCESSORIES
fluid View
CLICK any ICON Below for Full Explanation:
ETL Wet or Dry Location
ETL
CERTIFIED		 Indoor or
Outdoor

• Restaurants, retail stores, bars, lounges, and casinos
• Under cabinet lighting, shelves, cupboards, closets, and drawers
• Architectural models and doll houses
• Lighting art, accent pieces, and wine caves (no UV emissions)
• Coin-operated vending machines and arcade games
• Boat interiors
Click Button for PDF INFINILINE X LED Installation Guide PDF Wiring Diagram
Click Button for INFINILINE LED X PDF Specifications INFINILINE X LED PDF Specifications
Click Button for Full 5 Year
Warranty Information		 Diode LED Warranty
BACK to TOP

TECH SPECS
Sold in 4" Increments up to 200' Width : 0.31 in. / Height: 0.1 in.
Color Temperature Range: 2700K - 6500K LED Type: 3030 SMO LED
Beam Angle: 120° LED Spacing: 0.33 in. between centers
Working Voltage: 120V AC Lifespan: 50,000+ hours
LEDs Per Foot : 36 Lumens Per Foot: 230
IP Rating: IP65 UV/IR Radiation: None
Power Consumption Per Foot: 4.57W
Custom Lengths available up to 200'. Custom orders come with power plugs, sealed end caps and mounting clips.
COLOR TEMPERATURE ILLUSTRATION
KChart

ITEM LENGTH COLOR COLOR
TEMP.		 CRI* LUMENS / FT POWER
CONSUMPTION / FT.		 # OF
LEDS / FT.		 PRICE for
200' Spool
DI-120V-INFX27 UP to 200'

in

4" Increments 		warm white 2700k 91 402 4.57W 36 CONTACT US for PRICING
DI-120V-INFX30 warm white 3000k 92 427 4.57W 36
DI-120V-INFX35 neutral white 3500k 92 449 4.57W 36
DI-120V-INFX40 neutral white 4000k 95 427 4.57W 36
DI-120V-INFX45 cool white 4500k 95 428 4.57W 36
DI-120V-INFX60 cool white 6000k 95 447 4.57W 36
DI-120V-INFX-CUSTOM Custom Lengths Available in 4" Increments. Contact us with Color and Length for Quotation.
888-844-3267 or ILLUMENATE@ME.COM
* COLOR RENDERING INDEX
BACK to TOP

CLICK IMAGE for LARGER VIEW
INFINILINE X ACCESSORIES
DI-INFX-PWEC DI-INFX-CAP DI-INFX-RTCL-2 DI-INFL-CLIP DI-INF-MTCH DI-INFX-JMPR
DI-INFX-PWEC DI-INFS-CAP DI-INFX-RTCL-2 DI-INFL-CLIP DI-INFX-MTCF DI-INFX-JMPR
INFINILINE X
Power Plug		 INFINILINE X
End Caps		 INFINILINE X
Rotating
Mounting Clips		 INFINILINE X
Mounting Clips		 INFINILINE X
Mounting Channel		 INFINILINE X
Mounting Channel
Delivers 120V power to INFINILINE X LED Strip Light. One power plug with built-in Rectifier included with each spool.
Seals ends of INFINILINE X to protect against dust and moisture. End caps included in order.
Secures INFINILINE X o a flat surface with included screws allowing for rotation.
Secures INFINILINE X to a flat surface with included screws. 10 Pack
Secures INFINILINE X to a flat surface.
Up to 3 Jumpers may be Installed in each INFINILINE X run. Available in 3", 6", 12" and 24" Lengths.
    CONTACT US for PRICING
