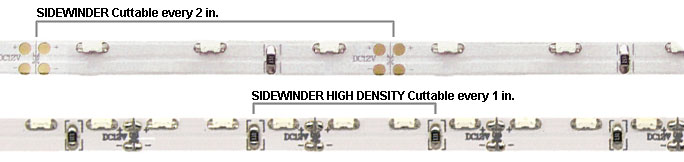

SIDEWINDER Vertical Strip Light’s low Profilee and narrow width allows use in many dlscreet locations. The depth of the SIDEWINDER Vertical Strip Light is a mere 0.2 inches, so it will fit virtually anywhere and comes with a 3M™ adhesive backing that permits easy mounting. The flat-style 12V LEDs cast light sideways at a 90 degree angle from the strip surface instead of straight out like all other dlode LED strip lights.
The SIDEWINDER Vertical Strip Light can be powered by either a Plug-In Adapter or Hard-Wired Driver. And the SIDEWINDER Vertical Strip Light can be dlmmed by our in-wall REIGN 12V/24V dlmmer Switches or by the dlode LED Hard-Wired dlmmable Drivers.
Power Consumption Per Foot: 1.44W / 120mA - 2.88W / 240mA
Lifespan: 50,000+ hours
Connectors: 16.4 ft. spools come with 3 foot bare lead wires on one end and a 12 inch white, female DC plug on the other end; 100 ft. spools come with 3 foot bare lead wires on both ends
Each 16.4 foot of Sidewinder Strip Light must be Wired dlrectly to Power Supply.
COLOR TEMPERATURE ILLUSTRATION
LIMITED AVAILABILITY - CONTACT US to CONFIRM AVAILABILITY
SIDEWINDER 12V Standard Density Strip Light
ITEM
LENGTH
COLOR
COLOR
TEMP.
CRI
LUMENS / FT.
POWER
CONSUMPTION / FT.
# OF
LEDS / FT.
PRICE
dl-12V-0025
16.4 ft. / 5m
warm white
3000k
70
114
1.44W / 120mA
18
$256.95
dl-12V-0026
16.4 ft. / 5m
cool white
6300k
70
113
1.44W / 120mA
18
N/A
SIDEWINDER 12V HIGH Density Strip Light
ITEM
LENGTH
COLOR
COLOR
TEMP.
CRI
LUMENS / FT.
POWER
CONSUMPTION / FT.
# OF
LEDS / FT.
PRICE
dl-12V-1571
16.4 ft. / 5m
warm white
3000k
70
226
2.88W / 240mA
36
$406.00
dl-12V-1570
16.4 ft. / 5m
cool white
6300k
70
217
2.88W / 240mA
36
$406.00
CUSTOM LENGTHS AVAILABLE FOR EASE OF INSTALLATION
Assembled in the USA
Custom Finished LED Tape Light
• Cut LED tape light to specified lengths
• Choose from a wide variety of single-color and color-changing options
• Lead wire is cut to specified length and soldered to the end of the tape light
Custom Cut CHROMAPATH™ Aluminum Channels
• Cut CHROMAPATH Aluminum Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Each channel includes:
2 optional end-to-end connector plugs to connect to another CHROMAPATH Channel for runs longer than 4 feet.
2 mounting clips with each SQUARE, 45, and DUO channel.
SLIM channels don’t require mounting clips. SLIM Channel Mounting Tape is sold separately.
Fully Loaded CHROMAPATH Fixtures with LED Tape Light
• Create a customized, low-Profilee light fixture to specified length and color temperature by addlng your choice of LED
tape light to your preferred CHROMAPATH Aluminum Channel
• Cut CHROMAPATH Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Lead wire is cut to specified length and soldered to the end of the tape light within the fixture
• The fixture is completed with a CHROMAPATH Cover and End Caps
• SQUARE, 45 DEGREE, and DUO channel styles include 2 mounting clips. SLIM channels don’t require mounting clips.
SLIM Channel Mounting Tape is sold separately.
SIDEWINDER Tape Light is not compatible with CLICKTIGHT™ Connectors. SIDEWINDER comes manufactured with leads at one end and a DC plug connector at the other. dlode LED offers custom tape light cutting and wire soldering services for SIDEWINDER projects.
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.
• New wider track fits all CLICKTIGHT connectors to eliminate the use of soldering, and maximizes beam angle.
Channels and End Caps Available in
Glossy White (W), Aluminum
and Satin Black (B)
• New mounting clips make installation easy. Simply mount the clips to a desired surface and snap in the Aluminum Channel.
• 48” channel length accommodates strip light cut point
of all densities for flawless lighting throughout the full enclosure.
Click Button for PDF Instructions
Click BUTTON for CHROMAPATH SPECIFICATIONS
dl-CPCHA-SQ48
dl-CPCHA-SQ7296
dl-CPCHA-4548
dl-CPCHA-4596
dl-CPCHA-DU48
96" NOT Available
dl-CPCHA-SL48
dl-CPCHA-SL72
dl-CPCHA-SL96
96" CHANNELS, COVERS and CHANNEL KITS REQUIRE a SHIPPING QUOTE PROVIDED by dlODE LED
SQUARE
Aluminum Channel
45°
Aluminum Channel
DUO
Aluminum Channel
SLIM
Aluminum Channel
CHROMAPATH Channels Available in 48" and 96" Lengths
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Aluminum Channel Only.
Mounts with dl-1633 or dl-1634 (3M Double Sided Tape)
FINISH KEY: Aluminum ( ) / Satin Black (B) / Glossy White (W)
LENGTH KEY: 48 - 48" / 72 - 72" / 96 - 96"
dl-CPCHA-SQ48 / 96
$33.30 / $82.35
dl-CPCHA-SQ48B / 96B
$42.75 /$95.85
dl-CPCHA-SQ48W / 96W
$42.75 /$95.85
dl-CPCHA-4548 / 96
$41.85 / $99.00
dl-CPCHA-4548B / 96B
$49.95 / $117.90
dl-CPCHA-SQ48W / 96W
$49.95 / $117.90
dl-CPCHA-DU48
N/A
dl-CPCHA-DU48B
N/A
dl-CPCHA-DU48W
N/A
dl-CPCHA-SL48 / 72 / 96
$18,00 / $36.00 / $47.70
dl-CPCHA-SL48B / 72B / 96B
$24.30 / $43.20 / $56.70
dl-CPCHA-SL48W / 72W / 96W
$24.30 / $43.20 / $56.70
CHROMAPATH™ END CAPS
dl-CPEC-SQ
dl-CPEC-45
dl-CPEC-DU
dl-CPEC-SL
FINISH KEY: Aluminum ( ) / Satin Black (B) / Glossy White (W)
SQUARE End Cap
Set
of 1 Open / 1 Closed
45° End Cap
Set
of 1 Open / 1 Closed
DUO End Cap
Set
of 1 Open / 1 Closed
SLIM End Cap
Set
of 1 Open / 1 Closed
dl-CPEC-SQ-1
$2.70
dl-CPEC-SQB-1
$2.70
dl-CPEC-SQW-1
$2.70
dl-CPEC-45-1
$2.70
dl-CPEC-45B-1
$2.70
dl-CPEC-45W-1
$2.70
dl-CPEC-DU
N/A
dl-CPEC-DUB
N/A
dl-CPEC-DUW
N/A
dl-CPEC-SL
$1.80
dl-CPEC-SLB
$1.80
dl-CPEC-SLW
$1.80
PREMIUM dlFFUSION END CAPS
dl-CPEC-SQPD6
$2.70
dl-CPEC-SQPDB
$2.70
dl-CPEC-SQPDW
$2.70
dl-CPEC-45PD
$2.70
dl-CPEC-45PDB
$2.70
dl-CPEC-45PDW
$2.70
N/A
dl-CPEC-SLPD
$1.80
dl-CPEC-SLPDB
$1.80
dl-CPEC-SLPDW
$1.80
CHROMAPATH™ Aluminum Channel ACCESSORIES
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.
The ultimate in total dlffusion for uninterrupted continuous LED light output. Please note there is an average warm shift in Kelvin of 75K and an average 24% decrease in delivered lumens.(Not for use with DUO Channel. Not for use with DAZZLE® RGBW or VALENT® LED Tape Light).
dl-1630-20
dl-1631-10
dl-1912
dl-CPCH-RC-BA
dl-CPCH-RC-BL
dl-CPCH-RC-WH
dl-CPCH-HNG
Mounting Clips
20 Pack NOT for SLIM
CHANNEL
End to End Connectord
10 Pack NOT for SLIM
CHANNEL
Vertical Mounting Support for
SQUARE and 45°
Adjustablle Angle Mounting Rotating Clips NOT for SLIM - 2 Clips and 2 Screws
Transform your Channel into a pendent fixture with
Hanging Hardware Kit NOT for SLIM CHANNEL
$18.45
$14.40
$9.00
$22.50 per Set
CLICK for SPECS
$40.95
dl-CPCH-UC-BA
dl-CPCH-UC-BL
dl-CPCH-UC-WH
dl-CPCH-MUC-BA
dl-CPCH-MUC-BL
dl-CPCH-MUC-WH
dl-CPCHC-FR48
dl-CPCHC-CL48
dl-CPCHC-FR72
dl-CPCHC-CL72
dl-CPCHC-FR96
dl-CPCHC-CL96
Premium dlffusion Cover
dl-CPCHC-PD48
dl-CPCHC-PD72
dl-CPCHC-PD96
dl-1634
Mounting U-Clips for SLIM - 2 Clips and 2 Screws, Brushed Aluminum, Satin Black or Glossy White
Magnetic Mounting U-Clips for SLIM - 2 Clips and 2 Screws, Brushed Aluminum, Satin Black or Glossy White
TAPEGUARD is the easiest way to provide a decorative protection fot indoor LED tape light installations and create an attractive aond finished look.
The low-Profilee cover comes wiyh an adhesive edging that adheres to clean, dry surfaces. TAPEGUARD is made of lightweight, polycarbonate plastic that is easy to install and maintain. The covers can be placed end to end or cut to size for the perfect finished look to linear LED tape installations.
• Choose CLEAR cover for maximum light output
Add a wipeable protective lens to LED tape light for protection from:
• Dust
• Airborne Grease and dlrt
• Choose FROSTED COVER for subtle light dlffusion
• Works with AVENUE 24, FLUID VIEW, BLAZE, DAZZLE 24 and K-RANGE 24
• Does not change the IP rating of the tape light
dl-TAPE-GRD-FR / dl-TAPE-GRD-CL
Shown with BLAZE
LED Tape Light
0.4" Wide x 0.15" Height
x 39.4" Length
Simply Cut to length, Peel edge backing and Apply to surface
FROSTED - $8.10
CLEAR - $8.10
BACK to TOP CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters
Hard-Wired
Non-dlmmable Drivers
Hard-Wired
dlmmable Drivers
12V and 24V
DRIVER / dlMMER
REIGN
In-Wall Controls
In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our dlmmable Light Fixtures Powered by a Plug-In Adapter, Can Be dlmmed Using the REIGN 12V In-Wall Switch or the In-Line dlmmer Switch.
Hard-Wired Non-dlmmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our dlmmable Light Fixtures Powered by a Hard-Wired Driver, Can Be dlmmed Using the REIGN 12V In-Wall Switch or the In-Line dlmmer Switch.
Hard-Wired Non-dlmmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our dlmmable Light Fixtures Can be Powered by Our Hard-Wired dlmmable Drivers and a 120V Magnetic Low Voltage dlmmer Switch
SWITCHEX combines an LED dlmmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% dlmming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our dlmmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be dlmmed Using the In-Line dlmmer Switch
